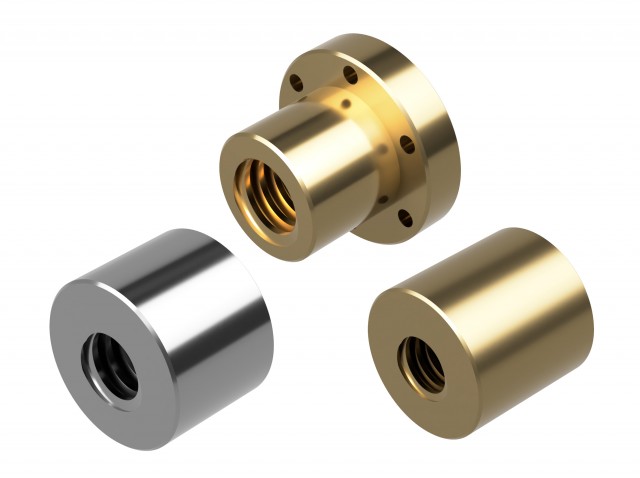

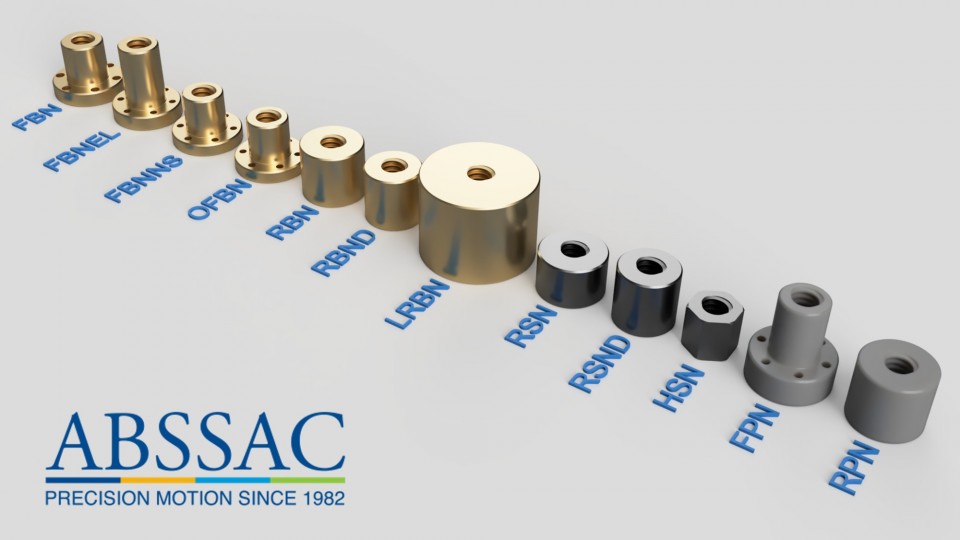

Lead screw and nut combinations are often chosen from standard ranges to convert the rotary motion of the screw into a linear movement. However sometimes the nut design can be adapted to deliver more than one advantage. One big advantage is that nuts can be manufactured in just about any machineable material including bronze, steel or advanced plastics such as Delrin, PTFE and Turcite. At ABSSAC we have a full machining capability which is often used by customers to reduce their own machining reduce scrap rates but also deliver bespoke designs that you know will have the best fit tolerances.
With well over 3 decades of application experience and knowledgeable staff that are always available, please do not hesitate to contact our sales engineers on 01386 421 005
We will be more than happy to help, so please call today!
| Screws | Available Nuts | ||||||||
|---|---|---|---|---|---|---|---|---|---|
.jpg) | RBN | RSN | HSN | FBN | RPN | FPN | |||
 |  |  |  |  |  | ||||
| Diameter | Lead (mm) | Right Handed | Left Handed | ||||||

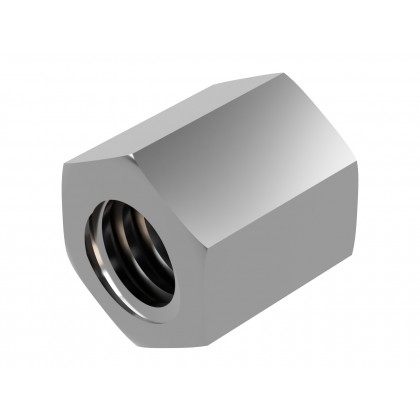

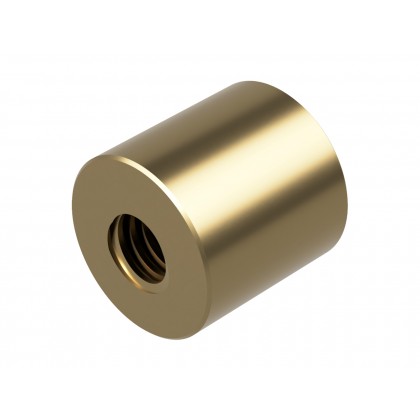

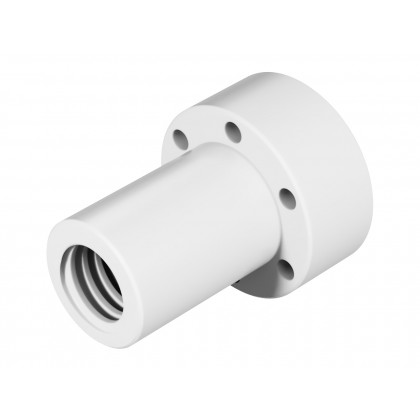

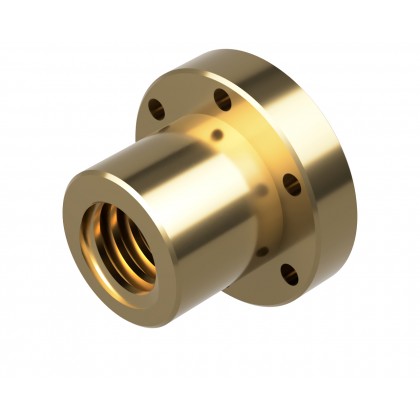

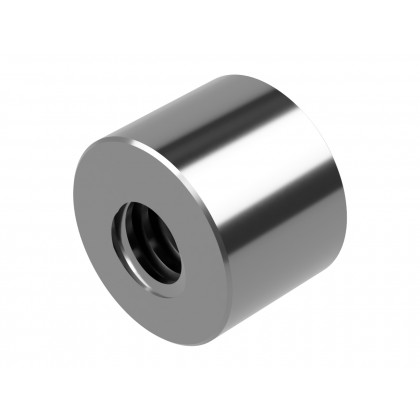

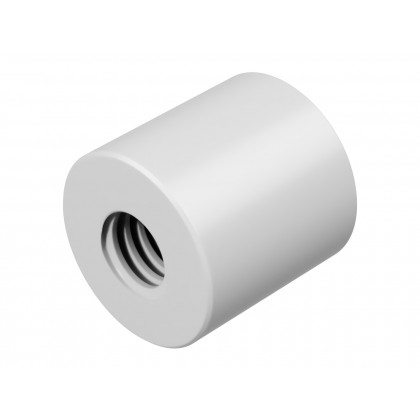

| (mm) | Round Bronze Nut | Round Steel Nut | Hex Steel Nut | Flanged Bronze Nut | Round Plastic Nut | Flanged Plastic nut | |||
| 10 | 2 | • | • | • | • | • | • | Not Available | Not Available |
| 10 | 3 | • | • | • | • | • | • | Not Available | Not Available |
| 10 | 4 | • | • | • | • | • | Not Available | Not Available | |
| 12 | 3 | • | • | • | • | • | • | Not Available | Not Available |
| 12 | 6 | • | • | • | • | • | • | Not Available | Not Available |
| 14 | 3 | • | • | • | • | • | • | Not Available | Not Available |
| 14 | 4 | • | • | • | • | • | • | Not Available | Not Available |
| 14 | 6 | • | • | • | • | • | Not Available | Not Available | |
| 16 | 4 | • | • | • | • | • | • | Not Available | Not Available |
| 16 | 8 | • | • | • | • | • | Not Available | Not Available | |
| 18 | 4 | • | • | • | • | • | • | Not Available | Not Available |
| 18 | 8 | • | • | • | • | • | • | Not Available | Not Available |
| 20 | 4 | • | • | • | • | • | • | Not Available | Not Available |
| 20 | 8 | • | • | • | • | • | Not Available | Not Available | |
| 20 | 20 | • | • | • | • | • | Not Available | Not Available | |
| 22 | 5 | • | • | • | • | • | • | Not Available | Not Available |
| 22 | 10 | • | • | • | • | • | Not Available | Not Available | |
| 24 | 5 | • | • | • | • | • | • | Not Available | Not Available |
| 24 | 10 | • | • | • | • | • | Not Available | Not Available | |
| 25 | 5 | • | • | • | • | • | • | Not Available | Not Available |
| 25 | 10 | • | • | • | • | • | Not Available | Not Available | |
| 25 | 25 | • | • | • | • | • | Not Available | Not Available | |
| 26 | 5 | • | • | • | • | • | • | Not Available | Not Available |
| 26 | 10 | • | • | • | • | • | Not Available | Not Available | |
| 28 | 5 | • | • | • | • | • | • | Not Available | Not Available |
| 28 | 10 | • | • | • | • | • | Not Available | Not Available | |
| 30 | 6 | • | • | • | • | • | • | Not Available | Not Available |
| 30 | 12 | • | • | • | • | • | Not Available | Not Available | |
| 30 | 30 | • | • | • | • | • | Not Available | Not Available | |
| 32 | 6 | • | • | • | • | • | • | Not Available | Not Available |
| 32 | 12 | • | • | • | • | • | Not Available | Not Available | |
| 35 | 6 | • | • | • | • | • | • | Not Available | Not Available |
| 35 | 8 | • | • | • | • | • | • | Not Available | Not Available |
| 36 | 6 | • | • | • | • | • | • | Not Available | Not Available |
| 40 | 7 | • | • | • | • | • | • | Not Available | Not Available |
| 40 | 8 | • | • | • | • | • | Not Available | Not Available | |
| 40 | 10 | • | • | • | • | • | Not Available | Not Available | |
| 40 | 40 | • | • | • | • | • | Not Available | Not Available | |
| 44 | 7 | • | • | • | • | • | • | Not Available | Not Available |
| 45 | 8 | • | • | • | • | • | • | Not Available | Not Available |
| 50 | 8 | • | • | • | • | • | • | Not Available | Not Available |
| 50 | 10 | • | • | • | • | • | Not Available | Not Available | |
| 55 | 9 | • | • | • | • | • | Not Available | Not Available | |
| 60 | 9 | • | • | • | • | • | • | Not Available | Not Available |
| 70 | 10 | • | • | • | • | • | • | Not Available | Not Available |
| 80 | 10 | • | • | • | • | • | • | Not Available | Not Available |
| 90 | 12 | • | • | • | • | • | Not Available | Not Available | |
| 95 | 16 | • | • | • | • | • | Not Available | Not Available | |
| 100 | 12 | • | • | • | • | • | Not Available | Not Available | |
| 100 | 16 | • | • | • | • | • | Not Available | Not Available | |
| 120 | 14 | • | • | • | • | • | Not Available | Not Available | |
| 120 | 16 | • | • | • | • | • | Not Available | Not Available | |
| 140 | 14 | • | • | • | • | • | Not Available | Not Available | |
| Screws | Available Nuts | ||||||||
|---|---|---|---|---|---|---|---|---|---|
.jpg) | RBN | RSN | HSN | FBN | RPN | FPN | |||
| | | | | | ||||
| Diameter | Lead (mm) | Right Handed | Left Handed | ||||||
| (mm) | Round Bronze Nut | Round Steel Nut | Hex Steel Nut | Flanged Bronze Nut | Round Plastic Nut | Flanged Plastic nut | |||
| 10 | 2 | • | • | Not Available | Not Available | • | • | • | |
| 12 | 3 | • | • | • | Not Available | Not Available | • | • | • |
| 12 | 6 | • | • | Not Available | Not Available | • | • | • | |
| 14 | 3 | • | • | Not Available | Not Available | • | • | • | |
| 14 | 4 | • | • | • | Not Available | Not Available | • | • | • |
| 16 | 4 | • | • | • | Not Available | Not Available | • | • | • |
| 16 | 8 | • | • | Not Available | Not Available | • | • | • | |
| 18 | 4 | • | • | • | Not Available | Not Available | • | • | • |
| 20 | 4 | • | • | • | Not Available | Not Available | • | • | • |
| 20 | 8 | • | • | Not Available | Not Available | • | • | • | |
| 22 | 5 | • | • | Not Available | Not Available | • | • | • | |
| 24 | 5 | • | • | • | Not Available | Not Available | • | • | • |
| 25 | 5 | • | • | • | Not Available | Not Available | • | • | • |
| 25 | 10 | • | • | Not Available | Not Available | • | • | • | |
| 26 | 5 | • | • | Not Available | Not Available | • | • | • | |
| 28 | 5 | • | • | Not Available | Not Available | • | • | • | |
| 30 | 6 | • | • | • | Not Available | Not Available | • | • | • |
| 30 | 12 | • | • | Not Available | Not Available | • | • | • | |
| 36 | 6 | • | • | • | Not Available | Not Available | • | • | • |
| 40 | 7 | • | • | • | Not Available | Not Available | • | • | • |
| 40 | 14 | • | • | Not Available | Not Available | • | • | • | |
| 50 | 8 | • | • | • | Not Available | Not Available | • | • | • |
| 60 | 9 | • | • | • | Not Available | Not Available | • | • | • |
| 70 | 10 | • | • | • | Not Available | Not Available | • | • | • |
| Screws | Available Nuts | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| RBN | RSN | HSN | FBN | RPN | FPN | |||
| | | | | | ||||
| Diameter | Lead (mm) | Right Handed | Left Handed | ||||||
| (mm) | Round Bronze Nut | Round Steel Nut | Hex Steel Nut | Flanged Bronze Nut | Round Plastic Nut | Flanged Plastic nut | |||
| 10 | 2 | • | • | Not Available | Not Available | • | • | • | |
| 12 | 3 | • | • | • | Not Available | Not Available | • | • | • |
| 14 | 3 | • | • | Not Available | Not Available | • | • | • | |
| 16 | 4 | • | • | • | Not Available | Not Available | • | • | • |
| 18 | 4 | • | • | Not Available | Not Available | • | • | • | |
| 20 | 4 | • | • | • | Not Available | Not Available | • | • | • |
| 22 | 5 | • | • | Not Available | Not Available | • | • | • | |
| 26 | 5 | • | • | Not Available | Not Available | • | • | • | |
| 28 | 5 | • | • | Not Available | Not Available | • | • | • | |
| 30 | 6 | • | • | • | Not Available | Not Available | • | • | • |
| 32 | 6 | • | • | • | Not Available | Not Available | • | • | • |
| 36 | 6 | • | • | • | Not Available | Not Available | • | • | • |
| 40 | 7 | • | • | • | Not Available | Not Available | • | • | • |
| 50 | 8 | • | • | • | Not Available | Not Available | • | • | • |
| 60 | 9 | • | • | • | Not Available | Not Available | • | • | • |
| 70 | 10 | • | • | • | Not Available | Not Available | • | • | • |
