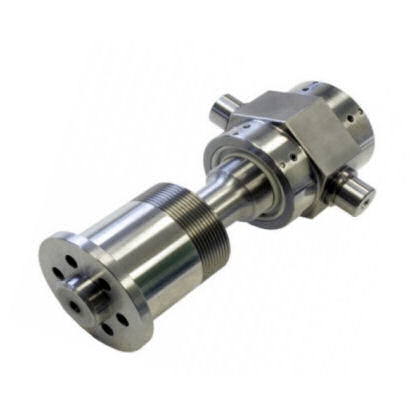

  • Custom roller screws
  • High and fine leads are available

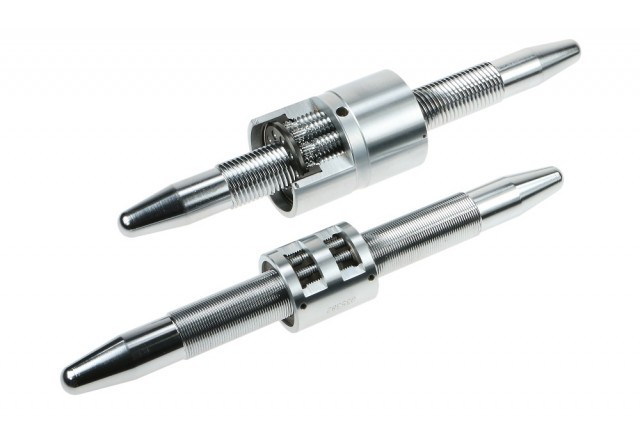

Satellite roller screws

If you are looking for enhanced linear performance within your application, through trusted engineering support then the satellite roller screw program is worth considering. With a proven pedigree in application placement, the satellite roller screw program offers a unique precision linear device, that accurately transforms rotary movement into a linear motion.  Utilising, internally captivated threaded rollers that sit between the screw and the nut dramatically increases the high number of points of contact with the bearing system. This mechanical advantage enables satellite roller screws to support very heavy loads with precise and reliable motion. Meticulous attention to detail during manufacture ,backed up with honed experience,  delivers a formidable linear package.

Can we help?

With over 40 years of application experience, our knowledgeable staff are always available. Please contact us on 01386 421 005

We will be more than happy to help, so please call today!

Standard series or bespoke model types are available.

The satellite roller screw product is a fully adaptive platform that delivers totally reliable and precise linear movement. Utilising the most modern manufacturing techniques for both machining and grinding processes delivers a product with incredible accuracy and performance.  Working closely with the customer, the majority of projects undertaken consider the total dynamics of an application where the functionality of the roller screw is optimised, through decades of application experience.

There are many ways of transferring a rotational force into a linear one, particularly in the world of linear translation devices.  Such devices include the simple lead screw and plastic nut and the industrial standard recirculating ball screw device. Each design discipline has advantages and disadvantages over the other but equally each have a legitimate place in the linear market.  An often misunderstood linear device however is the satellite roller screw, and it is worth some extra attention due to the nature of its function and capability. With a traditional recirculating ball screw design, the captivated ball bearings within the nut housing transfer the load (force) between the screw and nut.

This ordinarily means that in order to increase the load capacity, but remain with the same sized screw; you have to change the ball nuts physical parameters. Firstly, an increase in the amount of ball bearings physically touching the load surface of screw and nut within the nut housing will increase its load capacity. This can be done by increasing the amount of times the ball bearings recirculate within the ball nut housing, but the playoff of this change normally means a larger diameter nut housing or a longer nut housing.  To this effect, the ball nut size versus its load capacity will always be apposing each other. It is true to say that all these options ultimately increase the load capacity, but in every case there is still a limitation of the actual load bearing surface area per ball bearing.  This is where the satellite roller screw has a large advantage, which ultimately translates into a high load transfer capability.

The satellite roller screw employs matched rollers that rotate (or satellite as the product name suggests) around the screw thread during actuation instead of ball bearings. By design, there is an immediate increase in the physical amount of contact points on the screw that can support a load compared with that of the same diameter ball screw. The satellite roller screw is therefore primarily chosen as part of a transition within a new or existing design to achieve greater load capacity and greater linear positional accuracy, in the smallest envelope space. The admissible static and dynamic load capacities are therefore considerably higher than that of ball screw for the same diameter. In fact the static load can be 3 times greater than that of ball screws and as a consequence, their lifespan can be up to 15 times longer.  The many points of contact also give a satellite roller screw greater rigidity and shock tolerance than a ball screw without a compromise to friction or efficiency.

  • Satellite roller screws
  • Roller screws from design to production

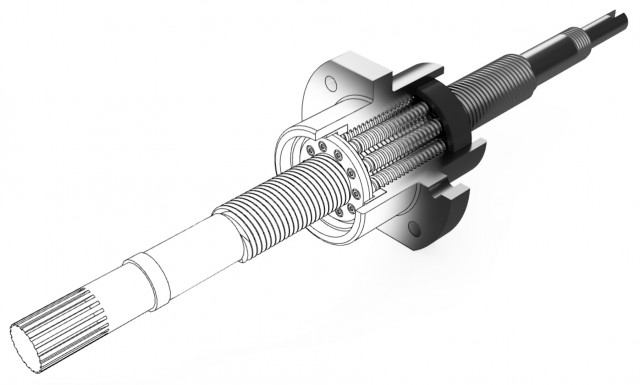

    Roller screws from design to production
  • Roller screws can accept exceptional acceleration forces

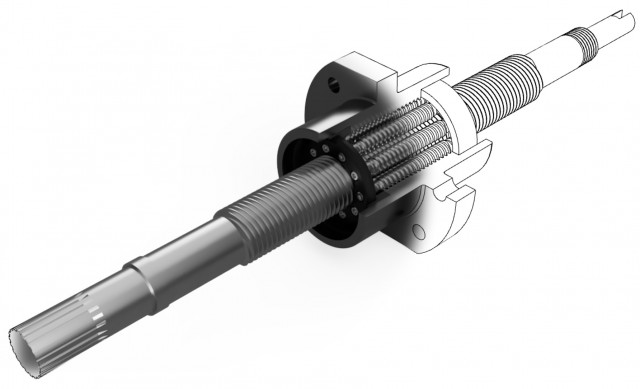

    Roller screws can accept exceptional acceleration forces
  • Roller screws have full design capability

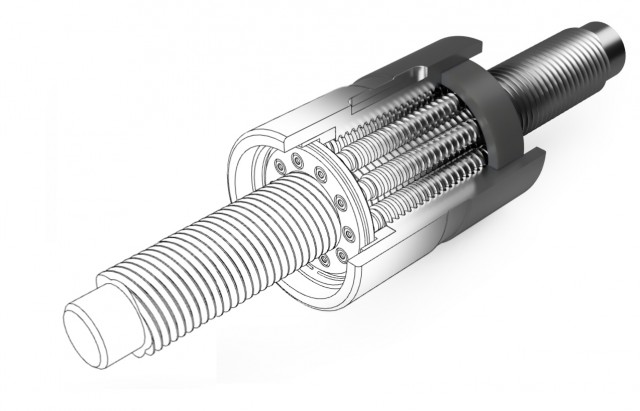

    Roller screws have full design capability
  • Roller screws are completely adaptable

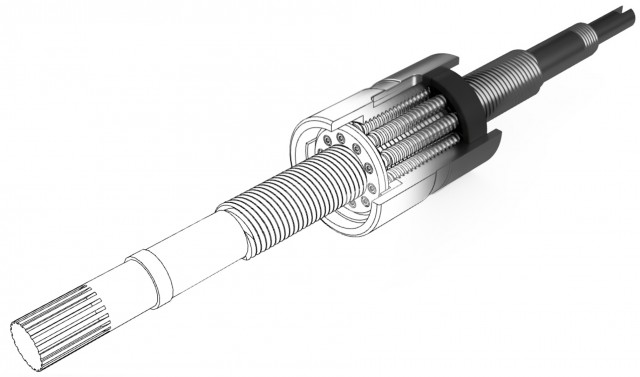

    Roller screws are completely adaptable

Satellite roller screws are precision linear devices, that accurately transform rotary movement into a linear movement.

The first patent for a roller screw was recorded in 1949 by the inventor Mr Bruno Standgren, an adaptation of a friction less bearing design patented back in 1939 by Mr Oscar and Stewart McCurdy. In essence the idea was to convert the rotation of a threaded bar into an accurate linear motion via a series of timed and captivated roller bearings within a nut housing. The roller bearings would rotate or satellite around the diameter of the screw giving rise to the full name of the product; the satellite roller screw. The rigid design allows for a small overall diameter of nut but have the ability to deliver massive load capacity due to the many contact points between rollers and screw. Having a bearing heritage means that the whole assemble can be up to 97% efficient and can have an expected life up to 15 times longer than any ball screw equivalent. The design accepts high acceleration and deceleration and is capable of rotating in excess of 5000 rpm, making the roller screw product a superior linear drive alternative.

A roller screw design will always transmit more load than a ball screw nut assembly size for size.

  • These are some of the questions being asked by design engineers or maintenance engineers when coming to ABSSAC in search of linear technical assistance.
  • "I need more performance from my ball screw."
  • "My hydraulic linear actuation system is a major part of my maintenance schedule"
  • "My ball screw is failing prematurely due to high duty cycle".
  • "I have reached the boundary of performance from my existing ball screw but have no way of increasing its dimensions within the current design"

What we believe to be the smallest satellite roller screw in the world has been supplied for a medical application. The satellite roller screw type RV 3.5 x 1 mm (diameter of the screw 3.5 mm, lead 1 mm) provides a repeatability of 1 micron. Amazingly the new miniature assembly has the capacity to move over 20'000 times its own weight. A great example of a high load application successfully mastered by the satellite roller screw was recently exemplified when a standard RV style screw replaced a hydraulic cylinder within an injection moulding machine. Traditionally, hydraulic cylinders initiate the pressure control required within injection moulding machines to ensure mould integrity. Pneumatic systems cannot produce the necessary forces, and traditional ball screw designs would have to be over-sized to achieve similar forces reliably. During injection moulding, plastic material is heated until molten. A motorised auger screw forces the molten material to the end of the injection cylinder. Once enough material has accumulated in front of the screw, the injection process begins with injection pressure provided by hydraulic actuation. However, using hydraulics inevitably requires the use of hydraulic pumps, pipes, seals and control units within the machine, all of which can be bulky in design and expensive to maintain. The satellite roller screw product delivered the same linear forces necessary for injection, but also has the advantage of being coupled to less expensive and infinitely more adjustable closed loop electric motor drive design.

Interestingly, the same program can now deliver a differential nut and screw set up (RVD). Based on a variant of the RV and HRV screws, its components are used to produce extremely fine lead of threads or even a zero lead.  The movement of the rollers in this somewhat complex mechanism does however prevent a wide range of travel, but does achieve a predicted and highly accurate function of proceeding at a different rate to the input rotation. (Please note that to achieve this differential result, the nuts are larger than on the RV and HRV types)


After its founding in 1970, ROLLVIS SA soon began to focus on the manufacture and marketing of satellite roller screws under the trademark. Now a benchmark in this highly specialized field, ROLLVIS SA has invested in the most powerful machines for the production of screws with low tolerance margins designed to individual specifications. A fast-growing company with a young and highly qualified workforce, ROLLVIS SA recently moved into new ultra-modern premises near to Geneva. It is structured to preserve its human scale and its capacity to listen and adapt perfectly to its customers’ requirements.  Four decades and more of skills and experience combined with the latest high-end techniques ensure its products comply with the most stringent and demanding standards.


Where ABSSAC excels is in the adaptation of the standard product and adding value. Using the Rollvis Satellite roller screws as the base product makes them particularly suitable for applications where high axial loads, high speed, and high feed speeds are required. Other applications to date have included flight critical aerospace apparatus, medical operating equipment and advanced machine tool operations.

The key product advantages are:

  • Heavy axial loads for a small diameter screw
  • Nut designs with extreme long life
  • High efficiency
  • No-backlash standard high stiffness linear precision up to 6 µm / 300 mm
  • Can accept a high rotary speed (system RV and HRV without roller return type)
  • Extremely small leads can be supplied on large diameter screws (system RVR with roller return design)

As standard, satellite screws can be supplied with outside diameters as small as 10mm and up to 200mm. Leads can be as fine as 0.25mm. The product can be finitely accurate and capable of being adapted into very specialist and demanding linear applications.

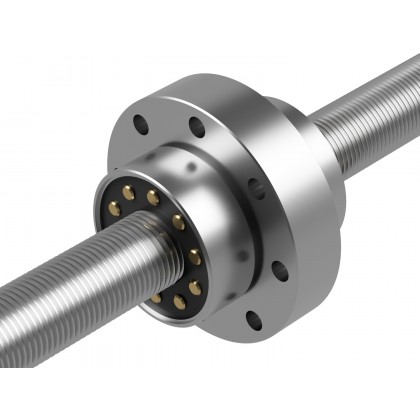

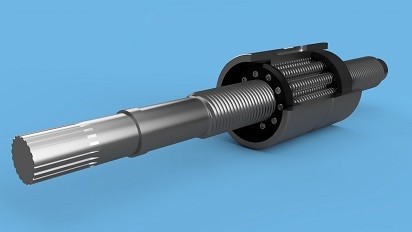

Type RV

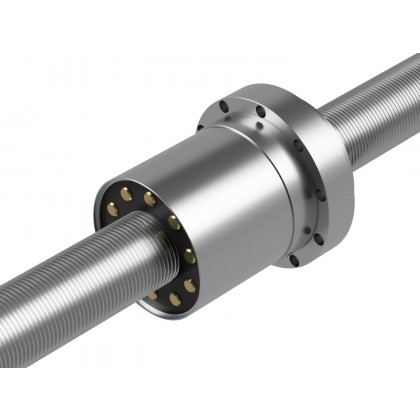

The main elements of RV and HRV satellite roller screws are the screw, the nut and satellite rollers and primarily have multiple-start thread formats. The angle between the flanks is 90° and the profile is triangular. The nut has an internal thread identical to that of the screw. The rollers have a single-start thread with an angle the same as that of the nut. This ensures there is no axial movement between the nut and the rollers. The rollers do not therefore need to be recycled. The flanks of the roller thread are convex. At each end of the rollers there is a cylindrical pivot and gear teeth. The pivots are mounted in the holes of the end rings, thus ensuring the rollers are equidistant. The end rings are floated in the nut body and axially secured with circlips. The gear teeth engage in gear wheels fixed in the nut. This guides the rollers parallel to the axis to ensure perfect functioning.

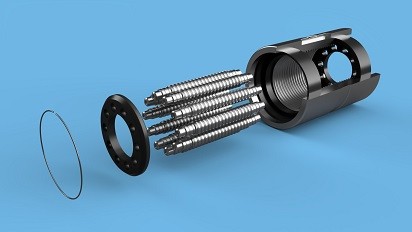

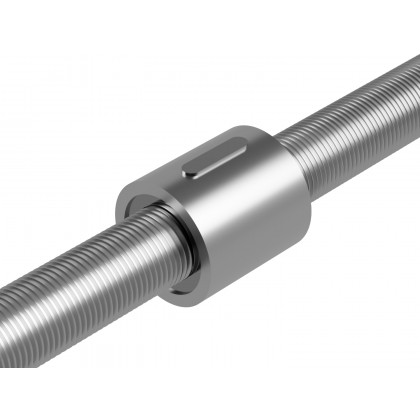

Type RVD Differential screws.

The RVD series is a variant of the RV and HRV screws. Using the same technology and similar components, the ratios between nut rollers and screw thread are expertly calculated and adjusted, to deliver extremely fine threads or even zero. Due to the complexity of the design, the nuts are slighty larger than the RV and HRV types. Also available within this series is the Planetary roller screws system, with smaller leads compared to ball screws. With roller screws the lead is a function of the pitch and so the the lead can be very small (0.5mm and even less). The lead can be chosen and supplied without any geometrical changes of both the screw shaft and the nut body.  In a ball screw the lead is limited by the dimension (Outside Diameter) of the bearing ball, which is a standard feature.

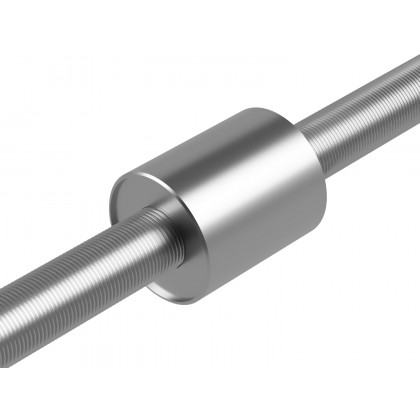

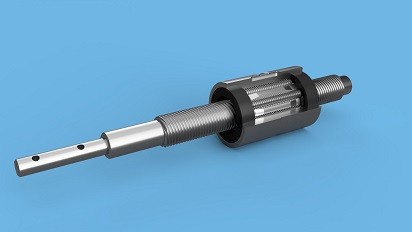

Type RVR

The RVR satellite roller screws is designed for very fine threads and leads and are used where a high positioning precision is required in association with high stiffness and heavier axial loads. As the rollers are recycled after each of their revolutions, this design is not suitable for high speeds. The main elements of RVR satellite roller screws are the screw, the nut and the rollers which are guided and maintained at the correct distance in a cage. The screw has a single or two start thread with a triangular profile. The angle between the flanks is 90°. The nut has the same internal thread as the screw.

The rollers are not threaded but have grooves perpendicular to the screw axis. The distance between the grooves matches the exposed thread of the screw and nut. The flanks are convex and the angle between them is 90°. When the screw or nut rotates, the rollers are axially displaced in the nut. After a complete revolution, each roller is returned to its initial position by two cams at the end of each nut. They can be recycled this way because there is a groove the length of the nut.  The cage pockets are slightly longer than the rollers to enable them to move axially within the nut.

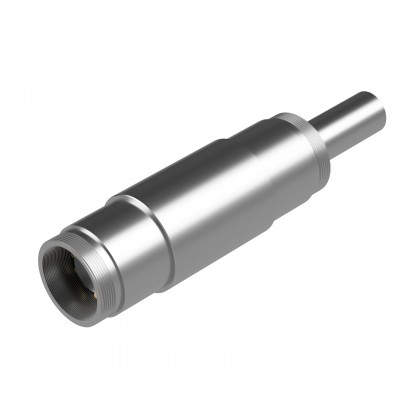

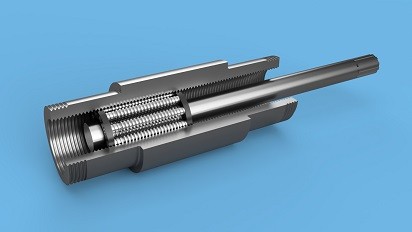

Type RVI

RVI satellite roller screws work on the same principle as RV and HRV screws except the nut system is reversed. This means the rollers themselves rotate around the screw (instead of the nut in RV and HRV screws) and move axially within the nut. This can be best realised as a piston type actuation. Apart from the screw threading where the rollers orbit, the screw journal is without thread and therefore can be machined to any shape or form to suit the application. With the RVI design the physical nut length is in fact the stroke length and therefore are longer than the RV and HRV nuts designs.

Nut Styles : Fully adapted designs available

  • Cylindrical
  • Cylindrical nut with flange at one end
  • Cylindrical nut with flange in centre
  • Special/Custom nut designed according to customer request
  • Matched pair cylindrical nuts for preloaded purposes
  • We offer a full design capability
  • Nuts can also be preloaded to obtain zero backlash

The key product advantages are:

  • Heavy axial loads for a small diameter screw
  • Nut designs with extremely long life
  • High efficiency
  • No-backlash standard high stiffness linear precision up to 6 µm / 300 mm
  • Can accept a high rotary speed (system RV and HRV without roller return type)
  • Extremely fine leads can be supplied on large diameter screws (Type RVR)

00:00 / 01:00
  • Published: Wednesday 27th March 2019
  • Updated: Thursday 20th January 2022

Standard sizes include;

Roller Screws
Diameter (mm)
Leads (mm)MaterialAvailable in
left hand
SteelStainless
3.51mmAvailableAvailableAvailable
51mm - 3mmAvailableAvailableAvailable
71mm - 5mmAvailableAvailableAvailable
80.25mm - 5mmAvailableAvailableAvailable
100.5mm - 5mmAvailableAvailableAvailable
120.5mm - 8mmAvailableAvailableAvailable
152mm - 8mmAvailableAvailableAvailable
160.5mm - 2mmAvailableAvailableAvailable
182mm - 8mmAvailableAvailableAvailable
200.5mm - 10mmAvailableAvailableAvailable
212mm - 10mmAvailableAvailableAvailable
232mm - 10mmAvailableAvailableAvailable
252mm - 8mmAvailableAvailableAvailable
272mm - 10mmAvailableAvailableAvailable
302mm - 30mmAvailableAvailableAvailable
321mm - 2mmAvailableAvailableAvailable
362mm - 20mmAvailableAvailableAvailable
392mm - 25mmAvailableAvailableAvailable
446mm - 30mmAvailableAvailableAvailable
485mm - 30mmAvailableAvailableAvailable
515mm - 25mmAvailableAvailableAvailable
606mm - 42mmAvailableAvailableAvailable
632mm - 4mmAvailableAvailableAvailable
646mm - 36mmAvailableAvailableAvailable
706mm - 24mmAvailableAvailableAvailable
755mm - 30mmAvailableAvailableAvailable
806mm - 36mmAvailableAvailableAvailable
9212mm - 24mmAvailableAvailableAvailable
10015mm - 30mmAvailableAvailableAvailable
12015mm - 30mmAvailableAvailableAvailable
13515mm - 30mmAvailableAvailableAvailable
15015mm - 30mmAvailableAvailableAvailable
