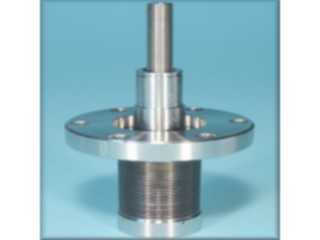

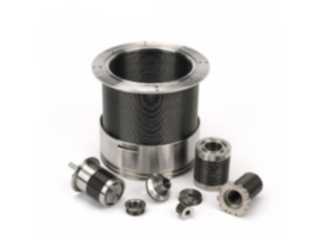

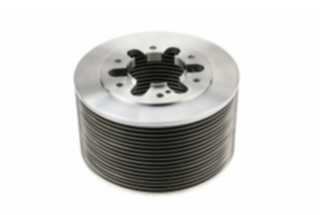

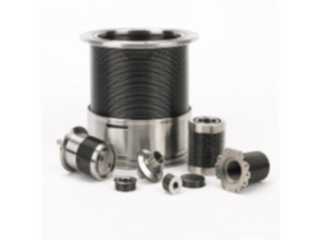

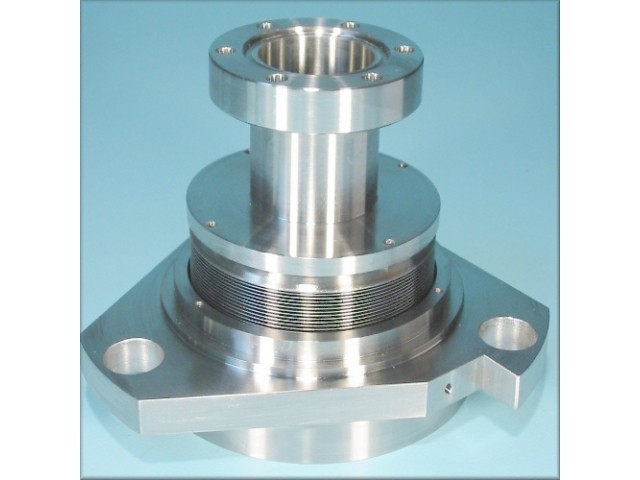

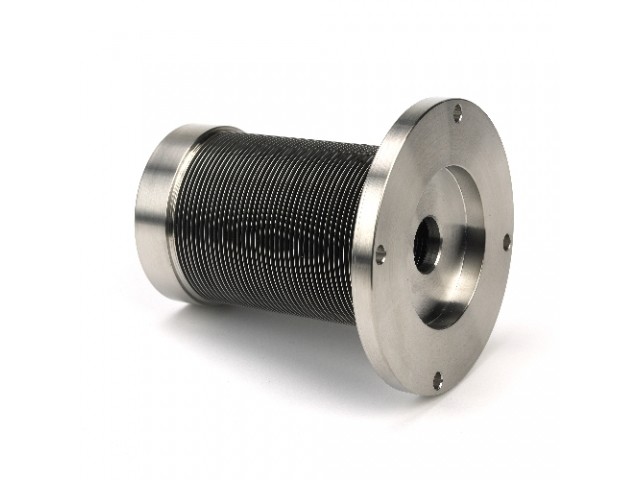

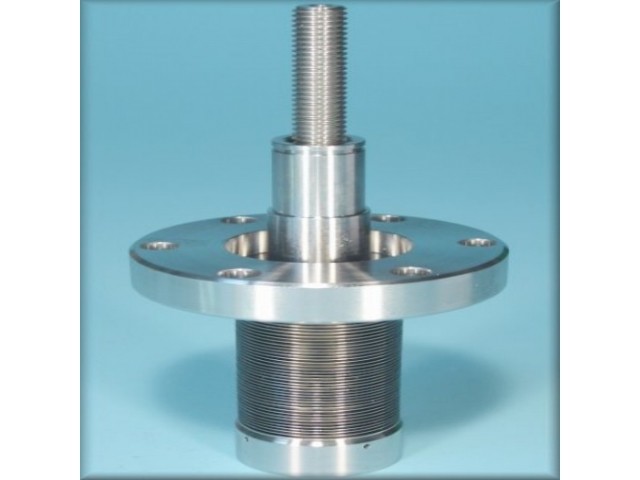

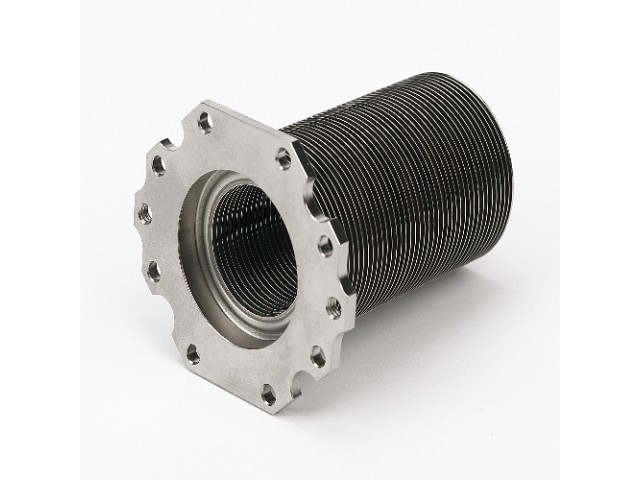

The finished product is a long flexible assembly. The design of the metal diaphragms gives the bellows assembly its dynamic flexibility and high – performance characteristics. Most customers require end plates or custom flanges to meet a specific requirement or application and these end pieces can be welded to the end of each side of the bellows for a finished assembly.
If you have an application where the control of volume in a liquid or gas is important, the edge welded bellows product may be able to help. Providing the most flex in the smallest amount of space, we are dedicated to developing and perfecting edge welded bellows design, fabrication and manufacturing technologies with full application design assistance. Using state-of-the-art manufacturing capabilities allows our customers to benefit from exact requirements. We excel at optimising the design and attachments so that we have consistently achieved outstanding performance and reliability reviews. For applications that require high quality micro fusion joining, edge welded bellows are more cost effective and functional than either electron beam or laser welding. We can design and manufacture edge welded bellows in a full range of diameters and thicknesses. In order to address custom requirements, our design specialists will review each application which allows us to determine the exact custom capabilities needed to ensure your success.
With various materials and configurations, the bellows product can achieve the pressure, temperature, and leak rate requirements that customers demand. Edge welded bellows can be used as actuators to convert pressure and/or temperature into motion or volume compensators that can balance pressure and or temperature differentials to ensure continuous, accurate operation of a system. Other applications have included accumulators, feedthroughs, vibration dampeners and face seals. There are over 90 standard diaphragm sizes available, however bespoke design are also welcomed.
Working with materials such as AM350, Stainless steel, Titanium, Hasteloy, and Inconel, we will design and manufacture bellows to your exact requirements ( See table below) . In fact we can weld any weldable alloy that is commercially available. In the past, the product has also been used as a liquid or gas accumulator, expansion joint or actuator.
Minimum outside diameter | 9.0932 mm (0.358inch) |
Maximum outside diameter | 673.1 mm (26.5 inch) |
Minimum material thickness | 0.05mm (0.002inch) |
Maximum material thickness | 0.91mm (0.036inch) |
Hydraulically formed, or hydroformed, bellows can typically travel about twenty percent of their free length. Edge welded metal bellows have the ability to travel ninety percent; thus, edge welded bellows can accomplish the same movement in smaller sizes and lighter weight assemblies. Bellows accumulators can have pressure internal or external to the bellows assembly. This design factor should be defined early in the design phase since the assembly will ideally receive internal pressure. Understanding the differential pressure between the inside and outside of the assembly also helps engineers to determine the proper size and length of the bellows assembly.
Offering proprietary stamping, cleaning and welding techniques for exceptional strength and consistency in the product. Pride in the product is demonstrated by individually inspecting diaphragms for the highest quality to ensure welds are the strongest and leak-tight and then employing special handling techniques to protect against contamination of the materials.
Other product advantages include;
Industries to date that have benefited from this technology include;
Why not give us a call to discuss your edge welded bellows requirement or just fill in the application data form.
MATERIAL
STANDARD
LEAK RATE
TYPICAL
APPLICATIONS
TEMPERATURE
STRENGTHS &
WEAKNESSES
AM350
1x10-9
Industrial, High Vacuum and other liquids and gases with low corrosive properties
-100 to
800° F
Highest strength/cycle life with low leak rate
300 Series SS
1x10-9
Industrial, High Vacuum and other liquids and gases with mild corrosive properties
-420 to
800° F
Lowest cost materials with low leak rate
Inconel
718
625
600
1x10-5
High temperature and corrosive applications such as exhaust, seawater, hydrogen sulfide,and heavy oil
-420 to
1500° F
Good corrosion resistance, yet limited leak rate
Hastelloy
276 C
Haynes
242
1x10-5
Highly corrosive media such as petrochemical processing equipment
-420 to
1500° F
(Haynes 242 up to 1300° F)
Excellent compatibility; high price point
Titanium Grades
1 through 4
(ASTM-B265)
1x10-9
Light-weight aerospace and invasive medical equipment
-420 to
800° F
Extremely light-weight and capable of being implanted; highest price performance ratio
Edge Welded bellows offer a wide variety of materials with a range of media compatibilities. Contact Us or call 01386 421 005 for additional information.
Size Number | Outside Diameter | Inside Diameter | Mean Effective Pressure Area | Radial Span | ||||
inches | mm | inches | mm | inches2 | mm2 | inches | mm | |
0036A | 0.358 | 9.1 | 0.200 | 5.1 | 0.0611 | 39.4 | 0.0790 | 2.0 |
0040A | 0.396 | 10.1 | 0.200 | 5.1 | 0.0697 | 45.0 | 0.0980 | 2.5 |
0048A | 0.477 | 12.1 | 0.198 | 5.0 | 0.0895 | 57.7 | 0.1395 | 3.5 |
0050A | 0.496 | 12.6 | 0.200 | 5.1 | 0.0951 | 61.4 | 0.1480 | 3.8 |
0060A | 0.595 | 15.1 | 0.260 | 6.6 | 0.1435 | 92.6 | 0.1675 | 4.3 |
0061A | 0.608 | 15.4 | 0.228 | 5.8 | 0.1372 | 88.5 | 0.1900 | 4.8 |
0067A | 0.670 | 17.0 | 0.394 | 10.0 | 0.2223 | 143.4 | 0.1380 | 3.5 |
0073A | 0.729 | 18.5 | 0.471 | 12.0 | 0.2827 | 182.4 | 0.1290 | 3.3 |
0075A | 0.750 | 19.1 | 0.260 | 6.6 | 0.2003 | 129.2 | 0.2450 | 6.2 |
0080A | 0.800 | 20.3 | 0.400 | 10.2 | 0.2827 | 182.4 | 0.2000 | 5.1 |
0082A | 0.821 | 20.9 | 0.548 | 13.9 | 0.3680 | 237.4 | 0.1365 | 3.5 |
0083A | 0.827 | 21.0 | 0.575 | 14.6 | 0.3859 | 249.0 | 0.1260 | 3.2 |
0084A | 0.838 | 21.3 | 0.500 | 12.7 | 0.3515 | 226.8 | 0.1690 | 4.3 |
0089A | 0.892 | 22.7 | 0.592 | 15.0 | 0.4324 | 279.0 | 0.1500 | 3.8 |
0102A | 1.022 | 26.0 | 0.683 | 17.3 | 0.5708 | 368.3 | 0.1695 | 4.3 |
0103A | 1.030 | 26.2 | 0.540 | 13.7 | 0.4840 | 312.2 | 0.2450 | 6.2 |
0103B | 1.030 | 26.2 | 0.540 | 13.7 | 0.4840 | 312.2 | 0.2450 | 6.2 |
0103C | 1.030 | 26.2 | 0.540 | 13.7 | 0.4840 | 312.2 | 0.2450 | 6.2 |
0103D | 1.030 | 26.2 | 0.550 | 14.0 | 0.4902 | 316.2 | 0.2400 | 6.1 |
0108A | 1.080 | 27.4 | 0.860 | 21.8 | 0.7390 | 476.8 | 0.1100 | 2.8 |
0117A | 1.170 | 29.7 | 0.750 | 19.1 | 0.7238 | 467.0 | 0.2100 | 5.3 |
0118C | 1.181 | 30.0 | 0.886 | 22.5 | 0.8389 | 541.2 | 0.1475 | 3.7 |
0124A | 1.240 | 31.5 | 0.660 | 16.8 | 0.7088 | 457.3 | 0.2900 | 7.4 |
0125A | 1.252 | 31.8 | 0.858 | 21.8 | 0.8742 | 564.0 | 0.1970 | 5.0 |
0128B | 1.280 | 32.5 | 0.886 | 22.5 | 0.9212 | 594.3 | 0.1970 | 5.0 |
0133A | 1.330 | 33.8 | 1.015 | 25.8 | 1.0797 | 696.6 | 0.1575 | 4.0 |
0136A | 1.355 | 34.4 | 0.540 | 13.7 | 0.7051 | 454.9 | 0.4075 | 10.4 |
0136B | 1.362 | 34.6 | 1.012 | 25.7 | 1.1066 | 713.9 | 0.1750 | 4.4 |
0136C | 1.355 | 34.4 | 0.540 | 13.7 | 0.7051 | 454.9 | 0.4075 | 10.4 |
0144A | 1.437 | 36.5 | 0.937 | 23.8 | 1.1066 | 713.9 | 0.2500 | 6.4 |
0147A | 1.470 | 37.3 | 1.020 | 25.9 | 1.2174 | 785.4 | 0.2250 | 5.7 |
0150A | 1.500 | 38.1 | 1.000 | 25.4 | 1.2272 | 791.7 | 0.2500 | 6.4 |
0151A | 1.511 | 38.4 | 1.186 | 30.1 | 1.4282 | 921.4 | 0.1625 | 4.1 |
0156A | 1.560 | 39.6 | 0.865 | 22.0 | 1.1547 | 744.9 | 0.3475 | 8.8 |
0163A | 1.625 | 41.3 | 0.750 | 19.1 | 1.1075 | 714.5 | 0.4375 | 11.1 |
0163B | 1.625 | 41.3 | 0.937 | 23.8 | 1.2888 | 831.5 | 0.3440 | 8.7 |
0165A | 1.650 | 41.9 | 1.240 | 31.5 | 1.6399 | 1058.0 | 0.2050 | 5.2 |
0169A | 1.687 | 42.8 | 1.187 | 30.1 | 1.6218 | 1046.3 | 0.2500 | 6.4 |
0174A | 1.738 | 44.1 | 1.363 | 34.6 | 1.8881 | 1218.2 | 0.1875 | 4.8 |
0175A | 1.750 | 44.5 | 0.750 | 19.1 | 1.2272 | 791.7 | 0.5000 | 12.7 |
0175B | 1.750 | 44.5 | 1.000 | 25.4 | 1.4849 | 958.0 | 0.3750 | 9.5 |
0176A | 1.759 | 44.7 | 1.305 | 33.1 | 1.8433 | 1189.3 | 0.2270 | 5.8 |
0188A | 1.875 | 47.6 | 0.975 | 24.8 | 1.5948 | 1028.9 | 0.4500 | 11.4 |
0189A | 1.890 | 48.0 | 1.390 | 35.3 | 2.1124 | 1362.8 | 0.2500 | 6.4 |
0190B | 1.900 | 48.3 | 1.500 | 38.1 | 2.2698 | 1464.4 | 0.2000 | 5.1 |
0193A | 1.925 | 48.9 | 1.200 | 30.5 | 1.9175 | 1237.1 | 0.3625 | 9.2 |
0195A | 1.950 | 49.5 | 1.557 | 39.5 | 2.4149 | 1558.0 | 0.1965 | 5.0 |
0200A | 2.000 | 50.8 | 1.250 | 31.8 | 2.0739 | 1338.0 | 0.3750 | 9.5 |
0213A | 2.126 | 54.0 | 1.654 | 42.0 | 2.8055 | 1810.0 | 0.2360 | 6.0 |
0219A | 2.190 | 55.6 | 1.690 | 42.9 | 2.9559 | 1907.0 | 0.2500 | 6.4 |
0224A | 2.244 | 57.0 | 1.625 | 41.3 | 2.9392 | 1896.2 | 0.3095 | 7.9 |
0225A | 2.250 | 57.2 | 1.500 | 38.1 | 2.7612 | 1781.4 | 0.3750 | 9.5 |
0244B | 2.437 | 61.9 | 1.937 | 49.2 | 3.7565 | 2423.6 | 0.2500 | 6.4 |
0244D | 2.437 | 61.9 | 1.937 | 49.2 | 3.7565 | 2423.6 | 0.2500 | 6.4 |
0245A | 2.450 | 62.2 | 1.650 | 41.9 | 3.3006 | 2129.4 | 0.4000 | 10.2 |
0260A | 2.600 | 66.0 | 1.780 | 45.2 | 3.7668 | 2430.2 | 0.4100 | 10.4 |
0260B | 2.595 | 65.9 | 2.185 | 55.5 | 4.4863 | 2894.4 | 0.2050 | 5.2 |
0263A | 2.625 | 66.7 | 2.125 | 54.0 | 4.4301 | 2858.1 | 0.2500 | 6.4 |
0265A | 2.650 | 67.3 | 2.000 | 50.8 | 4.2456 | 2739.1 | 0.3250 | 8.3 |
0270A | 2.700 | 68.6 | 1.950 | 49.5 | 4.2456 | 2739.1 | 0.3750 | 9.5 |
0275A | 2.750 | 69.9 | 2.125 | 54.0 | 4.6664 | 3010.6 | 0.3125 | 7.9 |
0275B | 2.750 | 69.9 | 2.125 | 54.0 | 4.6664 | 3010.6 | 0.3125 | 7.9 |
0275C | 2.750 | 69.9 | 1.650 | 41.9 | 3.8013 | 2452.5 | 0.5500 | 14 |
0276A | 2.760 | 70.1 | 1.965 | 49.9 | 4.3836 | 2828.1 | 0.3975 | 10.1 |
0299A | 2.990 | 75.9 | 2.247 | 57.1 | 5.3851 | 3474.3 | 0.3715 | 9.4 |
0300A | 3.000 | 76.2 | 2.000 | 50.8 | 4.9087 | 3166.9 | 0.5000 | 12.7 |
0300B | 3.000 | 76.2 | 2.000 | 50.8 | 4.9087 | 3166.9 | 0.5000 | 12.7 |
0317B | 3.165 | 80.4 | 2.585 | 65.7 | 6.4918 | 4188.3 | 0.2900 | 7.4 |
0328A | 3.283 | 83.4 | 2.811 | 71.4 | 7.2918 | 4704.4 | 0.2360 | 6.0 |
0331A | 3.305 | 83.9 | 2.810 | 71.4 | 7.3421 | 4736.9 | 0.2475 | 6.3 |
0350A | 3.500 | 88.9 | 2.750 | 69.9 | 7.6699 | 4948.3 | 0.3750 | 9.5 |
0350C | 3.500 | 88.9 | 2.500 | 63.5 | 7.0686 | 4560.4 | 0.5000 | 12.7 |
0368A | 3.675 | 93.3 | 2.530 | 64.3 | 7.5599 | 4877.3 | 0.5725 | 14.5 |
0375B | 3.750 | 95.3 | 3.090 | 78.5 | 9.1863 | 5926.7 | 0.3300 | 8.4 |
0395A | 3.950 | 100.3 | 3.200 | 81.3 | 10.0379 | 6476.0 | 0.3750 | 9.5 |
0399A | 3.990 | 101.3 | 2.690 | 68.3 | 8.7616 | 5652.6 | 0.6500 | 16.5 |
0403B | 4.034 | 102.5 | 3.085 | 78.4 | 9.9510 | 6420.0 | 0.4745 | 12.1 |
0417A | 4.170 | 105.9 | 3.700 | 94.0 | 12.1613 | 7846.0 | 0.2350 | 6.0 |
0420A | 4.200 | 106.7 | 3.400 | 86.4 | 11.3411 | 7316.9 | 0.4000 | 10.2 |
0425A | 4.250 | 108.0 | 3.200 | 81.3 | 10.8979 | 7030.9 | 0.5250 | 13.3 |
0435A | 4.350 | 110.5 | 3.640 | 92.5 | 12.5350 | 8087.1 | 0.3550 | 9.0 |
0472A | 4.720 | 119.9 | 3.720 | 94.5 | 13.9867 | 9023.6 | 0.5000 | 12.7 |
0475A | 4.750 | 120.7 | 3.030 | 77.0 | 11.8847 | 7667.5 | 0.8600 | 21.8 |
0490A | 4.900 | 124.5 | 3.530 | 89.7 | 13.9536 | 9002.3 | 0.6850 | 17.4 |
0490B | 4.903 | 124.5 | 4.323 | 109.8 | 16.7131 | 10782.6 | 0.2900 | 7.4 |
0497A | 4.970 | 126.2 | 4.000 | 101.6 | 15.7985 | 10192.5 | 0.4850 | 12.3 |
0508A | 5.077 | 129.0 | 4.130 | 104.9 | 16.6443 | 10738.3 | 0.4735 | 12.0 |
0545A | 5.450 | 138.4 | 4.950 | 125.7 | 21.2372 | 13701.4 | 0.2500 | 6.4 |
0550A | 5.500 | 139.7 | 4.500 | 114.3 | 19.6350 | 12667.7 | 0.5000 | 12.7 |
0550B | 5.500 | 139.7 | 4.500 | 114.3 | 19.6350 | 12667.7 | 0.5000 | 12.7 |
0572A | 5.722 | 145.3 | 4.472 | 113.6 | 20.4042 | 13164.0 | 0.6250 | 15.9 |
0572B | 5.722 | 145.3 | 4.472 | 113.6 | 20.4042 | 13164.0 | 0.6250 | 15.9 |
0588A | 5.880 | 149.4 | 5.120 | 130.0 | 23.7583 | 15327.9 | 0.3800 | 9.7 |
0675A | 6.750 | 171.5 | 5.542 | 140.8 | 29.6671 | 19140.0 | 0.6040 | 15.3 |
0728A | 7.283 | 185.0 | 5.906 | 150.0 | 34.1549 | 22035.4 | 0.6885 | 17.5 |
0775A | 7.750 | 196.9 | 6.850 | 174.0 | 41.8539 | 27002.4 | 0.4500 | 11.4 |
0785A | 7.850 | 199.4 | 6.250 | 158.8 | 39.0363 | 25184.6 | 0.8000 | 20.3 |
0787A | 7.874 | 200.0 | 6.693 | 170.0 | 41.6649 | 26880.5 | 0.5905 | 15.0 |
0808A | 8.083 | 205.3 | 7.150 | 181.6 | 45.5618 | 29394.6 | 0.4665 | 11.8 |
0825B | 8.248 | 209.5 | 7.500 | 190.5 | 48.6946 | 31415.8 | 0.3740 | 9.5 |
0925A | 9.250 | 235.0 | 8.000 | 203.2 | 58.4263 | 37694.3 | 0.6250 | 15.9 |
0950A | 9.500 | 241.3 | 8.500 | 215.9 | 63.6173 | 41043.3 | 0.5000 | 12.7 |
1099A | 10.990 | 279.1 | 10.120 | 257.0 | 87.4997 | 56451.3 | 0.4350 | 11.0 |
1100A | 11.000 | 279.4 | 9.500 | 241.3 | 82.5159 | 53236.0 | 0.7500 | 19.1 |
1110A | 11.102 | 282.0 | 9.102 | 231.2 | 80.1502 | 51709.7 | 1.0000 | 25.4 |
1200A | 12.000 | 304.8 | 10.000 | 254.0 | 95.0332 | 61311.6 | 1.0000 | 25.4 |
2221A | 22.205 | 564.0 | 19.921 | 506.0 | 348.4419 | 224800.8 | 1.1420 | 29.0 |
