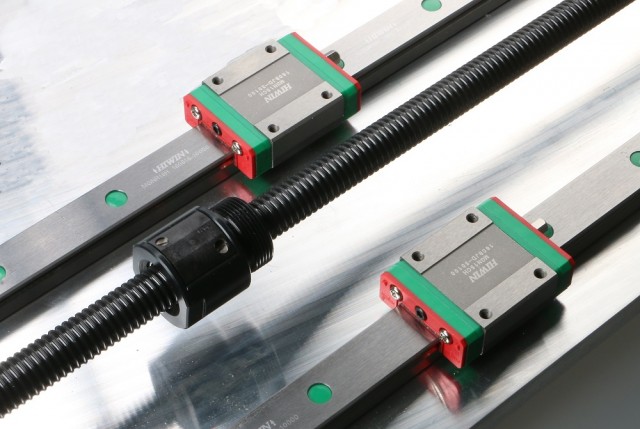

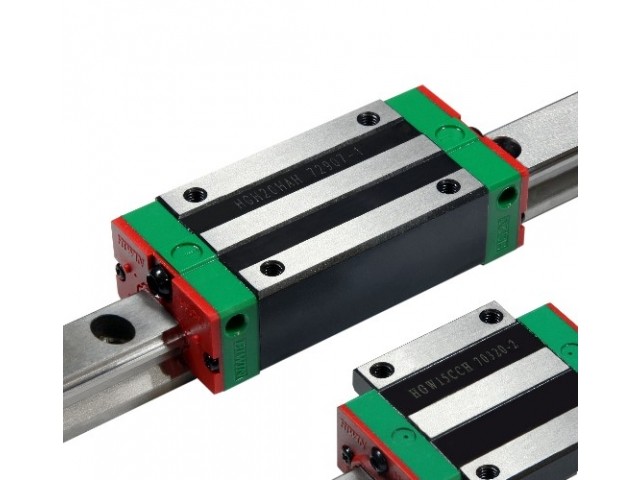

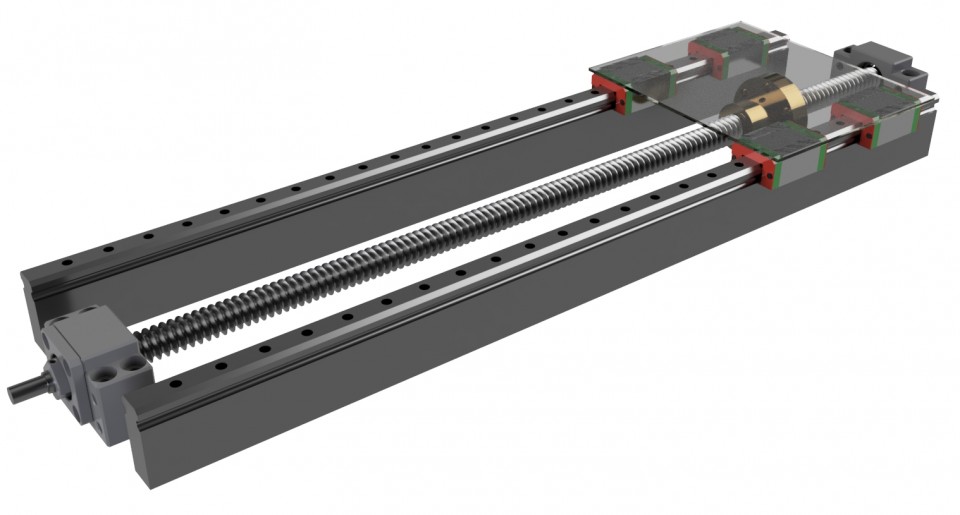

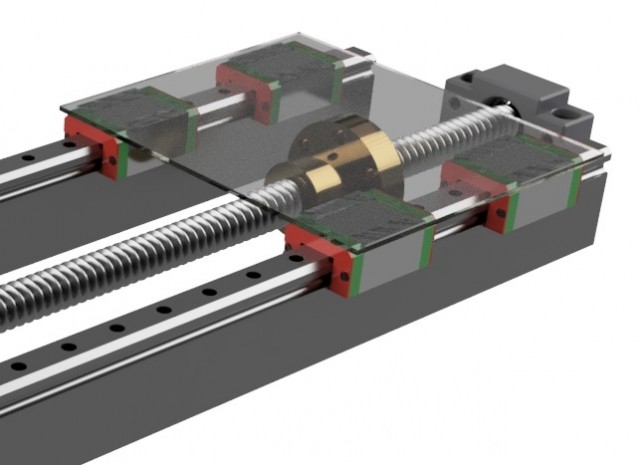

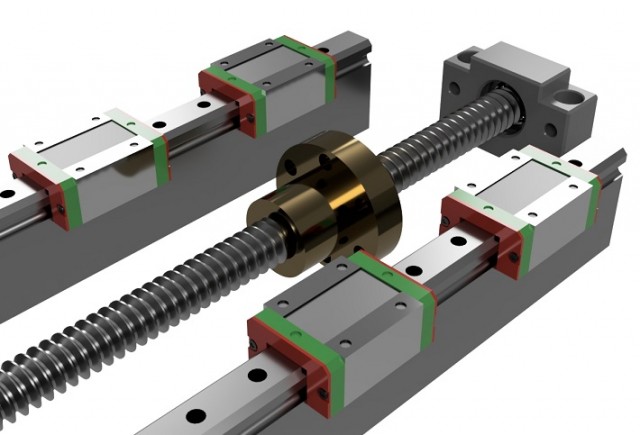

ABSSAC concentrates on the flanged mount and square mount versions of linear guides as these are considered ideal for use with lead screws, ball screws and satellite roller screws. By primarily using a four ball path design, within the slide, allows the guides to accept up to 30% more load and up to 30% stiffer than similar products in the market. Please feel free to contact our knowledgeable sales team who can help you with the right selection.

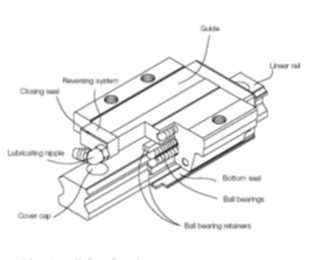

By primarily using a four ball path design, within the slide, allows the guides to accept up to 30% more load and up to 30% stiffer than similar products in the market. An added bonus is that the ball bearings are retained within the housing so that should the guides come off the end of the rail, you will not be faced with all the ball bearings falling out. From experience, this advantage can also significantly aid in the final assembly.

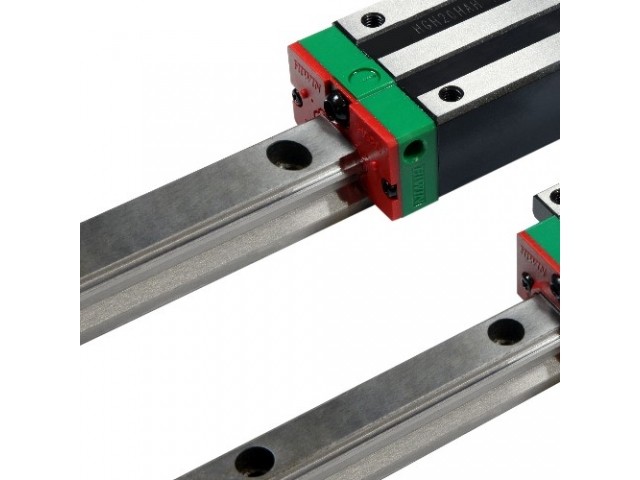

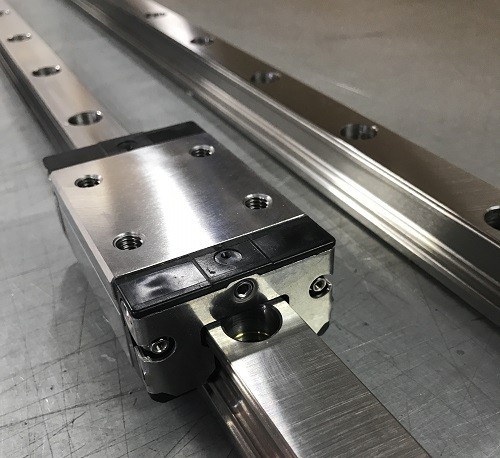

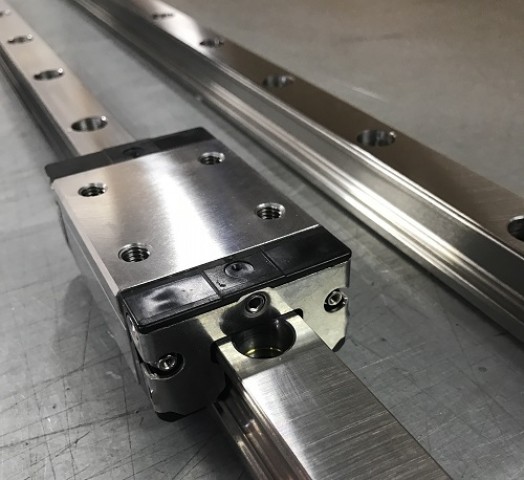

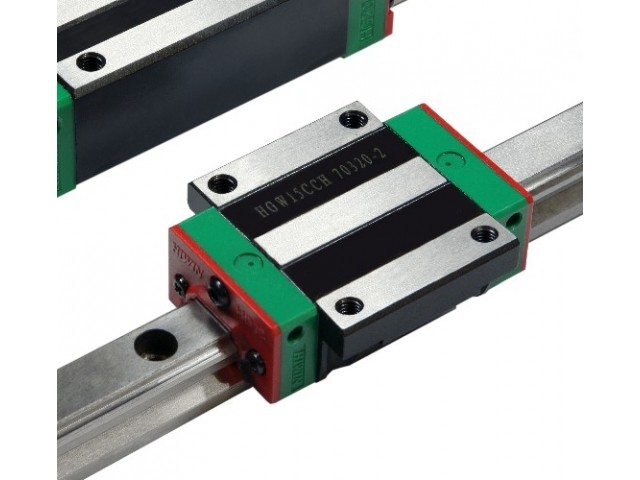

ABSSAC also offers the advantage of supplying lightly pre-loaded heavy duty or extra heavy duty guide models to suit individual applications. When compared to other slide mechanisms such as dovetail slides, efficiency is far greater. The linear guides can carry loads in both horizontal and vertical directions. Please also note that the rails are pre-drilled for ease of fitting and can be delivered cut to your desired length at no extra cost. Please note that all guides come with dust proofing seals at each end. When the application environment requires it, ABSSAC can offer a complete range of rails and carriages in Stainless Steel.
A recent application utilised a Stainless Steel set up within a food processing plant. A standard linear rail of 30mm wide and 2 metres long along with a slightly preloaded Stainless Steel narrow type block carriage enabled a 20kN dynamic load to be accurately moved. Supplied with pre-drilled mounting holes both price and delivery secured the order.
Typical performance data
| HG Series 25,30,35 | Normal | High | Precision | Super precision | Ultra precision |
|---|---|---|---|---|---|
| Accuracy Class | +/- 0.1mm | +/- 0.04mm | +/- 0 | +/- 0 | +/-0 |
| Height Tolerance H1 | +/- 0.1mm | +/- 0.04mm | + 0 / -0.04mm | +0/0.02mm | +0/0.01mm |
| Width Tolerance N1 | +/-0.1mm | +/- 0.04mm | +0 / -0.04mm | +0/0.02mm | +0/-0.01mm |
Available rail widths from 15mm to 65mm cater from the lightest to the heaviest load. If your application requires an accurate support and guide, our ex-stock range of linear rails may be the answer to your design challenges. Rails can be supplied from 100mm to 4000mm in length and in some cases can be attached to the application from beneath.
| Model | INSTALLATION DIMENSIONS (mm) | DIMENSIONS OF THE GUIDE (mm) | DIMENSIONS OF THE GUIDE RAIL (mm) | SCREWS FOR RAIL | DYNAMIC LOAD | STATIC LOAD | STATIC MOMENT | MASS | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | L1 | L | G | M | T | T1 | T2 | H2 | H3 | WR | HR | D | h | d | P | Size (mm) | Cdyn (N) | C0 (N) | Mo (Nm) | Mx (Nm) | MY (Nm) | Guide (kg) | Rail (kg/m) | |
| HGW15CC | 24 | 4.3 | 16 | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 5.3 | M5 | 6 | 8.9 | 6.95 | 4.5 | 5.5 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | M4x16 | 11380 | 25310 | 170 | 150 | 150 | 0.17 | 1.45 |
| HGW20CC HGW20HC | 30 | 4.6 | 21.5 | 63 | 53 | 5 | 40 | 50.5 65.2 | 77.5 90.3 | 12 | M6 | 8 | 10 | 9.5 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | M5x16 | 17750 21180 | 37840 48840 | 380 480 | 270 470 | 270 470 | 0.51 0.52 | 2.21 |
| HGW25CC HGW25HC | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 58 78.6 | 83 103.6 | 12 | M8 | 8 | 14 | 10 | 6 | 9 | 23 | 22 | 11 | 9 | 7 | 60 | M6x20 | 26480 32750 | 56190 76000 | 640 870 | 510 880 | 510 880 | 0.78 0.80 | 3.21 |
| HGW30CC HGW30HC | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 70 93 | 97.4 120.4 | 12 | M10 | 8.5 | 16 | 10 | 6.5 | 10.8 | 28 | 26 | 14 | 12 | 9 | 80 | M8x25 | 38740 47270 | 83060 110130 | 1060 1400 | 850 1470 | 850 1470 | 1.42 1.44 | 4.47 |
| HGW35CC HGW35HC | 48 | 7.5 | 33 | 100 | 82 | 9 | 62 | 80 105.8 | 112.4 138.2 | 12 | M10 | 10.1 | 18 | 13 | 9 | 12.6 | 34 | 29 | 14 | 12 | 9 | 80 | M8x25 | 49520 60210 | 102870 136310 | 1730 2290 | 1200 2080 | 1200 2080 | 2.03 2.06 | 6.3 |
| HGW45CC HGW45HC | 60 | 9.5 | 37.5 | 120 | 100 | 10 | 80 | 97 128.8 | 138 169.8 | 12.9 | M12 | 15.1 | 22 | 15 | 8.5 | 20.5 | 45 | 38 | 20 | 17 | 14 | 102 | M12x35 | 77570 94540 | 155930 207120 | 3010 4000 | 2350 4070 | 2350 4070 | 3.54 3.69 | 10.41 |
| HGW55CC HGW55HC | 70 | 13 | 43.5 | 140 | 116 | 12 | 95 | 117.7 155.8 | 165.7 203.8 | 12.9 | M14 | 17.5 | 26.5 | 17 | 12 | 19 | 53 | 44 | 23 | 20 | 16 | 120 | M14x45 | 114440 139350 | 227810 301260 | 5660 7490 | 4060 7010 | 4060 7010 | 5.38 5.96 | 15.08 |
| HGW65CC HGW65HC | 90 | 15 | 53.5 | 170 | 142 | 14 | 110 | 144.2 203.6 | 198.2 257.6 | 12.9 | M16 | 25 | 37.5 | 23 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | M16x50 | 163630 208360 | 324710 457150 | 10020 14150 | 6440 11120 | 6440 11120 | 9.17 12.89 | 21.18 |

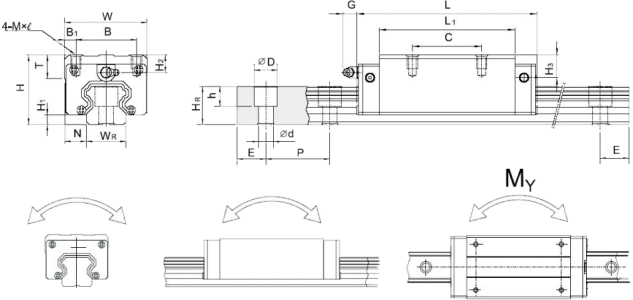

| Model | INSTALLATION DIMENSIONS (mm) | DIMENSIONS OF THE GUIDE (mm) | DIMENSIONS OF THE GUIDE RAIL (mm) | SCREWS FOR RAIL | DYNAMIC LOAD | STATIC LOAD | STATIC MOMENT | MASS | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | L1 | L | G | Mxl | T | H2 | H3 | WR | HR | D | h | d | P | Size (mm) | Cdyn (N) | C0 (N) | Mo (Nm) | Mx (Nm) | MY (Nm) | Guide (kg) | Rail (kg/m) | |
| HGH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 5.3 | M4x5 | 6 | 8.5 | 9.5 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | M4x16 | 11380 | 25310 | 170 | 150 | 150 | 0.18 | 1.45 |
| HGH20CA HGH20HA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 50 | 50.5 65.2 | 77.5 90.3 | 12 | M5x6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | M5x16 | 17750 21180 | 37840 48840 | 380 480 | 270 470 | 270 470 | 0.38 0.39 | 2.21 |
| HGH25CA HGH25HA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 50 | 58 78.6 | 83 103.6 | 12 | M6x8 | 8 | 10 | 13 | 23 | 22 | 11 | 9 | 7 | 60 | M6x20 | 26480 32750 | 56190 76000 | 640 870 | 510 880 | 510 880 | 0.67 0.69 | 3.21 |
| HGH30CA HGH30HA | 45 | 6 | 16 | 60 | 40 | 10 | 40 60 | 70 93 | 97.4 120.4 | 12 | M8x10 | 8.5 | 9.5 | 13.8 | 28 | 26 | 14 | 12 | 9 | 80 | M8x25 | 38740 47270 | 83060 110130 | 1060 1400 | 850 1470 | 850 1470 | 1.14 1.16 | 4.47 |
| HGH35CA HGH35HA | 55 | 7.5 | 18 | 70 | 50 | 10 | 5072 | 80 105.8 | 112.4 138.2 | 12 | M8x12 | 10.2 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | M8x25 | 49520 60210 | 102870 136310 | 1730 2290 | 1200 2080 | 1200 2080 | 1.88 1.92 | 6.3 |
| HGH45CA HGH45HA | 70 | 9.5 | 20.5 | 86 | 60 | 13 | 60 80 | 97 128.8 | 138 169.8 | 12.9 | M10x17 | 16 | 18.5 | 30.5 | 45 | 38 | 20 | 17 | 14 | 105 | M12x35 | 77570 94540 | 155930 207120 | 3010 4000 | 2350 4070 | 2350 4070 | 3.54 3.61 | 10.41 |
| HGH55CA HGH55HA | 80 | 13 | 23.5 | 100 | 75 | 12.5 | 7595 | 117.7 155.8 | 165.7 203.8 | 12.9 | M12x18 | 17.5 | 22 | 29 | 53 | 44 | 23 | 20 | 16 | 120 | M14x45 | 114440 139350 | 227810 301260 | 5660 7490 | 4060 7010 | 4060 7010 | 5.38 5.49 | 15.08 |
| HGH65CA HGH65HA | 90 | 15 | 31.5 | 126 | 76 | 25 | 70120 | 144.2 203.6 | 198.2 257.6 | 12.9 | M16x20 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | M16x50 | 163630 208360 | 324710 457150 | 10020 14150 | 6440 11120 | 6440 11120 | 7.00 9.82 | 21.18 |
