Support Bearings

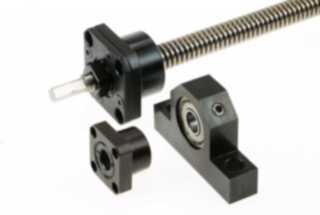

The latest range of  low-cost  precision quality thrust and radial bearing units from Abssac are ideally suited for lead screw and ball screw  applications.

The complete thrust bearing kits contain the bearing housing, bearing set, cover, spacer, seal, locknut and set screw. We have Invested in large stocks which gives Abssac the advantage to  supply same or next day pillow block and flange mounted bearing types that are interchangeable with leading brands at  very competitive prices.

How the ball screw, lead screw or satellite roller screw is fixed to the application has a direct influence on the efficiency, longevity and performance of the linear system. ABSSAC stocks a complete range of bearing sets manufactured specifically for use with linear  applications. These bearing designs primarily consist of either thrust or radial bearings that are  housed in a pillow block or flange mount.  Bearing styles are grouped, for convenience, into the following prefixes of BK Type for thrust pillow block fixed, BF Type for radial simple support,  FF Type for flange mount simple support and the FK Type which is a flange mount thrust bearing.

ABSSAC bearing sets are interchangeable with leading brands and are available to suit shaft sizes from 2mm up to 40mm.  When choosing bearing sets, it is paramount to consider the type of fixing design against the speed of rotation and column loading of the screw. This information is graphically displayed in the catalogue which can be downloaded from the link above. Shown below are some examples of bearing set ups that cater for most critical speed and column loading scenarios. However, ABSSAC's sales engineers will be more than happy to help you with your selection. PDF and Step file downloads are available for each style of bearing from the table below.

Bearing set examples

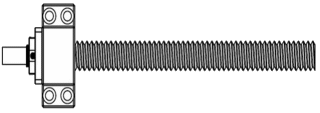

Fixed Free - BK or FK style to nothing

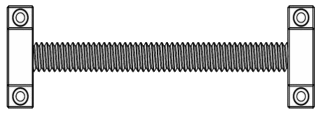

Simple Simple - BF to BF or FF to FF

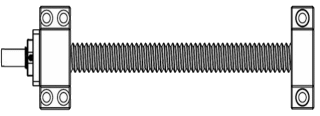

Fixed Simple - BK or FK to BF or FF

Fixed Fixed - BK or FK to BK or FK

Other bearing styles are available on request.

  • Support Bearings

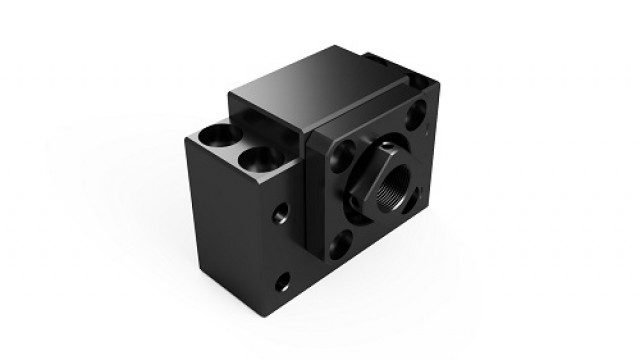

  • BK Thrust bearing design
    BK Thrust bearing design

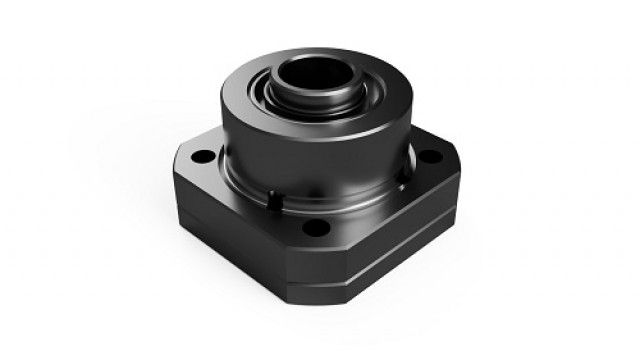

  • FK Flanged thrust bearing
    FK Flanged thrust bearing

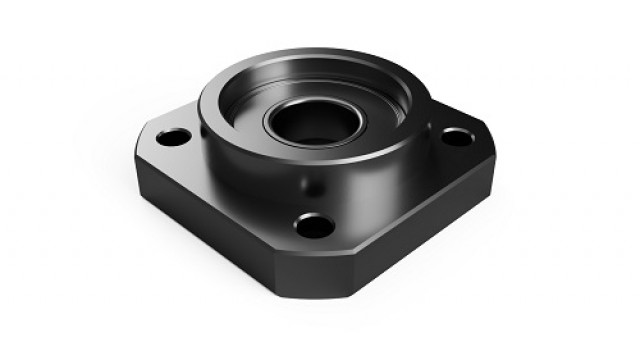

  • FF Flanged simple bearing
    FF Flanged simple bearing

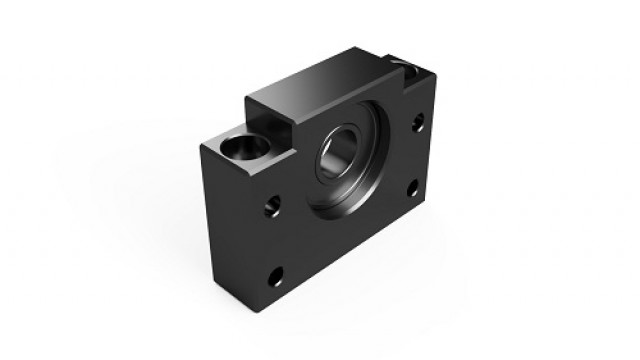

  • BF Pedestal simple support bearing
    BF Pedestal simple support bearing
  • We can supply machined parts ready to fit into your application
    We can supply machined parts ready to fit into your application

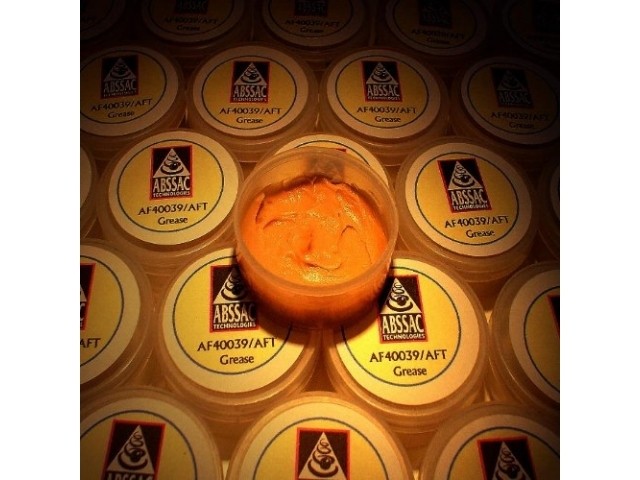

  • Greases to suit all applications
    Greases to suit all applications
  • Saves your scrap rates !
    Saves your scrap rates !
  • Standard bearing journal - fixed
    Standard bearing journal - fixed

Fixed Free
Fixed Free

Simple Simple
Simple Simple

Fixed Simple
Fixed Simple

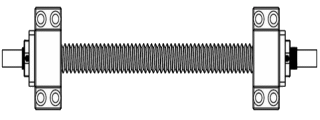

Fixed Fixed
Fixed Fixed

End Journal machining

Supplying ball and lead screws ready to fit into applications often requires ABSSAC to supply product to a customer drawing specification. Employing turning, grinding, milling and straightening techniques optimises the final product. ABSSAC's machining capability gives you a high journal concentricity product which can be applied to all screws regardless of diameter. Working together can reduce customer scrap rates and enable linear solutions that fit into applications every time.  Working directly from dimensional drawings, or if they do not exist,  customer owned samples to reverse engineer. Although all types of end machine detail can be supplied, ABSSAC offers a cost effective basic end journal machining that directly matches the range of support bearings (see example diagrams below).

BK

BK Machining
BK Machining

Model No.DD1BEFMS
BK-1012/14/151083615M10x112
BK-1214/15/1612103615M12x112
BK-1518/2015124020M15x112
BK-1720/2517155323M17x117
BK-2025/2820175325M20x115
BK-2532/3625205630M25x1.520
BK-3036/4030257338M30x1.525
BK-354535308245M30x1.526
BK-405040358450M40x1.530

Optional Keyway
Optional Keyway

Model No.NP
BK-10212
BK-12312
BK-15415
BK-17520
BK-20520
BK-25630
BK-30832
BK-35840
BK-401060

BF

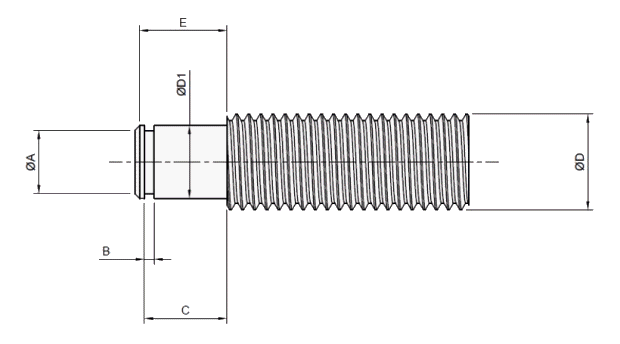

BF Machining
BF Machining

Model No.DD1EABC
BF-1012/14/158107.60.97.9
BF-1214/15/1610119.61.159.15
BF-1518/20151314.31.1510.15
BF-1720/25171616.21.1513.15
BF-2025/28/302016191.3513.35
BF-2530/32/36252023.91.3516.35
BF-3036/40302118.61.7517.75
BF-3540/453522331.7518.75
BF-40504023381.9519.95

FK

FK Machining
FK Machining

Model No.DD1EFMS
FK0585236M5x0.57
FK0810/128329M8x110
FK1012/14/15103615M10x112
FK1214/15/16123615M12x112
FK1518/20154820M15x113
FK1720/25175923M17x117
FK2025/28/30206425M20x116
FK2530/32/36257630M25x1.520
FK3036/40307338M30x1.525

Optional Keyway
Optional Keyway

Model No.NP
BK-10212
BK-12312
BK-15415
BK-17520
BK-20520
BK-25630
BK-30832
BK-35840
BK-401060

FF

BF Machining
BF Machining

Model No.DD1EABC
FF-1012/14/158107.60.97.9
FF-1214/15/1610119.61.159.15
FF-1518/20151314.31.1510.15
FF-1720/25171616.21.1513.15
FF-2025/28/302016191.3513.35
FF-2530/32/36252023.91.3516.35
FF-3036/40302118.61.7517.75
FF-3540/453522331.7518.75
FF-40504023381.9519.95



Drawings in PDF and STP:

BK10PDF   STP
FK10PDF   STP
BK12PDF
FK12PDF   STP
BK15
FK15PDF   STP
BK17STP
FK17STP
BK20PDF   STP
FK20PDF   STP
BK25PDF   STP
FK25PDF   STP
BK30PDF   STP
FK30PDF   STP
BK35PDF   STP
FK35
BK40PDF   STP
FK40
BF10PDF   STP
FF10PDF   STP
BF12PDF
FF12PDF   STP
BF15PDF   STP
FF15PDF   STP
BF17STP
FF17STP
BF20PDF   STP
FF20PDF   STP
BF25PDF   STP
FF25PDF   STP
BF30PDF   STP
FF30STP
BF35PDF   STP
FF35
BF40PDF   STP
FF40



Other Abssac services and products

To compliment our product ranges we offer a large range of support products. For example we have had great success in producing copies of lead and ball screws where no formal drawing exists. Customers have shipped the parts for us to dimensionally check and copy into a new physical part. Ancillary products can also include the ranges of lubricants we supply, including our low vapour pressure greases for clean room and vacuum applications. The new Trigel line is specifically formulated to offer a lubrication solution for a wide range of linear motion applications. Other services available from Abssac are listed below

  • Greases and lubricants for ball and lead screws
  • Wiper kits for ball and lead screws
  • Mounting flanges for ball nuts
  • NEMA sized bearing mounts
  • Vacuum environment compatible products
