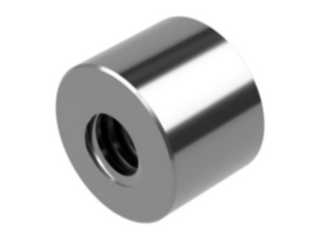

Ideal for slow or manual movement, the round steel nut delivers robust and effective linear movement for a budgetary cost. The RSN is compatible with Carbon Steel screws only.
Round Steel nuts are available for all sizes of leadscrew
A selection of right handed sizes are available to buy online, other sizes are available.
For orders of 10+ items please contact us. We can also offer lead screws in lengths up to 3 metres and end machining services. Please send your enquiry to sales@abssac.co.uk or call us on 01386 421005.
GoTR304.Our trapezoidal lead screws are cold rolled formed giving them the immediate advantage of a work hardened surface on which the load bearing nut will travel.Ideal for slow or manual movement the round steel nut delivers robust and effective linear movement for a budgetary cost.
A weldable round bodied steel nut. The RSN and Round Stainless Steel RSSN are compatible with Carbon Steel screws only.
Type RSSN Stainless Steel nut is for use with Stainless Steel screws only.
The nut material for Steel is EN1982 Cu Sn5 Zn5 Pb5-C - CC491K and for Stainless Steel INOX A1-AISI 303-1.4305
(1) Total bearing surface between screw and nut teeth on plane perpendicular to axis.
