• HSN Hex Steel Nut

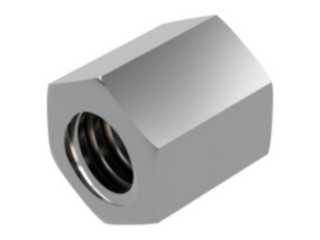

Hexagonal Steel Nut

HSN

A simple, effective nut design that is used in a multitude of applications. The low cost and standard metric hexagonal shape makes this a very cost effective, easy to use solution. The HSN nut is for use with carbon steel trapezoidal lead screws only.

Hexagonal Steel nuts are available for all sizes of leadscrew



HSN Power Nut

HSN Diagram

Size - HSN 10x3

Diameter x Pitch (mm):
10x3
Dimensions:
17mm Flat to Flat x 15mm L
  • E: 17 mm
  • L: 15 mm
Material:
Steel EN 10277-3 11SMnPb37 – 1.0737

Size - HSN 10x2

Diameter x Pitch (mm):
10x2
Dimensions:
17mm Flat to Flat x 15mm L
  • E: 17 mm
  • L: 15 mm
Material:
Steel EN 10277-3 11SMnPb37 – 1.0737

Size - HSN 12x3

Diameter x Pitch (mm):
12x3
Dimensions:
19mm Flat to Flat x 18mm L
  • E: 19 mm
  • L: 18 mm
Material:
Steel EN 10277-3 11SMnPb37 – 1.0737

Size - HSN 16x4

Diameter x Pitch (mm):
16x4
Dimensions:
27mm Flat to Flat x 24mm L
  • E: 27 mm
  • L: 24 mm
Material:
Steel EN 10277-3 11SMnPb37 – 1.0737

Size - HSN 20x4

Diameter x Pitch (mm):
20x4
Dimensions:
30mm Flat to Flat x 30mm L
  • E: 30 mm
  • L: 30 mm
Material:
Steel EN 10277-3 11SMnPb37 – 1.0737

Size - HSN - 24x5

Diameter x Pitch (mm):
24x5
Dimensions:
36mm Flat to Flat x 36mm L
  • E: 36 mm
  • L: 36 mm
Material:
Steel EN 10277-3 11SMnPb37 – 1.0737
Size:
  • Reference: HSN
  • Power Nuts
  • not yet rated

A simple, effective nut design that is used in a multitude of applications. The Hex HSN nut is for use with mild steel screws.

The low cost and standard metric hexagonal shape provides an ease of use, which the product can be flush welded (MIG-MAG only).

Please note that Electrode welding is not recommended because of the lead content in the material.

Material - Steel 11 S Mn Pb 37 EN 10277 (W.N. 1.0737)

  • Hexagonal Steel Nut
  • Weldable material
    Weldable material

(1) Total bearing surface between screw and nut teeth on plane perpendicular to axis.
