Trapezoidal Stainless Steel 304 POWER Screw

TR304

Our trapezoidal lead screws are cold rolled formed giving them the immediate advantage of a work hardened surface on which the load bearing nut will travel. Starting with a pre-ground Stainless Steel bar, the thread form is gradually rolled into the material with increasing pressure ensuring precise material deformation along the thread form as it is worked. By repeating this process the screw work hardens into a smooth finish with the desired diameter and lead as the finished product.

All Abssac Leadscrews are available to be machined upon request,
Linear guide rails can supplied to support any leadscrew application

Size - TR304 12x3

Dimensions:
1000mm length
Material:
Stainless Steel INOX A2 - AISI 304 – 1.4301
Diameter x Pitch (mm):
12x3
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.2mm per 300mm

Size - TR304 16x4

Dimensions:
1000mm length
Material:
Stainless Steel INOX A2 - AISI 304 – 1.4301
Diameter x Pitch (mm):
16x4
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.2mm per 300mm

Size - TR304 20x4

Dimensions:
1000mm length
Material:
Stainless Steel INOX A2 - AISI 304 – 1.4301
Diameter x Pitch (mm):
20x4
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.2mm per 300mm

Size - TR304 24x5

Dimensions:
1000mm length
Material:
Stainless Steel INOX A2 - AISI 304 – 1.4301
Diameter x Pitch (mm):
24x5
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.2mm per 300mm
Size:
  • Reference: TR304
  • Trapezoidal POWER SCREWS & Nuts
  • not yet rated

MOST SIZES IN STOCK - Rolled screw format using Stainless steel 1.4301 EN 10088-1 (304) DIN103-7e

POWER Lead screws that are cold rolled formed have the immediate advantage of a work hardened surface on which the load bearing nut will travel. Starting with a pre-ground Stainless Steel bar stock, the thread form is gradually rolled into the material with increasing pressure ensuring precise material deformation along the thread form as it is worked. By repeating this process the screw stock work hardens into a smooth finish with the desired diameter and lead as the finished product. The Trapezoidal screw form deliverers a high efficiency, drag reducing surface which is ideal for the range of associated plastic and bronze nuts.  Abssac's TR304 POWER lead screw product is winning business through its high efficiency product finish and competitive pricing structure.

Position accuracy - Tolerance is +/- 0.2 mm for every 300 mm of the thread. Available lengths - Stock lengths 3000mm or shorter End Machining - Our machining capability gives you a high journal concentricity product and can be applied to all screws regardless of diameter. Lets work together to reduce your scrap rates and supply  leadscrew solutions that fit your application every time. for more details follow the link :  Machining

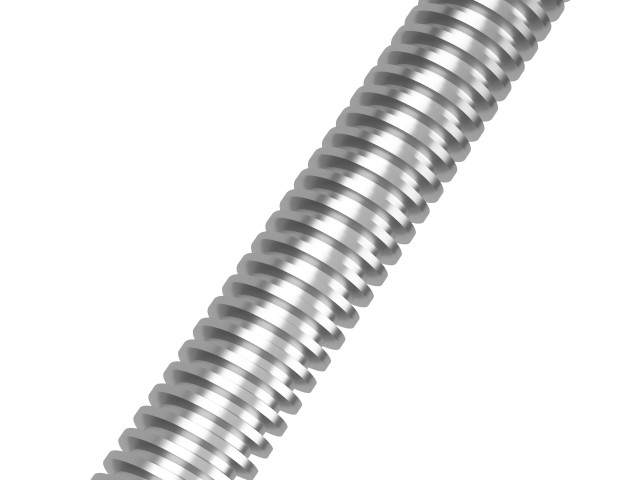

  • Trapezoidal Stainless Steel 304 POWER Screw

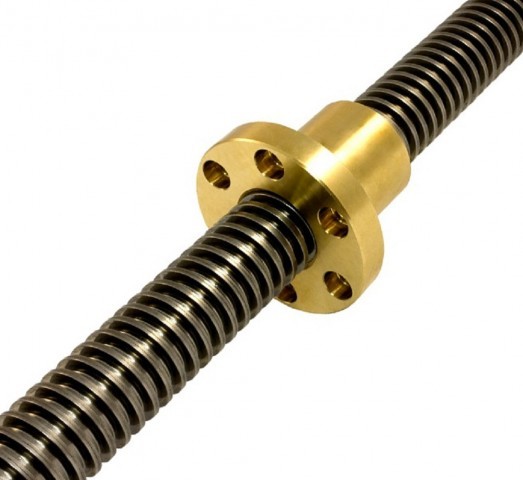

  • Trapezoidal Power Lead Screws
    Trapezoidal Power Lead Screws
  • Machined to print
    Machined to print
  • POWER SCREW
    POWER SCREW

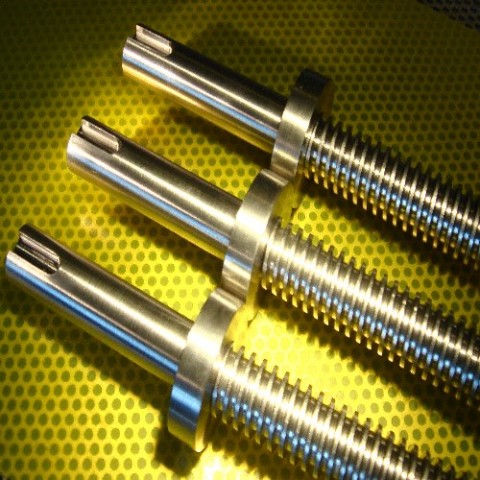

  • Competitively priced
