• Trapezoidal Carbon Steel Screw

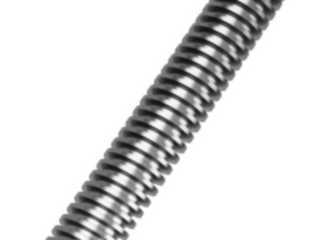

Trapezoidal Carbon Steel C45 POWER Screw

TRC45

Our trapezoidal lead screws are cold rolled formed giving them the immediate advantage of a work hardened surface on which the load bearing nut will travel. Starting with a pre-ground Carbon Steel bar, the thread form is gradually rolled into the material with increasing pressure ensuring precise material deformation along the thread form as it is worked. By repeating this process the screw work hardens into a smooth finish with the desired diameter and lead as the finished product.

MOST SIZES IN STOCK  - Rolled screw form using low cost Carbon Steel C45 – 1.0503 EN 10083-2 DIN103-7e

POWER Lead screws that are cold rolled formed have the immediate advantage of a work hardened surface on which the load bearing nut will travel. Starting with a pre-ground Carbon Steel bar stock, the thread form is gradually rolled into the material with increasing pressure ensuring precise material deformation along the thread form as it is worked. By repeating this process the screw stock work hardens into a smooth finish with the desired diameter and lead as the finished product. The Trapezoidal screw form deliverers a high efficiency, drag reducing surface which is ideal for the range of associated plastic and bronze nuts.  Abssac's TRC45 POWER lead screw product is winning business through its high efficiency product finish and competitive pricing structure.

Positional accuracy - Tolerance is +/- 0.1 mm for every 300 mm of the thread.

Available lengths - Stock lengths 3000mm or shorter

End MachiningOur machining capability gives you a high journal concentricity product and can be applied to all screws regardless of diameter. Lets work together to reduce your scrap rates and supply  leadscrew solutions that fit your application every time. for more details follow the link :  Machining

  • Trapezoidal Carbon Steel C45 POWER Screw
  • Trapezoidal Power Lead Screws
    Trapezoidal Power Lead Screws
  • Cold Rolled Formed POWER Screw
    Cold Rolled Formed POWER Screw
  • All screws can be delivered ready to fit
    All screws can be delivered ready to fit
  • End machining to print
    End machining to print

Please see the table below for the list of Trapezoidal Carbon Steel C45 POWER Screw sizes we offer from our standard range.

We can also offer bespoke custom diameter and lead combinations to your specification. If you require a diameter and lead combination that is non standard, please send your enquiry to sales@abssac.co.uk or call us on 01386 421005.


All Abssac Leadscrews are available to be machined upon request,
Linear guide rails can supplied to support any leadscrew application

Size - TRC45 10x2

Dimensions:
1000mm length
Material:
Carbon Steel EN 10083-2 C45 – 1.0503
Diameter x Pitch (mm):
10x2
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.1mm per 300mm

Size - TRC45 10x3

Dimensions:
1000mm length
Material:
Carbon Steel EN 10083-2 C45 – 1.0503
Diameter x Pitch (mm):
10x3
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.1mm per 300mm

Size - TRC45 12x3

Dimensions:
1000mm length
Material:
Carbon Steel EN 10083-2 C45 – 1.0503
Diameter x Pitch (mm):
12x3
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.1mm per 300mm

Size - TRC45 16x4

Dimensions:
1000mm length
Material:
Carbon Steel EN 10083-2 C45 – 1.0503
Diameter x Pitch (mm):
16x4
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.1mm per 300mm

Size - TRC45 20x4

Dimensions:
1000mm length
Material:
Carbon Steel EN 10083-2 C45 – 1.0503
Diameter x Pitch (mm):
20x4
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.1mm per 300mm

Size - TRC45 24x5

Dimensions:
1000mm length
Material:
Carbon Steel EN 10083-2 C45 – 1.0503
Diameter x Pitch (mm):
24x5
Thread Direction:
Right Hand
Positional Accuraracy:
+/-0.1mm per 300mm
Price:
£9.78exc. VAT
£11.74inc. VAT
Size:
:

  • Reference: TRC45
  • Trapezoidal POWER SCREWS & Nuts
  • not yet rated
  • Delivery 2 to 3 working days

A selection of right handed sizes are available to buy online, other sizes are available.

For orders of 10+ items please contact us.  We can also offer lead screws in lengths up to 3 metres and end machining services.  Please send your enquiry to sales@abssac.co.uk or call us on 01386 421005.
