SFC Model

SFC Model

Extremely light, torsional stiff and flexible coupling

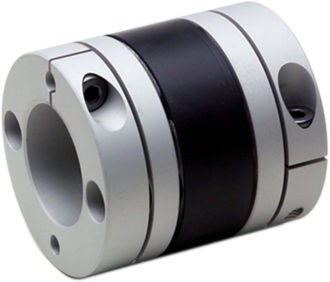

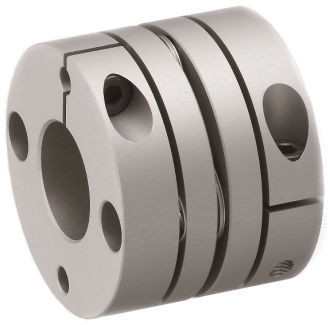

The SFC Model is a disc-spring coupling that use a lightweight, high-strength aluminum alloy for the clamp hub to enable high torsional stiffness and high response. Both, single-element types with high torsional stiffness and flexible double-element types that separate double elements with a spacer are available. Both lower the moment of inertia by linking the outer diameter of the hub to the shaft diameter.

Properties

  • Hub of high-strength aluminum alloy
  • Very low moment of inertia
  • Ultra-high torsional stiffness
  • Highly flexible
  • 0.25 to 250 Nm

SFF(-N) Model

SFC Model

Accurate positioning

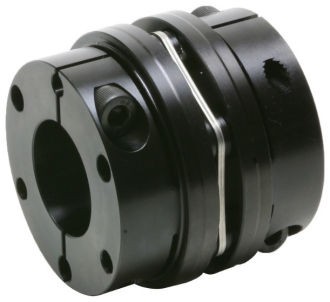

These couplings have disc springs that use steel for the clamp hub. Their torsional stiffness is extremely high, their shaft rotation is accurate, and control can be ultra-precise. Both single-element types with ultra-high torsional stiffness and flexible double-element types that separate double elements with a spacer are available.

Properties

  • Maximum speed of up to 20,000 min-1.
  • High-precision assembly by a special centering
  • Torsional stiff and highly flexible
  • 8 to 300 Nm

SFS Model

SFC Model

Available in single parts

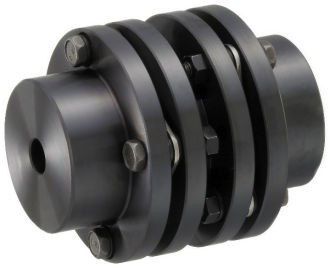

These couplings have disc springs that use steel for the body. They are the basic type of SERVO FLEX. Single-element types with high torsional stiffness, flexible double-element types that separate double elements with a spacer, and floating shaft types that combine double elements with intermediate flanges are available.

Properties

  • Grosse Auswahl
  • Extrem drehsteife
  • Hochflexible
  • Mit Überbrückungsschaft, für lange Distanzen, verfügbar
  • Konuswellen kompatibelIn Einzelteilen lieferbar

SFF Model

SFC Model

Highly precise control

These couplings have disc springs that use steel for the body. This makes them optimal for ordinary feed shafts that have high torsional stiffness, have accurate shaft rotation, and are capable of ultra-precise control. Both single-element types with high torsional stiffness and flexible double-element types that separate double elements with a spacer are available.

Properties

  • SFF für den Einsatz in den Achsspindeln (Feedaxis)
  • Maximaldrehzahl von bis zu 20000 min–1.
  • Hochpräziese montage durch ein spezielles Zentriersystem
  • Hohe Drehsteifigkeit und Flexibilität
  • 70 bis 800 Nm

SFM Model

SFC Model

Highspeed Rotation

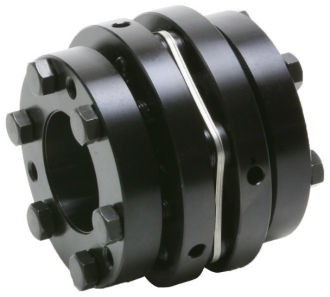

These models were developed to be compatible with spindle applications on machine tools. They are disc spring couplings capable of high precision and high speed. To enable high-precision mounting, both the flange unit and the pressurization flanges are equipped with centering mechanisms. They are also shaped so that the flange covers the periphery of the disc spring with few raised or lowered surfaces to minimize whistling during high speed rotation. Both single-element types with ultra-high torsional stiffness and flexible double-element types that separate double elements with a spacer are available.

Properties

  • Maximaldrehzahl von bis zu 30000 min–1.
  • Hochpräziese Montage durch ein spezielles Zentriersystem
  • Laufruhig bei hohen Drehzahlen durch geringe Luftverwirbelungen
  • Sehr Drehsteife "Single.Element" Kupplung
  • Hochflexible "Double-Element" Kupplung

SFH Model

SFC Model

The high-torque version

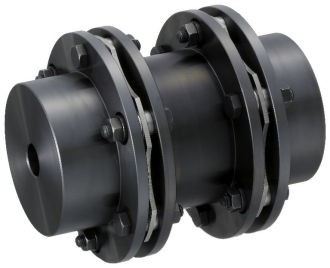

The maximum size with disc spring couplings for high-output applications is an outer flange diameter of 262 mm and rated torque of 8000 Nm. Single-element types with high torsional stiffness and flexible double-element floating-shaft types that connect double elements with an intermediate floating shaft are available. The floating shaft is particularly able to handle the setting of lengths according to customer requirements.

Properties

  • Hochdrehmoment bis zu 8000 Nm
  • Flexible Längen nach Kundenwunsch
  • Zerlegt Lieferbar
  • Bohrung bis 115mm
  • Zero Backlash
