High Helix Lead Screws

Plastic or Bronze nuts
low rpm = high linear speed
Unique nut designs can also be supplied with the High Helix screws

Unique nut designs can also be supplied with the High Helix screws

The revolutionary high helix multi-start lead screws can offer leads of up to 6 x the diameter of the screw. This multi-start lead screw product provides high linear nut speeds from low rotational screw speeds. Aimed at replacing timing belt mechanisms or executing fast and reliable linear motion the efficient conversation of linear to rotary movement makes this unique product usable in many applications. Formed by the cold rolled forming process, the screws are proving to be a superb economical solution for linear applications. Using a comprehensive range of screw diameters from 8mm through to 36mm, and combining these with two standard types of nut, (Flanged preloaded or simple flanged) results in a high integrity lead screw and nut product that is ready to be fitted directly into the application and perform.

Lifts per Twirl ! - Screw leads from 7.5mm to 200mm as standard.

The screws can be manufactured from Steel, Stainless Steel and Aluminium whilst the associated nuts are available in wear resistant thermoplastic (Plastic Polymer Nuts: - 40 deg C to + 60 deg C) or Bronze (Bronze Nuts: - 40 deg C to + 200 deg C) for higher loads or temperature. When choosing a High helix lead screw for your application you should consider that we can offer a standard Lead Accuracy 0.21mm / 300mm or a precision Lead Accuracy of 0.10mm / 300mm.

We offer a full end journal machining service with this product, so that the product can fit suitable radial and thrust bearings.

Now available in Aluminium !

HIGH HELIX LEADSCREW WITH STANDARD THREAD	HIGH HELIX LEADSCREW WITH STANDARD THREAD	HIGH HELIX LEADSCREW COMPLETE WITH FINE-PITCH THREAD
Screw: Steel (including stainless)	Screw: Steel (including stainless)	Screw: Steel (including stainless) or hard-anodised Aluminium
Nut: Plastic or Bronze	Nut: Plastic or Bronze	Nut: Plastic or Bronze (only with screws made of Steel)

Diameter 8mm x 10mm Pitch	Diameter 20mm x 12mm Pitch	Diameter 6mm x 25mm
Diameter 10mm x 12mm Pitch*	Diameter 20mm x 45mm Pitch	Diameter 7.5mm x 7.5mm
Diameter 12mm x 15mm Pitch*	Diameter 21mm x 27mm Pitch*	Diameter 8mm x 30mm Pitch*
Diameter 12mm x 25mm Pitch	Diameter 21mm x 35mm Pitch	Diameter 10mm x 10mm
Diameter 10mm x 50mm Pitch*	Diameter 22mm x 20mm Pitch	Diameter 11mm x 40mm Pitch*
Diameter 11mm x 60mm Pitch	Diameter 22mm x 50mm Pitch	Diameter 12mm x 45mm Pitch*
Diameter 13mm x 20mm Pitch	Diameter 23mm x 30mm Pitch*	Diameter 12.5mm x 12.5mm Pitch
Diameter 13mm x 70mm Pitch	Diameter 24mm x 40mm Pitch	* available with right-handed and left-handed thread
Diameter 14mm x 8mm Pitch	Diameter 24mm x 55mm Pitch
Diameter 14mm x 18mm Pitch*	Diameter 26mm x 16mm Pitch
Diameter 14mm x 30mm Pitch	Diameter 26mm x 24mm Pitch
Diameter 15mm x 20mm Pitch	Diameter 26mm x 60mm Pitch
Diameter 15mm x 80mm Pitch*	Diameter 27mm x 45mm Pitch	HIGH HELIX LEADSCREW WITH INCH THREAD
Diameter 16mm x 21mm Pitch	Diameter 28mm x 65mm Pitch	Screw: Steel (including stainless) Nut: Plastic or Bronze
Diameter 16mm x 25mm Pitch	Diameter 30mm x 28mm Pitch
Diameter 16mm x 35mm Pitch	Diameter 30mm x 50mm Pitch	Diameter 9.7mm x 25.4mm Pitch
Diameter 16mm x 90mm Pitch*	Diameter 30mm x 70mm Pitch	Diameter 11.2mm x 30.5mm Pitch*
Diameter 18mm x 16mm Pitch	Diameter 32mm x 20mm Pitch	Diameter 12.8mm x 35.6mm Pitch*
Diameter 18mm x 24mm Pitch*	Diameter 32mm x 75mm Pitch	Diameter 14.3mm x 40.6mm Pitch*
Diameter 18mm x 40mm Pitch	Diameter 34mm x 32mm Pitch	Diameter 16.0mm x 45.7mm Pitch*
Diameter 18mm x 100mm Pitch*	Diameter 34mm x 80mm Pitch	Diameter 17.6mm x 50.8mm Pitch*
Diameter 19mm x 30mm Pitch	Diameter 36mm x 200mm Pitch	Diameter 25.7mm x 76.2mm Pitch*
* available with right-handed and left-handed thread	* available with right-handed and left-handed thread	* available with right-handed and left-handed thread

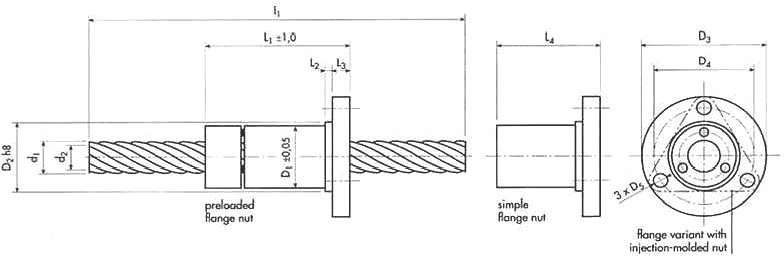

High Helix Lead Screw and Nut

For each screw type we offer a preloaded, anti backlash nut or standard single nut designs, complete with flange for ease of connection. Special designs of nuts can be supplied via our speedy engineering department.

Linear guides and rails

Guides & Rails If you are interested in the using the High Helix screw ranges, do not forget that we also supply the full range of linear guides and rails which can provide the load support in your linear mechanism. Offering excellent rigidity and parallelism during operation the guides can be used in both vertical and horizontal planes.

Following the link to that product page Guides

Thrust and radial bearings

Please do not forget to ask for our competitive support bearing prices !

If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection.

Greases and Lubricants

We provide a full range of quality, low cost lubricants for all our linear products including low vapour pressure greases for clean room and vacuum applications. For example the new Trigel line is specifically formulated to offer a lubrication solution for a wide range of linear motion applications. Please ask for further details. Grease features include, Temperature range -30°C to 150°C, Revolutionary multi-complex soap technology, Greatly extended lubrication intervals typically 3 times longer than conventional soap thickened greases. Good corrosion resistance. Some greases are supplied blue in colour for high visibility.
