BXW Safety Brakes

The perfect all rounder. Compact dual side mounting. Used for braking applications. The product line-up includes three types: the S type, for holding, the L type for braking, and the H type for both holding and braking.  Available with optional dust covers.

Four types of BXW safety brakes are available: Three types with the same dimensions but different load torques and one type with specifications and dimensions matched to compact servo motors sized 40, 60, and 80. Product selection is directly linked to the power rating that best matches the application and life cycle. However, all types satisfy the rated torque values from first operational use. ABSSAC will be happy to help you with the selection.

Brake torque
0.12 N・m to 5.2 Nm
Outer diameter of brake
37 mm to 75 mm
Operating temperature
-10°C to 40°C





Applications

Vertical Shafts for Machine Tools

BXW model spring-actuated brakes are used to prevent falls.

Overall view of equipment used

Overall view of equipment used

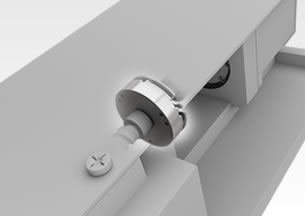

Enlarged view

Enlarged view

Wind Power Generators

Product Models Used: Larger BXW sized (Customized special-made part)

Large BXW models are used in pitch drive devices for wind power generators.

Overall view of equipment used

Overall view of equipment used

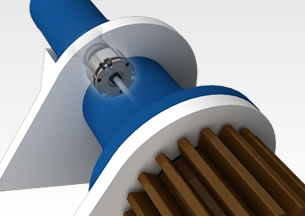

Enlarged view

Enlarged view

Medical Equipment

Product Models Used: BXW +  SFC

SFC model metal disc couplings and BXW model spring-actuated brakes with sound-absorbing springs are used to transmit power and maintain positions in diagnostic imaging systems. They contribute to improving quietness.

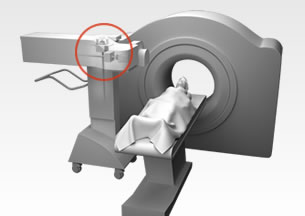

Overall view of equipment used

Overall view of equipment used

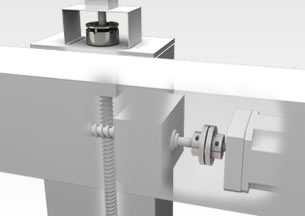

Enlarged view

Enlarged view
