A simple machined thread mount design delivers the most cost effective nut body design. This reliable design can be fitted drectly into the application using its external thread mount. Particulalry good at delivering linear motion the nut material has lubricating leeching properties from the PTFE based material. Since the part is machined, its manufacturing technique opens the capability for tailored designs to be delivered at budgetary costs.
Material: Bearing grade Acetal

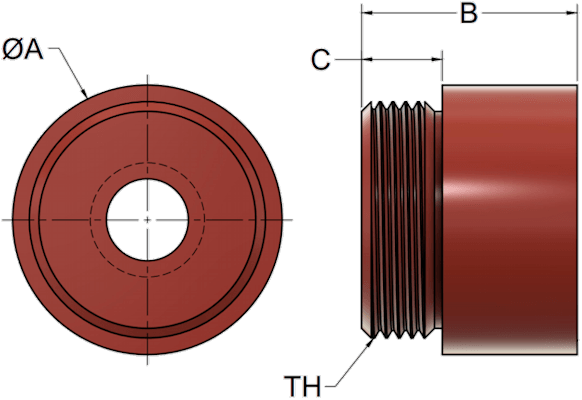

| Part No. | Max Dynamic Load (N) | Dia. (mm) | Lead (mm) | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A (mm) | B (mm) | C (mm) | TH | |||||||||
| SB10X2M (L) | 311 | 10 | 2 | 19.1 | 19.1 | 6.4 | M16x1.5 | |||||
| SB10X3M | 311 | 3 | ||||||||||
| SB2-10X2M | 311 | 4 | ||||||||||
| SB2-10X2.5M | 311 | 5 | ||||||||||
| SB4-10X1.5M | 311 | 6 | ||||||||||
| SB5-10X2M | 311 | 10 | ||||||||||
| SB5-10X2.4M | 311 | 12 | ||||||||||
| SB6-10X3.3M | 311 | 20 | ||||||||||
| SB12X2MV | 444 | 10 | 12 | 2 | 19.1 | 25.4 | 19.1 | 25.4 | 6.4 | 9.5 | M16x1.5 | M22x1.5 |
| SB12X3M (L) | 444 | 3 | ||||||||||
| SB2-12X2M | 444 | 4 | ||||||||||
| SB2-12X2.5M | 444 | 5 | ||||||||||
| SB3-12X2M | 444 | 6 | ||||||||||
| SB4-12X2.5M | 444 | 10 | ||||||||||
| SB6-12X2.5M | 444 | 15 | ||||||||||
| SB8-12X2M | 444 | 16 | ||||||||||
| SB10-12X2.5M | 444 | 25 | ||||||||||
| SB16X4M (L) | 444 | 16 | 1012 | 4 | ||||||||
| SB2-16X2.5M | 44416 | 5 | ||||||||||
| SB4-16X2M | 44416 | 8 | ||||||||||
| SB7-16X2.3M | 44416 | 16 | ||||||||||
| SB5-16X5M | 44416 | 25 | ||||||||||
| SB7-16X5M | 44416 | 35 | ||||||||||
| SB20X4M (L) | 1334 | 1012 | 20 | 4 | 19.125.4 | 38.1 | 19.125.4 | 38.1 | 6.49.5 | 12.7 | M16x1.5M22x1.5 | M35x1.5 |
| SB2-20X4M | 1334 | 8 | ||||||||||
| SB3-20X4M | 1334 | 12 | ||||||||||
| SB4-20X4M | 1334 | 16 | ||||||||||
| SB5-20X4M | 1334 | 20 | ||||||||||
| SB9-20X5M | 1334 | 45 | ||||||||||
| SB10-20X5M | 1334 | 50 | ||||||||||
| SB24X5M (L) | 1334 | 24 | 101220 | 5 | ||||||||
(L) = Left hand thread available
required
