Flanged Nut RSF - PEEK Plastic

Developed using state of the art injection moulding techniques delivers a robust and cost effective flanged nut body nut design. Available in PEEK plastic with a triangular flanged format provides enhanced wear and loading charatceristoics over the MTS nut design. The simple but effective design has been reliably used in many different linear applications over the years.

RSF/RSFH Lead Nut

Material: Bearing grade Acetal

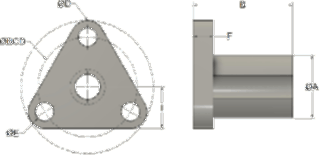

RSF/RSFH Lead Nut diagram

Part No.Max Dynamic Load (N)Dia. (mm)Lead (mm)Dimensions
A (mm)B (mm)D (mm)E (mm)F (mm)I (mm)BCD (mm)
RSF4X1M444189.519.13.33.36.412.7
RSF4-4X1M444
RSF8-4X1M448
RSF6X1M111461812.79.519.119.125.43.33.63.33.86.47.912.719.1
RSF4-6X1.5M1116
RSF8-6X1.5M11112
RSF9-6X2M11118
RSF8X2M3334682812.7169.519.125.419.125.431.83.33.64.83.33.810.46.47.922.2
RSF2-8X2M3334
RSF4-8X2M3338
RSF6-8X2M33312
RSF10-8X2M33320
RSF10X2M (L)333104682
RSF10X3M (L)333103
RSF2-10X2M333104
RSF2-10X2.5M333105
RSF4-10X1.5M333106
RSF5-10X2M3331010
RSF5-10X2.4M3331012
RSF6-10X3.3M3331020

(L) = Left hand thread available
