• Precision Lead Screw Nut MTS2520

Flanged Nut MTS - ACETAL

Developed using state of the art injection moulding techniques delivers a robust and very cost effective flanged nut body nut design. Available in round or triangular  flange formats, this simple but effective design has been reliably used in many different linear applications over the years.

MTS Lead Nut

Material: Bearing grade Acetal

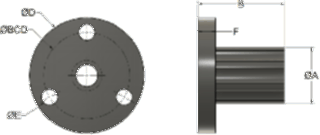

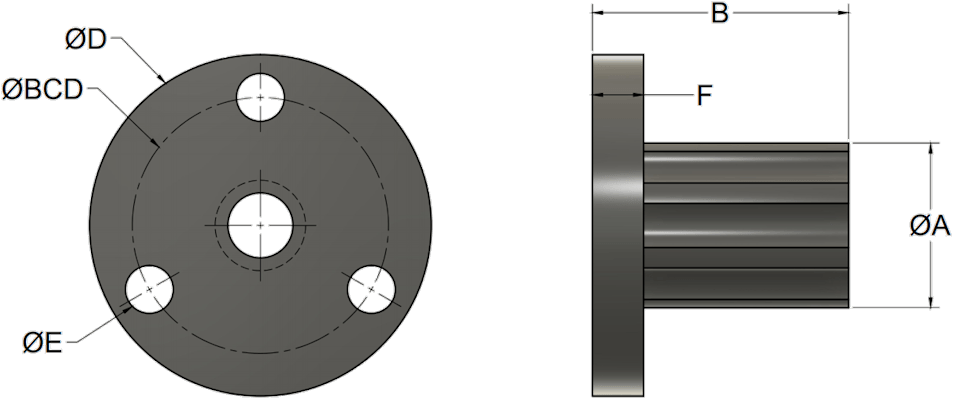

MTS Lead Nut B diagram

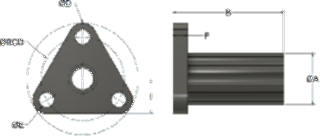

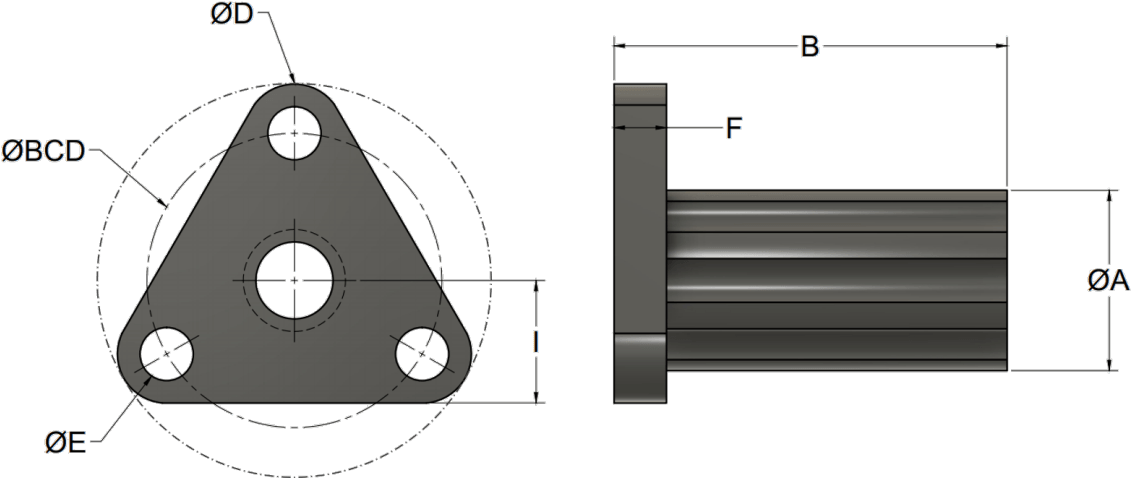

MTS Lead Nut A diagram

 Part No.Max Dynamic Torque (N)Dia. (mm)Lead (mm)Dimensions
 A (mm)B (mm)D (mm)E (mm)F (mm)I (mm)BCD (mm)
Type AMTS4X1M1114112.719.125.43.63.8x19.1
Type AMTS4-4X1M4
Type AMTS8-4X1M8
Type AMTS6X1M61111
Type AMTS4-6X1.5M66
Type AMTS8-6X1.5M612
Type AMTS9-6X2M618
Type AMTS8X2M81112
Type AMTS2-8X2M84
Type AMTS4-8X2M88
Type AMTS6-8X2M812
Type AMTS10-8X2M820
Type BMTS10X2M (L)111333410212.71819.138.125.438.13.65.13.85.1x11.919.128.6
Type BMTS10X3M (L)3
Type BMTS2-10X2M4
Type BMTS2-10X2.5M5
Type BMTS4-10X1.5M6
Type BMTS5-10X2M10
Type BMTS5-10X2.4M12
Type BMTS6-10X3.3M20
Type AMTS12X2MV11133355641012212.71819.119.138.16.425.438.1x
Type AMTS12X3M3
Type AMTS2-12X2M4
Type AMTS2-12X2.5M5
Type AMTS3-12X2M6
Type AMTS4-12X2.5M10
Type AMTS6-12X2.5M15
Type AMTS8-12X2M16
Type AMTS10-12X2.5M25
Type AMTS16X4M (L)7781113335561641012422.412.71819.141.419.138.16.47.625.438.1x30.2
Type AMTS2-16X2.5M7785
Type AMTS4-16X2M7788
Type AMTS7-16X2.3M77816
Type AMTS5-16X5M77825
Type AMTS7-16X5M77835
Type AMTS20X4M (L)1223111333556162041012422.428.612.71819.141.444.519.138.16.47.650.825.438.1x30.236.5
Type AMTS2-20X4M12238
Type AMTS3-20X4M122312
Type AMTS4-20X4M122316
Type AMTS5-20X4M122320
Type AMTS9-20X5M122345
Type AMTS10-20X5M122350

(L) = Left hand thread available
