• Precision Lead Screw Nut AFT3708

Anti Backlash Nut AFT - ACETAL

Developed using state of the art injection moulding techniques delivers a robust cost effective antibacklash nut design. Consisting of an easily attachable flanged nut body, a lightly compressed wound spring that applies the preload and a retaining collar.

This simple but effective design has been reliably used in many different linear applications.

AFT Anti-Backlash Nut

Material: Bearing grade Acetal

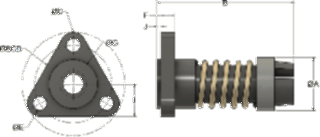

AFT Anti-Backlash Nut diagram

Part No.Max Dynamic Load (N)Dia. (mm)Lead (mm)Dimensions
A (mm)B (mm)D (mm)E (mm)F (mm)G (mm)I (mm)J (mm)BCD (mm)
AFT10X2M (L)4410219.650.838.15.15.11811.91.528.6
AFT10X3M (L)443
AFT2-10X2M444
AFT2-10X2.5M445
AFT4-10X1.5M446
AFT5-10X2M4410
AFT5-10X2.4M4412
AFT6-10X3.3M4420
AFT12X3M1111012319.622.450.851.638.141.25.15.15.16.418x11.912.71.5x28.631.8
AFT2-12X2M1114
AFT2-12X2.5M1115
AFT3-12X2M1116
AFT4-12X2.5M11110
AFT6-12X2.5M11115
AFT8-12X2M11116
AFT10-12X2.5M11125

(L) = Left hand thread available
