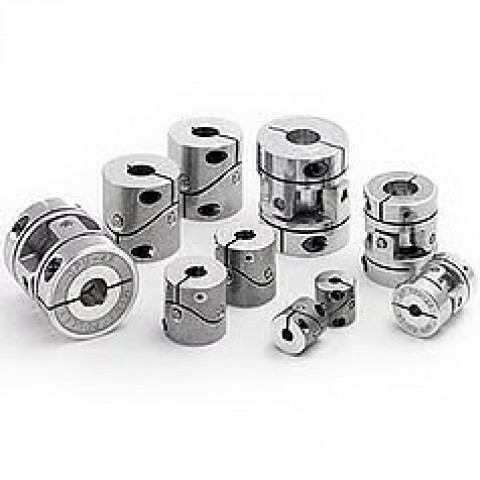

Paraflex

These are pin-bushing type couplings whose body is made of aluminum alloy. Backlash is kept extremely low by combining high-precision pins with dry metal.

Legacy Product

This product is part of our legacy range.

CPE Model

CPE Model

Pin bush connection

These are pin-bushing type couplings whose body is made of aluminum alloy. Backlash is kept extremely low by combining high-precision pins with dry metal.The compact design limits total length and the angle of deflection allowed is 1°. A universal system is used for hub coupling, which makes shaft reaction force due to mounting misalignment extremely small. There is also a damping effect from sliding at the friction surface between the pin and dry metal. A clamp system employing friction is used to mount the coupling on the shaft, making mounting easy.

Properties

  • High torsional stiffness
  • High flexibility
  • RoHS compliant
  • Up to 5 Nm
  • Angular misalignment 1°

CPU Model

CPU Model

Pin bush connection

These are pin-bushing type couplings whose body is made of aluminum alloy. Backlash is kept extremely low by combining high-precision pins with dry metal.They allow an angle of deflection of 4°. A universal system is used for hub coupling, which makes shaft reaction force due to mounting misalignment extremely small. There is also a damping effect from sliding at the friction surface between the pin and dry metal. A clamp system employing friction is used to mount the coupling on the shaft, making mounting easy.

Properties

  • High torsional stiffness
  • High flexibility
  • RoHS compliant
  • up to 25 Nm
  • Angular misalignment 4°
