Metric Studding

A complete range of low cost, studded screw ideal for construction and architectural purposes. ABSSAC can deliver quickly diameters such as : M4; M5; M6; M8; M10; M12; usually from 20mm to 100 mm in lengths in different materials such as : raw, zinc plated, stainless steel A2-304, and A4-316, packed in bags or carton boxes. The wide range of all threaded stud bolts DIN 976/A is based on ISO METRIC thread with big pitch but this does not exclude the production of fine pitch studs bolts and Whitworth thread forms if requested.

Legacy Product

This product is part of our legacy range.
For our updated range of Lead Screws:

Abssac supplies a complete range of low cost, studded screw ideal for construction and architectural purposes. We can deliver quickly diameters such as : M4; M5; M6; M8; M10; M12; usually from 20mm to 100 mm in lengths in different materials such as : raw, zinc plated, stainless steel A2-304, and A4-316, packed in bags or carton boxes.

ALL THREADED STUD BOLTS DIN976/A

The wide range of all threaded stud bolts DIN 976/A is based on ISO METRIC thread with big pitch but this does not exclude the production of fine pitch studs bolts and Whitworth. All the items are produced with tolerance on the 6g thread and in different materials like: raw and zinc plated steel, stainless steel A2 and A4, C20,C40,ASTM A-193 B7, brass and AVP with the relative classes of resistance.

STUDS FOR WELDING AND DOUBLE END STUDS

Our range of studs for welding and double end studs are manufactured by special customer request. In most cases we utilise an ISO metric thread with large pitch. All the items are produced with tolerance on the 6g thread and in different Materials like: raw and zinc plated steel, Stainless steel A2 and A4, C20,C40,ASTM A-193 B7, brass and AVP with the relative classes of corrosion resistance.

ALL THREADED STUDS CAN BE SUPPLIED WITH 45° CUT OFF ENDS

The range of all threaded studs with 45° cut is manufactured by special customer request, almost always with ISO metric thread with large pitch.

DIN 976/A available.

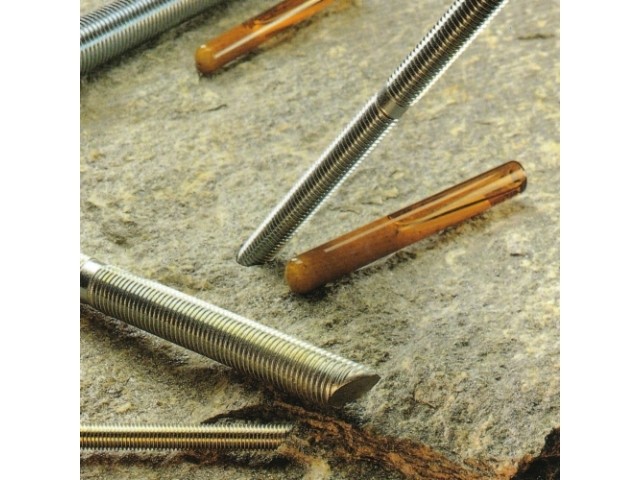

  • Metric Studding

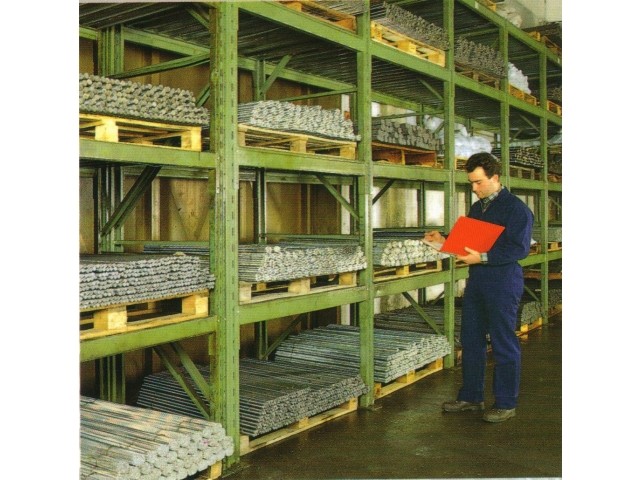

  • Large stocks
    Large stocks

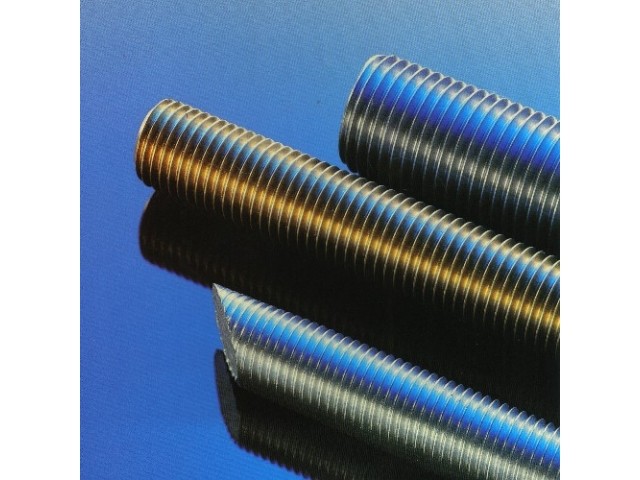

  • Ideal for construction purposes
    Ideal for construction purposes
  • 45Deg cut off to aid fixing
    45Deg cut off to aid fixing

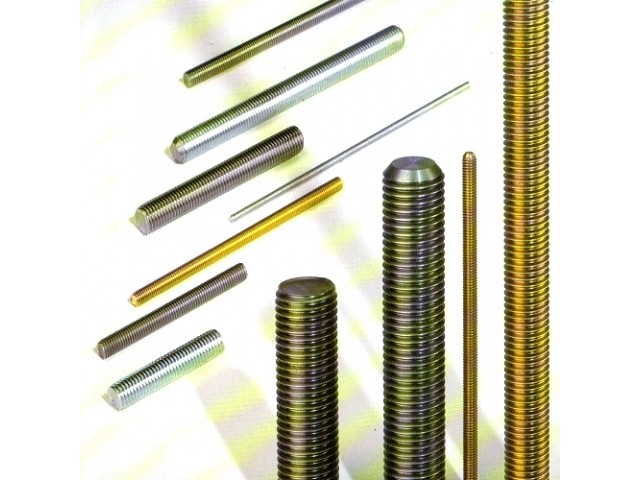

  • Metric studding in a range of materials
    Metric studding in a range of materials

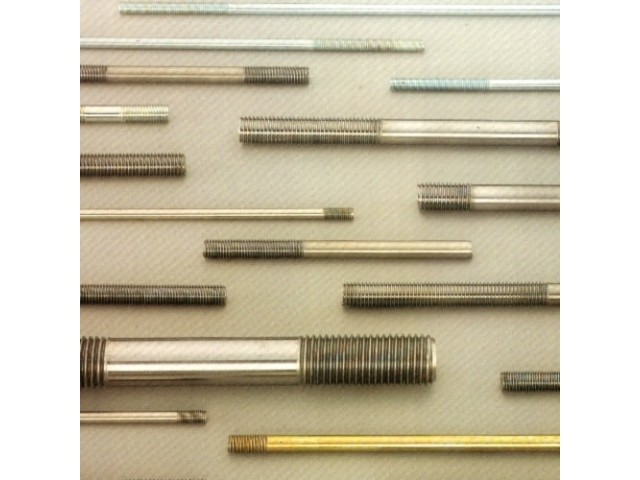

  • Construction classification
    Construction classification

The following sizes are available in the studding ranges



ISO Thread form
 WHITWORTH
 FE 37
Raw
FE 37
Zinc Plated
Stainless Steel
A2 - AISI 304
A4 - AISI 316
BrassC 20
C 40

(5.8 - 6.8)
  FE 37
Raw
M3  1/8"
M4  5/32"
M5  3/16"
M6 1/4"
M7    5/16"
M8 3/8"
M10 7/16"
M12 1/2"
M14 9/16"
M16 5/8"
M18 3/4"
M20 7/8"
M22 1"
M24 1" 1/8
M27 1" 1/4
M30 1" 3/8
M33    1" 1/2
M36
M39
M42
M45
M48
M52
Goods available for fast delivery
