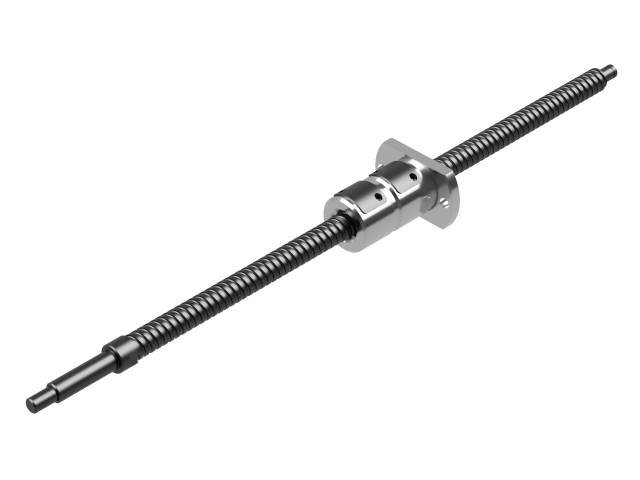

FSBS Flanged Double Nut

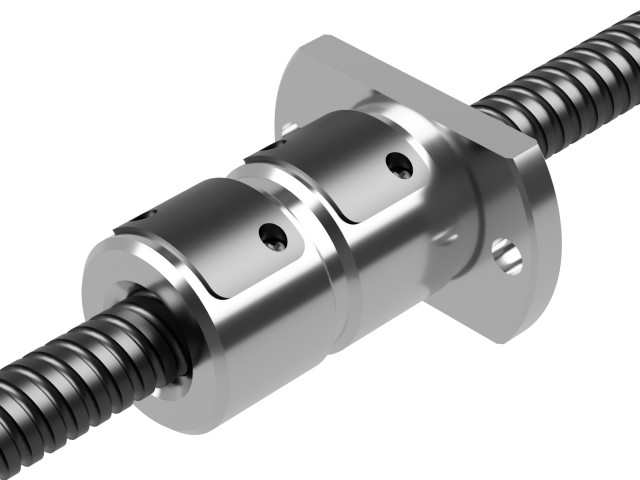

The FSBS series has a spacer  inserted between the two nuts to eliminate axial play. Pre-loading the axial force between two ball nuts can be applied to increase nut rigidity. This design uses a flanged nut in combination with a sleeve nut to enhance rigidity of the linear drive system. Using the bolt hole flange design makes mounting to the application quick and simple. The FSB series offers a set preload and competitive reliability. The end journals can be supplied machined to your drawing if required.

Legacy Product

This product is part of our legacy range.

The FSBS series has a spacer  inserted between the two nuts to eliminate axial play. Pre-loading the axial force between two ball nuts can be applied to increase nut rigidity. This design uses a flanged nut in combination with a sleeve nut to enhance rigidity of the linear drive system. Using the bolt hole flange design makes mounting to the application quick and simple. The FSB series offers a set preload and competitive reliability. The end journals can be supplied machined to your drawing if required. For more performance data, as well as further screw and nut dimensions please see our catalogue.

  • FSBS Flanged Double Nut
  • FSBS Flanged Double Nut
    FSBS Flanged Double Nut






Linear guides and rails

Guides & RailsIf you are interested in the using the FSBS ball screw ranges, please do not forget that we also supply the full range of linear guides and rails which can provide the load support in your linear mechanism. Offering excellent rigidity and parallelism during operation the guides can be used in both vertical and horizontal planes.

Following the link to that product page Guides

Thrust and radial bearings



Please do not forget to ask for our competitive support bearing prices !

 If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection.


Greases and Lubricants

We provide a full range of quality, low cost lubricants for all our linear products including low vapour pressure greases for clean room and vacuum applications. For example the new Trigel line is specifically formulated to offer a lubrication solution for a wide range of linear motion applications. Please ask for further details.  Grease features include, Temperature range -30°C to 150°C,  Revolutionary multi-complex soap technology, Greatly extended lubrication intervals typically 3 times longer than conventional soap thickened greases. Good corrosion resistance. Some greases are supplied blue in colour for high visibility.
