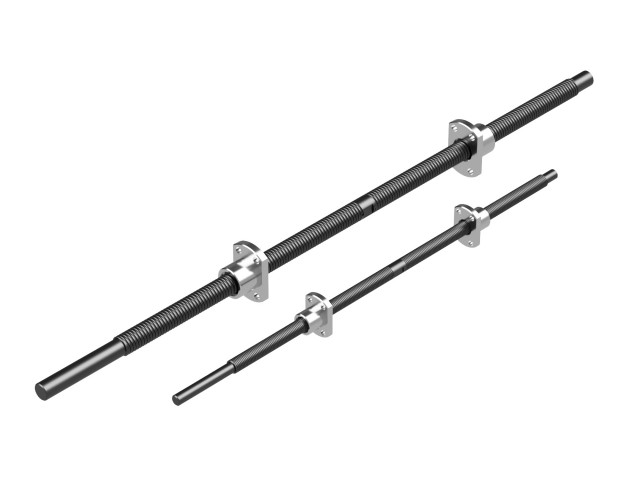

Available on 4mm to 12mm diameter ground ball screw with 1mm and 2mm lead variants. The basic design has two ball nuts, a left hand and right hand thread all on one screw. This set up is often required to activate a precision gripping device or perhaps adjust the width of an area within a machine.

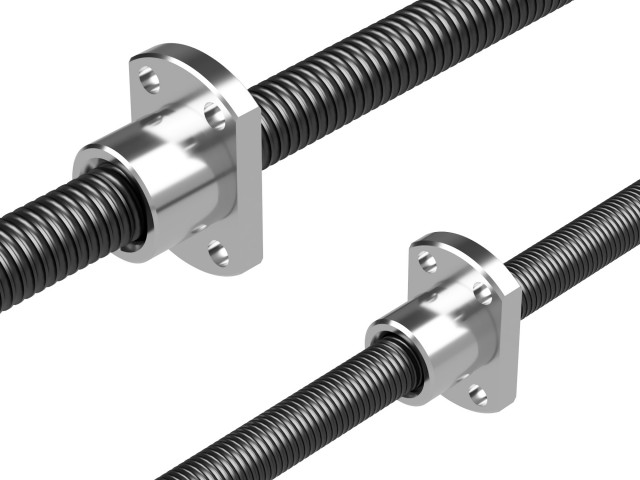

A recent application had this exact set up within a confectionary machine. Abssac supplied the SD1202-180L180R440C5 ground ball screw which utilises a 12mm diameter by 2mm lead ball screw in both a right hand and left hand format on the single screw. In affect both screw thread forms met at the centre of the screw, separated by a small blank section. This enabled two nuts to then be mounted on the screw which would then move in opposition to each other for a single screw direction of rotation. A pinching or extension movement could be achieved with the opposing nuts with up to 5 micron accuracy. For more performance data, aswell as further screw and nut dimensions please see our catalogue. Non standard sizes are available on request.
Part Number | Nominal Shaft Diameter (mm) | Lead (mm) | Linear Travel (mm) | Dynamic Load Rating (N) | Static Load Rating (N) |
---|---|---|---|---|---|
SD0401-50L50R140C3 | 4.0 | 1.00 | 35 | 300 | 430 |
SD0401-50L50R140C5 | 4.0 | 1.00 | 35 | 300 | 430 |
SD0601-80L80R210C3 | 6.0 | 1.00 | 65 | 550 | 1000 |
SD0601-80L80R210C5 | 6.0 | 1.00 | 65 | 550 | 1000 |
SD0801-120L120R300C3 | 8.0 | 1.00 | 105 | 650 | 1300 |
SD0801-120L120R300C5 | 8.0 | 1.00 | 105 | 650 | 1300 |
SD0802-120L120R300C3 | 8.0 | 2.00 | 100 | 1300 | 2300 |
SD0802-120L120R300C5 | 8.0 | 2.00 | 100 | 1300 | 2300 |
SD1002-165L165R400C3 | 10.0 | 2.00 | 145 | 1450 | 3000 |
SD1002-165L165R400C5 | 10.0 | 2.00 | 145 | 1450 | 3000 |
SD1202-180L180R440C3 | 12.0 | 2.00 | 160 | 1600 | 3700 |
SD1202-180L180R440C5 | 12.0 | 2.00 | 160 | 1600 | 3700 |
If you are interested in the using the ball screw ranges, do not forget that we also supply the full range of linear guides and rails which can provide the load support in your linear mechanism. Offering excellent rigidity and parallelism during operation the guides can be used in both vertical and horizontal planes.
Following the link to that product page Guides
Please do not forget to ask for our competitive support bearing prices !
If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection.
Greases and Lubricants
We provide a full range of quality, low cost lubricants for all our linear products including low vapour pressure greases for clean room and vacuum applications. For example the new Trigel line is specifically formulated to offer a lubrication solution for a wide range of linear motion applications. Please ask for further details. Grease features include, Temperature range -30°C to 150°C, Revolutionary multi-complex soap technology, Greatly extended lubrication intervals typically 3 times longer than conventional soap thickened greases. Good corrosion resistance. Some greases are supplied blue in colour for high visibility.
