We are proud to announce the launch of the NSG series, a new line of high-precision ball screws designed specifically for the European market. The NSG series adheres to ISO/DIN standards, addressing a key challenge for the existing SG series (JIS standard) in European markets.
This compatibility allows for a more seamless replacement of existing ISO/DIN standard Ball Screws. DIN-compliant ball screws often feature smaller nut sizes compared to JIS standards.
The NSG series reflects this design philosophy, offering a compact solution that integrates effortlessly into existing European applications.
Available in screw diameters from 4mm to 12mm, pitches ranging from 1mm to 5mm.

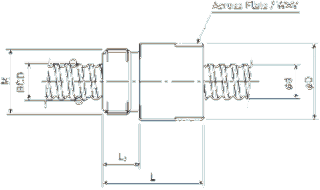

| Model Number | Shaft Diameter | Lead | BCD | Basic Load Rating | Nut Dimension | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dynamic | Static | D | L | L1 | W (width) | V (length) | M | ||||
| NSG0401 | 4 | 1 | 4.15 | 450 / 450 | 600 / 600 | 11 | 19 | 5 | 10 | 3 | M9x0.75 |
| NSG0601 | 6 | 1 | 6.2 | 560 / 560 | 950 / 950 | 12 | 20 | 6 | 10 | 3 | M10x1.0 |
| NSG0602 | 6 | 2 | 6.2 | 770 / 770 | 1150 / 1150 | 12 | 21 | 6 | 10 | 3 | M10x1.0 |
| NSG0801 | 8 | 1 | 8.2 | 650 / 650 | 1300 / 1300 | 16 | 22 | 8 | 14 | 5 | M14x1.0 |
| NSG0802 | 8 | 2 | 8.3 | 1300 / 1300 | 2300 / 2300 | 16 | 23 | 8 | 14 | 5 | M14x1.0 |
| NSG0805 | 8 | 5 | 8.3 | 1850 / 1150 | 3000 / 1500 | 16 | 30.5 | 8 | 14 | 5 | M14x1.0 |
| NSG1002 | 10 | 2 | 10.3 | 2050 / 2050 | 3650 / 3650 | 19 | 27 | 8 | 17 | 5 | M16x1.0 |
| NSG1004 | 10 | 4 | 12.3 | 3000 / 1800 | 5200 / 2600 | 19 | 28 | 8 | 17 | 5 | M16x1.0 |
| NSG1202 | 12 | 2 | 12.3 | 2250 / 2250 | 5200 / 2600 | 24 | 28 | 8 | 22 | 5 | M20x1.0 |
| NSG1204 | 12 | 4 | 12.3 | 4100 / 2500 | 7400 / 3700 | 24 | 29 | 8 | 22 | 5 | M20x1.0 |
