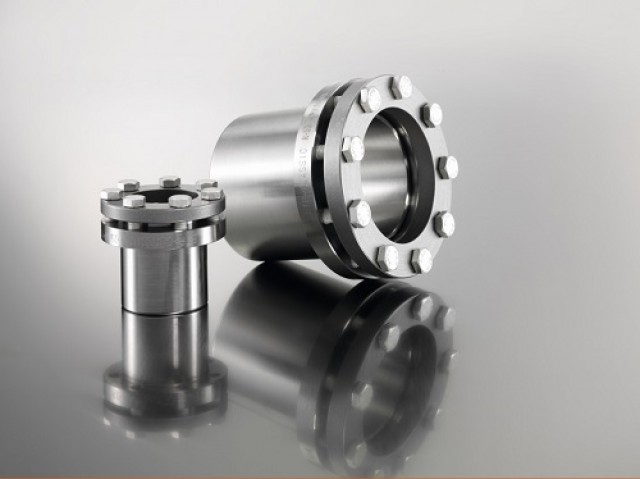

ETP-CLASSIC R is the Stainless Steel version of ETP-CLASSIC. It is a hydraulic connection which consists of a double-walled hardened steel sleeve, filled with a specially developed pressure medium, sealing ring, piston, pressure flange and cap head clamping screws. ETP-CLASSIC type R is made of stainless steel and has hex head stainless steel clamping screws. This in order to facilitate easy cleaning, making it ideal for food processing applications. When tightening the screws, the sleeve expands uniformly against hub and shaft and creates a rigid joint.
ETP-CLASSIC R is the Stainless Steel version of ETP-CLASSIC. It is a hydraulic connection which consists of a double-walled hardened steel sleeve, filled with a specially developed pressure medium, sealing ring, piston, pressure flange and cap head clamping screws. ETP-CLASSIC type R is made of stainless steel and has hex head stainless steel clamping screws. This in order to facilitate easy cleaning, making it ideal for food processing applications.
When tightening the screws, the sleeve expands uniformly against hub and shaft and creates a rigid joint. When loosening the screws, the sleeve returns to its original measurements and can then easily be dismantled. The ETP-CLASSIC type R has a few more clamping screws, as the tightening torque is lower for stainless steel screws.

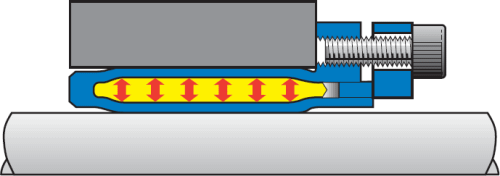

When the screws have been tightened, ETP-CLASSIC R creates an even surface pressure against the hub and shaft along virtually the entire length.
| ETP-CLASSIC® | Dimensions | Transmittable | Screws** DIN 933, A4 | Polar moment of inertia J kgm2 • 10-3 | Weight kg | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| torque | axial force | radial force | |||||||||||||
| d mm | D mm | D1 mm | D2 mm | L mm | L1* mm | L2* mm | T Nm | FA kN | FR kN | Ant. | Dim. | Tt Nm | |||
| R-15 | 15 | 23 | 38 | 28,5 | 17 | 30 | 34 | 45 | 6,0 | 2,5 | 4 | M5 | 4,5 | 0,019 | 0,10 |
| R-20 | 20 | 28 | 45 | 35 | 22 | 37 | 41 | 100 | 10,0 | 6,6 | 5 | M5 | 4,5 | 0,044 | 0,16 |
| R-25 | 25 | 34 | 49 | 40 | 27 | 43 | 47 | 210 | 16,8 | 10,6 | 7 | M5 | 4,5 | 0,070 | 0,21 |
| R-30 | 30 | 41 | 57 | 47,5 | 32 | 47 | 51 | 350 | 23,3 | 14,7 | 7 | M5 | 4,5 | 0,137 | 0,30 |
| R-35 | 35 | 47 | 63 | 53,5 | 37 | 55 | 59 | 500 | 28,5 | 18,8 | 9 | M5 | 4,5 | 0,234 | 0,41 |
| R-40 | 40 | 53 | 70 | 60,5 | 43 | 63 | 67 | 750 | 37,5 | 22,8 | 9 | M5 | 4,5 | 0,414 | 0,58 |
| R-45 | 45 | 59 | 77 | 66,5 | 49 | 69 | 73 | 1100 | 48,8 | 26,9 | 9 | M6 | 7,8 | 0,647 | 0,74 |
| R-50 | 50 | 65 | 83 | 72,5 | 53 | 76 | 80 | 1550 | 62,0 | 30,9 | 9 | M6 | 7,8 | 0,957 | 0,92 |
| T= Transmittable torque when axial force is 0. | } When the screw is tightened to Tt. | Tt= Recommended tightening torque for the screws. * The dimensions are valid before mounting. Dimensions subject to alterations without notice. | |||||||||||||
| FA=Transmittable axial force when torque is 0. | |||||||||||||||
| FR=Max transmittable radial force at continuous operation. Max allowed bending torque: 15% of transmittable torque T. | |||||||||||||||
Shaft h8 (size R-15 only h7)
Hub H7.
Euronorm 1.4568, stainless steel, X7CrNiAl17-7.
** Screws: coated for a low and even friction in the threads.
Make sure the screw thread is well lubricated before each mounting. We recommend the use of Omega 58.
