Torsionally stiff and low cost shaft coupling

Tuesday 29th May 2018
Torsionally stiff and low cost shaft coupling

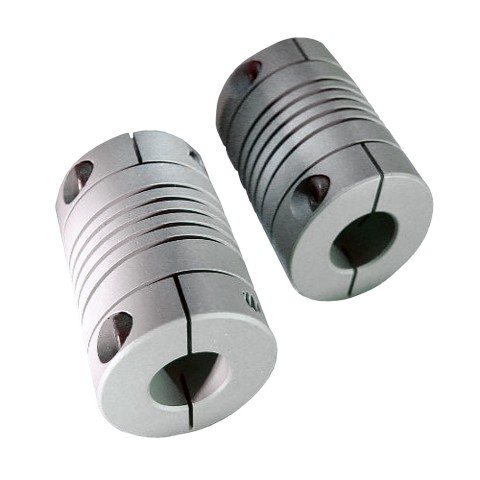

Budgetbeam is the ideal connection partner for encoder, resolver, stepper motor and small electric motor axis drives. The flexible shaft coupling utilises a double start helical beam beam configuration to deliver high torsional stiffness even when rotating with shaft offsets. The proven flexible shaft coupling is designed specifically for applications where zero backlash and constant velocity torque transmission is required.

As standard, all Budgetbeam models compensate for the three major shaft misalignments of angular, parallel and skewed offsets, unlike lesser shaft couplings. Since the design has two equidistant flexible helical beam elements, the product retains excellent rational balance. Maximum rpm is rated at 10,000 as standard. The Budgetbeam shaft coupling is manufactured from low inertia aluminium and is available in set screw or unique integral clamp shaft configuration. There are four sizes, which are delivered in straight-through bore diameters from 3mm to 12mm.

Most importantly, by employing the latest production techniques allows Budgetbeam to offer all these advantages at an extremely competitive price. The Budgetbeam shaft coupling will also always be in stock because of a continuous stocking policy here at ABSSAC.

To talk to a knowledgeable sales engineer please call: 01386 421005
More information on our range of Budgetbeam shaft couplings can be found here
