Shaft Couplings on a BUDGET

Friday 28th October 2016
 Shaft Couplings on a BUDGET

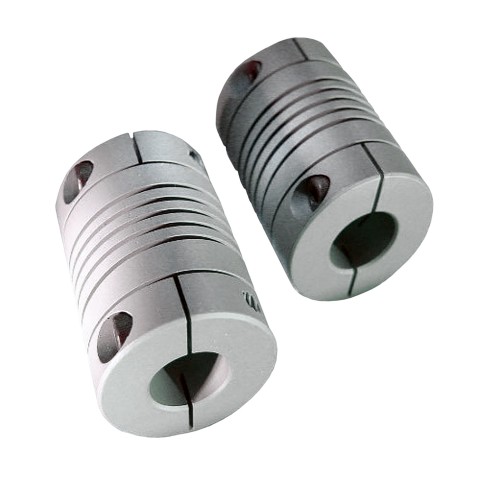

Budgetbeam is the ideal connection partner for encoder, resolver, stepper motor and small electric motor axis drives. Most importantly, by employing new production techniques allows Budgetbeam to offer all these advantages at an extremely competitive price. The Budgetbeam shaft coupling will also always be in stock because of acontinuous stocking policy. The proven coupling is designed specifically for applications where zero backlash and constant velocity torque transmission is required. Using a double start helical beam beam design.

As standard, all Budgetbeam models compensate for the three major shaft misalignments of angular, parallel and skewed offsets, unlike lesser shaft couplings. Since the design has two equidistant flexible helical beam elements, the product retains excellent rational balance. Maximum rpm is rated at 10,000 as standard. The Budgetbeam shaft coupling is manufactured from low inertia aluminium and is available in set screw or unique integral clamp shaft configuration. There are four sizes, which are delivered in straight-through bore diameters from 3mm to 12mm.

To talk to a knowledgable sales engineer please call: 01386 421005
More information on our range of Budgetbeam shaft couplings can be found here
