The Schmidt Shaft Coupling program

Monday 25th July 2022
The Schmidt Shaft Coupling program

An outstanding array of shaft coupling products delivering high performance torque transmission, addressing different customer requirements. The product range includes torsionally rigid couplings, which are characterized by compactness and high functionality.Using the standard program, enhanced shaft coupling solutions, in close cooperation with the customer, can be realised. The Schmidt program offers unique technical advantages to the user, such as envelope size and capable torque delivery.

Comprehensive advice on the conception and implementation of a project is available.  employing, FEM analyses, rapid prototyping models as well as confirmation of the calculated design data on modern test benches – all this ensures the optimisation of your powertrain.

Controlflex® – the perfect coupling for shaft encoders, accommodating all types of misalignment with very low restoring forces and low stress on the encoder bearings at constant angular velocity.

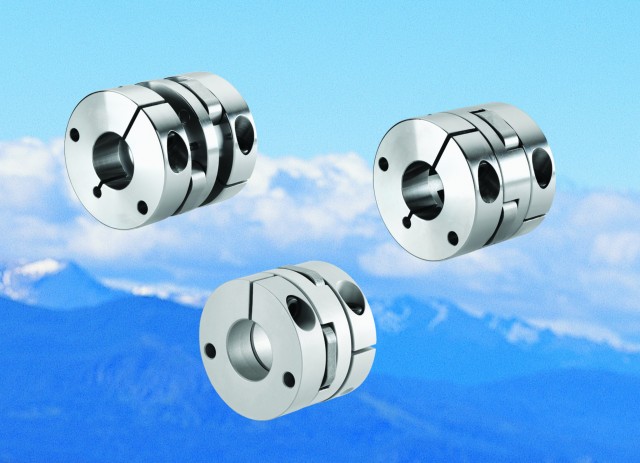

Semiflex® – torsionally stiff, precise and backlash-free shaft couplings that require little axial space, compensate misalignment without restoring forces and transmit torque between shafts in instances where shaft alignment cannot be guaranteed.

Schmidt-Kupplung® – the classic product for extreme parallel offset, this torsionally stiff shaft coupling compensates variable parallel shaft offset without side loads in a very compact envelope.

Loewe® GK – with high axial stiffness and multiple shaft connections, this coupling is ideal for torque applications requiring resistance to axial motion, the mix of kinematic properties allowing much radial and angular misalignment.

We have practical application knowledge in a wide variety of industries. including food processing, vacuum, packaging, printing, sensor technology and medical technology.

Set us the challenge.
