Stainless steel ball screw

Thursday 18th June 2015

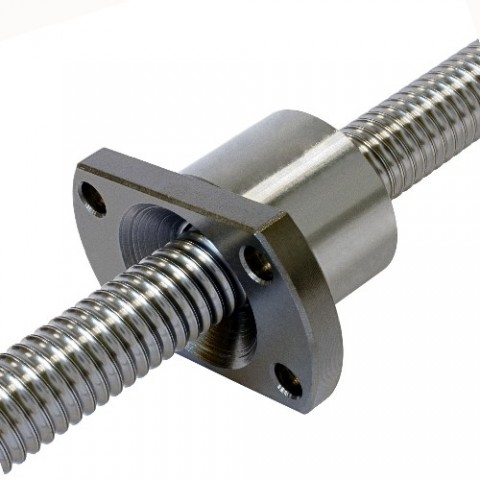

Stainless steel ball screw

Abssac announces a new Stainless steel ballscrew to compliment its extensive ball screw ranges. Available in 6, 8 and 10mm diameters with leads of either 1 or 2mm the new SUS series offers cumulative lead error of only 2x0.052mm per 300mm with an axial clearance of 0.020 mm. The new SUS ball screw series offers a cost effective performance compared to ground ball screws.

Capable of transmitting dynamic loads up to 2300N, the standard product is hardened to HRC55 as standard, including the flanged nut housing. Standard screw lengths which can be supplied machined ready to fit into an application are 300mm for the 6mm diameter and 400mm for the 8 and 10mm diameters.

Since the ball screw is manufactured from Stainless steel it is an ideal partner for any food grade or medical type applications that demand repeatable linear precision. A full range of bearings and linear slides are available to compliment the precision ball screw.

For further information please call Phil on 01386 421005 or follow the link : Linear products
