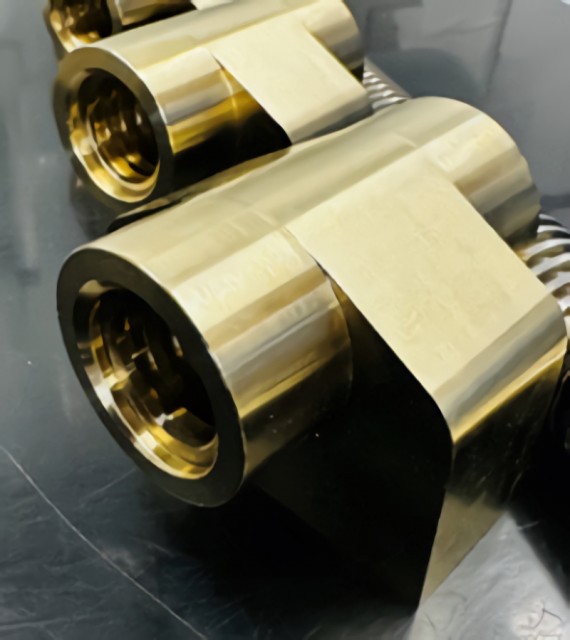

Designing bronze nuts for use on lead screws involves several considerations to ensure proper functionality, durability, and performance. Bronze is a common choice for nuts in lead screw applications due to its self-lubricating properties and wear resistance. Here are the key aspects to consider when designing bronze nuts for lead screws:
- Material Selection: Choose a suitable bronze alloy for the nut. Common choices include phosphor bronze and aluminium bronze due to their excellent self-lubricating properties and wear resistance. The specific alloy should be chosen based on factors such as load capacity, speed, and environmental conditions.
- Nut Geometry: The design of the nut should include the following aspects:
- Thread Profile: The thread profile should match that of the lead screw to ensure proper engagement.
- Lead: The lead of the nut (distance travelled in one revolution) should match the lead of the lead screw.
- Flange and Mounting: Design the nut with a flange or mounting mechanism to secure it in place within the assembly.
- Anti-Backlash Mechanism: Consider incorporating an anti-backlash feature to minimize play between the nut and lead screw.
- Lubrication: While bronze is known for its self-lubricating properties, it's still a good practice to provide external lubrication to enhance the nut's performance and reduce friction. This can extend the nut's lifespan and improve the efficiency of the lead screw system.
- Load Capacity and Tolerance: Calculate the load capacity the nut needs to handle based on the application's requirements. Ensure that the tolerances and clearances between the nut and the lead screw are properly defined to prevent binding or excessive play.
- Environmental Considerations: Consider the operating environment of the lead screw system. If the application involves exposure to corrosive substances, high temperatures, or other challenging conditions, select a bronze alloy that can withstand these conditions.
- Manufacturing Process: Choose an appropriate manufacturing process for the bronze nut. Processes like machining, casting, or precision forming can be used depending on the complexity of the design and the desired production volume.
- Backlash and Efficiency: Address backlash (play or clearance between the nut and the screw) in the design. This can impact the precision of the system. Additionally, optimizing the nut design for efficiency can minimize energy losses and reduce wear on components.
- Testing and Validation: Prototyping and testing are essential steps in the design process. Real-world testing can help identify any issues and allow for adjustments before full-scale production.
- Maintenance and Replacement: Design the nut with accessibility in mind to facilitate maintenance and potential replacement. This includes ease of disassembly and reassembly within the system.
Remember that lead screw systems are often used in applications requiring precision and reliability, so careful consideration of all design aspects is crucial to ensuring the overall performance and longevity of the system. If possible, consult with mechanical engineers or experts experienced in designing lead screw systems for guidance tailored to your specific application.
Let ABSSAC’s knowledgeable application engineers assist in your selection.
