BXR Safety Brakes

A spring loaded safety brake for holding and braking applications. Applications to date have been numerous including garage door drives right through to servo motor drives. The model delivers reliable holding and braking in torque ranges from 0.1 to 240Nm, through an internal square or spline hub designs.

With only two-thirds the thickness of the older models, these brakes are dedicated for holding and emergency braking within restricted spaces . Featuring a much lighter rotor, which successfully reduces racing wear dramatically. The lighter weight lowers the inertia, enabling their incorporation without degrading the response of servo motors.

Brake torque
5 N・m to 55 N・m
Outer diameter of brake
83.5 mm to 185 mm
Operating temperature
-10°C to 40°C
  • BXR Safety Brakes
  • BXW The small Allrounder

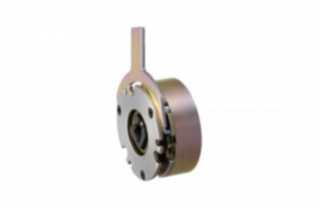

    BXW The small Allrounder
  • BXW - holding or braking function

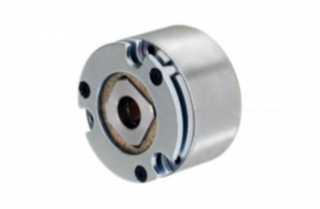

    BXW - holding or braking function
  • BXR Safety Brakes

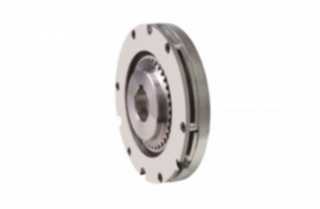

    BXR Safety Brakes

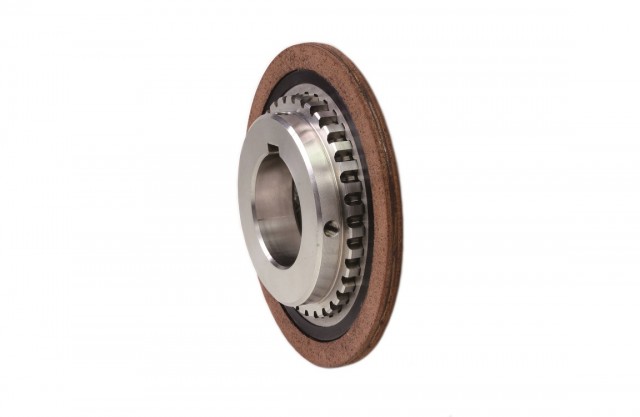

  • BXR Superslim springactuated brake

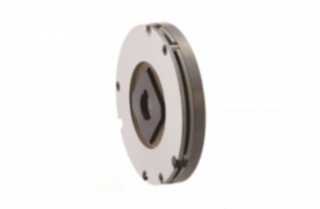

    BXR Superslim springactuated brake
  • BXR-LE

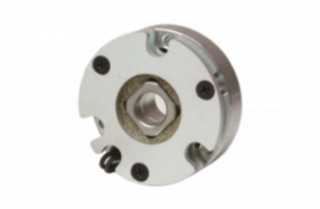

    BXR-LE
  • BXR-LE Safety Brakes
    BXR-LE Safety Brakes

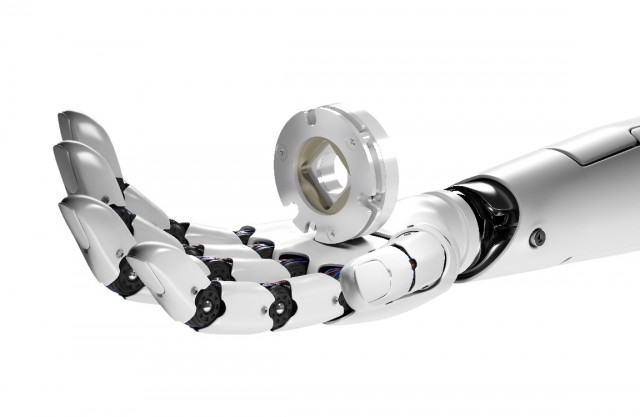

  • BXR LE Superslim Miniature Brakes
    BXR LE Superslim Miniature Brakes
  • BXL for Brake and BXH for Holding applications

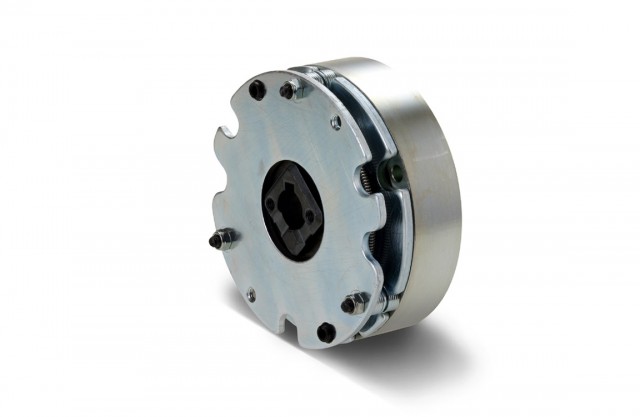

    BXL for Brake and BXH for Holding applications
  • 00:00 / 01:00
    • Published: Thursday 14th February 2019
    • Updated: Tuesday 26th March 2019

Applications

Multi-joint Robots

Spline type BXR models are used to hold the arm in place. Their slim design saves space and their lightweight rotors substantially reduce wear from idling.

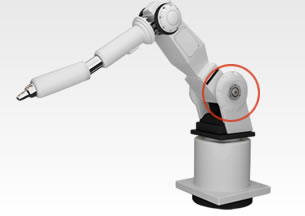

Overall view of equipment used

Overall view of equipment used

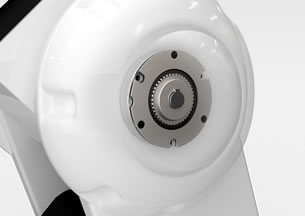

Enlarged view

Enlarged view

Aerial Work Platforms

BXR models are used as retaining brakes for drive motors.

Overall view of equipment used

Overall view of equipment used

Enlarged view

Enlarged view
