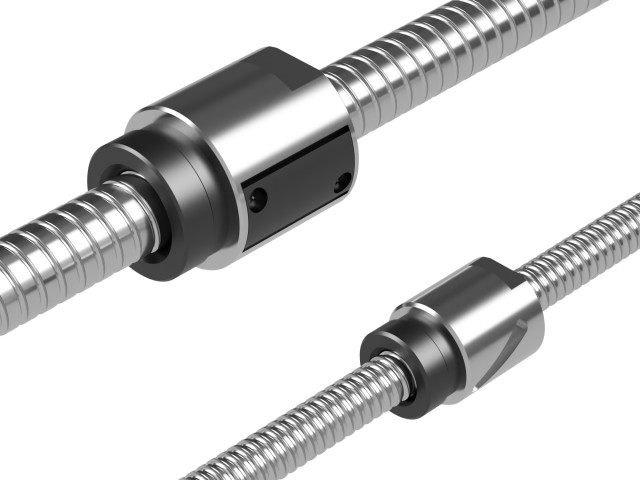

• MSR Thread Mounted Nut

MSR Thread Mounted Nut

Available on 4mm to 14mm diameter rolled ball screw stock with 1mm to 5mm lead variants.

Our precision ball screws have operational tolerances comparable to more expensive ground ball screw assemblies, but at much less cost. Using precision ground ballnuts running on precision rolled screws, means that our lead accuracy is close to precision ground screws. All products are backed up with a quality assurance of ISO9002 and of course Abssac’s many years of ball screw experience.

The standard ball screw products are available in non machined end form, or machined to specific end detail requirements.

Available on 4mm to 14mm diameter rolled ball screw stock with 1mm to 5mm lead variants.

The KSS precision ball screws have operational tolerances comparable to more expensive ground ball screw assemblies, but at much less cost. Using precision ground ballnuts running on precision rolled screws, means that our lead accuracy is close to precision ground screws. All products are backed up with a quality assurance of ISO9002 and of course Abssac’s many years of ball screw experience.

The standard ball screw products are available in non machined end form, or machined to specific end detail requirements. A full machining capability provides a service for complete end journal completion to the highest accuracy. The parts can be delivered in short lead times ready to fit. A cylindrical nut type with a metric thread mount attachment which keeps the nut diameter to a minimum . Ideal for mounting directly into a cylindrical housing. For more performance data, aswell as further screw and nut dimensions please see our catalogue.

2D and 3D drawings available on request.

  • MSR Thread Mounted Nut

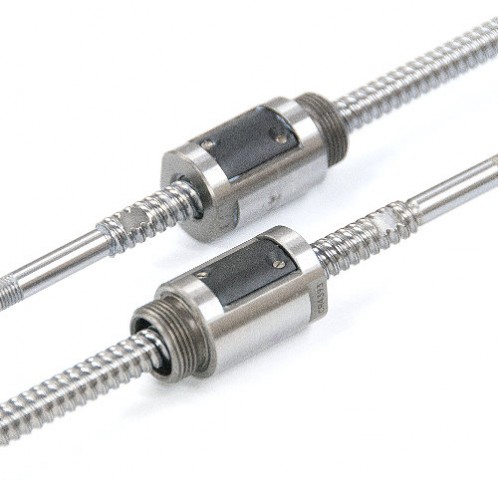

  • Thread mount attachment
    Thread mount attachment
Part NumberNominal Shaft Diameter (mm)Lead
(mm)
Dynamic Load Rating (N)Static Load Rating (N)
MSR0401B4.01.00560790
MSR0802B8.02.0024004100
MSR0802.5T8.02.5023003900
MSR0805A8.05.0018503000
MSR1002B10.02.0027005300
MSR1202B12.02.0030006400
MSR1402B14.02.0032007500
MSR1404B14.04.00570011600






Linear guides and rails

Guides & RailsIf you are interested in the using the ball screw ranges, do not forget that we also supply the full range of linear guides and rails which can provide the load support in your linear mechanism. Offering excellent rigidity and parallelism during operation the guides can be used in both vertical and horizontal planes.

Following the link to that product page Guides

Thrust and radial bearings



Please do not forget to ask for our competitive support bearing prices !

 If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection.


Greases and Lubricants

We provide a full range of quality, low cost lubricants for all our linear products including low vapour pressure greases for clean room and vacuum applications. For example the new Trigel line is specifically formulated to offer a lubrication solution for a wide range of linear motion applications. Please ask for further details.  Grease features include, Temperature range -30°C to 150°C,  Revolutionary multi-complex soap technology, Greatly extended lubrication intervals typically 3 times longer than conventional soap thickened greases. Good corrosion resistance. Some greases are supplied blue in colour for high visibility.
