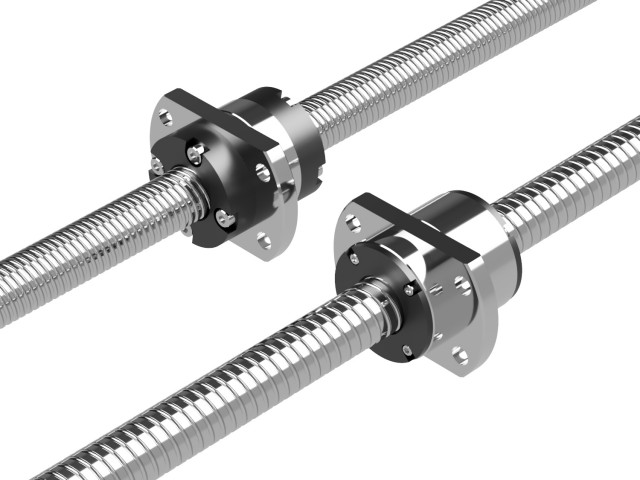

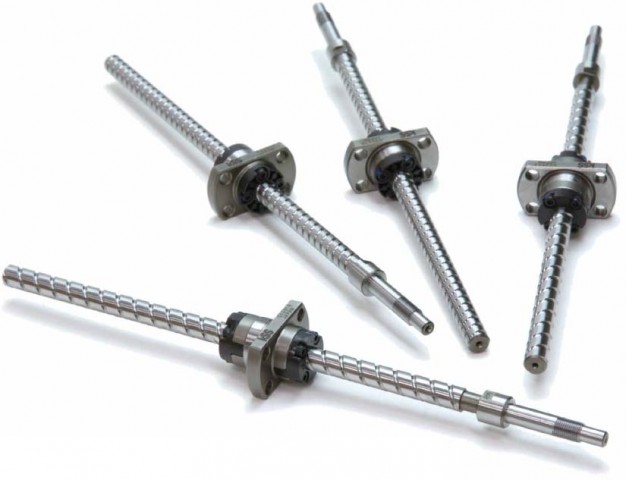

To meet the increasing demand of suitable high speed Ball Screws, KSS of Japan have developed a 13mm diameter, 30mm lead Rolled Ball Screw. The MRB1330 High Lead Ball Screw allows for rapid yet precise linear movement.
The new MRB1330 can achieved 50% longer travel compared to an existing product of 20mm lead when operating under the same rotary speed. This cost-effective product delivers exemplary linear accuracy through enhanced manufacturing techniques and innovative design. Directly interchangeable with existing shaft diameter 13mm products such as 12mm, 15mm & 20mm, the optimised ball bearing recirculation design enables smooth ball rotation and high-speed durability.
Accuracy grades C7 (+/-0.05mm/300mm) and C10 (+/-0.1mm/300mm) are available. Please note that this product is rated for a maximum of 4,000 RPM and this parameter may change depending on the acceleration / deceleration of the application.
| Part Number | Nominal Shaft Diameter (mm) | Lead (mm) | Dynamic Load Rating (N) | Static Load Rating (N) | Nut Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Df | L | L1 | F | W | V | Dp | X | |||||
| MRB1312 | 13 | 12 | 5000 | 9900 | 28 | 45 | 30 | 17 | 5 | - | 30 | 37 | 4.5 |
| MRB1315 | 13 | 15 | 5000 | 10300 | 28 | 45 | 35 | 22 | 5 | - | 30 | 37 | 4.5 |
| MRB1320 | 13 | 20 | 5000 | 10700 | 28 | 45 | 43 | 29 | 5 | - | 30 | 37 | 4.5 |
| MRB1330 | 13 | 30 | 5000 | 7500 | 28 | 45 | 30 | 17 | 5 | - | 30 | 37 | 4.5 |
