X Slot Shaft Couplings

Abssac's X-Slot shaft couplings bridge the gap and offer a cost-effective balance between couplings that are too stiff radially and those not stiff enough torsionally for servo type applications.

The X-Series coupling incorporates two flexible element sets-combining greater end-to-end rotational accuracy with radial accuracy in one design. In durability testing, the couplings have been subjected to parallel offsets of up to five times the rated value and tested to failure. Even when tested for tens of millions of cycles at these exaggerated offsets the coupling exhibited an exceptional performance capability.

Legacy Product

This product is part of our legacy range.
For our updated range of Shaft Couplings:

Abssac's X-Slot shaft couplings bridge the gap and offer a cost-effective balance between couplings that are too stiff radially and those not stiff enough torsionally for servo type applications.

The X-Series coupling incorporates two flexible element sets-combining greater end-to-end rotational accuracy with radial accuracy in one design. In durability testing, the couplings have been subjected to parallel offsets of up to five times the rated value and tested to failure. Even when tested for tens of millions of cycles at these exaggerated offsets the coupling exhibited an exceptional performance capability. Ideally suits shaft sizes of 3mm to 20mm.

X-Series couplings are available in six outside diameter sizes, from 15mm to 50mm and any bore combination between the listed minimum and maximum. The flexible shaft coupling is available in aluminum and can be ordered with bores that are millimeter, imperial, or a combination of the two.

Key product advantages

  • Compensate for parallel, angular, skewed and axial misalignments
  • Lightweight low inertia design
  • Ideal for motion control applications
  • Low cost alternative to bellows couplings
  • No moving parts
  • No maintenance
  • No backlash
  • No lubrication
  • High performance
  • Low radial loads

If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection.

  • X Slot Shaft Couplings

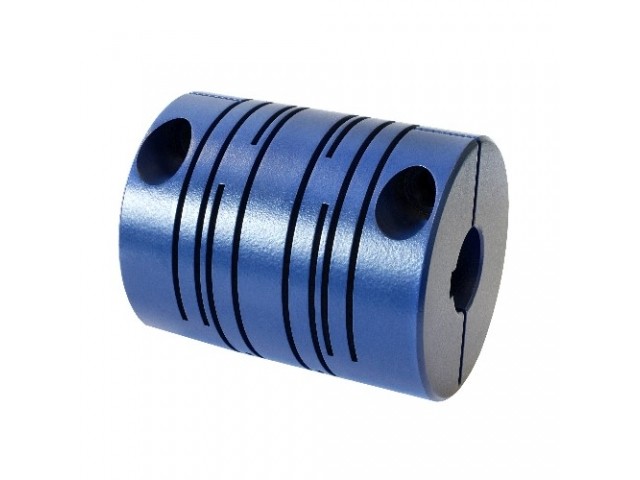

  • X slot shaft coupling offers high torsional stiffness
    X slot shaft coupling offers high torsional stiffness

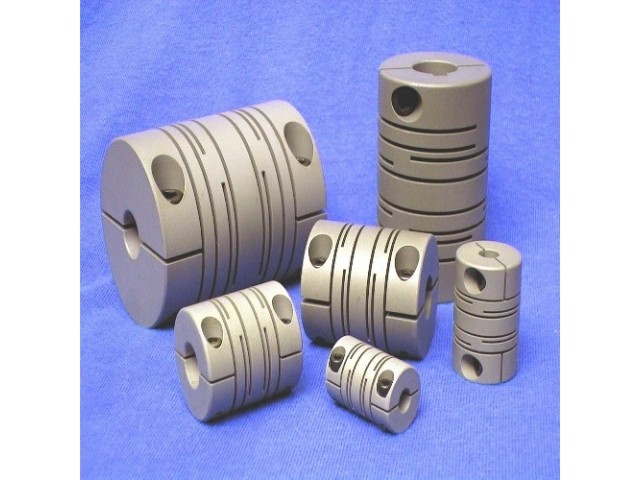

  • To suit shaft sixes from 3mm to 20mm
    To suit shaft sixes from 3mm to 20mm

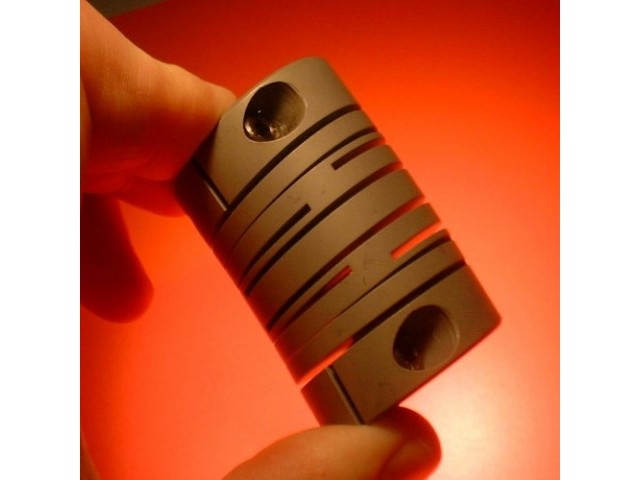

  • Aluminium is used for low inertia
    Aluminium is used for low inertia

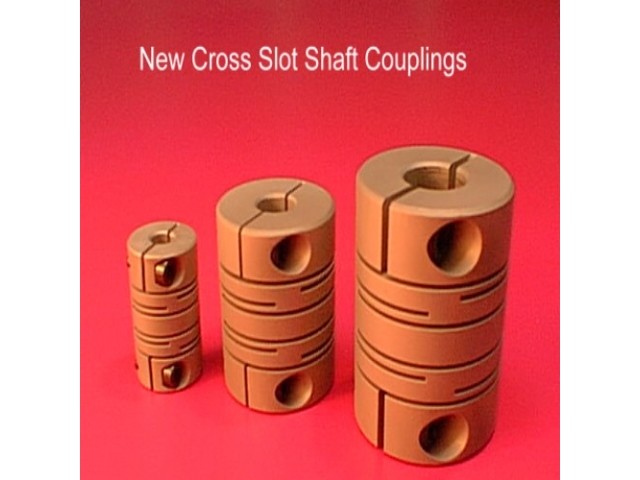

  • X slot couplings can accomodate up to 3 deg angular offset
    X slot couplings can accomodate up to 3 deg angular offset
