• DMB Torque Limiter

Torque Limiter

The DMB torque limiter is the perfect companion for any assembly situation. Thanks to its compact design and its adaptable connections, it can be perfectly integrated into all existing work flows. The DMB, which is set to a specific disengagement torque at the factory, is tamper-proof and does not require any maintenance. The product offers a cost effective safety release in any rotary application.

Features

  • Compact design
  • Maintenance-free and non-wearing
  • All established standard connections are available.

Application areas

  • All manual assembly tools
  • Crank handles

Sectors

  • Power engineering
  • Track construction
  • Shipbuilding
  • Aviation
  • Automotive industry
  • Assembly industry




Delivery information

The torque limiters are set to the desired disengagement torque at the factory. Adapters and handles can also be supplied on request. Complete solutions tailored to your application can be provided.

Product versions

As part of our product range, we offer the DMB in 2 different sizes with a torque adjustment range from 5 - 90 Nm. The DMB is supplied with the connections described in the data below; in addition, we can adapt the torque limiter to cater for an extremely wide range of connections and applications. Also available as a complete solution with handle, adapter, or universal joint. Miniature versions for a low torque of 1.5 - 2 Nm can also be provided.

Material: Steel or Stainless Steel

DMB BG

Compact design, maintenance-free and non-wearing

Order example: DMB 1 3/8“ set to 5 Nm

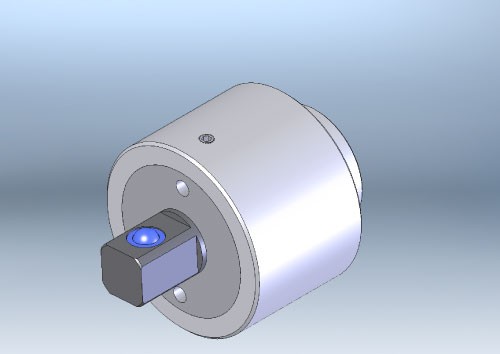

DMB BG Torque limiter

    Torque Limiter DMB Technical Diagram

    Technical data

    Torque limiter DMB

    TYPSize 1
    Dimensions in mm
    Size 2
    Dimensions in mm
    Drive A3/8”1/2”
    Drive B3/8”1/2”
    L4665
    L11417,5
    L276
    D3646
    D12230
    D12230
    Torque min Nm5*30*
    Torque max Nm3090

    * Other setting ranges can be selected, e.g., approx. 10 - 20 Nm for size 1 and 50 - 80 Nm for size 2 (please ask!)
