SpaceX’s Dragon cargo capsule

Monday 6th July 2020
SpaceX’s Dragon cargo capsule

By helping to maintain cryogenic temperatures as low as -95°C, edge welded metal Bellows, have become a trusted, reliable solution for NASA cryogenic temperature chambers.

NASA’s Commercial Resupply Services (CRS-1) mission lifted off from launch complex 40 at the Cape Canaveral air force station in Florida, carrying a batch of frozen confectionery ice cream as a surprise for the three member crew on board SpaceX’s Dragon cargo capsule. The ice cream was stored on board in a GLACIER freezer, in which a BellowsTech edge welded bellows assembly was designed.

The GLACIER, or General Laboratory Active Cryogenic ISS Experiment Refrigerator is used primarily to preserve science samples that require temperatures between -160 and +4 degrees Celsius on the way to and from the International Space Station (ISS). The mini-fridge sized freezer previously flew aboard the space shuttle.

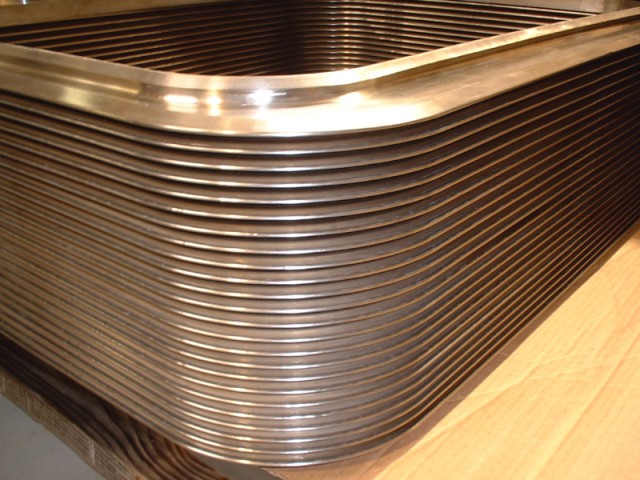

A rectangular bellows assembly provides the mechanical seal between the GLACIER’s door and the refrigeration unit; providing a leak-tight seal once the door is closed to prevent temperature changes. At extremely cold temperatures, materials like rubber becomes brittle, however; using a metal bellows assembly as the mechanical seal ensures survival through the cryogenic temperatures of the chamber.

With the ability to customize size, shape, material, weight, length, and mounting connections we can provide a solution to industry specific application needs.

For further details follow the link Edge Welded Bellows
