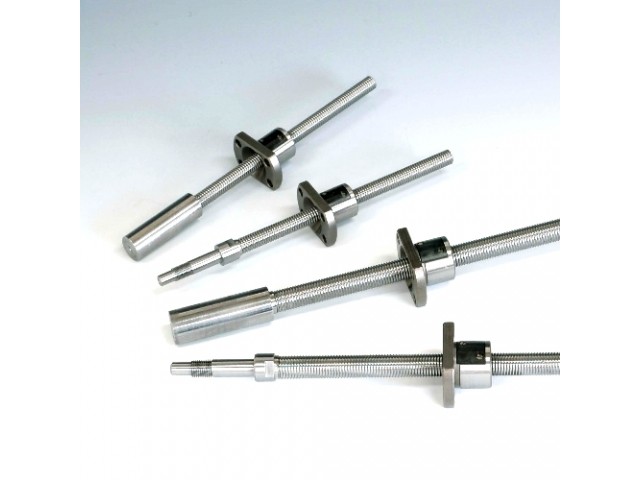

NEW Stainless Steel ball screw available in 6, 8 and 10mm diameters with leads of either 1or 2 mm called the SSR and SSRT series offers cumulative lead error of only 52 microns per 300mm of cumulative lead accuracy of 20 microns of axial backlash. Capable of transmitting dynamic loads up to 2200N, the standard product is hardened to HRC55 as standard, including the flanged nut housing. Standard screw lengths which can be supplied machined ready to fit into an application are 300mm for the 6mm diameter and 400mm for the 8 and 10mm diameters. This product is supplied complete with machined journal ends to suit standard radial block bearings.
