Budgetbeam Couplers

A low cost flexible shaft coupling addressing the requirement for a high torsional stiffness, low cost, zero backlash, single piece construction, beam style flexible shaft coupling.

To achieve these extraordinary parameters, the budgetbeam shaft coupling utilises a very efficient helical beam configuration. The new Budgetbeam shaft coupling provides zero backlash and constant velocity torque transmission characteristics with excellent performance and reliability. Additionally, low radial bearing loads and low inertia are also advantages of the new design.

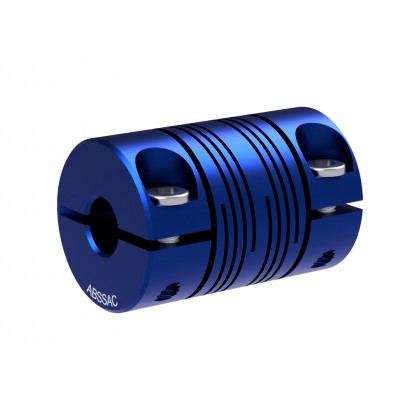

BBC050 12.6mm DiameterClamp Type Coupling

BBC050 12.6mm Diameter Clamp Type Coupling

Specification:

Attachment
Clamp
Bore
3mm
Material
Aluminium
Outside Dia.
12.6mm
Length
19.1mm
Bore Depth
6.1mm

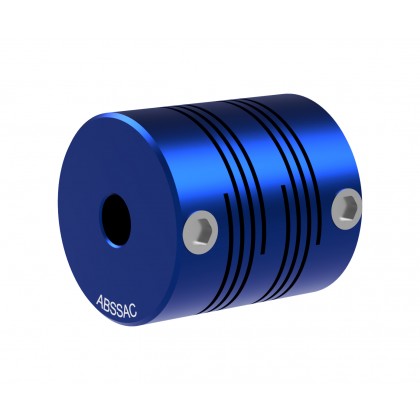

BBS050 12.6mm DiameterSet Screw Type Coupling

BBS050 12.6mm Diameter Set Screw Type Coupling

Specification:

Attachment
Set Screw
Bore
3mm
Material
Aluminium
Outside Dia.
12.6mm
Length
14mm
Bore Depth
6.1mm

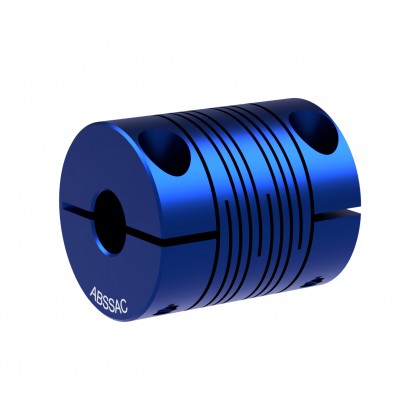

BBC075 18.9mm DiameterClamp Type Coupling

BBC075 18.9mm Diameter Clamp Type Coupling

Specification:

Attachment
Clamp
Min Bore
4mm
Max Bore
6mm
Material
Aluminium
Outside Dia.
18.9mm
Length
22.9mm
Bore Depth
8.9mm

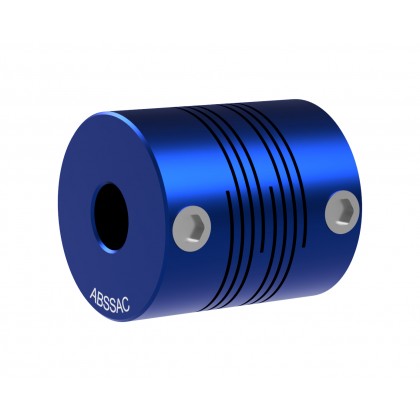

BBS075 18.9mm DiameterSet Screw Type Coupling

BBS075 18.9mm Diameter Set Screw Type Coupling

Specification:

Attachment
Set Screw
Min Bore
4mm
Max Bore
6mm
Material
Aluminium
Outside Dia.
18.9mm
Length
21.6mm
Bore Depth
8.9mm

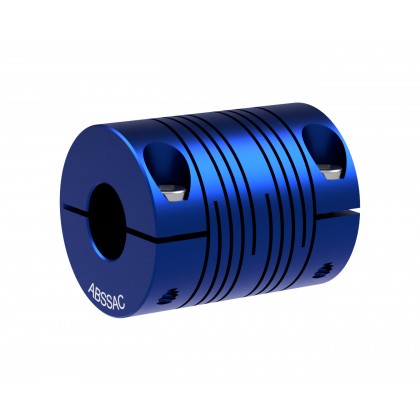

BBC100 25.3mm DiameterClamp Type Coupling

BBC100 25.3mm Diameter Clamp Type Coupling

Specification:

Attachment
Clamp
Min Bore
6mm
Max Bore
10mm
Material
Aluminium
Outside Dia.
25.3mm
Length
31.8mm
Bore Depth
8.9mm

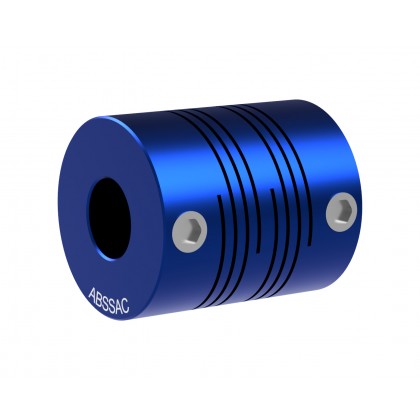

BBS100 25.3mm DiameterSet Screw Type Coupling

BBS100 25.3mm Diameter Set Screw Type Coupling

Specification:

Attachment
Set Screw
Min Bore
6mm
Max Bore
10mm
Material
Aluminium
Outside Dia.
25.3mm
Length
30mm
Bore Depth
8.9mm

BBC125 31.6mm DiameterClamp Type Coupling

BBC125 31.6mm Diameter Clamp Type Coupling

Specification:

Attachment
Clamp
Min Bore
10mm
Max Bore
12mm
Material
Aluminium
Outside Dia.
31.6mm
Length
38.1mm
Bore Depth
11.2mm

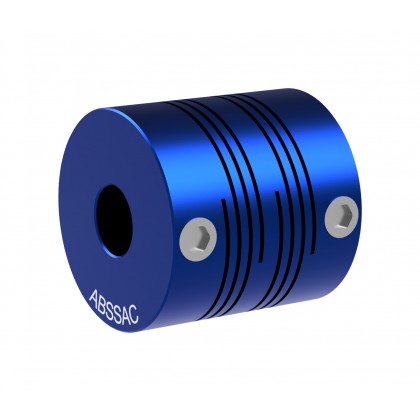

BBS125 31.6mm DiameterSet Screw Type Coupling

BBS125 31.6mm Diameter Set Screw Type Coupling

Specification:

Attachment
Set Screw
Min Bore
10mm
Max Bore
12mm
Material
Aluminium
Outside Dia.
31.6mm
Length
31.8mm
Bore Depth
11.2mm

Try our Shaft Coupling selector

Please select your required attachment method and bore sizes to find your suitable Budget Beam Coupling and Bore Reducer where applicable.

For orders of 25+ Items please contact us. For larger orders we can also do custom bore size combinations without the need for bore reducers. Please send your enquiry to sales@abssac.co.uk or call us on 01386 421005.

Choose your attachment method:
Choose bore size 1:
Choose bore size 2:

The new Budgetbeam shaft coupling has been specifically designed to excel at delivering high torsional stiffness, through a high degree of angular and axial shaft movement even at high rpm.

Manufactured from low inertia aluminum and available in set screw or unique integral clamp shaft configuration, the Budgetbeam has four basic sizes catering for shaft sizes from 3mm to 12mm.

As standard all Budgetbeam models compensate for the three major shaft misalignments of angular, parallel and skewed offsets unlike lesser shaft couplings.

Ideal applications include encoder, resolver, stepper motor and small electric motor axis drives. The Budgetbeam is also ideal for use with bore adapters, which allow for a cost effective way of altering bore sizes to suit your needs.

Most importantly, by employing new production techniques allows the Budgetbeam to offer all these advantages at an extremely competitive price.

The Budgetbeam is designed to go head to head with other beam, bellows or x-slot shaft coupling designs on performance, price and delivery.

All Budgetbeam products are also quality assured by the latest BS EN ISO9001: 2000 standard.


Budgetbeam Shaft Couplings

  • Budgetbeam Couplers
  • Integral clamp or set screw shaft attachment

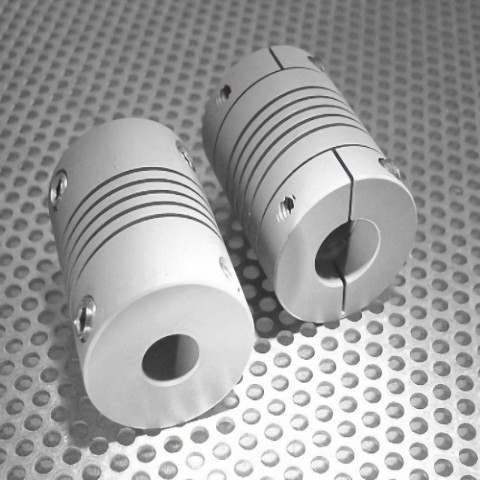

    Integral clamp or set screw shaft attachment

Just call the Budgetbeam sales team on 01386 421005 for product assistance

Key product advantages

  • Very competitive price
  • Same day or next day delivery on all sizes
  • Very high quality from the originators of the product design
  • Integral clamp and set screw attachment styles as standard
  • High torsional stiffness for positional accuracy
  • Zero backlash torque transmission
  • Constant velocity and zero vibration when offset
  • High fatigue resistance-low radial loads
  • Low bearing loads
  • Bi-directional torque transmission
  • Internal bore relief as standard
  • A very reliable, fit and forget shaft coupling

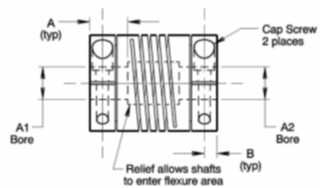

Type BBC Clamp Attachment

Clamp Attachment

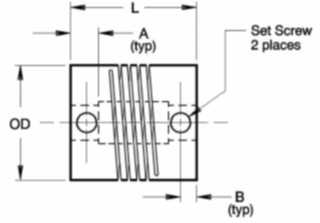

Type BBS - Set Screw Attachment

Set Screw Attachment









Bore reducers

Require different bore sizes other than straight through bores ? Use our range of bore reducers.

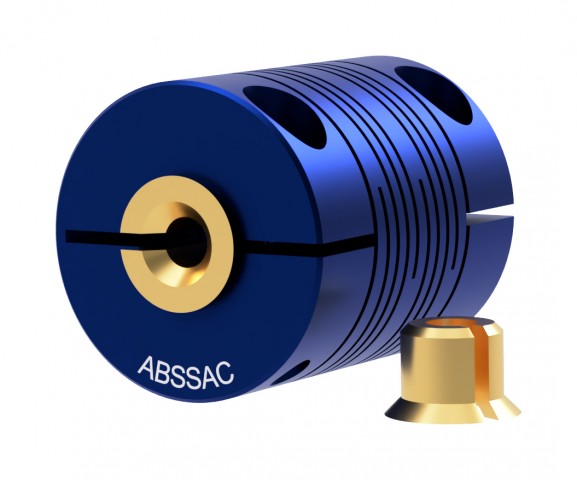

For example, take the BBC100 10mm-10mm model in combination with a BR257-6mm bore reducer, to get the bore combination 10mm-6mm
