Precision Ball Screws which are accuracy C3, C5 and have machined shaft end at fixed side in advance are available. Short delivery is available by machining supported end in accordance with customer's request.
Unit : mm | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Lead | ||||||||||||
Shaft dia. | 0.5 | 1 | 2 | 2.5 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 |
3 | • | • | ||||||||||
4 | • | • | ||||||||||
5 | • | |||||||||||
6 | • | • | • | • | • | |||||||
8 | • | • | • | • | • | • | • | |||||
10 | • | • | • | • | • | • | ||||||
12 | • | • | ||||||||||
14 | • | • | ||||||||||
15 | • | • | • |
Accuracy grade of SG series (Standardized Precision Ball Screws) are based on JIS C3 and JIS C5. According to accuracy grade, Axial play 0 (Preload: C3) and 0.005mm or less (C5) are in stock.
SG series (Standardized Precision Ball Screws) consists of Shaft and Nut materials SCM415 (Carburizing and quenching) and Surface hardness is HRC58~62.
SG series(Standardized Precision Ball Screws) without end-journal machining will be applied with anti-rust oil for rust prevention.
Anti-rust oil does not have lubricating function so that please apply Grease or lubrication oil when using the Ball Screws.
If there is no specific instruction, ABSSAC would recommend our original Grease (MSG No.2) as standard lubricant.
Please feel free to contact us.
It will be a customized product other than the above. Please ask ABSSAC.
Please use model number below when additional end-journal machining is requested.

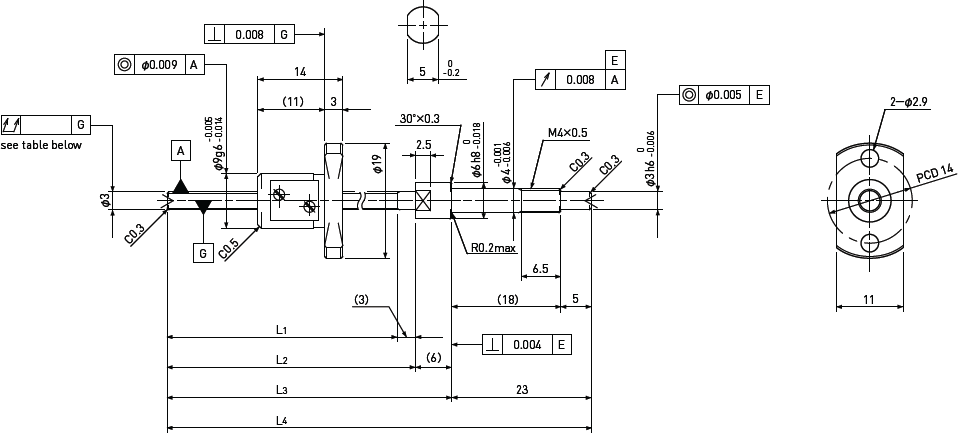

Standard products in stock SG series | |||
---|---|---|---|
SG0300.5 | Shaft dia. ∅3 | Lead 0.5mm | C3 |
Unit : mm | ||||
---|---|---|---|---|

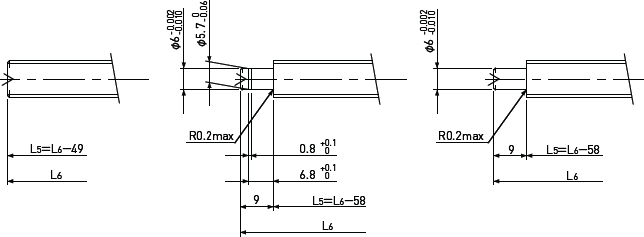

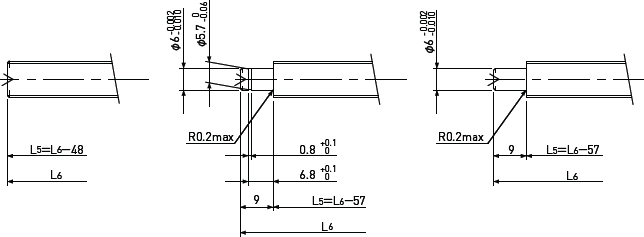

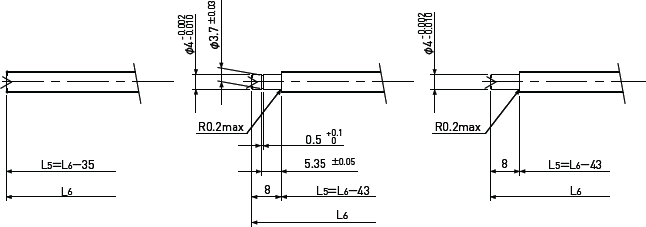

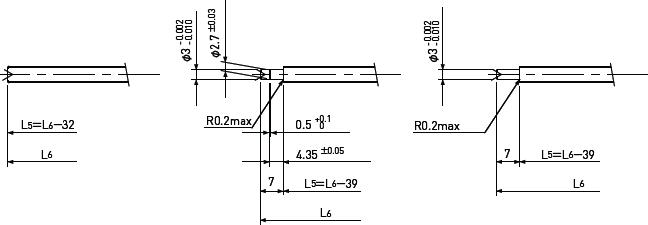

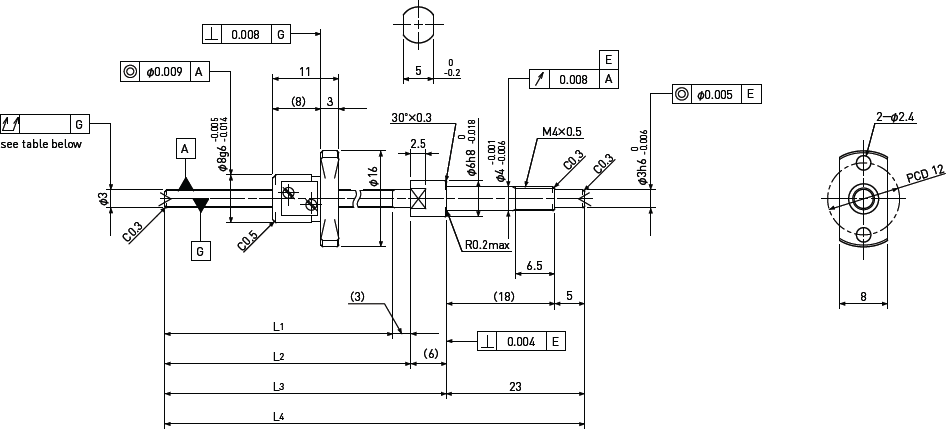

Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.4 | A-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅2.6 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | - |
Fixed-side: | EK4 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0300.5-038R070C3 | 25 | C3 | 38 | 41 | 47 | 70 | ±0.008 | 0.008 | 0.025 | ~0.005 | - | 150 | 220 |
Standard products in stock SG series | |||
---|---|---|---|
SG0301 | Shaft dia. ∅3 | Lead 1mm | C3 |
Unit : mm | ||||
---|---|---|---|---|

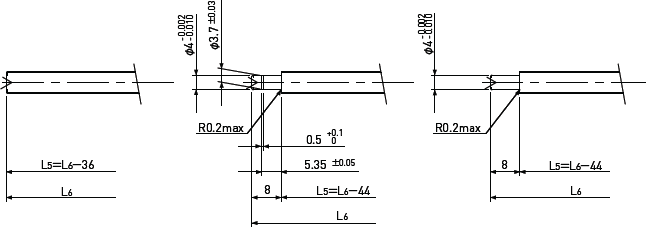

Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.6 | A-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅2.4 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | - |
Fixed-side: | EK4 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0301-038R070C3 | 20 | C3 | 38 | 41 | 47 | 70 | ±0.008 | 0.008 | 0.025 | ~0.005 | - | 330 | 440 |

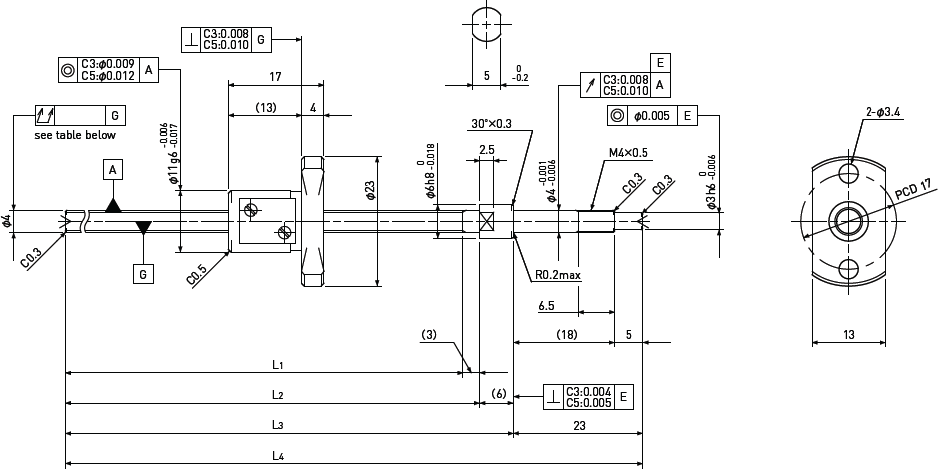

Standard products in stock SG series | |||
---|---|---|---|
SG0401 | Shaft dia. ∅4 | Lead 1mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.8 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅3.3 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP03-S |
Fixed-side: | EK4 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0401-063R095C3 | 45 | C3 | 63 | 66 | 72 | 95 | ±0.008 | 0.008 | 0.025 | 0 Spacer Ball (1:1) | ~0.004 | 350 | 400 |
SG0401-083R115C3 | 65 | C3 | 83 | 86 | 92 | 115 | ±0.008 | 0.008 | 0.025 | ||||
SG0401-103R135C3 | 85 | C3 | 103 | 106 | 112 | 135 | ±0.010 | 0.008 | 0.035 | ||||
SG0401-063R095C5 | 45 | C5 | 63 | 66 | 72 | 95 | ±0.018 | 0.018 | 0.035 | ~0.005 | - | 560 | 790 |
SG0401-083R115C5 | 65 | C5 | 83 | 86 | 92 | 115 | ±0.018 | 0.018 | 0.035 | ||||
SG0401-103R135C5 | 85 | C5 | 103 | 106 | 112 | 135 | ±0.020 | 0.018 | 0.050 |

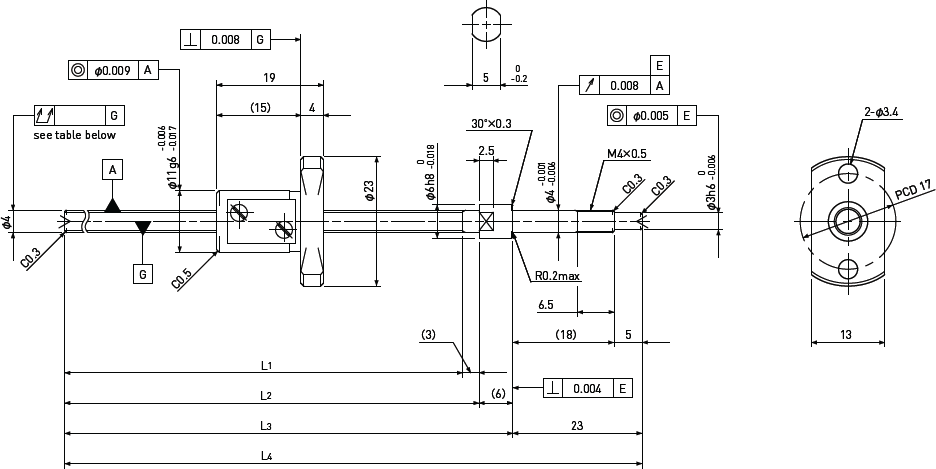

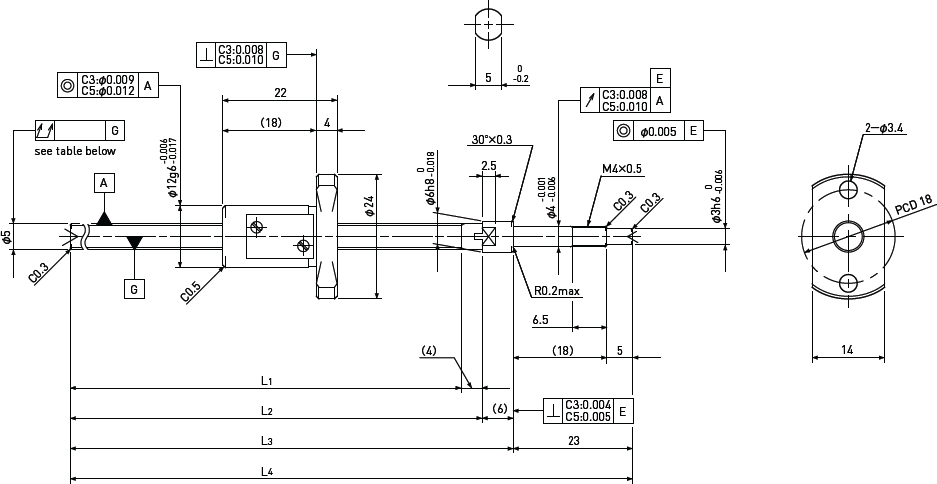

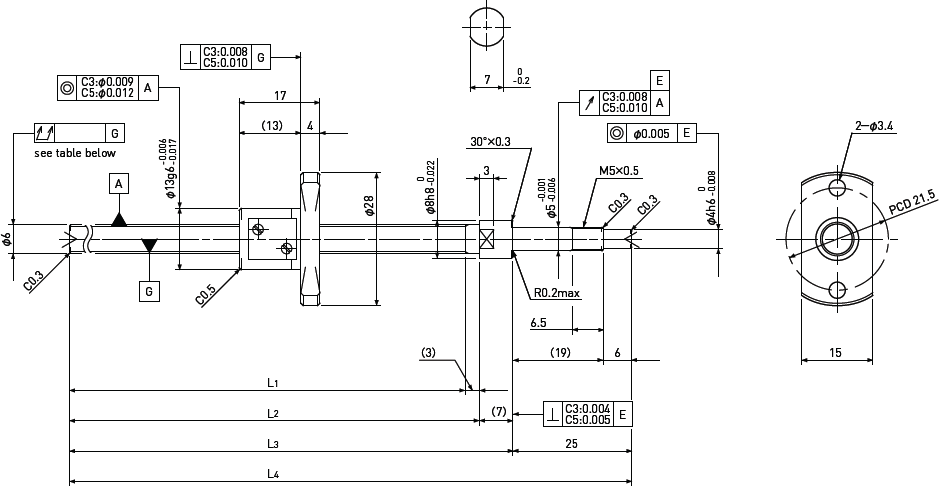

Standard products in stock SG series | |||
---|---|---|---|
SG0402 | Shaft dia. ∅4 | Lead 2mm | C3 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.8 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅3.3 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP03-S |
Fixed-side: | EK4 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0402-103R135C3 | 80 | C3 | 103 | 106 | 112 | 135 | ±0.010 | 0.008 | 0.035 | ~0.005 | - | 420 | 570 |
Standard products in stock SG series | |||
---|---|---|---|
SG0504 | Shaft dia. ∅5 | Lead 4mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.8 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅4.3 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP03-S |
Fixed-side: | EK4 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0504-062R095C3 | 40 | C3 | 62 | 66 | 72 | 95 | ±0.008 | 0.008 | 0.025 | 0 Spacer Ball (1:1) | ~0.005 | 300 | 360 |
SG0504-112R145C3 | 90 | C3 | 112 | 116 | 122 | 145 | ±0.010 | 0.008 | 0.035 | ||||
SG0504-062R095C5 | 40 | C5 | 62 | 66 | 72 | 95 | ±0.018 | 0.018 | 0.035 | ~0.005 | - | 470 | 720 |
SG0504-112R145C5 | 90 | C5 | 112 | 116 | 122 | 145 | ±0.020 | 0.018 | 0.050 |
Standard products in stock SG series | |||
---|---|---|---|

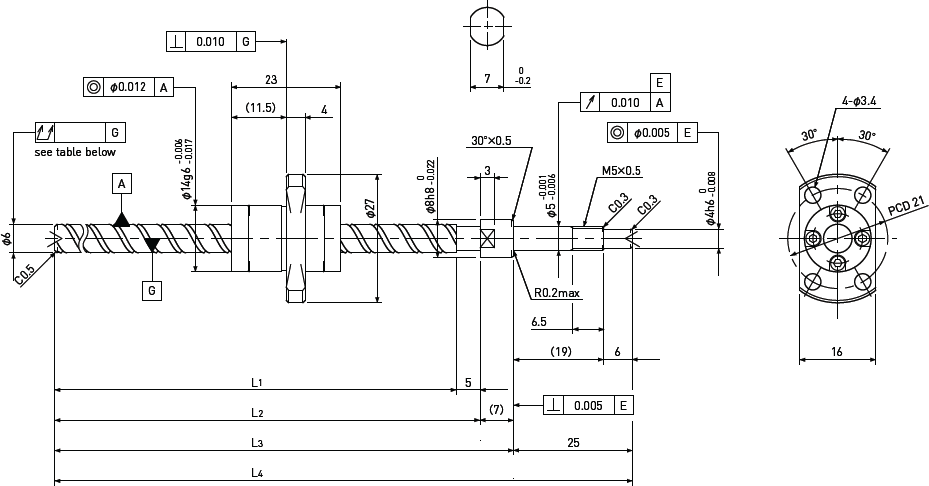

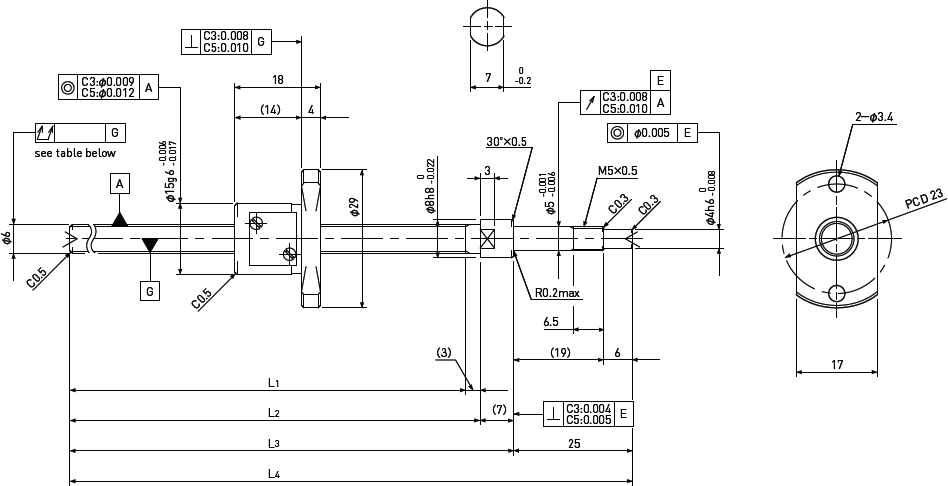

SG0601 | Shaft dia. ∅6 | Lead 1mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|

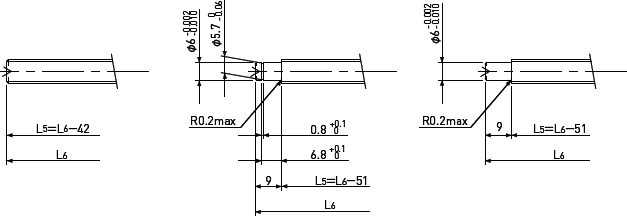

Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.8 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅5.3 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP04-S |
Fixed-side: | EK5 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0601-085R120C3 | 65 | C3 | 85 | 88 | 95 | 120 | ±0.008 | 0.008 | 0.025 | 0 Spacer Ball (1:1) | ~0.006 | 430 | 610 |
SG0601-110R145C3 | 90 | C3 | 110 | 113 | 120 | 145 | ±0.010 | 0.008 | 0.035 | ||||
SG0601-135R170C3 | 115 | C3 | 135 | 138 | 145 | 170 | ±0.010 | 0.008 | 0.035 | ||||
SG0601-085R120C5 | 65 | C5 | 85 | 88 | 95 | 120 | ±0.018 | 0.018 | 0.035 | ~0.005 | - | 680 | 1200 |
SG0601-110R145C5 | 90 | C5 | 110 | 113 | 120 | 145 | ±0.020 | 0.018 | 0.050 | ||||
SG0601-135R170C5 | 115 | C5 | 135 | 138 | 145 | 170 | ±0.020 | 0.018 | 0.050 |
Standard products in stock SG series | |||
---|---|---|---|
SG0602 | Shaft dia. ∅6 | Lead 2mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|

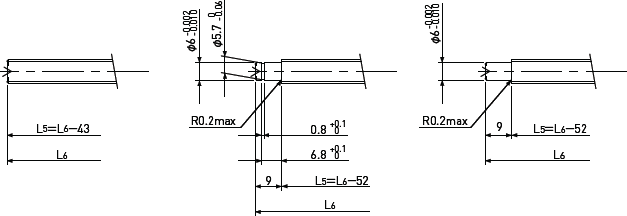

Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.0 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅5.1 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP04-S |
Fixed-side: | EK5 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0602-085R120C3 | 65 | C3 | 85 | 88 | 95 | 120 | ±0.008 | 0.008 | 0.025 | 0 Spacer Ball (1:1) | 0.003~0.007 | 470 | 590 |
SG0602-135R170C3 | 115 | C3 | 135 | 138 | 145 | 170 | ±0.010 | 0.008 | 0.035 | ||||
SG0602-085R120C5 | 65 | C5 | 85 | 88 | 95 | 120 | ±0.018 | 0.018 | 0.035 | ~0.005 | - | 750 | 1200 |
SG0602-135R170C5 | 115 | C5 | 135 | 138 | 145 | 170 | ±0.020 | 0.018 | 0.050 |
Standard products in stock SG series | |||
---|---|---|---|
SG0602.5 | Shaft dia. ∅6 | Lead 2.5mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.0 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅5.1 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP04-S |
Fixed-side: | EK5 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0602.5-085R120C3 | 65 | C3 | 85 | 88 | 95 | 120 | ±0.008 | 0.008 | 0.025 | 0 Spacer Ball (1:1) | 0.003~0.007 | 470 | 590 |
SG0602.5-135R170C3 | 115 | C3 | 135 | 138 | 145 | 170 | ±0.010 | 0.008 | 0.035 | ||||
SG0602.5-085R120C5 | 65 | C5 | 85 | 88 | 95 | 120 | ±0.018 | 0.018 | 0.035 | ~0.005 | - | 750 | 1200 |
SG0602.5-135R170C5 | 115 | C5 | 135 | 138 | 145 | 170 | ±0.020 | 0.018 | 0.050 |
Standard products in stock SG series | |||
---|---|---|---|
SG0606 | Shaft dia. ∅6 | Lead 6mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.0 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅5.2 | |||
Number of circuit | 1.6×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP04-S |
Fixed-side: | EK5 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0606-084R120C5 | 65 | C5 | 84 | 88 | 95 | 120 | ±0.018 | 0.018 | 0.035 | ~0.005 | - | 870 | 1450 |
SG0606-134R170C5 | 115 | C5 | 134 | 138 | 145 | 170 | ±0.020 | 0.018 | 0.050 |
Standard products in stock SG series | |||
---|---|---|---|

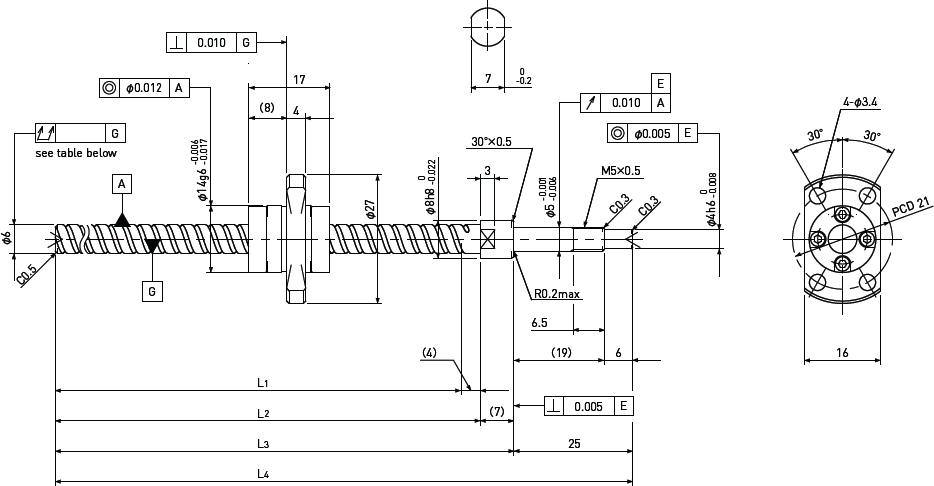

SG0610 | Shaft dia. ∅6 | Lead 10mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.2 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅5.0 | |||
Number of circuit | 1.2×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | SUP04-S |
Fixed-side: | EK5 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0610-133R170C5 | 110 | C5 | 133 | 138 | 145 | 170 | ±0.020 | 0.018 | 0.050 | ~0.005 | - | 950 | 1600 |
Standard products in stock SG series | |||
---|---|---|---|

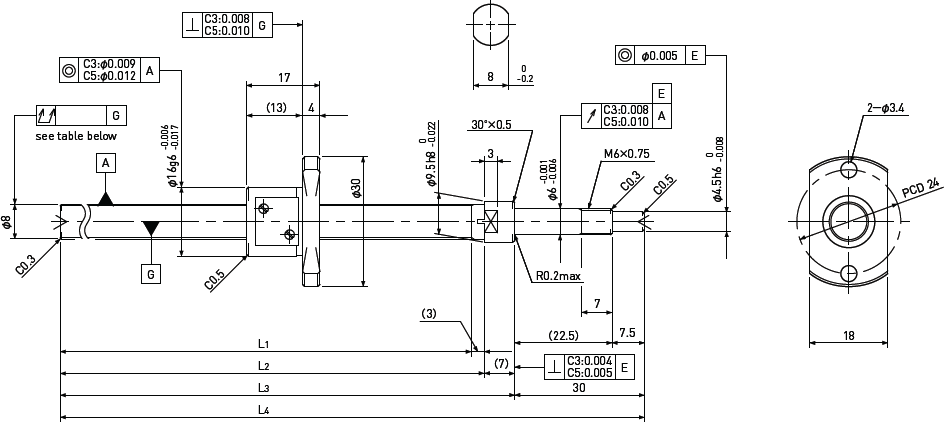

SG0801 | Shaft dia. ∅8 | Lead 1mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.8 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅7.3 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF6 |
Fixed-side: | EK6 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0801-100R140C3 | 80 | C3 | 100 | 103 | 110 | 140 | ±0.008 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | 0.002~0.008 | 490 | 820 |
SG0801-130R170C3 | 110 | C3 | 130 | 133 | 140 | 170 | ±0.010 | 0.008 | 0.035 | ||||
SG0801-160R200C3 | 140 | C3 | 160 | 163 | 170 | 200 | ±0.010 | 0.008 | 0.035 | ||||
SG0801-210R250C3 | 190 | C3 | 210 | 213 | 220 | 250 | ±0.012 | 0.008 | 0.050 | ||||
SG0801-100R140C5 | 80 | C5 | 100 | 103 | 110 | 140 | ±0.018 | 0.018 | 0.050 | ~0.005 | - | 780 | 1650 |
SG0801-130R170C5 | 110 | C5 | 130 | 133 | 140 | 170 | ±0.020 | 0.018 | 0.050 | ||||
SG0801-160R200C5 | 140 | C5 | 160 | 163 | 170 | 200 | ±0.020 | 0.018 | 0.050 | ||||
SG0801-210R250C5 | 190 | C5 | 210 | 213 | 220 | 250 | ±0.023 | 0.018 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|

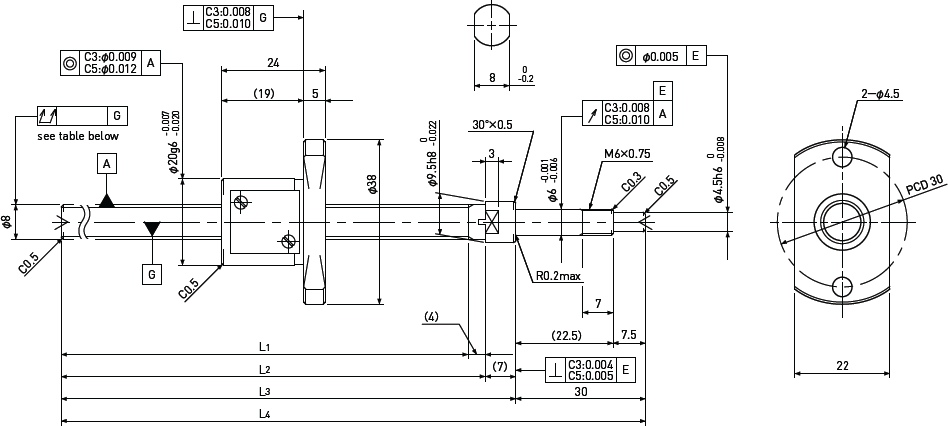

SG0802 | Shaft dia. ∅8 | Lead 2mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|

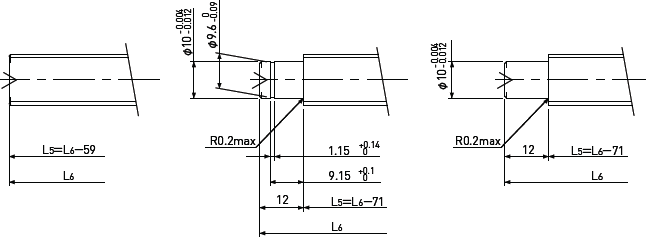

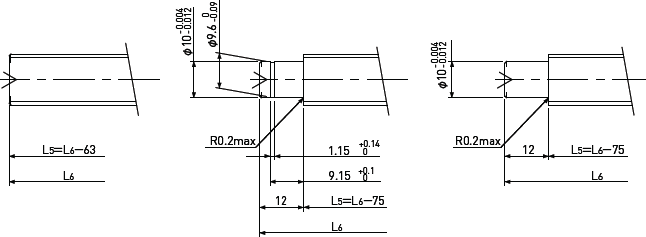

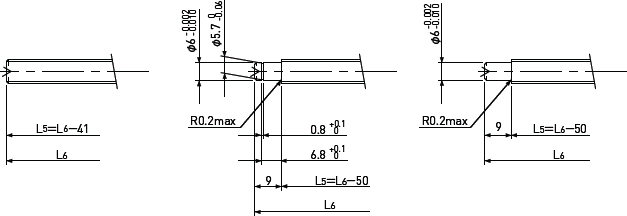

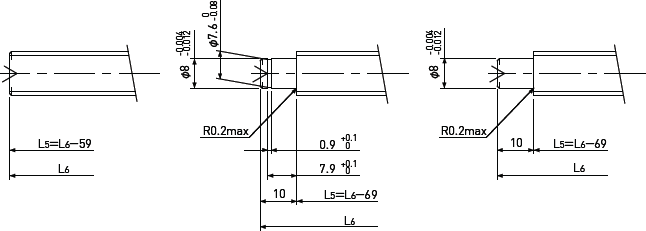

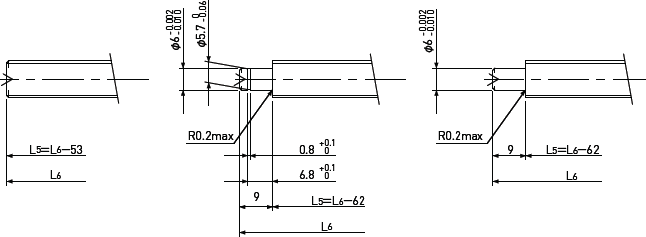

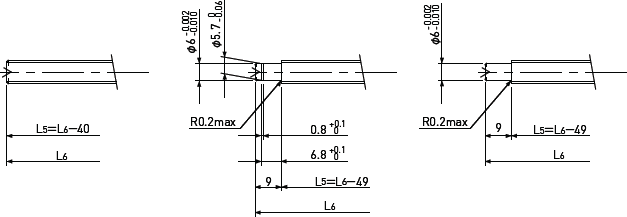

Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅6.6 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF6 |
Fixed-side: | EK6 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0802-099R140C3 | 75 | C3 | 99 | 103 | 110 | 140 | ±0.008 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | 0.004~0.020 | 1550 | 2100 |
SG0802-129R170C3 | 105 | C3 | 129 | 133 | 140 | 170 | ±0.010 | 0.008 | 0.035 | ||||
SG0802-159R200C3 | 135 | C3 | 159 | 163 | 170 | 200 | ±0.010 | 0.008 | 0.035 | ||||
SG0802-209R250C3 | 185 | C3 | 209 | 213 | 220 | 250 | ±0.012 | 0.008 | 0.050 | ||||
SG0802-099R140C5 | 75 | C5 | 99 | 103 | 110 | 140 | ±0.018 | 0.018 | 0.050 | ~0.005 | - | 2400 | 4100 |
SG0802-129R170C5 | 105 | C5 | 129 | 133 | 140 | 170 | ±0.020 | 0.018 | 0.050 | ||||
SG0802-159R200C5 | 135 | C5 | 159 | 163 | 170 | 200 | ±0.020 | 0.018 | 0.050 | ||||
SG0802-209R250C5 | 185 | C5 | 209 | 213 | 220 | 250 | ±0.023 | 0.018 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|

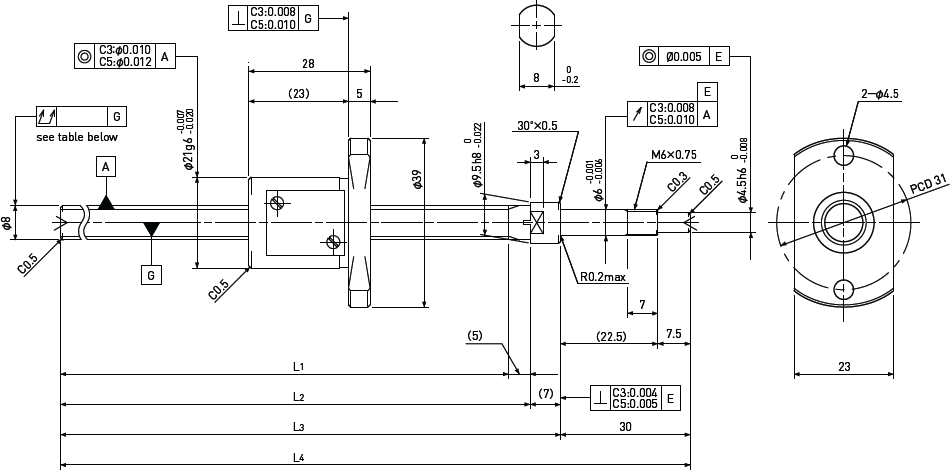

SG0802.5 | Shaft dia. ∅8 | Lead 2.5mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅6.3 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF6 |
Fixed-side: | EK6 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0802.5-129R170C5 | 110 | C5 | 129 | 133 | 140 | 170 | ±0.020 | 0.018 | 0.050 | ~0.005 | - | 1850 | 3000 |
SG0802.5-209R250C5 | 190 | C5 | 209 | 213 | 220 | 250 | ±0.023 | 0.018 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|
SG0804 | Shaft dia. ∅8 | Lead 4mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅2.0 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅6.2 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF6 |
Fixed-side: | EK6 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0804-098R140C3 | 70 | C3 | 98 | 103 | 110 | 140 | ±0.008 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | ~0.015 | 1650 | 2100 |
SG0804-208R250C3 | 180 | C3 | 208 | 213 | 220 | 250 | ±0.012 | 0.008 | 0.050 | ||||
SG0804-098R140C5 | 70 | C5 | 98 | 103 | 110 | 140 | ±0.018 | 0.018 | 0.050 | ~0.005 | - | 2600 | 4200 |
SG0804-208R250C5 | 180 | C5 | 208 | 213 | 220 | 250 | ±0.023 | 0.018 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|
SG0805 | Shaft dia. ∅8 | Lead 5mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅6.6 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF6 |
Fixed-side: | EK6 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0805-099R140C3 | 70 | C3 | 99 | 103 | 110 | 140 | ±0.008 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | ~0.015 | 1150 | 1500 |
SG0805-209R250C3 | 180 | C3 | 209 | 213 | 220 | 250 | ±0.012 | 0.008 | 0.050 | ||||
SG0805-099R140C5 | 70 | C5 | 99 | 103 | 110 | 140 | ±0.018 | 0.018 | 0.050 | ~0.005 | - | 1850 | 3000 |
SG0805-209R250C5 | 180 | C5 | 209 | 213 | 220 | 250 | ±0.023 | 0.018 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|

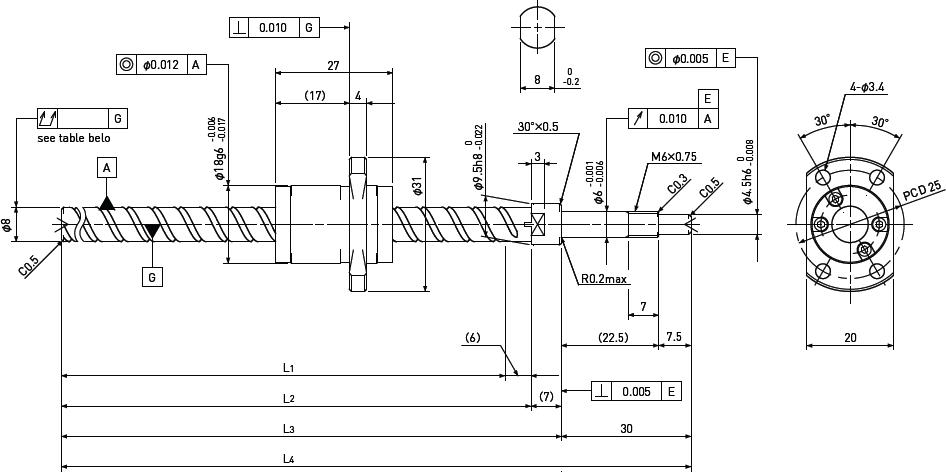

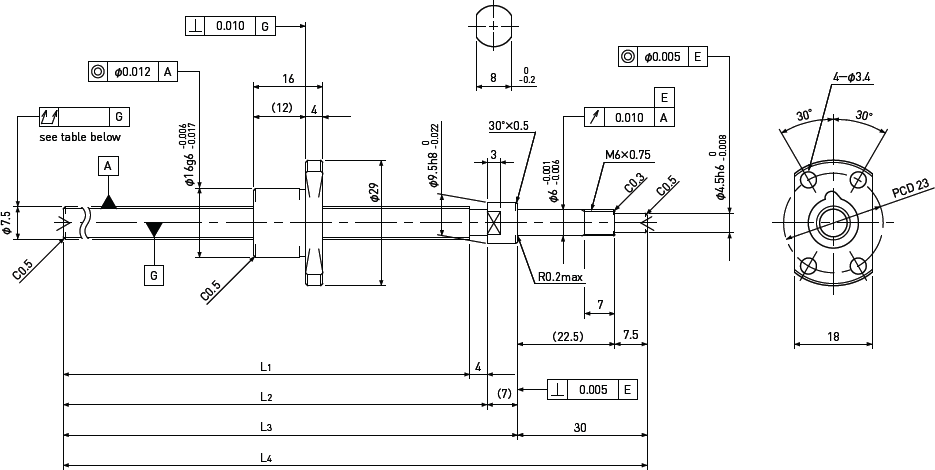

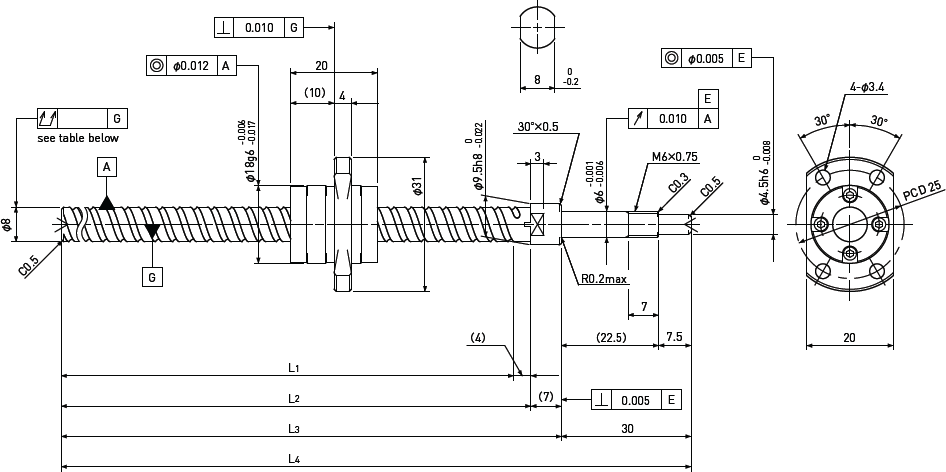

SG0808 | Shaft dia. ∅8 | Lead 8mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅6.7 | |||
Number of circuit | 1.6×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF6 |
Fixed-side: | EK6 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0808-099R140C5 | 75 | C5 | 99 | 103 | 110 | 140 | ±0.018 | 0.018 | 0.050 | ~0.005 | - | 2200 | 3800 |
SG0808-209R250C5 | 185 | C5 | 209 | 213 | 220 | 250 | ±0.023 | 0.018 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|
SG0812 | Shaft dia. ∅8 | Lead 12mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅6.7 | |||
Number of circuit | 1.6×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF6 |
Fixed-side: | EK6 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG0812-097R140C5 | 70 | C5 | 97 | 103 | 110 | 140 | ±0.018 | 0.018 | 0.050 | ~0.005 | - | 2200 | 4000 |
SG0812-207R250C5 | 180 | C5 | 207 | 213 | 220 | 250 | ±0.023 | 0.018 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|

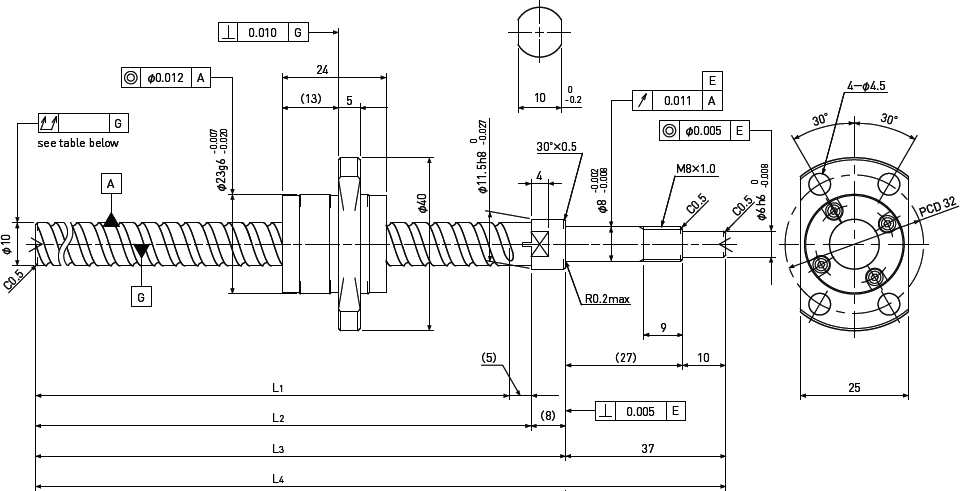

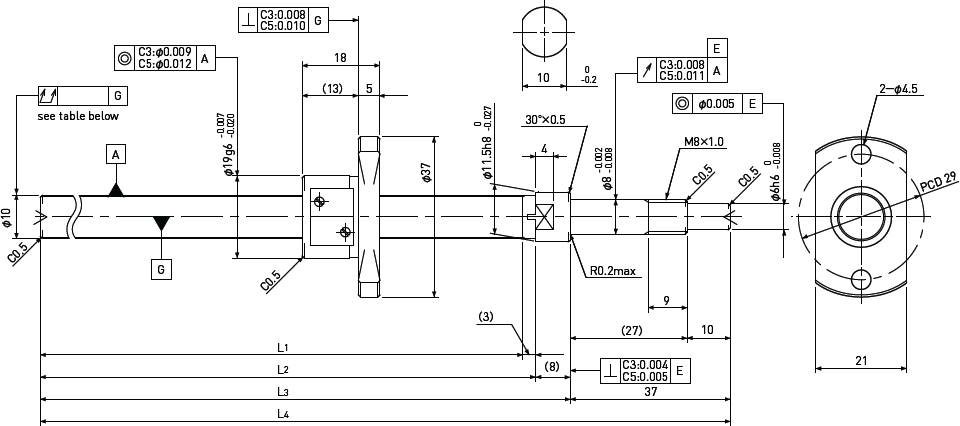

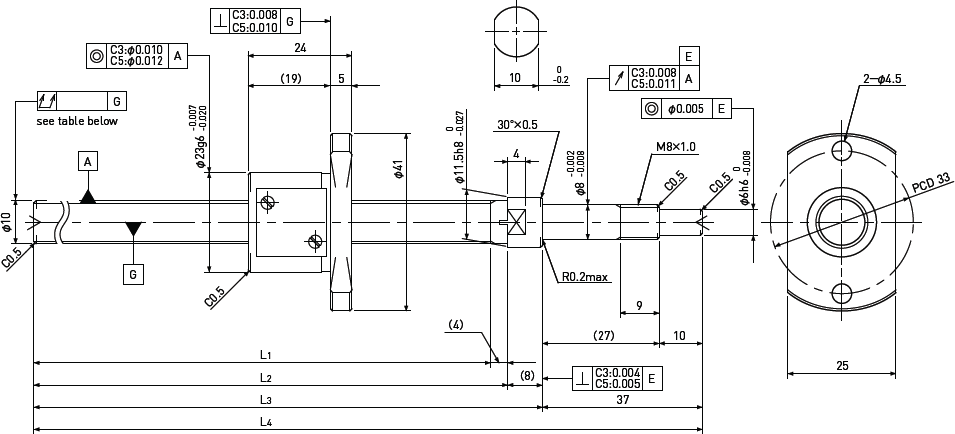

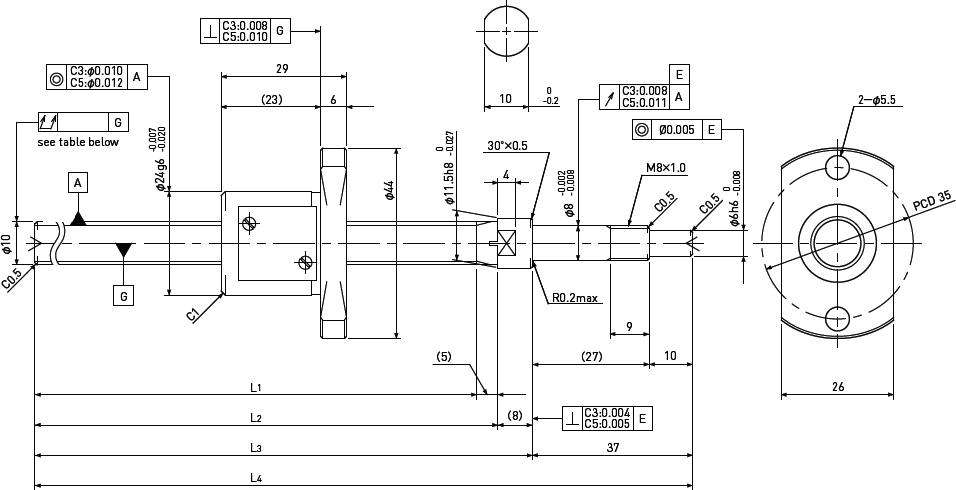

SG1001 | Shaft dia. ∅10 | Lead 1mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅0.8 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅9.3 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF8 |
Fixed-side: | EK8 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1001-112R160C3 | 90 | C3 | 112 | 115 | 123 | 160 | ±0.010 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | ~0.020 | 530 | 1000 |
SG1001-162R210C3 | 140 | C3 | 162 | 165 | 173 | 210 | ±0.010 | 0.008 | 0.040 | ||||
SG1001-212R260C3 | 190 | C3 | 212 | 215 | 223 | 260 | ±0.012 | 0.008 | 0.040 | ||||
SG1001-262R310C3 | 240 | C3 | 262 | 265 | 273 | 310 | ±0.012 | 0.008 | 0.040 | ||||
SG1001-112R160C5 | 90 | C5 | 112 | 115 | 123 | 160 | ±0.020 | 0.018 | 0.040 | ~0.005 | - | 840 | 2000 |
SG1001-162R210C5 | 140 | C5 | 162 | 165 | 173 | 210 | ±0.020 | 0.018 | 0.055 | ||||
SG1001-212R260C5 | 190 | C5 | 212 | 215 | 223 | 260 | ±0.023 | 0.018 | 0.055 | ||||
SG1001-262R310C5 | 240 | C5 | 262 | 265 | 273 | 310 | ±0.023 | 0.018 | 0.055 |
Standard products in stock SG series | |||
---|---|---|---|
SG1002 | Shaft dia. ∅10 | Lead 2mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅8.6 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF8 |
Fixed-side: | EK8 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1002-111R160C3 | C3 | 111 | 115 | 123 | 160 | ±0.010 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | 0.006~0.030 | 1750 | 2700 | |
SG1002-161R210C3 | C3 | 161 | 165 | 173 | 210 | ±0.010 | 0.008 | 0.040 | |||||
SG1002-211R260C3 | C3 | 211 | 215 | 223 | 260 | ±0.012 | 0.008 | 0.040 | |||||
SG1002-261R310C3 | C3 | 261 | 265 | 273 | 310 | ±0.012 | 0.008 | 0.040 | |||||
SG1002-111R160C5 | C5 | 111 | 115 | 123 | 160 | ±0.020 | 0.018 | 0.040 | ~0.005 | - | 2700 | 5300 | |
SG1002-161R210C5 | C5 | 161 | 165 | 173 | 210 | ±0.020 | 0.018 | 0.055 | |||||
SG1002-211R260C5 | C5 | 211 | 215 | 223 | 260 | ±0.023 | 0.018 | 0.055 | |||||
SG1002-261R310C5 | C5 | 261 | 265 | 273 | 310 | ±0.023 | 0.018 | 0.055 |
Standard products in stock SG series | |||
---|---|---|---|
SG1004 | Shaft dia. ∅10 | Lead 4mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅2.0 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅8.2 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF8 |
Fixed-side: | EK8 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1004-110R160C3 | 80 | C3 | 110 | 115 | 123 | 160 | ±0.010 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | 0.005~0.040 | 1800 | 2600 |
SG1004-260R310C3 | 230 | C3 | 260 | 265 | 273 | 310 | ±0.012 | 0.008 | 0.040 | ||||
SG1004-110R160C5 | 80 | C5 | 110 | 115 | 123 | 160 | ±0.020 | 0.018 | 0.040 | ~0.005 | - | 3000 | 5200 |
SG1004-260R310C5 | 230 | C5 | 260 | 265 | 273 | 310 | ±0.023 | 0.018 | 0.055 |
Standard products in stock SG series | |||
---|---|---|---|
SG1005 | Shaft dia. ∅10 | Lead 5mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅2.0 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅8.2 | |||
Number of circuit | 2.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF8 |
Fixed-side: | EK8 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1005-110R160C3 | 75 | C3 | 110 | 115 | 123 | 160 | ±0.010 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | 0.005~0.040 | 1800 | 2600 |
SG1005-260R310C3 | 225 | C3 | 260 | 265 | 273 | 310 | ±0.012 | 0.008 | 0.040 | ||||
SG1005-110R160C5 | 75 | C5 | 110 | 115 | 123 | 160 | ±0.020 | 0.018 | 0.040 | ~0.005 | - | 3000 | 5200 |
SG1005-260R310C5 | 225 | C5 | 260 | 265 | 273 | 310 | ±0.023 | 0.018 | 0.055 |

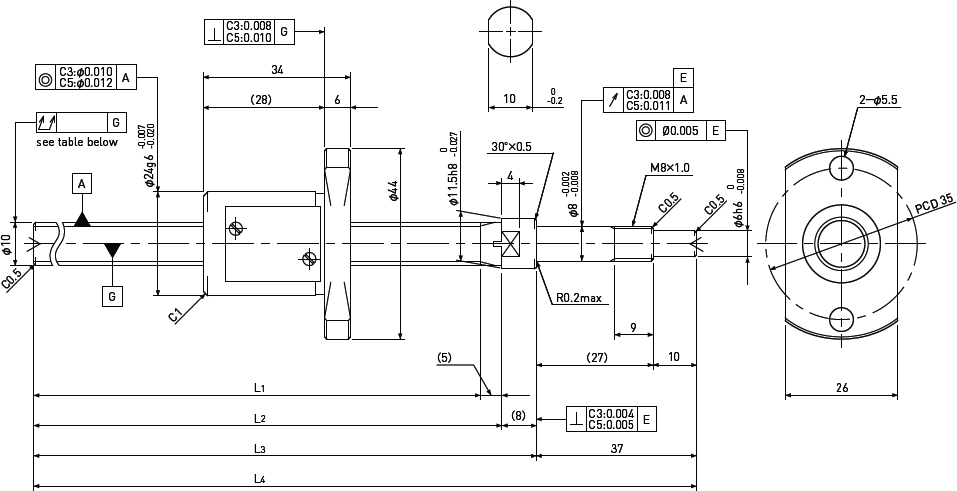

Standard products in stock SG series | |||
---|---|---|---|

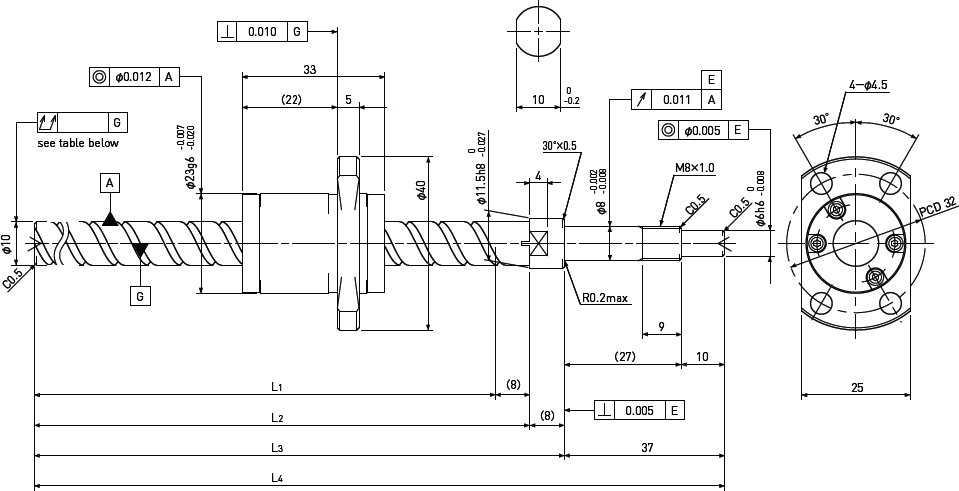

SG1010 | Shaft dia. ∅10 | Lead 10mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅2.0 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅8.4 | |||
Number of circuit | 1.6×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF8 |
Fixed-side: | EK8 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1010-110R160C5 | 85 | C5 | 110 | 115 | 123 | 160 | ±0.020 | 0.018 | 0.040 | ~0.005 | - | 3300 | 5900 |
SG1010-260R310C5 | 235 | C5 | 260 | 265 | 273 | 310 | ±0.023 | 0.018 | 0.055 |
Standard products in stock SG series | |||
---|---|---|---|
SG1015 | Shaft dia. ∅10 | Lead 15mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅2.0 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅8.4 | |||
Number of circuit | 1.6×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF8 |
Fixed-side: | EK8 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1015-107R160C5 | 70 | C5 | 107 | 115 | 123 | 160 | ±0.020 | 0.018 | 0.040 | ~0.005 | - | 3300 | 6400 |
SG1015-257R310C5 | 220 | C5 | 257 | 265 | 273 | 310 | ±0.023 | 0.018 | 0.055 |
Standard products in stock SG series | |||
---|---|---|---|

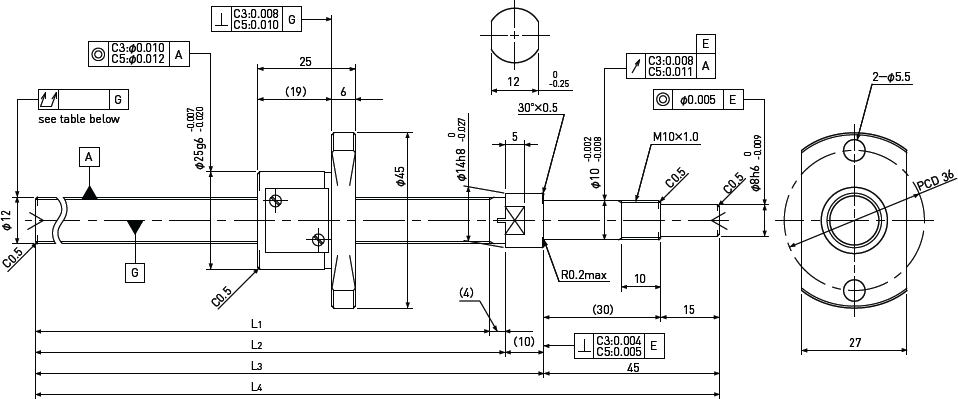

SG1202 | Shaft dia. ∅12 | Lead 2mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅10.6 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF10 |
Fixed-side: | EK10 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1202-141R200C3 | 115 | C3 | 141 | 145 | 155 | 200 | ±0.008 | 0.008 | 0.035 | 0 Spacer Ball (1:1) | 0.008~0.040 | 1900 | 3200 |
SG1202-191R250C3 | 165 | C3 | 191 | 195 | 205 | 250 | ±0.008 | 0.008 | 0.040 | ||||
SG1202-241R300C3 | 215 | C3 | 241 | 245 | 255 | 300 | ±0.008 | 0.008 | 0.040 | ||||
SG1202-291R350C3 | 265 | C3 | 291 | 295 | 305 | 350 | ±0.008 | 0.008 | 0.050 | ||||
SG1202-341R400C3 | 315 | C3 | 341 | 345 | 355 | 400 | ±0.010 | 0.010 | 0.050 | ||||
SG1202-141R200C5 | 115 | C5 | 141 | 145 | 155 | 200 | ±0.008 | 0.018 | 0.040 | ~0.005 | - | 3000 | 6400 |
SG1202-191R250C5 | 165 | C5 | 191 | 195 | 205 | 250 | ±0.008 | 0.018 | 0.055 | ||||
SG1202-241R300C5 | 215 | C5 | 241 | 245 | 255 | 300 | ±0.008 | 0.018 | 0.055 | ||||
SG1202-291R350C5 | 265 | C5 | 291 | 295 | 305 | 350 | ±0.008 | 0.018 | 0.065 | ||||
SG1202-341R400C5 | 315 | C5 | 341 | 245 | 355 | 400 | ±0.010 | 0.020 | 0.065 |
Standard products in stock SG series | |||
---|---|---|---|

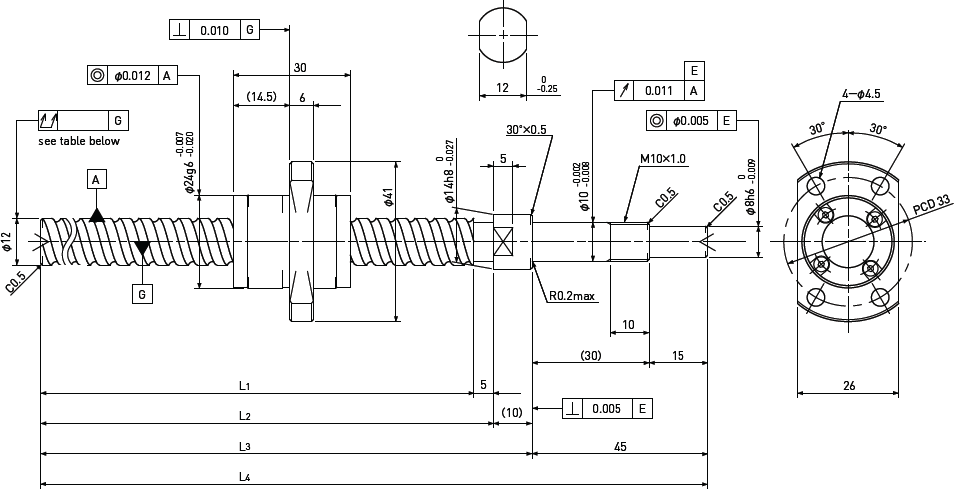

SG1210 | Shaft dia. ∅12 | Lead 10mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅2.381 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅10.2 | |||
Number of circuit | 1.7×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF10 |
Fixed-side: | EK10 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1210-240R300C5 | 210 | C5 | 240 | 245 | 255 | 300 | ±0.023 | 0.018 | 0.055 | ~0.005 | - | 5100 | 9800 |
SG1210-340R400C5 | 310 | C5 | 340 | 345 | 355 | 400 | ±0.025 | 0.020 | 0.065 |

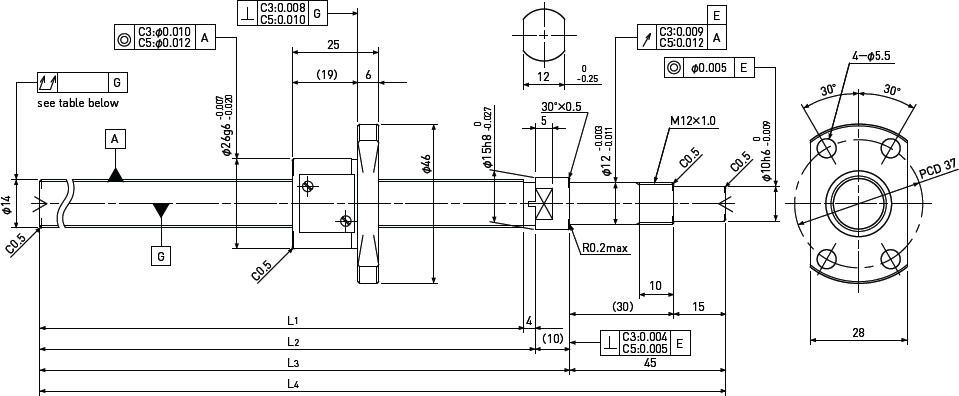

Standard products in stock SG series | |||
---|---|---|---|
SG1402 | Shaft dia. ∅14 | Lead 2mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅1.5875 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅12.6 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF12 |
Fixed-side: | EK12 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1402-141R200C3 | 115 | C3 | 141 | 145 | 155 | 200 | ±0.010 | 0.008 | 0.025 | 0 Spacer Ball (1:1) | 0.010~0.050 | 2000 | 3800 |
SG1402-191R250C3 | 165 | C3 | 191 | 195 | 205 | 250 | ±0.010 | 0.008 | 0.030 | ||||
SG1402-241R300C3 | 215 | C3 | 241 | 245 | 255 | 300 | ±0.012 | 0.008 | 0.030 | ||||
SG1402-291R350C3 | 265 | C3 | 291 | 295 | 305 | 350 | ±0.012 | 0.008 | 0.040 | ||||
SG1402-391R450C3 | 365 | C3 | 391 | 395 | 405 | 450 | ±0.013 | 0.010 | 0.050 | ||||
SG1402-141R200C5 | 115 | C5 | 141 | 145 | 155 | 200 | ±0.020 | 0.018 | 0.040 | ~0.005 | - | 3200 | 7500 |
SG1402-191R250C5 | 165 | C5 | 191 | 195 | 205 | 250 | ±0.020 | 0.018 | 0.045 | ||||
SG1402-241R300C5 | 215 | C5 | 241 | 245 | 255 | 300 | ±0.023 | 0.018 | 0.045 | ||||
SG1402-291R350C5 | 265 | C5 | 291 | 295 | 305 | 350 | ±0.023 | 0.018 | 0.055 | ||||
SG1402-391R450C5 | 365 | C5 | 391 | 395 | 405 | 450 | ±0.025 | 0.020 | 0.060 |

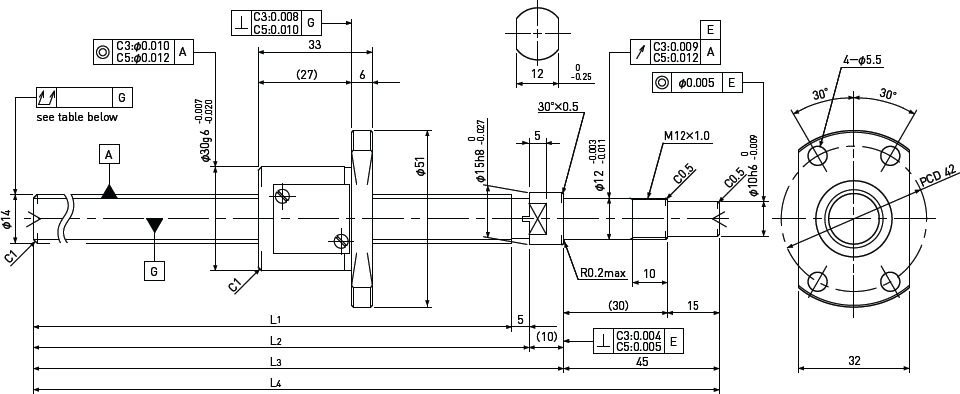

Standard products in stock SG series | |||
---|---|---|---|
SG1404 | Shaft dia. ∅14 | Lead 4mm | C3&C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅2.381 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅11.8 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF12 |
Fixed-side: | EK12 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1404-190R250C3 | 155 | C3 | 190 | 195 | 205 | 250 | ±0.010 | 0.008 | 0.030 | 0 Spacer Ball (1:1) | 0.020~0.070 | 3600 | 5800 |
SG1404-240R300C3 | 205 | C3 | 240 | 245 | 255 | 300 | ±0.012 | 0.008 | 0.030 | ||||
SG1404-290R350C3 | 255 | C3 | 290 | 295 | 305 | 350 | ±0.012 | 0.008 | 0.040 | ||||
SG1404-390R450C3 | 355 | C3 | 390 | 395 | 405 | 450 | ±0.013 | 0.010 | 0.050 | ||||
SG1404-490R550C3 | 455 | C3 | 490 | 495 | 505 | 550 | ±0.015 | 0.010 | 0.055 | ||||
SG1404-190R250C5 | 155 | C5 | 190 | 195 | 205 | 250 | ±0.020 | 0.018 | 0.045 | ~0.005 | - | 5700 | 11600 |
SG1404-240R300C5 | 205 | C5 | 240 | 245 | 255 | 300 | ±0.023 | 0.018 | 0.045 | ||||
SG1404-290R350C5 | 255 | C5 | 290 | 295 | 305 | 350 | ±0.023 | 0.018 | 0.055 | ||||
SG1404-390R450C5 | 355 | C5 | 390 | 395 | 405 | 450 | ±0.025 | 0.020 | 0.060 | ||||
SG1404-490R550C5 | 455 | C5 | 490 | 495 | 505 | 550 | ±0.027 | 0.020 | 0.075 |

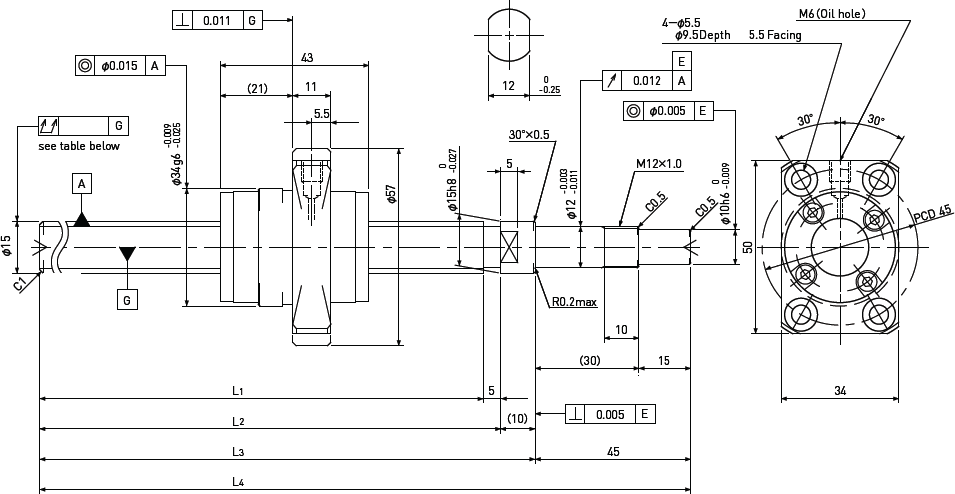

Standard products in stock SG series | |||
---|---|---|---|

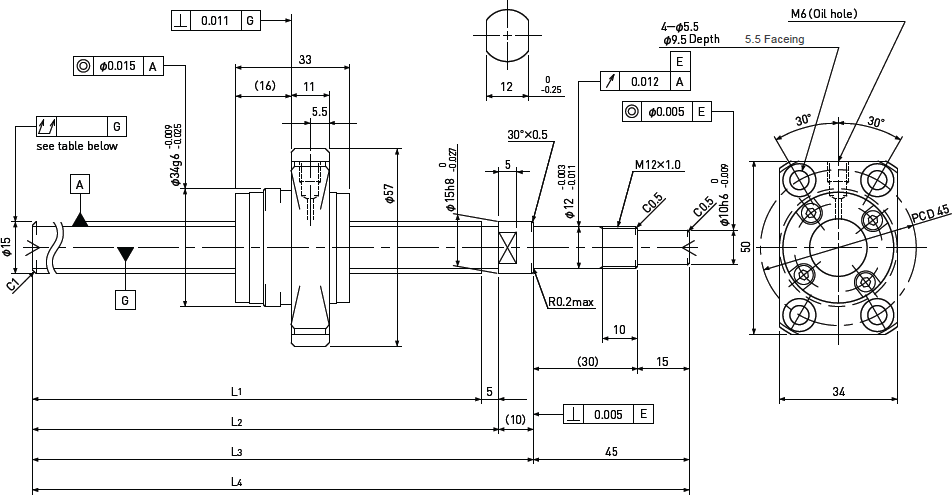

SG1505 | Shaft dia. ∅15 | Lead 5mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅3.175 | A-type B-type C-type | ||
Number of thread | 1 | |||
Thread direction | Right | |||
Shaft root dia. | ∅12.2 | |||
Number of circuit | 3.7×1 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF12 |
Fixed-side: | EK12 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1505-340R400C5 | 305 | C5 | 340 | 345 | 355 | 400 | ±0.025 | 0.020 | 0.055 | ~0.005 | - | 8900 | 17000 |
SG1505-540R600C5 | 505 | C5 | 540 | 545 | 555 | 600 | ±0.030 | 0.023 | 0.075 |
Standard products in stock SG series | |||
---|---|---|---|
SG1510 | Shaft dia. ∅15 | Lead 10mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅3.175 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅12.2 | |||
Number of circuit | 2.7×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF12 |
Fixed-side: | EK12 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1510-340R400C5 | 295 | C5 | 340 | 345 | 355 | 400 | ±0.025 | 0.020 | 0.055 | ~0.005 | - | 12000 | 25000 |
SG1510-540R600C5 | 495 | C5 | 540 | 545 | 555 | 600 | ±0.030 | 0.023 | 0.075 |
Standard products in stock SG series | |||
---|---|---|---|

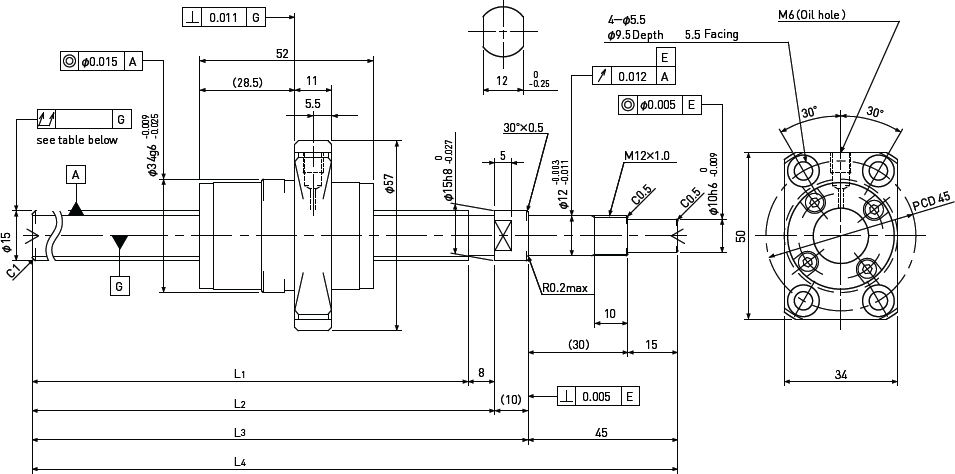

SG1520 | Shaft dia. ∅15 | Lead 20mm | C5 |
Unit : mm | ||||
---|---|---|---|---|
Ball Screw Specifications | Supported-side end-journal profile | |||
Ball size | ∅3.175 | A-type B-type C-type | ||
Number of thread | 2 | |||
Thread direction | Right | |||
Shaft root dia. | ∅12.4 | |||
Number of circuit | 1.7×2 | |||
Shaft/Nut Material | SCM415H | |||
Surface hardness | HRC58∼62 (Thread area) | L5: Thread length after end-journal machining. L6: Total length after end-journal machining. | ||
Anti-rust treatment | Anti-rust oil | Support-unit Recommendation | Supported-side: | EF12 |
Fixed-side: | EK12 |
Unit : mm | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ball Screw Model | Travel | Grade | Shaft length | Lead accuracy | Total Run-out ⌰ | Axial play | Preload Torque Nm | Basic Load Rating N | |||||
L1 | L2 | L3 | L4 | Travel deviation eP | Variation Vu | Dynamic Ca | Static Coa | ||||||
SG1520-337R400C5 | 285 | C5 | 337 | 345 | 355 | 400 | ±0.025 | 0.020 | 0.055 | ~0.005 | - | 8000 | 16000 |
SG1520-537R600C5 | 485 | C5 | 537 | 545 | 555 | 600 | ±0.030 | 0.023 | 0.075 |
