Precision Ball Screws | |
---|---|

## Square type Single Nut | ## Backlash type/Preload type |

Unit : mm | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|

Ball Nut Model number | Shaft nominal dia. d | Lead | Ball size | BCD | Lead angle | Root dia. d _{0} | Number of Circuit | Basic Load Rating N | Nut Rigidity N/µm | |

Dynamic Ca | Static Coa | |||||||||

KS 0601 B | 6 | 1 | 0.8 | 6.15 | 2°58' | 5.3 | 3.7×1 | 680 / 430 | 1200 / 610 | 75 / 63 |

KS 0602 A | 6 | 2 | 1.0 | 6.20 | 5°52' | 5.1 | 2.7×1 | 750 / 470 | 1200 / 590 | 58 / 49 |

KS 0801 B | 8 | 1 | 0.8 | 8.15 | 2°15' | 7.3 | 3.7×1 | 780 / 490 | 1650 / 820 | 95 / 80 |

KS 0802 A | 8 | 2 | 1.0 | 8.20 | 4°26' | 7.1 | 2.7×1 | 850 / 540 | 1600 / 800 | 74 / 61 |

KS 1001 B | 10 | 1 | 0.8 | 10.15 | 1°48' | 9.3 | 3.7×1 | 840 / 530 | 2000 / 1000 | 113 / 95 |

KS 1002 B | 10 | 2 | 1.5875 | 10.30 | 3°32' | 8.6 | 3.7×1 | 2700 / 1750 | 5300 / 2700 | 134 / 112 |

Ball Nut Model number | Nut dimension | |||||||||
---|---|---|---|---|---|---|---|---|---|---|

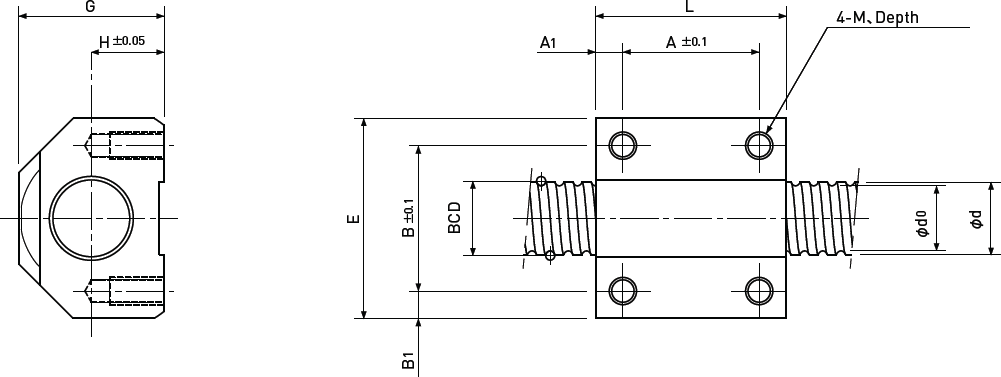

L | E | G | H | A | A_{1} | B | B_{1} | M | Z | |

KS 0601 B | 20 | 20 | 14 | 7 | 14 | 3 | 14 | 3 | M3 | 6 |

KS 0602 A | 20 | 20 | 14 | 7 | 14 | 3 | 14 | 3 | M3 | 6 |

KS 0801 B | 21 | 22 | 16 | 8 | 15 | 3 | 16 | 3 | M3 | 6 |

KS 0802 A | 21 | 22 | 16 | 8 | 15 | 3 | 16 | 3 | M3 | 6 |

KS 1001 B | 26 | 28 | 22 | 12 | 18 | 4 | 20 | 4 | M4 | 7 |

KS 1002 B | 26 | 28 | 23 | 12 | 18 | 4 | 20 | 4 | M4 | 7 |

Basic Load Rating N | Nut Rigidity N/µm | ||
---|---|---|---|

Dynamic Ca | Static Coa | ||

1000 / 640 | 3300 / 1650 | 164 / 138 | |

Preload type | |||

Backlash type |

- Note 1)
- The diameter of one of the Screw Shaft ends must be less than the Screw Shaft Root diameter, otherwise Ball Nut cannot be installed.
- Note 2)
- Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
- Note 3)
- The Rigidity values shown in the table are theoretical values of Ball Nut Rigidity calculated from the amount of Elastic Displacement under the following conditions.

Backlash type ; Apply the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.

Preload type ; Apply the Preload equivalent to 5% of the Basic Dynamic Load Rating Ca.

For Axial load or Preload condition other than the above,

see the formula in p-A823, you can calculate Rigidity using this formula. - Note 4)
- All models are Right-hand Screw. If Left-hand Screw is required, please ask ABSSAC representative.
- Note 5)
- Basic Load Rating and Rigidity for Backlash type and Preload type are described in the same cell.
