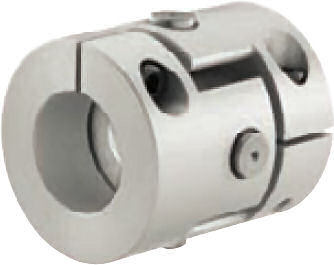

Loewe® GK: The axially fixed Loewe® GK is designed to offer generous angular and radial misalignment compensation together with high axial stiffness. Loewe® GK is designed to resist axial motion and for precise transmission of pure linear motion for use in cylinder systems.
The Loewe® GK series for applications that on the one hand, must transmit torque and on the other, must transmit push-pull loads. By design, the Loewe® GK Torque series accommodates generous angular and parallel misalignments, also under axial force.
Resists axial motion
Bore diameter up to 50 mm
Torque (TKN) 44 Nm to 220 Nm

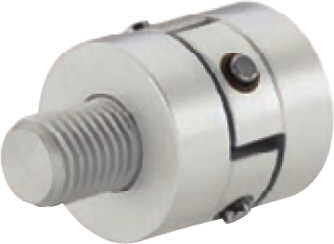

Precise transmission of push-pull loads
Bore diameter up to 50 mm
Thread diameter up to size M27
∅R (mm) | L (mm) | ∅dmax (mm) | K (mm) | m (kg) | TKN (Nm) | TK max (Nm) | ΔKr (mm) | Δ Kw (°) | nmax (1/min) | |
---|---|---|---|---|---|---|---|---|---|---|
GK 27 | 33 | 36 | 11 | 10,5 | 0,05 | 4 | 9 | 1 | 3 | 4.000 |
GK 35 | 41 | 37 | 16 | 12,5 | 0,09 | 7 | 15 | 1,5 | 3 | 3.500 |
GK 56 | 57 | 53 | 30 | 15 | 0,3 | 33 | 95 | 2 | 3 | 2.500 |
GK 75 | 84 | 83 | 40 | 25 | 0,8 | 90 | 240 | 2 | 3 | 2.500 |
GK 100 | 109 | 97 | 50 | 27,5 | 1,8 | 220 | 550 | 2,5 | 3 | 1.500 |
Order Example 1: GK 27 ∅6 ∅8 Order Example 2: GK 56 ∅20 ∅20N
GK 56 | ∅20 ∅20N |
---|---|

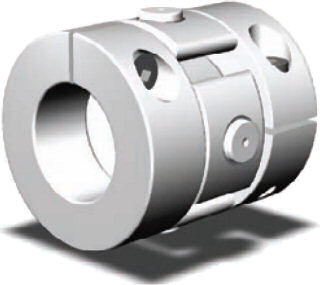

Type Loewe® GK Torque GK 56 | bore diameters |
To ensure the correct selection of the Loewe® GK please use our selection procedure and legend area to download the required information.
∅R (mm) | L (mm) | ∅dmax (mm) | K (mm) | m (kg) | Fa (N) | ΔKr (mm) | Δ Kw (°) | |
---|---|---|---|---|---|---|---|---|
GK L 27 | 33 | 36 | 11 | 10,5 | 0,05 | 800 | 1 | 3 |
GK L 35 | 41 | 37 | 16 | 12,5 | 0,09 | 1.000 | 1,5 | 3 |
GK L 56 | 57 | 53 | 30 | 15 | 0,3 | 4.000 | 2 | 3 |
GK L 75 | 84 | 83 | 40 | 25 | 0,8 | 7.500 | 2 | 3 |
GK L 100 | 109 | 97 | 50 | 27,5 | 1,8 | 13.000 | 2,5 | 3 |
Order Example 1: GK L 27 ∅6 ∅8 Order Example 2: GK L 27 M10 M10
GK L 27 | M10 M10 |
---|---|

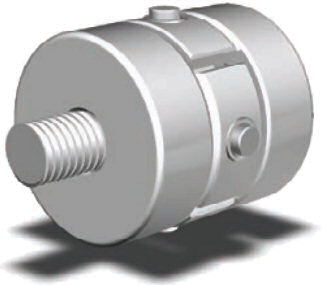

Type Loewe® Linear GK GK L 27 | Thread diameter |
To ensure the correct selection of the Loewe® GK please use our selection procedure and legend area to download the required information.
The life cycle of couplings will be determined by the existing loads and misalignments. The influences of torques and misalignment are described as follows.
Performance | |
---|---|
TKN | continuous torque rating of the coupling (Nm) |
TK max | maximum torque capacity of the coupling (Nm) |
Fa | maximum axial loads (N) |
nmax | maximum speed of the coupling (1/min) |
ΔKr | maximum radial misalignment capacity (mm) |
ΔKa | maximum axial misalignment capacity (mm) |
Δ Kw | maximum angular misalignment capacity (°) |

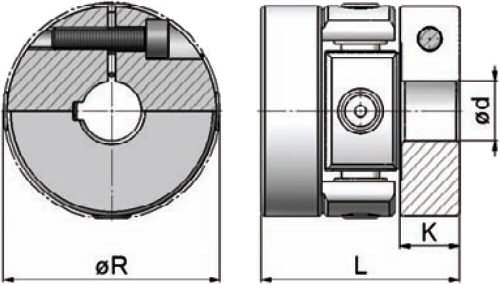

Dimension | |
---|---|
∅R | swing diameter (mm) |
L | coupling length (mm) |
K | clamp hub length (mm) |
∅dmax | maximum bore diameter (mm) |
∅dmin | minimum bore diameter (mm) |
m | weight of the coupling (kg) |
