Controlflex® is the ideal coupling for encoders. Controlflex® is a compact, electrically-insulating, precise shaft coupling with excellent kinematic properties. Modular construction makes it possible to realize all possible bore combinations from stock.
The very short design, especially designed for encoder applications where the coupling is integrated into a very tight axial space. As an example where the coupling is mounted in a fixed housing.
For all standard encoders
For encoders with
maximum accuracy
The very short design
For robust industrial encoders

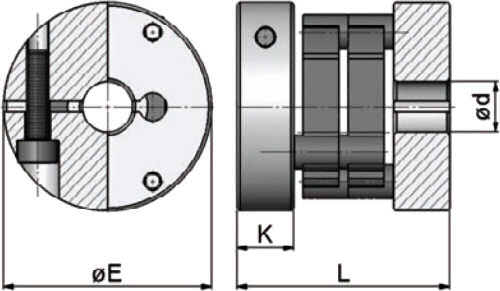

∅E (mm) | L (mm) | ∅dmax (mm) | ∅dmin (mm) | K (mm) | m (kg) | J (kg cm2) | TKN (Nm) | TK max (Nm) | ΔKr (mm) | Δ Kw (°) | Δ Ka (mm) | nmax (1/min) | CR (N) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CPS 8.1 | 19 | 16 | 10 | 3 | 5,6 | 0,01 | 0,004 | 0,3 | 0,7 | 0,4 | 1,5 | 0,3 | 25.000 | 3 |
CPS 10.1 | 25 | 25,5 | 12 | 4 | 9,5 | 0,03 | 0,02 | 0,7 | 1 | 0,7 | 1,5 | 0,5 | 22.000 | 3,4 |
CPS 15.1 | 37 | 30 | 20 | 5 | 10 | 0,06 | 0,11 | 2 | 3 | 1 | 1,5 | 0,7 | 15.000 | 4,4 |
Order Example 1: CPS 15.1 ∅10 ∅10 Order Example 2: CPS 10.1 ∅10 ∅10
CPS 15.1 | ∅10 ∅10 |
---|---|

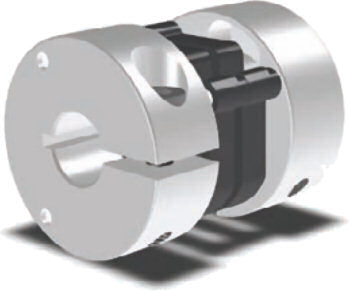

Type Controlflex® Standard CPS 15.1 | bore diameters |
To ensure the correct selection of the Controlflex® please use our selection procedure and legend area to download the required information.

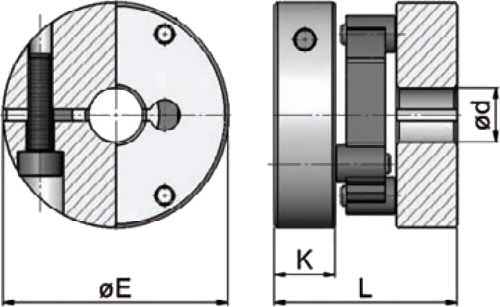

∅E (mm) | L (mm) | ∅dmax (mm) | ∅dmin (mm) | K (mm) | m (kg) | J (kg cm2) | TKN (Nm) | TK max (Nm) | ΔKr (mm) | Δ Kw (°) | Δ Ka (mm) | nmax (1/min) | CR (N) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CPS 8.2 | 19 | 20 | 10 | 3 | 5,6 | 0,01 | 0,01 | 0,6 | 1,4 | 0,4 | 1 | 0,3 | 25.000 | 6 |
CPS 10.2 | 25 | 31 | 12 | 4 | 9,5 | 0,03 | 0,02 | 1,4 | 2 | 0,7 | 1 | 0,5 | 22.000 | 6,8 |
CPS 15.2 | 37 | 38 | 20 | 5 | 10 | 0,07 | 0,12 | 4 | 6 | 1 | 1 | 0,7 | 15.000 | 8,8 |
Order Example 1: CPS 15.2 ∅10 ∅10 Order Example 2: CPS 8.2 ∅10 ∅10
CPS 8.2 | ∅10 ∅10 |
---|---|
Type Controlflex® Impuls Plus CPS 8.2 | bore diameters |
To ensure the correct selection of the Controlflex® please use our selection procedure and legend area to download the required information.

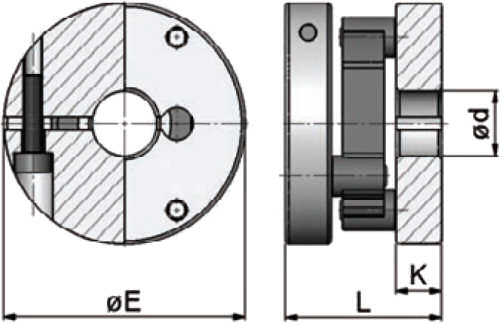

∅E (mm) | L (mm) | ∅dmax (mm) | ∅dmin (mm) | K (mm) | m (kg) | J (kg cm2) | TKN (Nm) | TK max (Nm) | ΔKr (mm) | Δ Kw (°) | Δ Ka (mm) | nmax (1/min) | CR (N) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CPS 9.1 | 25 | 20,5 | 12 | 4 | 7 | 0,02 | 0,02 | 0,7 | 1 | 0,4 | 1,5 | 0,5 | 22.000 | 3,4 |
CPS 14.1 | 37 | 24 | 22 | 5 | 7 | 0,04 | 0,1 | 2 | 3 | 1 | 1,5 | 0,7 | 15.000 | 4,4 |
Order Example 1: CPS 9.1 ∅10 ∅10 Order Example 2: CPS 14.1 ∅10 ∅10
CPS 14.1 | ∅10 ∅10 |
---|---|

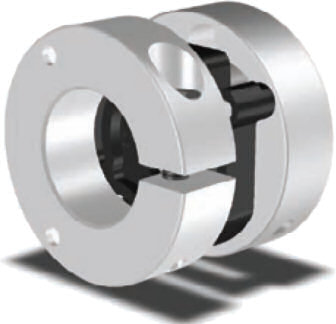

Type Controlflex® Compact CPS 14.1 | bore diameters |
To ensure the correct selection of the Controlflex® please use our selection procedure and legend area to download the required information.

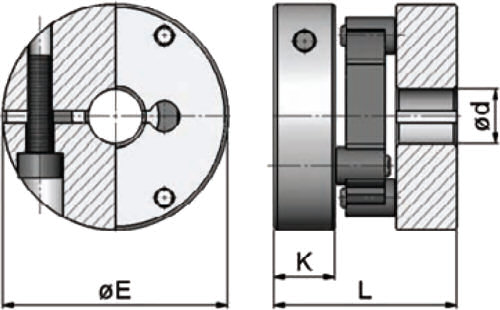

∅E (mm) | L (mm) | ∅dmax (mm) | ∅dmin (mm) | K (mm) | m (kg) | J (kg cm2) | TKN (Nm) | TK max (Nm) | ΔKr (mm) | Δ Kw (°) | Δ Ka (mm) | nmax (1/min) | CR (N) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CPS 23.1 | 56 | 45 | 30 | 8 | 15 | 0,2 | 0,92 | 7 | 10 | 1,5 | 1,5 | 1 | 10.000 | 6,8 |
CPS 30.1 | 75 | 57 | 40 | 10 | 18 | 0,43 | 3,8 | 15 | 22 | 2 | 1,5 | 1,5 | 10.000 | 10 |
Order Example 1: CPS 23.1 ∅12 ∅16 Order Example 2: CPS 30.1 ∅16 ∅20
CPS 30.1 | ∅16 ∅20 |
---|---|

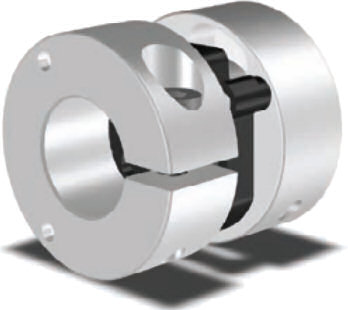

Type Controlflex® Industry CPS 30.1 | bore diameters |
To ensure the correct selection of the Controlflex® please use our selection procedure and legend area to download the required information.
service factor | |
---|---|
uniform | 1 |
light shocks | 1,5 |
medium shocks | 2 |
heavy shocks | 2,5 |
Performance | |
---|---|
TKN | continuous torque rating of the coupling (Nm) |
TK max | maximum torque capacity of the coupling (Nm) |
nmax | maximum speed of the coupling (1/min) |
ΔKr | maximum radial misalignment capacity (mm) |
ΔKa | maximum axial misalignment capacity (mm) |
Δ Kw | maximum angular misalignment capacity (°) |
CR | restoring forces at 0,2 mm radial misalignment (N) |
J | moment of inertia (kg cm2) |
Dimension | |
---|---|
∅E | coupling diameter (mm) |
L | coupling length (mm) |
K | clamp hub length (mm) |
∅dmax | maximum bore diameter (mm) |
∅dmin | minimum bore diameter (mm) |
m | weight of the coupling (kg) |
