Application Notes:

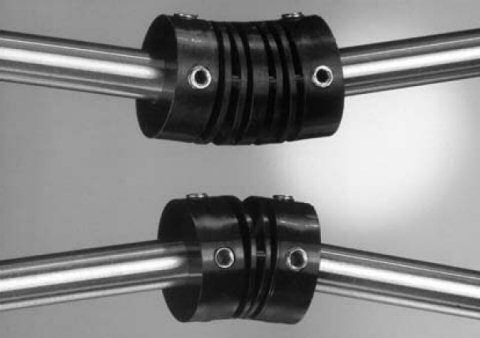

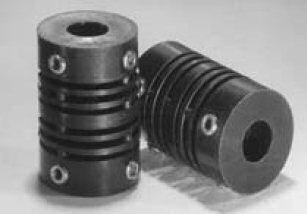

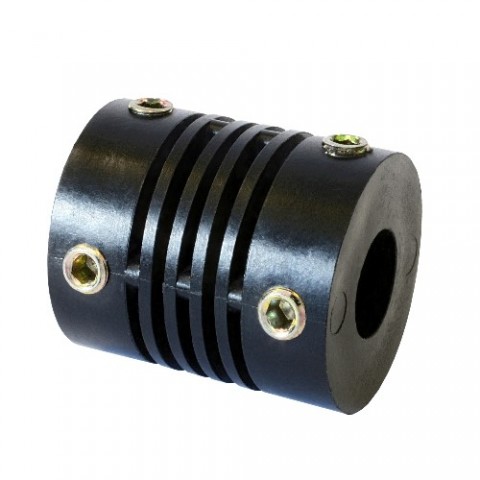

A range of plastic injection moulded shaft couplings giving high torsional stiffness combined with exceptional durability to shaft misalignment. There are two basic designs called UJ and GJ. Type UJ is for lighter usage and smaller angular and parallel shaft offsets, whilst type GJ, with its two flexible elements, is ideal for medium usage.
Typical Results of Various
Lifetime Tests
Features
MODEL NUMBER | TECHNICAL DATA | ||||
---|---|---|---|---|---|
RATED TORQUE (N.M) | TORSIONAL STIFFNESS (N.M/RAD) | ALLOWABLE ANGULAR MISALIGNMENT (DEG) | ALLOWABLE PARALLEL OFFSET (MM) | ALLOWABLE AXIAL MOTION (MM) | |
UJ 2-2 | 0.15 | 1.8 | 3 | 0.05 | 0.15 |
UJ 2.5-3 | 0.25 | 2 | 4 | 0.1 | 0.2 |
UJ 3-3 | |||||
UJ 3.2-3.2A | 0.45 | 6 | 4 | 0.1 | 0.2 |
UJ 4-4 | 0.5 | 6.5 | 5 | 0.1 | 0.3 |
UJ 5-5 | 0.7 | 8 | 5 | 0.1 | 0.3 |
UJ 6-2.4 | 0.6 | 9 | 5 | 0.1 | 0.3 |
UJ 6-3 | |||||
UJ 6-3.2 | 0.7 | 10 | 5 | 0.1 | 0.3 |
UJ 6-4 | |||||
UJ 6-5 | |||||
UJ 6-6 | 0.8 | 10 | 5 | 0.1 | 0.3 |
UJ 8-4 | 1 | 16 | 5 | 0.2 | 0.3 |
UJ 8-5 | |||||
UJ 8-6 | |||||
UJ 8-8 |

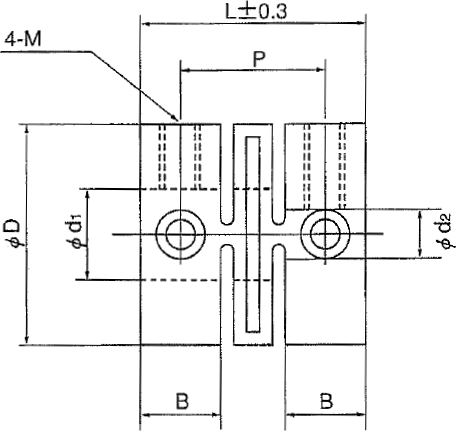

MODEL NUMBER | DIMENSIONS AND MATERIALS (MM) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
∅d1 H8 (MM) | ∅d2 H8 (MM) | ∅D (MM) | L (MM) | P (MM) | B (MM) | M SET SCREW | MASS (G) | MOMENT OF INERTIA (G.CM2) | MATERIAL | |||
SIZE | WRENCH TORQUE (N.M) | |||||||||||
UJ 2-2 | 2 | 8 | 9 | 5.8 | 3.2 | M2X3 | 0.05 | 0.7 | 0.05 | Glass-fibre reinforced PBT resin | ||
UJ 2.5-3 | 2.5 | 3 | 12 | 14.5 | 9.2 | 5.3 | M3X4 | 0.18 | 2.3 | 0.4 | Polyacetal resin | |
UJ 3-3 | 3 | |||||||||||
UJ 3.2-3.2A | 3.2 | 12 | 14.5 | 9 | 5.4 | M3X4 | 0.2 | 2.2 | 0.4 | |||
UJ 4-4 | 4 | 14 | 15 | 9.5 | 5 | 0.2 | 2.4 | 0.5 | ||||
UJ 5-5 | 5 | 14 | 15 | 9.8 | 5.2 | 0.2 | 2.7 | 0.6 | ||||
UJ 6-2.4 | 6 | 2.4 | 15 | 15.5 | 9.8 | 5.5 | M3X4 | 0.25 | 3 | 0.8 | ||
UJ 6-3 | 3 | |||||||||||
UJ 6-3.2 | 6 | 3.2 | 15 | 15.5 | 9.8 | 5.5 | M3X4 | 0.25 | 3 | 0.8 | ||
UJ 6-4 | 4 | |||||||||||
UJ 6-5 | 5 | |||||||||||
UJ 6-6 | 6 | 15 | 15.5 | 10 | 5.5 | M3X4 | 0.25 | 3 | 0.8 | |||
UJ 8-4 | 8 | 4 | 18 | 18.2 | 13 | 5.5 | M3X5 | 0.3 | 4 | 2.5 | ||
UJ 8-5 | 5 | |||||||||||
UJ 8-6 | 6 | |||||||||||
UJ 8-8 | 8 |
Notes: 1. Wrench torque for set screw must not exceed the specified value above (1N.m = 10kg.cm)
Features
MODEL NUMBER | TECHNICAL DATA | |||||||
---|---|---|---|---|---|---|---|---|
RATED TORQUE (N.M) | TORSIONAL STIFFNESS (N.M/RAD) | ALLOWABLE ANGULAR MISALIGNMENT (DEG) | BENDING STIFFNESS (N.M/DEG) | ALLOWABLE PARALLEL OFFSET (MM) | OFFSET STIFFNESS (N/MM) | ALLOWABLE AXIAL MOTION (MM) | AXIAL STIFFNESS (N/MM) | |
GJ 1.5-1.5 | 0.18 | 1.6 | 3 | 0.002 | 0.2 | 25 | 0.3 | 20 |
GJ 1.5-2 | ||||||||
GJ 1.5-2.5 | 0.22 | 2 | 3 | 0.003 | 0.2 | 28 | 0.3 | 24 |
GJ 1.5-3 | ||||||||
GJ 2-2 | 0.18 | 1.5 | 4 | 0.002 | 0.3 | 20 | 0.3 | 20 |
GJ 3-3 | 0.4 | 4 | 5 | 0.006 | 0.4 | 30 | 0.3 | 30 |
GJ 4-4 | 0.6 | 6 | 5 | 0.008 | 0.4 | 22 | 0.4 | 35 |
G2J 4-2.5 | 0.8 | 10 | 5 | 0.012 | 0.4 | 20 | 0.4 | 28 |
G2J 4-3 | ||||||||
G2J 4-3.2 | ||||||||
G2J 4-4 | ||||||||
GJ 5-5 | 0.7 | 8 | 5 | 0.015 | 0.4 | 25 | 0.4 | 40 |
G2J 5-3 | 0.9 | 12 | 5 | 0.016 | 0.4 | 22 | 0.4 | 30 |
G2J 5-3.2 | ||||||||
G2J 5-4 | ||||||||
G2J 5-5 | ||||||||
GJ 6-6 | 0.8 | 10 | 5 | 0.018 | 0.5 | 32 | 0.4 | 40 |
G2J 6-3 | 1.0 | 16 | 5 | 0.002 | 0.5 | 50 | 0.4 | 30 |
G2J 6-3.2 | ||||||||
G2J 6-4 | ||||||||
G2J 6-5 | ||||||||
G2J 6-6 | ||||||||
GJ 8-8 | 1.5 | 20 | 5 | 0.022 | 0.5 | 50 | 0.4 | 30 |
G2J 8-4 | 1.7 | 28 | 5 | 0.025 | 0.5 | 180 | 0.4 | 35 |
G2J 8-5 | ||||||||
G2J 8-6 | ||||||||
G2J 8-8 | ||||||||
GJ 10-10 | 2 | 32 | 5 | 0.025 | 0.5 | 70 | 0.4 | 50 |
G3J 10-10 | 1 | 27 | 7 | 0.003 | 0.7 | 20 | 0.6 | 13 |
GJK 9.53-9.53 | 3 | 35 | 4 | 0.03 | 0.5 | 130 | 0.4 | 80 |
GJK 10-10 | ||||||||
GJK 12-12 | 3.6 | 40 | 4 | 0.035 | 0.5 | 130 | 0.4 | 100 |
MODEL NUMBER | d1 OR d2; BORE SIZE OF BUSHING | MANUFACTURING METHOD |
---|---|---|
GJ6 (d1-d2) | 3.2, 4, 4.5, 4.8, 5 | Bushing is press-fit in one side or both sides, provided with a prepared hole and tapped. Combination must be specified with d1-d2 |
GJ8 (d1-d2) | 4, 5, 6, 6.35 | |
GJ10 (d1-d2) | 5, 6, 6.35 |
Bushing type GJ (for connecting shafts of different sizes, or increasing transmission torque)
Notes:

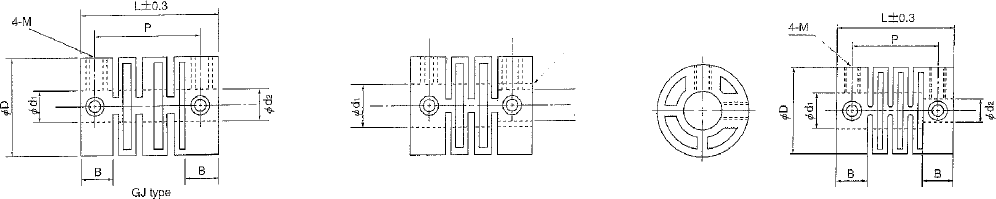

MODEL NUMBER | DIMENSIONS (MM) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
∅d1 H8 (MM) | ∅d2 H8 (MM) | ∅D (MM) | L (MM) | P (MM) | B (MM) | M SET SCREW | MASS (G) | MOMENT OF INERTIA (G.CM2) | MATERIAL | ||
SIZE | WRENCH TORQUE (N.M) | ||||||||||
GJ 1.5-1.5 | 1.5 | 9 | 11.4 | 8.2 | 3.2 | M2X4 | 0.08 | 0.9 | 0.1 | Glass-fibre reinforced PBT resin | |
GJ 1.5-2 | 1.5 | 2 | |||||||||
GJ 1.5-2.5 | 1.5 | 2.5 | 10 | 11.8 | 8.4 | 3.2 | M2X4 | 0.08 | 1.1 | 0.14 | |
GJ 1.5-3 | 1.5 | 3 | 3.6 | ||||||||
GJ 2-2 | 2 | 9 | 13.2 | 10 | 3.2 | M2X4 | 0.08 | 1 | 0.1 | ||
GJ 3-3 | 3 | 12 | 20 | 14.8 | 5.1 | M3X4 | 0.15 | 2.5 | 0.45 | ||
GJ 4-4 | 4 | 13 | 21 | 15.4 | 5.3 | M3X4 | 0.2 | 3.1 | 0.7 | ||
G2J 4-2.5 | 4 | 2.5 | 13.5 | 21 | 15.6 | 5.3 | M3X5 | 0.25 | 3.4 | 0.8 | |
G2J 4-3 | 3 | ||||||||||
G2J 4-3.2 | 3.2 | ||||||||||
G2J 4-4 | 4 | ||||||||||
GJ 5-5 | 5 | 14 | 21 | 15.6 | 15.2 | M3X4 | 0.2 | 3.3 | 0.9 | ||
G2J 5-3 | 5 | 3 | 15 | 21 | 15.4 | 5.3 | M3X5 | 0.25 | 4 | 1 | |
G2J 5-3.2 | 3.2 | ||||||||||
G2J 5-4 | 4 | ||||||||||
G2J 5-5 | 5 | ||||||||||
GJ 6-6 | 6 | 15 | 21.6 | 16 | 5.2 | M3X4 | 0.25 | 3.9 | 1.2 | ||
G2J 6-3 | 6 | 3 | 16 | 21.4 | 16 | 5.5 | M3X5 | 0.3 | 4.5 | 1.3 | |
G2J 6-3.2 | 3.2 | ||||||||||
G2J 6-4 | 4 | ||||||||||
G2J 6-5 | 5 | ||||||||||
G2J 6-6 | 6 | ||||||||||
GJ 8-8 | 8 | 19 | 23.6 | 16.6 | 6.8 | M4X6 | 0.4 | 7.3 | 3.9 | ||
G2J 8-4 | 8 | 4 | 20 | 24.2 | 16.2 | 6.8 | M4X6 | 0.45 | 7.5 | 4 | |
G2J 8-5 | 5 | ||||||||||
G2J 8-6 | 6 | ||||||||||
G2J 8-8 | 8 | ||||||||||
GJ 10-10 | 10 | 22 | 25.6 | 18.4 | 7.1 | M4X6 | 0.5 | 10 | 7 | ||
G3J 10-10 | 10 | 22 | 21.5 | 16 | 5.4 | M3X6 | 0.4 | 6.5 | 4 | ||
GJK 9.53-9.53 | 9.53 | 25 | 32.2 | 24.6 | 7.3 | M4X8 | 0.65 | 15 | 13 | ||
GJK 10-10 | 10 | ||||||||||
GJK 12-12 | 12 | 28 | 34.4 | 26.6 | 7.5 | M4X8 | 19 | 19 | 21 |
Notes:
