Ball screws (Precision)

Ball screws that have been cold rolled formed are ideal for applications that do not require the finite accuracy of the ground ball screw equivalents, but are still required to reliably transmit a linear load with high degree of accuracy.

Put simply, the rolling process forms a thread for less cost than grinding. However, we can still achieve accuracies of C7-20 (that's 52 microns per 300mm of lead accuracy - 20 microns of axial backlash) .

Available Diameter versus lead data

Nominal Diameter (mm)	Lead (mm)
	0.5	1	1.5	2	2.5	3	4	5	6	8	10	12	15	20
1.8
3
4
5
6
8
10
12
13
14
15
16

Screw Availability Key:		Nut Style
= Ground Right Hand		Flange Mount
= Ground Left Hand		Thread Mount
= Rolled Right Hand		Cylinder Mount

You will have well over 25 years of experience guiding you through the selection process to ensure the right part is chosen for the application. In a nut shell, the rolled ball screw ranges encompass;

• Low cost
• Lengths up to 3000mm
• Precision C7-20 to T5-80
• Lead accuracy .007mm/300mm or better
• Wide selection of leads and pitches available per diameter
• Miniature precision ranges
• Industrial heavy duty ranges
• Flanged, cylindrical and end threaded ball nut designs
• All parts can be supplied with journal ends machined and ready to fit application

• All Ball screws can be supplied with integrated radial and thrust bearings mounts

• ISO9001 approved

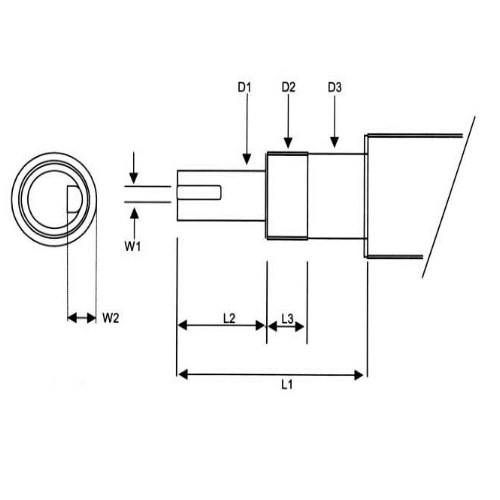

Standard thrust bearing machining detail

A complete end machining capability is available to you. Lets work together to reduce your scrap rates and supply the lead screw solutions that fit your application every time. We can work directly from your dimensional drawings or if they do not exist, why not supply us with a physical sample for us to copy.

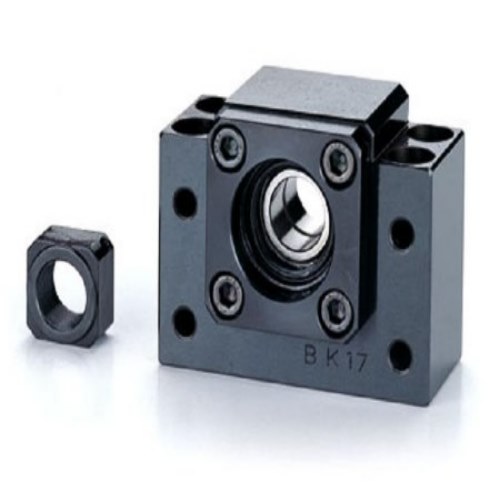

Thrust and radial bearings to suit precision ball screws

Please do not forget to ask for our competitive support bearing prices !



Linear guides and rails

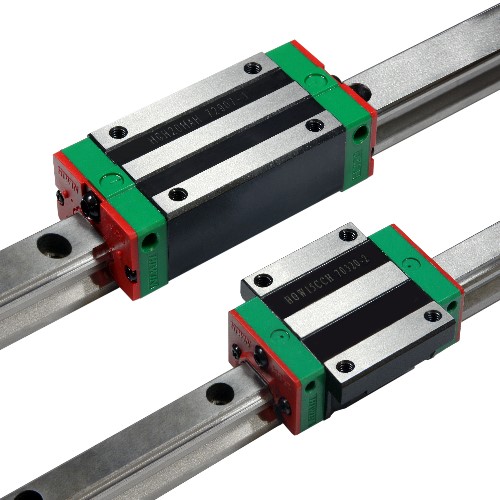

If you are interested in the using  ball screws, please do not forget that we also supply the full range of linear guides and rails which can provide the load support in your linear mechanism. Offering excellent rigidity and parallelism during operation the guides can be used in both vertical and horizontal planes.

Following the link to that product page GUIDES



If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection. Alternatively download the relevant linear catalogue from the download button on this page or use the following link to request a printed catalogue or a CD version. CD/Catalogue
