LINEAR PRODUCTS

Precision Ball Screws

ABSSAC Lead Screws, Ball Screws, and Shaft Couplings
Call: 01386 421 005
Email: sales@abssac.co.uk
Web: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Sleeve type Single Nut

Backlash type

Ballscrew Sleeve type Single Nut Diagram 1

Unit : mm
Ball Nut
Model number
Shaft
nominal
dia.
d
LeadBall sizeBCDLead
angle
Root dia.
d0
Number of
Circuit
Basic Load Rating
N
Nut Rigidity
N/µm
Dynamic
Ca
Static
Coa
BSR 0401410.84.154°23'3.33.7x156079054
BSR 0402420.84.158°43'3.32.7x142057039
BSR 0504540.85.1513°53'4.32.7x147072047
BSR 0601 **610.86.152°58'5.33.7x1680120075
BSR 06026216.25°52'5.12.7x1750120058
BSR 0801 **810.88.152°15'7.33.7x1780165095
BSR 0802 **821.58758.34°23'6.63.7x124004100111
BSR 0802.582.51.587585°41'6.32.7x11850300080
BSR 0805851.58758.310°51'6.62.7x11850300082
Ball Nut
Model number
Nut dimension
DLWHSS1
BSR 0401111431.883
BSR 0402111631.884
BSR 0504122231.8125
BSR 0601 **131431.8102
BSR 0602151531.8102.5
BSR 0801 **161431.8102
BSR 0802 **202042.5162
BSR 0802.5161631.884
BSR 0805182842.5204
Note 1)
All models are Right-hand screw.
Note 2)
The diameter of the Screw Shaft both ends must be less than the Screw Shaft Root diameter,
because of productlon and Nut assembly reason. If bigger end-journal than Shaft diameter is required, please consult ABSSAC.
Note 3)
Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
Note 4)
Rigidity
The Rigidity values shown in the table are theoretical values calculated from the amount of Elastic Displacement
under the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.
Note 5)
Stainless Rolled Ball Screw
Stainless Rolled Ball Screw is available for Ball Nut Model Number marked **.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Sleeve type Single Nut

Backlash type

Ballscrew Sleeve type Single Nut Diagram 1

Unit : mm
Ball Nut
Model number
Shaft
nominal
dia.
d
LeadBall sizeBCDLead
angle
Root dia.
d0
Number of
Circuit
Basic Load Rating
N
Nut Rigidity
N/µm
Dynamic
Ca
Static
Coa
BSR 1002 **1021.587510.33°32'8.63.7x127005300134
BSR 1004104210.37°03'8.22.7x130005200104
BSR 1005105210.38°47'8.22.7x130005200103
BSR 1006106210.310°30'8.22.7x130005000102
BSR 12021221.587512.32°58'10.63.7x130006400156
BSR 14021421.587514.32°33'12.63.7x132007500176
BSR 14041442.38114.35°05'11.83.7x1570011600187
Ball Nut
Model number
Nut dimension
DLWHSS1
BSR 1002 **232053162.5
BSR 1004242653203
BSR 1005232653165
BSR 1006263153205.5
BSR 1202252053162
BSR 1402262053162
BSR 1404303153253
Note 1)
All models are Right-hand screw.
Note 2)
The diameter of the Screw Shaft both ends must be less than the Screw Shaft Root diameter,
because of productlon and Nut assembly reason. If bigger end-journal than Shaft diameter is required, please consult ABSSAC.
Note 3)
Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
Note 4)
Rigidity
The Rigidity values shown in the table are theoretical values calculated from the amount of Elastic Displacement
under the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.
Note 5)
Stainless Rolled Ball Screw
Stainless Rolled Ball Screw is available for Ball Nut Model Number marked **.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Single Nut with Flange

Backlash type

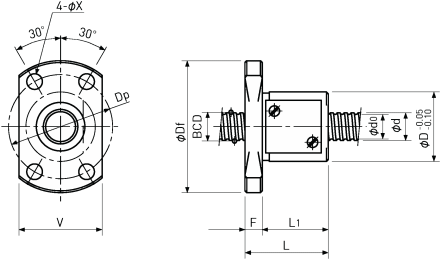

Ballscrew Single Nut with Flange Diagram 1
Type-1: Return-plate type

Ball Nut
Model number
Shaft
nominal
dia.
d
LeadBall sizeBCDLead angleRoot dia.
d0
Number of
Circuit
Basic Load Rating
N
Nut Rigidity
N/μm
Dynamic
Ca
Static
Coa
MRB 0401410.84.154°23′3.33.7×156079054
MRB 0402420.84.158°43′3.32.7×142057039
MRB 0504540.85.1513°53′4.32.7×147072047
MRB 0601 **610.86.152°58′5.33.7×1680120075
MRB 0602621.06.205°52′5.12.7×1750120058
MRB 0606661.06.3016°52′5.21.6×2870145067
MRB 06106101.26.3026°48′5.01.2×2950160050
MRB 0801 **810.88.152°15′7.33.7×1780165095
MRB 0802 **821.58758.304°23′6.63.7×124004100111
MRB 0802.582.51.58758.005°41′6.32.7×11850300080
MRB 0805851.58758.3010°51′6.62.7×11850300082
MRB 0808881.58758.4016°52′6.71.6×22200380095
MRB 08108101.58758.4020°45′6.71.6×22200380092
MRB 08128121.58758.4024°27′6.71.6×22200400090
MRB 1002 **1021.587510.303°32′8.63.7×127005300134
MRB 10041042.010.307°03′8.22.7×130005200104
MRB 10051052.010.308°47′8.22.7×130005200103
MRB 10061062.010.3010°30′8.22.7×130005000102
MRB 101010102.010.5016°52′8.41.6×233005900117
MRB 101210122.010.5019°59′8.41.6×233006200115
MRB 101510152.010.5024°27′8.41.6×233006400110
MRB 102010201.587510.4031°28′8.70.7×42100400088
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Single Nut with Flange

Backlash type

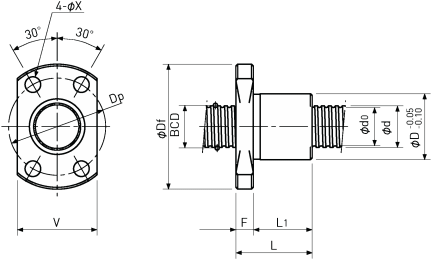

Ballscrew Single Nut with Flange Diagram 2
Type-2: End-deflector type

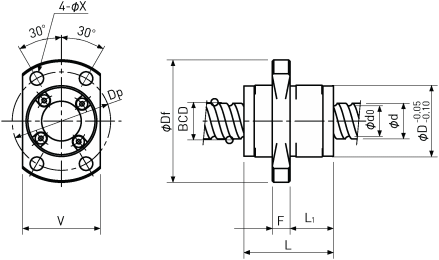

Ballscrew Single Nut with Flange Diagram 3
Type-3: End-cap type or End-deflector type

Ball Nut
Model number
Nut dimension
Nut typeDDfLL1FWVDpBolt Hole X
MRB 04011112317134-15173.4
MRB 04021112319154-15173.4
MRB 05041122422184-16183.4
MRB 0601 **1132617134-16203.4
MRB 06021152817134-19223.4
MRB 0606314271784-16213.4
MRB 0610314272311.54-16213.4
MRB 0801 **1162917134-18233.4
MRB 0802 **1203724195-22294.5
MRB 0802.52162916124-18233.4
MRB 08051183128244-20253.4
MRB 08083183120104-20253.4
MRB 08103183124134-20253.4
MRB 08123183127174-20253.4
MRB 1002 **1234024195-25324.5
MRB 10041244128235-26334.5
MRB 10052234026215-25324.5
MRB 10061264233285-28344.5
MRB 10103234024135-25324.5
MRB 10123234028175-25324.5
MRB 10153234033225-25324.5
MRB 10203203723135-22294.5
Note 1)
All models are Right-hand screw.
Note 2)
The diameter of the Screw Shaft both ends must be less than the Screw Shaft Root diameter, because of production and Nut assembly reason. If bigger end-journal than Shaft diameter is required, please consult ABSSAC.
Note 3)
Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
Note 4)
Rigidity: The Rigidity values shown in the table are theoretical values calculated from the amount of Elastic Displacement under the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.
For Axial load condition other than the above, see the formula in p-A823, you can calculate Rigidity using this formula.
Note 5)
Stainless Rolled Ball Screw: Stainless Rolled Ball Screw is available for Ball Nut Model Number marked **.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Single Nut with Flange

Backlash type

Ballscrew Single Nut with Flange Diagram 1
Type-1: Return-plate type

Ballscrew Single Nut with Flange Diagram 3
Type-3: End-cap type or End-deflector type

Ball Nut
Model number
Shaft
nominal
dia.
d
LeadBall sizeBCDLead angleRoot dia.
d0
Number of
Circuit
Basic Load Rating
N
Nut Rigidity
N/μm
Dynamic
Ca
Static
Coa
MRB 12021221.587512.302°58′10.63.7×130006400156
MRB 121012102.38112.6514°07′10.21.7×251009800152
MRB 131213122.38113.5015°48′11.01.6×250009900151
MRB 131513152.38113.5019°29′11.01.6×2500010300147
MRB 132013202.38113.5025°15′11.01.6×2500010700142
MRB 14021421.587514.302°33′12.63.7×132007500176
MRB 14041442.38114.305°05′11.83.7×1570011600187
MRB 1505(1)1553.17515.505°41′12.23.7×1890017000208
MRB 1505(2)1553.17515.505°41′12.23.7×1890017000208
MRB 1510(1)15103.17515.5011°36′12.22.7×21200025000289
MRB 1510(2)15103.17515.5011°36′12.22.7×21200025000289
MRB 1520(1)15203.17515.7522°01′12.71.7×2800016000178
MRB 1520(2)15203.17515.7522°01′12.71.7×2800016000178
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Single Nut with Flange

Backlash type

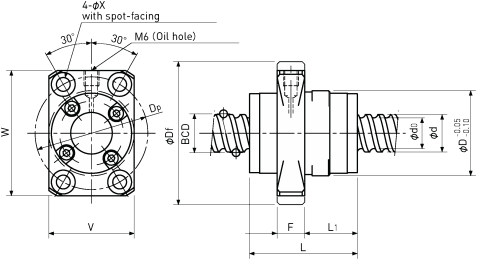

Ballscrew Single Nut with Flange Diagram 4
Type-4: End-deflector type

Ball Nut
Model number
Nut dimension
Nut typeDDfLL1FWVDpBolt Hole X
MRB 1202125422419527344.5
MRB 1210324413014.5626334.5
MRB 1312328453017530374.5
MRB 1315328453522530374.5
MRB 1320328454329530374.5
MRB 1402126452519628365.5
MRB 1404130493327632405.5
MRB 1505(1)432553316114933435.5
MRB 1505(2)434573316115034455.5
MRB 1510(1)432554321114933435.5
MRB 1510(2)434574321115034455.5
MRB 1520(1)432555228.5114933435.5
MRB 1520(2)434575228.5115034455.5
Note 1)
All models are Right-hand screw.
Note 2)
The diameter of the Screw Shaft both ends must be less than the Screw Shaft Root diameter, because of production and Nut assembly reason. If bigger end-journal than Shaft diameter is required, please consult ABSSAC.
Note 3)
Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
Note 4)
Rigidity: The Rigidity values shown in the table are theoretical values calculated from the amount of Elastic Displacement under the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.
For Axial load condition other than the above, see the formula in p-A823, you can calculate Rigidity using this formula.
Note 5)
Stainless Rolled Ball Screw: Stainless Rolled Ball Screw is available for Ball Nut Model Number marked **.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Single Nut with M-thread

Backlash type

Ballscrew Single Nut M Thread Diagram 1
Type-1: Return-plate type

Unit : mm
Ball Nut
Model number
Shaft
nominal
dia.
d
LeadBall sizeBCDLead
angle
Root dia.
d0
Number of
Circuit
Basic Load Rating
N
Nut Rigidity
N/µm
Dynamic
Ca
Static
Coa
MSR 0401 B410.84.154°23'3.33.7x156079054
MSR 0802 B **821.58758.34°23'6.63.7x124004100111
MSR 0802.5 T(1)82.51.587585°41'6.33.5x123003900102
MSR 0802.5 T(2)82.51.587585°41'6.33.5x123003900102
MSR 0805 A851.58758.310°51'6.62.7x11850300082
MSR 1002 B **1021.587510.33°32'8.63.7x127005300134
MSR 1202 B1221.587512.32°58'10.63.7x130006400156
MSR 1402 B1421.587514.32°33'12.63.7x132007500176
MSR 1404 B1442.38114.35°05'11.83.7x1570011600187
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Single Nut with M-thread

Backlash type

Ballscrew Single Nut M Thread Diagram 2
Type-2: Return-tube type

Ball Nut
Model number
Nut dimension
Nut typeDLL1M
MSR 0401 B111174M9x0.75
MSR 0802 B **12027.57.5M16x1.0
MSR 0802.5 T(1)216.5228M14x1.0
MSR 0802.5 T(2)217.525.57.5M15x1.0
MSR 0805 A11832.57.5M15x1.0
MSR 1002 B **12327.57.5M17x1.0
MSR 1202 B1253010M20x1.0
MSR 1402 B1263010M22x1.5
MSR 1404 B1303810M25x1.0
Note 1)
All models are Right-hand screw.
Note 2)
The diameter of the Screw Shaft both ends must be less than the Screw Shaft Root diameter,
because of productlon and Nut assembly reason. If bigger end-journal than Shaft diameter is required, please consult ABSSAC.
Note 3)
Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
Note 4)
Rigidity
The Rigidity values shown in the table are theoretical values calculated from the amount of Elastic Displacement
under the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.
Note 5)
Stainless Rolled Ball Screw
Stainless Rolled Ball Screw is available for Ball Nut Model Number marked **.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

SR/SSR series   Standardized Rolled Ball Screws

Rolled Ball Screws with accuracy Ct7 and Ct10 are available in stock. It is suitable for low cost design.
Rolled Ball Screws with end-journal machining are available for short delivery.
Stainless Rolled Ball Screws are also available.

Combination of Shaft nominal dia. & Lead

Unit : mm
 Lead
Shaft dia.122.5456810121520
4
5
6
8
10
12
14
15

Model number notation

SR Diagram 1

  • Rolled Ball Screws Series No.
    SR : Rolled Ball Screws
    SSR : Stainless Rolled Ball Screws
  • Screw Shaft nominal diameter(mm)
  • Lead(mm)
  • Screw thread length(mm)
  • Thread direction (R=Right-hand)
  • Screw Shaft total length(mm)
  • Accuracy grade (C7 or C10)

Accuracy Grade & Axial play

Accuracy grade of SR series (Standardized Rolled Ball Screws) and SSR series (Standardized Stainless Rolled Ball Screws) are based on JIS Ct7 and JIS Ct10. According to accuracy grade, Axial play 0.020mm or less (Ct7) and 0.050mm or less (Ct10) are in stock.

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

Material & Surface hardness

Materials and Surface hardness of SR series (Standardized Rolled Ball Screws) and SSR series (Standardized Stainless Rolled Ball Screws) are as follows.

ProductsMaterialHeat treatmentSurface hardness
Rolled Ball Screws (SR series)Shaft : SCM415 or SUJ2Carburizing and Quenching
or Quenching & Tempering
HRC58 or more
Nut : SCM415Carburizing and Quenching
Stainless Rolled Ball Screws (SSR series)Shaft : SUS440CInduction hardeningHRC55 or more
Nut : SUS440CVacuum hardening

Lubrication

SR series (Standardized Rolled Ball Screws) and SSR series (Standardized Stainless Rolled Ball Screws) without end-journal machining are applied with anti-rust oil for rust prevention.
Anti-rust oil does not have lubricating function so that please apply the Grease or lubrication oil when using the Ball Screws.
If there is no specific instruction, ABSSAC would recommend our original Grease (MSG No.2) as standard lubricant.
Please feel free to contact us.

Others

End-journal configuration of SR series (Standardized Rolled Ball Screws) and SSR series (Standardized stainless Rolled Ball Screws) are not standardized. When you request additional machining, please send us a drawing with end-journal profile.
Rolled Ball Screws with Integrated end-journal, which is bigger Bearing face than supported seat, are available (SRT/SSRT series) as shown below.

Flanged end-journal for Bearing seat.

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0401

Shaft dia. ∅4

Lead 1mm

Ct7&Ct10

SR Diagram 3

Unit : mm
Ball Screw Specifications
Ball size∅0.8
Number of thread1
Thread directionRight
Shaft root dia.∅3.3
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0401-250R250C7180Ct7200250±0.060.050.200~0.020-560790
SR0401-250R250C10180Ct10200250±0.280.210.400~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0402

Shaft dia. ∅4

Lead 2mm

Ct7&Ct10

SR Diagram 4

Unit : mm
Ball Screw Specifications
Ball size∅0.8
Number of thread1
Thread directionRight
Shaft root dia.∅3.3
Number of circuit2.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0402-250R250C7180Ct7200250±0.060.050.200~0.020-420570
SR0402-250R250C10180Ct10200250±0.280.210.400~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0504

Shaft dia. ∅5

Lead 4mm

Ct7&Ct10

SR Diagram 5

Unit : mm
Ball Screw Specifications
Ball size∅0.8
Number of thread1
Thread directionRight
Shaft root dia.∅4.3
Number of circuit2.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0504-250R250C7175Ct7200250±0.060.050.120~0.020-470720
SR0504-250R250C10175Ct10200250±0.280.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0601

Shaft dia. ∅6

Lead 1mm

Ct7&Ct10

SR Diagram 6

Unit : mm
Ball Screw Specifications
Ball size∅0.8
Number of thread1
Thread directionRight
Shaft root dia.∅5.3
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0601-300R300C7230Ct7250300±0.080.050.120~0.020-6801200
SR0601-300R300C10230Ct10250300±0.350.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0602

Shaft dia. ∅6

Lead 2mm

Ct7&Ct10

SR Diagram 7

Unit : mm
Ball Screw Specifications
Ball size∅1.0
Number of thread1
Thread directionRight
Shaft root dia.∅5.1
Number of circuit2.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0602-300R300C7230Ct7250300±0.080.050.120~0.020-7501200
SR0602-300R300C10230Ct10250300±0.350.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0606

Shaft dia. ∅6

Lead 6mm

Ct7&Ct10

SR Diagram 8

Unit : mm
Ball Screw Specifications
Ball size∅1.0
Number of thread2
Thread directionRight
Shaft root dia.∅5.2
Number of circuit1.6×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0606-300R300C7230Ct7250300±0.080.050.120~0.020-8701450
SR0606-300R300C10230Ct10250300±0.350.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0610

Shaft dia. ∅6

Lead 10mm

Ct7&Ct10

SR Diagram 9

Unit : mm
Ball Screw Specifications
Ball size∅1.2
Number of thread2
Thread directionRight
Shaft root dia.∅5.0
Number of circuit1.2×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0610-300R300C7225Ct7250300±0.080.050.120~0.020-9501600
SR0610-300R300C10225Ct10250300±0.350.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0801

Shaft dia. ∅8

Lead 1mm

Ct7&Ct10

SR Diagram 10

Unit : mm
Ball Screw Specifications
Ball size∅0.8
Number of thread1
Thread directionRight
Shaft root dia.∅7.3
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0801-400R400C7330Ct7350400±0.120.050.120~0.020-7801650
SR0801-400R400C10330Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0802

Shaft dia. ∅8

Lead 2mm

Ct7&Ct10

SR Diagram 11

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅6.6
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0802-400R400C7325Ct7350400±0.120.050.120~0.020-24004100
SR0802-400R400C10325Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0802.5

Shaft dia. ∅8

Lead 2.5mm

Ct7&Ct10

SR Diagram 12

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅6.3
Number of circuit2.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0802.5-400R400C7330Ct7350400±0.120.050.120~0.020-18503000
SR0802.5-400R400C10330Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0805

Shaft dia. ∅8

Lead 5mm

Ct7&Ct10

SR Diagram 13

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅6.6
Number of circuit2.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0805-400R400C7320Ct7350400±0.120.050.120~0.020-18503000
SR0805-400R400C10320Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0808

Shaft dia. ∅8

Lead 8mm

Ct7&Ct10

SR Diagram 14

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread2
Thread directionRight
Shaft root dia.∅6.7
Number of circuit1.6×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0808-400R400C7330Ct7350400±0.120.050.120~0.020-22003800
SR0808-400R400C10330Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0810

Shaft dia. ∅8

Lead 10mm

Ct7&Ct10

SR Diagram 15

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread2
Thread directionRight
Shaft root dia.∅6.7
Number of circuit1.6×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0810-400R400C7325Ct7350400±0.120.050.120~0.020-22003800
SR0810-400R400C10325Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR0812

Shaft dia. ∅8

Lead 12mm

Ct7&Ct10

SR Diagram 16

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread2
Thread directionRight
Shaft root dia.∅6.7
Number of circuit1.6×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR0812-400R400C7320Ct7350400±0.120.050.120~0.020-22004000
SR0812-400R400C10320Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1002

Shaft dia. ∅10

Lead 2mm

Ct7&Ct10

SR Diagram 17

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅8.6
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1002-400R400C7325Ct7350400±0.120.050.120~0.020-27005300
SR1002-400R400C10325Ct10350400±0.490.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1004

Shaft dia. ∅10

Lead 4mm

Ct7&Ct10

SR Diagram 18

Unit : mm
Ball Screw Specifications
Ball size∅2.0
Number of thread1
Thread directionRight
Shaft root dia.∅8.2
Number of circuit2.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1004-450R450C7370Ct7400450±0.130.050.120~0.020-30005200
SR1004-450R450C10370Ct10400450±0.560.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1005

Shaft dia. ∅10

Lead 5mm

Ct7&Ct10

SR Diagram 19

Unit : mm
Ball Screw Specifications
Ball size∅2.0
Number of thread1
Thread directionRight
Shaft root dia.∅8.2
Number of circuit2.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1005-450R450C7370Ct7400450±0.130.050.120~0.020-30005200
SR1005-450R450C10370Ct10400450±0.560.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1010

Shaft dia. ∅10

Lead 10mm

Ct7&Ct10

SR Diagram 20

Unit : mm
Ball Screw Specifications
Ball size∅2.0
Number of thread2
Thread directionRight
Shaft root dia.∅8.4
Number of circuit1.6×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1010-450R450C7375Ct7400450±0.130.050.120~0.020-33005900
SR1010-450R450C10375Ct10400450±0.560.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1015

Shaft dia. ∅10

Lead 15mm

Ct7&Ct10

SR Diagram 21

Unit : mm
Ball Screw Specifications
Ball size∅2.0
Number of thread2
Thread directionRight
Shaft root dia.∅8.4
Number of circuit1.6×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1015-450R450C7365Ct7400450±0.130.050.120~0.020-33006400
SR1015-450R450C10365Ct10400450±0.560.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1020

Shaft dia. ∅10

Lead 20mm

Ct7&Ct10

SR Diagram 22

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread4
Thread directionRight
Shaft root dia.∅8.7
Number of circuit0.7×4
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1020-450R450C7375Ct7400450±0.130.050.120~0.020-21004000
SR1020-450R450C10375Ct10400450±0.560.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1202

Shaft dia. ∅12

Lead 2mm

Ct7&Ct10

SR Diagram 23

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅10.6
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1202-450R450C7375Ct7400450±0.130.050.080~0.020-33006400
SR1202-450R450C10375Ct10400450±0.560.210.160~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1210

Shaft dia. ∅12

Lead 10mm

Ct7&Ct10

SR Diagram 24

Unit : mm
Ball Screw Specifications
Ball size∅2.381
Number of thread2
Thread directionRight
Shaft root dia.∅10.2
Number of circuit1.7×2
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1210-450R450C7370Ct7400450±0.130.050.080~0.020-51009800
SR1210-450R450C10370Ct10400450±0.560.210.160~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1402

Shaft dia. ∅14

Lead 2mm

Ct7&Ct10

SR Diagram 25

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅12.6
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1402-500R500C7425Ct7450500±0.150.050.080~0.020-32007500
SR1402-500R500C10425Ct10450500±0.630.210.160~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1404

Shaft dia. ∅14

Lead 4mm

Ct7&Ct10

SR Diagram 26

Unit : mm
Ball Screw Specifications
Ball size∅2.381
Number of thread1
Thread directionRight
Shaft root dia.∅11.8
Number of circuit3.7×1
Shaft/Nut MaterialSCM415H
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1404-500R500C7415Ct7450500±0.150.050.080~0.020-570011600
SR1404-500R500C10415Ct10450500±0.630.210.160~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1505

Shaft dia. ∅15

Lead 5mm

Ct7&Ct10

SR Diagram 27

Unit : mm
Ball Screw Specifications
Ball size∅3.175
Number of thread1
Thread directionRight
Shaft root dia.∅12.2
Number of circuit3.7×1
MaterialShaftSUJ2
NutSCM415
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1505-1000R1000C7965Ct7-1000±0.340.050.200~0.020-890017000
SR1505-1000R1000C10965Ct10-1000±1.400.210.400~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1510

Shaft dia. ∅15

Lead 10mm

Ct7&Ct10

SR Diagram 28

Unit : mm
Ball Screw Specifications
Ball size∅3.175
Number of thread2
Thread directionRight
Shaft root dia.∅12.2
Number of circuit2.7×2
MaterialShaftSUJ2
NutSCM415
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1510-1000R1000C7955Ct7-1000±0.340.050.200~0.020-1200025000
SR1510-1000R1000C10955Ct10-1000±1.400.210.400~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SR series

SR1520

Shaft dia. ∅15

Lead 20mm

Ct7&Ct10

SR Diagram 29

Unit : mm
Ball Screw Specifications
Ball size∅3.175
Number of thread2
Thread directionRight
Shaft root dia.∅12.7
Number of circuit1.7×2
MaterialShaftSUJ2
NutSCM415
Surface hardnessHRC58∼62
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SR1520-1000R1000C7945Ct7-1000±0.340.050.200~0.020-800016000
SR1520-1000R1000C10945Ct10-1000±1.400.210.400~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SSR series

SSR0601

Stainless

Lead 1mm

Ct7&Ct10

Shaft dia. ∅6

SR Diagram 30

Unit : mm
Ball Screw Specifications
Ball size∅0.8
Number of thread1
Thread directionRight
Shaft root dia.∅5.3
Number of circuit3.7×1
Shaft/Nut MaterialSUS440C
Surface hardnessHRC55∼
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSR0601-300C7240Ct7257300±0.090.050.120~0.020-560900
SSR0601-300C10240Ct10257300±0.370.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SSR series

SSR0801

Stainless

Lead 1mm

Ct7&Ct10

Shaft dia. ∅8

SR Diagram 31

Unit : mm
Ball Screw Specifications
Ball size∅0.8
Number of thread1
Thread directionRight
Shaft root dia.∅7.3
Number of circuit3.7×1
Shaft/Nut MaterialSUS440C
Surface hardnessHRC55∼
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSR0801-400C7335Ct7352400±0.100.050.120~0.020-6301250
SSR0801-400C10335Ct10352400±0.500.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SSR series

SSR0802

Stainless

Lead 2mm

Ct7&Ct10

Shaft dia. ∅8

SR Diagram 32

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅6.6
Number of circuit3.7×1
Shaft/Nut MaterialSUS440C
Surface hardnessHRC55∼
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSR0802-400C7325Ct7352400±0.100.050.120~0.020-19503100
SSR0802-400C10325Ct10352400±0.500.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SSR series

SSR1002

Stainless

Lead 2mm

Ct7&Ct10

Shaft dia. ∅10

SR Diagram 33

Unit : mm
Ball Screw Specifications
Ball size∅1.5875
Number of thread1
Thread directionRight
Shaft root dia.∅8.6
Number of circuit3.7×1
Shaft/Nut MaterialSUS440C
Surface hardnessHRC55∼
(Thread area)
Anti-rust treatmentAnti-rust oil
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSR1002-400C7320Ct7347400±0.100.050.120~0.020-22004000
SSR1002-400C10320Ct10347400±0.500.210.240~0.050
Note)
Please designate end-journal profile with your sketch.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

SRT/SSRT series
Standardized Rolled Ball Screws with Integrated end-journal

For production reason, Rolled Ball Screws are normally necessary to have smaller end-journal, but as ABSSAC have adopted special technology, it enables fixed end-journal bigger than Shaft diameter alike solid Ball Screws. This technology enables stable and more flexible on end-journal design.

Features

  • Design flexibility and wide use of Bearings on end-journal.
  • Compatible end-journal to Precision Ball Screws.
  • No need to insert or press fit collar as Bearing shoulder.
  • Quick delivery due to unfinished end-journal stock.
  • Stainless Rolled Ball Screws are also available.

SRT Diagram 1

Comparison with current model

Shaft nominal diameter : ∅10mm

SRT Diagram 2

Current model design

New model design

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

Combination of Shaft nominal dia. & Lead

Unit : mm
 Lead
Shaft dia.122.5456810121520
4
5
6
8
10
12

Accuracy Grade & Axial play

The grade of SRT/SSRT series (Standardized Rolled & Stainless Rolled Ball Screws with Integrated endjournal) are Ct7 or Ct10(JIS B-1192). According to accuracy grade, Axial play 0.020mm or less (Ct7) and 0.050mm or less (Ct10) are in stock.

Material & Surface hardness

Materials and Surface hardness of SR series (Standardized Rolled Ball Screws) and SSR series (Standardized Stainless Rolled Ball Screws) are as follows.

ProductsMaterial of thread areaHeat treatmentSurface hardness
Rolled Ball Screws (SRT series)Shaft : SCM415Carburizing and QuenchingHRC58 or more
Nut : SCM415
Stainless Rolled Ball Screws (SSRT series)Shaft : SUS440CInduction hardeningHRC55 or more
Nut : SUS440CVacuum hardening

Lubrication

SRT/SSRT series (Standardized Rolled & Stainless Rolled Ball Screws with Integrated end-journal) will be supplied with anti-rust oil. This oil is not lubricant, when Ball Screw operates, lubricant should be applied. If there is no specific instruction, ABSSAC would recommend our original Grease (MSG No.2) as standard lubricant. Please feel free to contact us.

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

Model number notation

SRT Diagram 3

  • Rolled Ball Screws Series No.
    SRT : Rolled Ball Screws with Integrated end-journal
    SSRT : Stainless Rolled Ball Screws with Integrated end-journal
  • Screw Shaft nominal diameter(mm)
  • Lead(mm)
  • Screw thread length(mm)
    (Specify in 1mm units after end-journal machining)
  • Thread direction(R=Right-hand)
  • Screw Shaft total length(mm)
    (Specify in 1mm units)
  • Accuracy grade(C7 or C10)
  • Shaft end-journal profile
    (Refer to Fig. A-24 below : A-type,B-type,C-type)
  • Anti-rust oil or Lubricant
    0 : ABSSAC grease(MSG No.2)
    1 : Anti-rust oi(l Non Ruster PZ2)
    2 : Multemp PS2 grease
    3 : Other
  • Nut Flange direction (Refer to Fig. A-25 below)

Fig. A-24 : Shaft end-journal profile

PSRT Diagram 5

Fig. A-25 : Nut Flange direction

PSRT Diagram 6

Note 1)
The detail of end-journal dimension for each size is shown from next page.
Note 2)
ABSSAC does not make additional Nut machining.
Note 3)
The specification is subject to change without notice.
Note 4)
If the other configuration except (A,B,C) is requested, please contact ABSSAC.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0401

Shaft dia. ∅4

Lead 1mm

Ct7&Ct10

SRT Diagram 4A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅0.8A-type B-type C-type
Number of thread1SRT Diagram 4B
Thread directionRight
Shaft root dia.∅3.3
Number of circuit3.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP03-S
Fixed-side:EK4
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0401-096R155C775Ct796100155±0.030.050.080~0.020-560790
SRT0401-216R275C7195Ct7216220275±0.070.050.120
SRT0401-096R155C1075Ct1096100155±0.130.210.160~0.050
SRT0401-216R275C10195Ct10216220275±0.300.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0402

Shaft dia. ∅4

Lead 2mm

Ct7&Ct10

SRT Diagram 5A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅0.8A-type B-type C-type
Number of thread1SRT Diagram 5B
Thread directionRight
Shaft root dia.∅3.3
Number of circuit2.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP03-S
Fixed-side:EK4
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0402-096R155C775Ct796100155±0.030.050.080~0.020-420570
SRT0402-216R275C7195Ct7216220275±0.070.050.120
SRT0402-096R155C1075Ct1096100155±0.130.210.160~0.050
SRT0402-216R275C10195Ct10216220275±0.300.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0504

Shaft dia. ∅5

Lead 4mm

Ct7&Ct10

SRT Diagram 6A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅0.8A-type B-type C-type
Number of thread1SRT Diagram 6B
Thread directionRight
Shaft root dia.∅4.3
Number of circuit2.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP03-S
Fixed-side:EK4
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0504-096R155C770Ct796100155±0.030.050.080~0.020-470720
SRT0504-216R275C7190Ct7216220275±0.070.050.120
SRT0504-096R155C1070Ct1096100155±0.130.210.160~0.050
SRT0504-216R275C10190Ct10216220275±0.300.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0601

Shaft dia. ∅6

Lead 1mm

Ct7&Ct10

SRT Diagram 7A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅0.8A-type B-type C-type
Number of thread1SRT Diagram 7B
Thread directionRight
Shaft root dia.∅3.3
Number of circuit3.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP04-S
Fixed-side:EK5
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0601-146R220C7125Ct7146150220±0.050.050.080~0.020-6801200
SRT0601-261R335C7240Ct7261265335±0.090.050.120
SRT0601-146R220C10125Ct10146150220±0.200.210.160~0.050
SRT0601-261R335C10240Ct10261265335±0.360.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0602

Shaft dia. ∅6

Lead 2mm

Ct7&Ct10

SRT Diagram 8A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.0A-type B-type C-type
Number of thread1SRT Diagram 8B
Thread directionRight
Shaft root dia.∅5.1
Number of circuit2.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP04-S
Fixed-side:EK5
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0602-146R220C7125Ct7146150220±0.050.050.080~0.020-7501200
SRT0602-261R335C7240Ct7261265335±0.090.050.120
SRT0602-146R220C10125Ct10146150220±0.200.210.160~0.050
SRT0602-261R335C10240Ct10261265335±0.360.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0606

Shaft dia. ∅6

Lead 6mm

Ct7&Ct10

SRT Diagram 9A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.0A-type B-type C-type
Number of thread2SRT Diagram 9B
Thread directionRight
Shaft root dia.∅5.2
Number of circuit1.6×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP04-S
Fixed-side:EK5
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0606-146R220C7125Ct7146150220±0.050.050.080~0.020-8701450
SRT0606-261R335C7240Ct7261265335±0.090.050.120
SRT0606-146R220C10125Ct10146150220±0.200.210.160~0.050
SRT0606-261R335C10240Ct10261265335±0.360.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0610

Shaft dia. ∅6

Lead 10mm

Ct7&Ct10

SRT Diagram 10A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.2A-type B-type C-type
Number of thread2SRT Diagram 10B
Thread directionRight
Shaft root dia.∅5.0
Number of circuit1.2×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP04-S
Fixed-side:EK5
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0610-146R220C7120Ct7146150220±0.050.050.080~0.020-9501600
SRT0610-261R335C7235Ct7261265335±0.090.050.120
SRT0610-146R220C10120Ct10146150220±0.200.210.160~0.050
SRT0610-261R335C10235Ct10261265335±0.360.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0801

Shaft dia. ∅8

Lead 1mm

Ct7&Ct10

SRT Diagram 11A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅0.8A-type B-type C-type
Number of thread1SRT Diagram 11B
Thread directionRight
Shaft root dia.∅7.3
Number of circuit3.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0801-196R270C7175Ct7196200270±0.060.050.080~0.020-7801650
SRT0801-356R430C7335Ct7356360430±0.120.050.120
SRT0801-196R270C10175Ct10196200270±0.270.210.160~0.050
SRT0801-356R430C10335Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0802

Shaft dia. ∅8

Lead 2mm

Ct7&Ct10

SRT Diagram 12A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread1SRT Diagram 11B
Thread directionRight
Shaft root dia.∅6.6
Number of circuit3.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0802-196R270C7170Ct7196200270±0.060.050.080~0.020-24004100
SRT0802-356R430C7330Ct7356360430±0.120.050.120
SRT0802-196R270C10170Ct10196200270±0.270.210.160~0.050
SRT0802-356R430C10330Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0802.5

Shaft dia. ∅8

Lead 2.5mm

Ct7&Ct10

SRT Diagram 13A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread1SRT Diagram 11B
Thread directionRight
Shaft root dia.∅6.3
Number of circuit2.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0802.5-196R270C7180Ct7196200270±0.060.050.080~0.020-18503000
SRT0802.5-356R430C7340Ct7356360430±0.120.050.120
SRT0802.5-196R270C10180Ct10196200270±0.270.210.160~0.050
SRT0802.5-356R430C10340Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0805

Shaft dia. ∅8

Lead 5mm

Ct7&Ct10

SRT Diagram 14A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread1SRT Diagram 11B
Thread directionRight
Shaft root dia.∅6.6
Number of circuit2.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0805-196R270C7165Ct7196200270±0.060.050.080~0.020-18503000
SRT0805-356R430C7325Ct7356360430±0.120.050.120
SRT0805-196R270C10165Ct10196200270±0.270.210.160~0.050
SRT0805-356R430C10325Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0808

Shaft dia. ∅8

Lead 8mm

Ct7&Ct10

SRT Diagram 15A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread2SRT Diagram 11B
Thread directionRight
Shaft root dia.∅6.7
Number of circuit1.6×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0808-196R270C7175Ct7196200270±0.060.050.080~0.020-22003800
SRT0808-356R430C7335Ct7356360430±0.120.050.120
SRT0808-196R270C10175Ct10196200270±0.270.210.160~0.050
SRT0808-356R430C10335Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT0812

Shaft dia. ∅8

Lead 12mm

Ct7&Ct10

SRT Diagram 16A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread2SRT Diagram 11B
Thread directionRight
Shaft root dia.∅6.7
Number of circuit1.6×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT0812-196R270C7165Ct7196200270±0.060.050.080~0.020-22004000
SRT0812-356R430C7325Ct7356360430±0.120.050.120
SRT0812-196R270C10165Ct10196200270±0.270.210.160~0.050
SRT0812-356R430C10325Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT1002

Shaft dia. ∅10

Lead 2mm

Ct7&Ct10

SRT Diagram 17A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread1SRT Diagram 17B
Thread directionRight
Shaft root dia.∅8.6
Number of circuit3.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF8
Fixed-side:EK8
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT1002-196R270C7170Ct7196200270±0.060.050.080~0.020-27005300
SRT1002-396R470C7370Ct7396400470±0.130.050.120
SRT1002-196R270C10170Ct10196200270±0.270.210.160~0.050
SRT1002-396R470C10370Ct10396400470±0.550.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT1005

Shaft dia. ∅10

Lead 5mm

Ct7&Ct10

SRT Diagram 18A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅2.0A-type B-type C-type
Number of thread1SRT Diagram 17B
Thread directionRight
Shaft root dia.∅8.2
Number of circuit2.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF8
Fixed-side:EK8
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT1005-196R270C7170Ct7196200270±0.060.050.080~0.020-30005200
SRT1005-396R470C7370Ct7396400470±0.130.050.120
SRT1005-196R270C10170Ct10196200270±0.270.210.160~0.050
SRT1005-396R470C10370Ct10396400470±0.550.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT1010

Shaft dia. ∅10

Lead 10mm

Ct7&Ct10

SRT Diagram 19A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅2.0A-type B-type C-type
Number of thread2SRT Diagram 17B
Thread directionRight
Shaft root dia.∅8.4
Number of circuit1.6×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF8
Fixed-side:EK8
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT1010-196R270C7170Ct7196200270±0.060.050.080~0.020-33005900
SRT1010-396R470C7370Ct7396400470±0.130.050.120
SRT1010-196R270C10170Ct10196200270±0.270.210.160~0.050
SRT1010-396R470C10370Ct10396400470±0.550.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT1015

Shaft dia. ∅10

Lead 15mm

Ct7&Ct10

SRT Diagram 20A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅2.0A-type B-type C-type
Number of thread2SRT Diagram 17B
Thread directionRight
Shaft root dia.∅8.4
Number of circuit1.6×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF8
Fixed-side:EK8
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT1015-196R270C7160Ct7196200270±0.060.050.080~0.020-33006400
SRT1015-396R470C7360Ct7396400470±0.130.050.120
SRT1015-196R270C10160Ct10196200270±0.270.210.160~0.050
SRT1015-396R470C10360Ct10396400470±0.550.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT1020

Shaft dia. ∅10

Lead 20mm

Ct7&Ct10

SRT Diagram 21A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread4SRT Diagram 17B
Thread directionRight
Shaft root dia.∅8.7
Number of circuit1.6×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF8
Fixed-side:EK8
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT1020-196R270C7170Ct7196200270±0.060.050.080~0.020-21004000
SRT1020-396R470C7370Ct7396400470±0.130.050.120
SRT1020-196R270C10170Ct10196200270±0.270.210.160~0.050
SRT1020-396R470C10370Ct10396400470±0.550.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT1202

Shaft dia. ∅12

Lead 2mm

Ct7&Ct10

SRT Diagram 22A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread1SRT Diagram 22B
Thread directionRight
Shaft root dia.∅10.6
Number of circuit3.7×1
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF10
Fixed-side:EK10
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT1202-196R270C7170Ct7196200270±0.060.050.080~0.020-30006400
SRT1202-396R470C7370Ct7396400470±0.130.050.080
SRT1202-196R270C10170Ct10196200270±0.270.210.160~0.050
SRT1202-396R470C10370Ct10396400470±0.550.210.160
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SRT1210

Shaft dia. ∅12

Lead 10mm

Ct7&Ct10

SRT Diagram 23A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅2.381A-type B-type C-type
Number of thread2SRT Diagram 22B
Thread directionRight
Shaft root dia.∅10.2
Number of circuit1.7×2
MaterialShaftSCM415H+SUS303
NutSCM415H
Surface hardnessHRC58∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF10
Fixed-side:EK10
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SRT1210-196R270C7165Ct7196200270±0.060.050.080~0.020-51009800
SRT1210-396R470C7365Ct7396400470±0.130.050.080
SRT1210-196R270C10165Ct10196200270±0.270.210.160~0.050
SRT1210-396R470C10365Ct10396400470±0.550.210.160
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SSRT0601

Stainless

Lead 1mm

Ct7&Ct10

Shaft dia. ∅6

SRT Diagram 24A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅0.8A-type B-type C-type
Number of thread1SRT Diagram 24B
Thread directionRight
Shaft root dia.∅5.3
Number of circuit3.7×1
MaterialShaftSUS440C+SUS303
NutSUS440C
Surface hardnessHRC55∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:SUP04-S
Fixed-side:EK5
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSRT0601-146R220C7125Ct7146150220±0.050.050.080~0.020-560900
SSRT0601-261R335C7240Ct7261265335±0.090.050.120
SSRT0601-146R220C10125Ct10146150220±0.200.210.160~0.050
SSRT0601-261R335C10240Ct10261265335±0.360.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SSRT0801

Stainless

Lead 1mm

Ct7&Ct10

Shaft dia. ∅8

SRT Diagram 25A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅0.8A-type B-type C-type
Number of thread1SRT Diagram 25B
Thread directionRight
Shaft root dia.∅7.3
Number of circuit3.7×1
MaterialShaftSUS440C+SUS303
NutSUS440C
Surface hardnessHRC55∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSRT0801-196R270C7175Ct7196200270±0.060.050.080~0.020-6301250
SSRT0801-356R430C7335Ct7356360430±0.120.050.120
SSRT0801-196R270C10175Ct10196200270±0.270.210.160~0.050
SSRT0801-356R430C10335Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SSRT0802

Stainless

Lead 2mm

Ct7&Ct10

Shaft dia. ∅8

SRT Diagram 26A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread1SRT Diagram 25B
Thread directionRight
Shaft root dia.∅6.6
Number of circuit3.7×1
MaterialShaftSUS440C+SUS303
NutSUS440C
Surface hardnessHRC55∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF6
Fixed-side:EK6
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSRT0802-196R270C7170Ct7196200270±0.060.050.080~0.020-19503100
SSRT0802-356R430C7330Ct7356360430±0.120.050.120
SSRT0802-196R270C10170Ct10196200270±0.270.210.160~0.050
SSRT0802-356R430C10330Ct10356360430±0.490.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
Standard products in stock SRT series

SSRT1002

Stainless

Lead 2mm

Ct7&Ct10

Shaft dia. ∅10

SRT Diagram 27A

Unit : mm
Ball Screw SpecificationsEnd-journal profileSupported-sideFixed-side
Ball size∅1.5875A-type B-type C-type
Number of thread1SRT Diagram 27B
Thread directionRight
Shaft root dia.∅8.6
Number of circuit3.7×1
MaterialShaftSUS440C+SUS303
NutSUS440C
Surface hardnessHRC55∼
(Thread area)
L4: Thread length after end-journal machining.
L5: Total length after end-journal machining.
Anti-rust treatmentAnti-rust oilSupport-unit RecommendationSupported-side:EF8
Fixed-side:EK8
Unit : mm
Ball Screw ModelTravelGradeShaft lengthLead accuracyTotal
Run-out
Axial playPreload
Torque
Nm
Basic Load Rating
N
L1L2L3Travel deviation
eP
Variation
V300
Dynamic
Ca
Static
Coa
SSRT1002-196R270C7170Ct7196200270±0.060.050.080~0.020-22004000
SSRT1002-396R470C7370Ct7396400470±0.130.050.120
SSRT1002-196R270C10170Ct10196200270±0.270.210.160~0.050
SSRT1002-396R470C10370Ct10396400470±0.550.210.240
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

BALL SCREW APPLICATION DATA FORM (PART 1)

Name
Company
Address

Tel
Fax
E-Mail
OPERATING LOADS
Normal operating loadKilo/lbs
Load is in tension
Load is in compression
Load is in both
Load is constant
Load is variable

(If load is variable submit load curve diagram.)
Maximum static load in tensionKilo/lbs
Maximum static load in compressionKilo/lbs
Sideloads if any
Overturning moment (cantilever loads)
Describe

DUTY CYCLE
Continuous operation
Intermittent operation
Variable
Time under dynamic load
Time at rest
Describe operation

METHOD OF OPERATION
Screw will be driven
Nut will be driven
The force will be applied to the nut to rotate the screw (back driven screw)
Assembly will be lubricated
Type of lube
Please ask our technical staff for recommendations for the best lubricant for your application.
SPEED AND TRAVEL RATE
Rate of travel described in inches per minute
Input RPM at screw or nut
Amount of torque available

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

BALL SCREW APPLICATION DATA FORM (PART 2)

TRAVEL LENGTH AND SUPPORTS
What is the unsupported screw length between bearingsin/mm
Does the nut travel the full length of the screwin/mm
If not, over what area does the nut travel
Is the screw operated in a vertical
Horizontal
Other, please state
What type of end supports are you using?
LEAD ACCURACY
Standard accuracy (.015 in per ft max) / 0.3mm per 300mm)
Precision rolled thread accuracy required (0.003 in per ft) / (.07mm per 300mm)
Ground precision accuracy required (.0005 in per ft) / (.01mm per 300mm)
Better than the above required? Please state 0.0mm / 300mm
SCREW SIZE
Standard backlash OK (up to .007in) / (.1778mm)
Reduced backlash required (.002 in max) / (.0508mm)
Zero backlash required
ENVIRONMENT
Will operate at normal room temperature
Will operate in very dirty / dusty conditions
Will operate at very high temperatures
Will operate where metal chips are present
Will operate at very low temperatures
Will operate in corrosive atmosphere
STRAIGHTNESS
Standard straightness OK (.01in per ft) 0.254mm / 300mm
Special straightness required (.002in per ft) 0.0508mm / 300mm
Straightness better than 0.002in per ft required 0.0508mm / 300mm
END MACHINING
If you want to order the screws with the ends already machined to your specifications,
submit a sketch or drawing with details and tolerances required.
QUOTATION INFORMATION
Quantity desired
Delivery schedule

Please submit any additional data you feel would be helpful to us in selecting the proper screw size and in
submitting your quotation. Attach drawings of screw and nut if available.

Suggestions, help and advice is given in good faith but without responsibility. It remains the responsibility of the
customer or end user to ensure that the product chosen meets their life, duty cycle and other performance criteria.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

COPYRIGHT

"ABSSAC" is a registered trade mark 2375859

All rights are reserved.

The use of this catalogue is made available to you by Abssac Limited. The exclusive right to control the use of the copyright and trademarks on this site is controlled by Abssac Limited. These may not be copied, reproduced, published, distributed, modified or otherwise used in any form including electronic copying without the express permission of Abssac Limited. Abssac Limited has made all reasonable endeavor to ensure that the material on this site is accurate. You agree that Abssac Limited, nor any other person involved in creating or providing this catalogue shall be liable for any indirect or consequential damage arising from the use of any information contained in this catalogue.

The information contained in this catalogue is provided 'as is' without warranty of any kind, either expressed or implied. Abssac Limited assumes no responsibility for errors or omissions in this catalogue or other documents which are reference by or linked to this catalogue. This catalogue could include technical or other inaccuracies including typographical errors. Updates and changes are periodically added to the information herein; these changes will be incorporated in new editions of this catalogue. Abssac Limited may make improvements and/or changes in the product(s) or service(s) described in this publication at any time. You agree that the above terms represent the entire basis of the agreement between us, upon which you are permitted to enter this site and you agree that all relations between us are subject to the Law of England and Wales.

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC

STANDARD CONDITIONS OF SALE

1.
Interpretation
1.1
In these Conditions:
"Buyer" means the person who accepts a quotation of the Seller for the sale of the Goods or whose order for the Goods is accepted by the Seller
"Goods" means the goods (including any instalment of the goods or any parts for them) which the Seller is to supply in accordance with these Conditions
"Seller" means ABSSAC LIMITED a company incorporated in England and whose registered number is 1677177.
"Conditions" means the standard terms and conditions of sale set out in this document and (unless the context otherwise requires) includes any special terms and conditions agreed in writing between the Buyer and the Seller
"Contract" means the Contract for the purchase and sale of the Goods
"Writing" includes telex, cable, facsimile transmission, E-Mail and comparable means of communication
1.2
Any reference in these Conditions to any provision of a statute shall be construed as a reference to that provision as amended, re-enacted or extended at the relevant time
1.3
The headings in these Conditions are for convenience only and shall not affect their interpretation
2.
Basis of the sale
2.1
Subject to Condition 3 below, the Seller shall sell and the Buyer shall purchase the Goods in accordance with any oral or written order of the Buyer which is accepted by the Seller, or any written quotation of the Seller which is accepted by the Buyer, subject to these Conditions which shall govern the Contract to the exclusion of any other terms and conditions subject to which any such quotation is accepted or purported to be accepted, or any such order is made or purported to be made, by the Buyer
2.2
No variation, addition or waiver of any of these Conditions shall be effective unless it is in Writing and signed by a duly authorised representative of both the Seller and the Buyer
2.3
The Seller's employees or agents are not authorised to make any representations concerning the Goods unless confirmed by the Seller in Writing. In entering into the Contract the Buyer acknowledges that it does not rely on any such representations which are not so confirmed
2.4
Samples supplied and advice or recommendations as to storage, application or use of the Goods given by the Seller or its employees or agents to the Buyer or its employees or agents are for guidance only and any such matter which is not confirmed in Writing by the Seller is followed or acted upon entirely at the Buyer's own risk and accordingly the Seller shall not be liable for any such advice or recommendation which is not so confirmed then the Buyer should depend on their accuracy only after obtaining specific written confirmation to that effect from the Seller
2.5
Any typographical, clerical or other error or omission in any sales literature, quotation, price list, acceptance of offer, invoice or other document or information issued by the Seller shall be subject to correction without any liability on the part of the Seller
3.
Quotations and acceptance of orders
3.1
Quotations issued by the Seller are invitations to order Goods from the Seller. No Contract will exist until the Seller has accepted the Buyer's order in accordance with condition 3.3.
3.2
Subject to condition 3.1 the price in the quotation should be valid for a period of 30 days from the date of the quotation unless otherwise advised by the Seller in Writing
3.3
The Seller shall not be bound by any order submitted by the Buyer unless and until confirmed by the Seller in Writing
3.4
Scheduled call off purchase orders made by the Buyer with the Seller are for twelve month periods only, or until 19th December ofthat year, depending which comes first unless otherwise agreed in Writing by the Seller
3.5
The Buyer is committed to purchasing any remaining amount of products on his purchase order if the Buyer decides to cancel the order mid schedule unless otherwise agreed in Writing by the Seller
3.6
No order which has been accepted by the Seller may be cancelled by the Buyer except with the agreement in Writing of the Seller on the terms that the Buyer shall indemnify the Seller in full against all loss (including loss of profit), costs (including the costs of all labour and materials used), damages, charges and expenses incurred by the Seller as a result of cancellation.
3.7
Compliance with United States Export Regulations
It is Abssac's policy to request, if applicable, the end use and end user details in all sales and repairs of USA origin products and in all transfers of technical data or software to ensure compliance with applicable u.s. export control laws and regulations. Because the products you are purchasing may be used outside of the United States, we will need confirmation of the following from the (buyer). It is on the onus of the buyer to ensure that Abssac is informed of the following information.
1.1
(Buyer) will not export or re-export any USA origin products, technology or software to Cuba, Iran, Iraq, Libya, North Korea, Sudan, or Syria, unless otherwise authorized by the United States Govern ment.
2.1
(Buyer) will not sell, transfer, export or re-export any USA origin products for use in activities which involve the development, production, use or stockpiling of nuclear, chemical or biological weapons or missiles, nor use USA origin products in any facilities which are engaged in activities relating to such weapons.
3.1
(Buyer) acknowledge that u.s. law prohibits the sale, transfer, export or re-export or other participation in any export transaction involving USA origin products with individuals or companies listed in the u.s. Commerce Department's Table of Denial Orders, the u.s. Treasury Department's list of Specially Designated Nationals or the u.s. Department of State's list of individuals debarred from receiving Munitions List items.
4.1
(Buyer) will abide by all applicable u.s. export control laws and regulations for any products purchased from USA origin products, software or technology.
5.1
(Buyer) agree that the export control requirements in No. 1-4 above shall survive the completion, early termination, cancellation or expiration of the applicable purchase order, agreement or contract.
4.
Specifications
4.1
The Buyer shall be responsible to the Seller for ensuring the accuracy of the terms of any order (including any applicable specification) submitted by the Buyer, and for giving the Seller any necessary information relating to the Goods within a sufficient time to enable the Seller to perform the Contract in accordance with its terms
4.2
The quantity, quality and description of any specification for the Goods shall be those set out in the Seller's quotation (if accepted by the Buyer) or the Buyer's order (if accepted by the Seller)
4.3
If Goods are supplied in accordance with the Buyer's specifications the Buyer shall be solely responsible for the specifications and ensuring that they are accurate
4.4
If any technical calculations are made by the Seller using information supplied by the Buyer the Buyer accepts that they are responsible for supplying accurate technical information and accordingly the Seller is not liable in respect of calculations based on incorrect information given
4.5
If Goods are to be manufactured or any process is to be applied to the Goods by the Seller in accordance with a specification or request submitted by the Buyer or should any change be made to the Goods at the request of the Buyer the Buyer shall indemnify the Seller against all loss damages costs and expenses awarded against or incurred by the Seller in connection with or paid or agreed to be paid by the Seller in settlement of any claims for infringement of any patent, copy right, design, trade mark or other industrial or intellectual property rights of any person which results from the Seller's use of the Buyers specification
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
4.6
The Seller reserves the rights to make any changes in the specification of the Goods which are required to conform with any applicable statutory or EC requirements or, where the Goods are to be supplied to the Seller's specification, which do not materially affect their quality or performance
4.7
At all times the buyer has the responsibility to adequately guard and maintain the product supplied in accordance with relevant operation manuals, service factors and health and safety legislation applicable for any product supplied by ABSSAC Limited.
4.8
The seller (Abssac Limited) shall not in any event be liable for any consequential damages, secondary charges, expenses for installing or disconnecting, or losses or injuries to persons or property resulting from any alleged defect in the product or any use of the product, and lor in manner that exceeds its design, duty cycle and or ability.
4.9
It remains the responsibility of the buyer to test any samples or other products that the seller will provide for fatigue, stress and general ability in the application. All products that the seller provides and are used in both real and test situations are considered by Abssac Ltd to have been thoroughly tested to meet and exceed the anticipated life and duty requirement of the product in its application by the buyer. It remains the responsibility of the buyerto give all technical information to the seller and all buyers are responsible for meeting health and safety measures and adequately guarding users and all associated parties against all and any possible failures in line with the health and safety requirements.
Other Where recommended guidelines of serviceable or replaceable parts and maintenance/inspection requirements are exceeded or ignored by the user and/or buyer, no warranty or other claim can or will exist. Where minimum or maximum values/sizes/limits/dimensions/fitting instructions and technical data of parts are ignored/abused/extended/not applied/not actioned or used in excess ofthe design or standard parameters ofthe product by the user and/or buyer then no warranty claim or other claim can exist.
No warranty or other claim can exist or be made by the user or buyer or other to the seller or its agent or other for any part used in motor sport, military or aviation. No warranty is given to this type of application.
All or any secondary or further processes/disassembly/machining/ heating/drying/coating or any other additional process the originally supplied product or associated part/product after dispatch from the seller or its agent voids any warranty claim or other claim.
It remains the responsibility of the buyer or user to advise us the seller of any and all certification/test/traceable certification requirement.
Conversations may be recorded as part of our ongoing customer service program.
5.
Packaging
5.1
Packaging for the Goods shall be at the discretion of the Seller which has the right to pack the Goods in such a manner and with such materials and in such quantities as in his absolute discretion thinks fit unless detailed packaging instructions are received from the Buyer prior to agreeing a price for the Goods which the Seller agrees to in Writing
6.
Price of the Goods
6.1
Price of the Goods shall be the Seller's quoted price or, where no price has been quoted (or a quoted price is no longer valid) the price listed in the Seller's published price list current at the date of acceptance of this order. Where the Goods are supplied for export from the United Kingdom, the Seller's published export price list shall apply. All prices quoted are valid for 30 days only or until earlier acceptance by the Buyer, after which time they may be altered by the Seller without given giving written notice to the Buyer
6.2
The price is exclusive of any applicable value added tax, which the Buyer shall be additionally liable to pay to the Seller
6.3
All prices stated shall be subject to variation at the sole discretion of the Seller at any time without prior notice and the Seller shall notify the Buyer of any variation before delivery of the Goods
7.
Payment
7.1
Liability for payment for the Goods supplied to customers who have a trading account with the Seller shall arise on delivery and payment in cash is due 30 days from the date of the invoice or as otherwise specifically agreed in Writing by the Seller. Payment shall be due and the company shall be entitled to sue for the price whether or not property in the Goods has passed by virtue of condition 10 and not withstanding the delivery may not have taken place as a result of the Buyer's wrongful or refusal to accept delivery. The time of payment of the price shall be of the essence of the Contract
7.2
Liability for payment forthe Goods supplied on a proforma invoice basis for customers who do not have a trading account with the Seller shall be prior to delivery of the Goods. The ti me of payment of the price shall be of the essence of the Contract. It is the Buyer's responsibility to give written notice to the Seller of any payment under proforma invoice arrangements
7.3
Sums paid after the due date shall pay interest until the day payment is received at the rate of 5% per annum above the base rate from time to time of National Westminster Bank Pic occurring from day to day from the date of delivery until the date of payment in full
7.4
If the recovery of sums outstanding from the Buyer is passed to a debt collection agency the Buyer shall pay the Seller's costs in instructing the said debt collection agency and all ancillary legal costs
7.5
Without prejudice to any other rights or remedies ofthe Seller any in default of the Buyer in making payment on the due date shall entitle the Seller to suspend deliveries under the Contract or any other Contract so long as the default continues and break the Contract as repudiated by the Buyer and determined if the Buyer has not within 14 days of receiving written notice from the Seller paid all sums due to the Seller.
8.
Delivery
8.1
Delivery shall take place when the Goods are unloaded at or delivered to the Buyer's premises or other delivery location agreed between the Seller and the Buyer exceptthat if the Buyer collects or arranges collection of the Goods from the Seller's premises, or nominates a carrier for the Goods delivery shall take place when the Goods are loaded on the collection or carriers vehicle
8.2
Any dates quoted for delivery of the Goods are approximate only and the Seller will not be liable for any delay in delivery of the Goods however so caused. Time for delivery shall not be of the essence of the Contract unless previously agreed by the Seller in Writing. The Goods may be delivered by the Seller in advance of the quoted delivery date upon giving responsible notice to the Buyer
8.3
The Buyer shall accept immediate delivery or arrange to collect the Goods or arrange suitable storage, failing which the company may either:
8.3.1
effect delivery by whatever means they think most appropriate; or
8.3.2
arrange storage atthe Buyer's risk and expense pending delivery; or
8.3.3
re-sell or otherwise dispose ofthe Goods without prejudice to any other rights the Seller may have against the Buyer for breach of Contract or otherwise
8.4
Where the agreement provides for delivery by instalments each delivery shall constitute a separate Contract and failure by the Seller to deliver any one or more of the instalments in accordance with these Conditions or any claim by the Buyer in respect of any one or more instalments shall not entitle the Buyer to treat the Contract as a whole as repudiated
8.5
The Buyershall not be entitled to reject the Goods by reason only of short delivery
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
8.6
The quantity of the Goods delivered under the Contract shall be recorded by the Seller upon dispatch from the Seller's factory or warehouse and the Seller's records shall be accepted by the Buyer as conclusive evidence of the quantity delivered.
8.7
It is the Buyer's responsibilityto notify the seller if Goods have not been received by the Buyer within seven days of the date of receipt of the Seller's invoice, therefore, if no notification is made the Buyer shall be deemed to have received the Goods.
8.8
If the Seller fails to deliver the Goods (or any instalment) for any reason other then any cause beyond the Seller's reasonable control or the Buyer's fault, and the Seller is accordingly liable to the Buyer, the Seller's liability shall be limited to the excess (if any) of the cost to the Buyer (in the cheapest available market) of similar Goods to replace those not delivered over the price of the Goods. The seller is under no obligation or liability in respect of failure to complete or delay or failure to deliver the goods comprised in any order or contract caused directly or indirectly by act of war or terrorism, strikes, lockouts, labour troubles, breakdowns, delays in transport, accidents, delay in obtaining material, fire, government prohibition, delivery of necessary fuel requirements, any and all problems or other restrictions relating to design or other manufacturing difficulties that arise during an order.
8.9
If the Buyer fails to take delivery of the Goods or fails to give the Seller adequate delivery instructions at the time stated for delivery (otherwise than by reason of any cause beyond the Buyer's reasonable control or by reason of the Seller's fault) then, with out prejudice to any other right or remedy available to the Seller, the Seller may:
8.9.1
store the Goods until actual delivery and charge the Buyer for the reasonable costs (including insurance) of storage;
or
8.9.2
sell the Goods at the best price readily obtainable and (after deducting all reasonable storage and selling expenses) account to the Buyer for the excess over the price under the Contract or charge the Buyer for any shortfall below the price under the Contract
9.
Examinations and claims
9.1
The Buyer shall upon delivery examine the Goods and shall promptly (but in any event within seven working days of delivery) notify in Writing the Seller and the carrier, where relevant, of any apparent damage defect or shortage.
9.2
The Buyer shall comply with the carriers rules, regulations and requirements so as, when appropriate, to the Seller to make a claim against the carrier in respect of any damage or loss in transit.
9.3
Claims in respect of damage defects or shortage not apparent on examination and under clause 9.1 must be notified in Writing to the Seller within 7 days of the date of delivery
9.4
Notification under clauses 9.1 to 9.3 above shall be first made by telephone then by notice in Writing delivered by facsimile transmission or by first class recorded delivery mail and addressed to Abssac Limited Units 19/20 Bond Industrial Estate Wickhamford Evesham Worcs WRll 7RH.
9.5
In default of such notification the seller shall be deemed conclusively to have properly preformed its obligations under the Contract.
10.
Property and risk
10.1
All risk including that of dam age to or loss of the Goods shall pass to the Buyer:
10.1.1
at the time when the Seller notifies the Buyer that the Goods are available for collection the case of Goods to be supplied at the Seller's premises
or
10.1.2
at the time of delivery but prior to unloading or if the Buyer wrongfully fails to take delivery of the Goods at the time when the Seller has tendered to delivery of the Goods in the case of Goods to be supplied otherwise than at the Seller's premises
or;
10.1.3
at the time of delivery of the Goods to a carrier for delivery to the Buyer in the case of Goods to be supplied in a manner otherwise than as set out in Conditions 10.1.1 or 10.1.2 above
10.2
The Buyer shall fully insure the Goods against all risks from the times stipulated forthe passing of risk in condition 10.1 above up to the time when the proprietary rights in such Goods pass to the Buyer
10.3
Property (both legal and beneficial) in the Goods shall remain in the company until all sums owing to the Seller whether under the Contract or any other Contract at any time between the Seller and the Buyer made prior to the date of the Contract ("the Indebtedness) shall have been paid in full, until such time the Buyer shall hold the Goods as bailee for the Seller
10.4
The Buyer shall not be entitled to pledge or in any way charge by way of security for any indebtedness any of the Goods which remain the property of the Seller, but if the Buyer does so all moneys owing by the Buyer to the Seller shall (without prejudice to any other right or remedy of the Seller) forthwith become due and payable
10.5
The Buyer until otherwise notified by the Seller or on the happening of any of the event specified in Condition 10.7 ("the Events") may in the ordinary course of business sell the Goods and pass property in them ("the Re-Sale") subject to the stipulations ("the Stipulations") imposed in Condition 1 0.5
10.6
The Stipulations are that until the Indebtedness has been fully discharged;
10.6.1
the Goods shall not be converted into any other product or mixed with any other Goods to make another product ("the New Product") nor will the Buyer sell the New Product and property in it ("the Sale") but if the Buyer in breach of the above provision does convert or mix the Goods property in the New Product shall atthe earliest moment that such vesting is possible, vest and remain in the Seller whether or not property in the Goods is at the moment extinguished
10.6.2
the Re-Sale shall be for the account of the Seller and, unless the Seller by written notice requires the paymentto it of the proceeds ofthe Re-Sale ("the Proceeds") to the extent of the Indebtedness, in which case the Buyer shall forthwith on receipt of such notice or as soon as thereafter as it shall receive the Proceeds makes its payment, the Buyer shall retain the Proceeds in a separate bank accountto the order of the Seller and not mix them with any other monies
10.6.3
in the event of a breach by the Buyer of its obligations under additions 10.6.1 the Seller shall have the right to trace the Proceeds in to any other moneys which may have been mixed and the Buyer shall indemnify the Seller on a full indemnity basis against loss, damage, costs or expenses incurred in such tracing
10.6.4
until the Re-Sale the Seller has have the right to repossess the Goods or take possession of the New Product at any time and for this purpose shall have the right to enter on to any premises or land in the ownership or possession of the Buyer and remove the Goods and/or the New Product not withstanding that they are affixed to such premises or land and the Buyer shall indemnifythe Seller on a full indemnity basis against all loss, damage, costs or expenses so arising including loss, damage, costs or expenses in respect of third party claims. Such taking of possession re delivery shall be without prejudice in the obligation of the Buyer to purchase Goods
10.6.5
the Goods and the New Product shall until their Re-Sale or Sale be stored separately, protected and insured and identified and clearly marked as the Seller's property
10.7
The Events are;
10.7.1
The giving of any notice to the Buyer that a receiver, manager, administrative receiver, supervisor, nominee or administrator is to be or has been appointed over any of the property or assets of the Buyer or that a petition to wind up the Buyer is to be or has been presented or that an application for an administration order is to be or has been made or any notice of a resolution to wind up the Buyer (say for the purposes of bona fide reconstruction or amalgamation)
10.7.2
A decision by the Buyer that the Buyer intends to make any arrangement or composition with its creditors generally.
10.7.3
Where the Buyer pursuant to section 123 or 268 of the Insolvency Act 1986 appears to be unable to pay a debt or appears to have no reasonable prospects of being able to pay a debt
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
10.7.4
any distress or execution levied as threatened to be levied on any property or assets of the Buyer
10.7.5
the inability of the Buyer to pay its debts as they fall due
10.7.6
on receipt of notification from the company under Condition 10.5 or on the happening of any of the Events the Buyer shall immediately deliver the Goods and the New Product property in which the Product is reserved to or is vested in the Seller to such address as the Seller shall specify in default of which or in the alternative, the Seller shall have the right to enter on any premises or land in the ownership or possession of the Buyer in order to recover the Goods and the New Product and the Buyer shall indemnify the Seller on a full indemnity basis against all loss, damage, costs or expenses as arising including loss, damage, cost or expenses in respect of third party claims
11.
Breach by or insolvency by the Buyer
11.1
if the Buyer shall not comply with any of its obligations to the Seller or upon the occurrence of any of the Events referred to in clause 10.7 the Seller shall have the right forthwith to terminate the Contract but without affecting any other claim right or remedy of the Seller against the Buyer and without any liabilityto the Buyer, and if the Goods have been delivered but not paid for the price shall become immediately due and payable notwithstanding any previous agreement or arrangement to the contrary
12.
Export Terms
12.1
In these Conditions "Incoterms" mean the international rules for the interpretation of trade terms of the International Chambers of Commerce as in force at the date when the Contract is made. Unless the Context otherwise requires, any term or expression which is defined in or given a particular meaning my the provisions Incoterms shall have the same meaning in these Conditions, but if there is any conflict between the provisions of Incoterms and these Conditions, the latter shall prevail
12.2
Where the Goods are supplied for export from the United Kingdom, the provisions of this clause 12 shall (subject to any special terms agreed in Writing between the Buyer and the Seller) apply not withstanding any other provision of these Conditions
12.3
The Buyer shall be responsible for complying with any legislation or regulations governing the importation of the Goods in to the country or destination and forthe payment of any duties on them
12.4
Unless otherwise agreed in Writing between the Buyer and the Seller, the Goods shall be delivered fob the air or sea port of shipment and the Sellers shall be under no obligation to give notice under section 32(3) of the Sale Of Goods Act 1979
12.5
The Buyer shall be responsible for arranging for testing and inspection of the Goods at the Sellers premises before shipment. The Seller shall have no liability for any claim in respect of any defect in the Goods which would be apparent on inspection and which is made after shipment, or in respect of any damage during transit
12.6
Payment of all amounts due to the Seller shall be made by irrevocable letter of credit opened by the Buyer in favour of the Seller and confirmed by a bank acceptable by the Seller, or by telegraphic transfer in to the Sellers aforementioned bank account or if the Seller agrees in Writing on or before acceptance of the Buyer order to waive this requirement, by acceptance by the Buyer and delivery to the Seller of a bill of exchange drawn on the Buyer payable 60 days after sight of the order to the Seller at such branch of National Westminster Bank in England as may be specified in the bill of exchange
12.7
Unless otherwise specifically agreed between the Seller and the Buyer all Exports sales shall be made by delivery to the Buyer's premises and the Seller's prices shall be increased to cover the Seller's costs in making such deliveries
12.8
The Buyer warrants that if an import licence or permit is required for the importation of the Goods into the county or destination then such import licence or permit has been obtained or would be obtain prior to shipment
13.
Cancelation, suspension and termination
13.1
If the Buyer shall purport to cancel the whole or any part of the Contract the Seller may by notice in Writing to the Buyer elect to treat the Contract as repudiated and the Buyers shall thereupon be liable to pay the Seller by way of liquidated damages a sum equal to all the expenses incurred by the Seller in connection with the Contract including an appropriate amount in respect of administration overheads, costs and loss of profit. The Sellers reasonable estimate of the expenses incurred shall be final and binding on the parties
13.2
If for any cause whatsoever beyond its control the Seller is unable to make any delivery on the applicable delivery date or preform any of its obligations under the Contract the Seller may be notice in Writing to the Seller terminate the Contract or suspend the Contract without liability of any loss or damage thereby occurred by the Buyer
14.
Intellectual property
14.1
The Buyer shall not infringe any patent, trade name, registered design, copyright industrial or other intellectual property right belonging to the Seller in relation to the Goods or any other goods or matters supplied by the Seller with or in relation to the Goods
14.2
The Buyer shall promptly reportto the Seller particulars of any use by any person of a patent, trade name, registered design, trade mark or get up of Goods which might amountto infringement of any patent, trade mark, registered design, copy right, industrial or other intellectual property right attaching to the Goods or to unfair competition on passing off
14.3
In the event that it comes to the notice of the Buyer that any person alleges that a patent, trade name, registered design, copy right, industrial or other intellectual property right is invalid or that they infringe any rights of that person or that they are open to any form of attach the Buyer shall not make any omissions but shall promptly report the matter to the Seller
14.4
The Seller shall have conduct of all proceedings relating to any patent, trade name, registered design, copy right, industrial or other intellectual property right attaching to the Goods
15.
Force majeure
15.1
In so far as the performance of the Contract by the Seller may be affected by any strike, any lack of available, shipping or transport or materials, any restriction regulation or decree by any local or municipal authority or government department or by any cause beyond the Seller's reasonable control (which shall be construed without reference to the proceeding causes) the Seller may elect at its absolute discretion either;
15.1.1
to terminate the Contract or;
15.1.2
to proceed to preform or continue performance under the Contract within a reasonable time after the termination of such events of circumstance
15.2
In the event that the Seller makes an election under clause 15.1 the Buyer shall accept the Goods or such part of them as are delivered to it not withstanding any delay
16.
Exclusion of Contract (rights of the third party) Act 1999
16.1
Nothing in these Conditions will confer on any third party any benefit or the right to enforce any terms of these Conditions
17.
Proper law
17.1
The Contract is and shall be deemed to be made in England and shall in all respects be governed by English Law and shall be subject to the non-exclusive jurisdiction of the English Court
18.
General
18.1
Any notice required or permitted to be given by either party to the other under these Conditions shall be in Writing and addressed to that other party at its registered office or principal place of business or such other address as may atthe relevanttime having been notified pursuant to this provision to the party giving the notice
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
ABSSAC
18.2
No waiver by the Seller of any breach of the Contract by the Buyer shall be consider as a waiver of any subsequent breach of the same or any other provision
18.3
If any provision of these Conditions is held by any competent authority to be invalided or unenforceable in whole or in part the validity of the other provisions of these Conditions and the remainder of the provision in question shall not be affected
18.4
No liability, warranty or any other claim can or will exist for any product(s) during or as a consequence of or any consequence whatsoever resulting directly or indirectly from or in connection with any of the following regardless of any other contributory cause or event from :
Terrorism Terrorism is defined as any act or acts including and not limited to the use or threat of force/violence/harm or damage to life or property orthe threat of such harm or damage including harm or damage by nuclear and or chemical and or biological and or radiological means. Caused or occasioned by any persons or groups or so claimed in whole or in part for political religious ideological or similar purposes. Or, any action taken in controlling preventing suppressing or in anyway relating to the above.
War War or invasion, act of foreign enemy hostilities of a warlike operation or operations (whether war be declared or not) civil war rebellion revolution insurrection civil commotion assuming the proportions of or amounting to an uprising military or usurped power. Or any action taken in controlling preventing suppressing or in any way relating to any of the above.
18.5
Any dispute arising under or in connection with these Conditions or the sale ofthe Goods shall be referred to arbitration by a single arbitrator appointed by agreement or (in default) nominated on the application of either party by the president forthetime being of the Law Society.
Abssac Limited may make changes to the contents/ improvements and/or changes in the product(s) or service(s) described in this publication at any time.

August 2013.
T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk
