Lead screws (Power Range)

ALL ITEMS ARE IN STOCK !

This includes the round body nuts in both Bronze and Steel as well as the Bronze Flanged nuts. Hex and square steel nuts are also ex-stock. We stock 3000mm lengths of screw in all the following sizes.

Lead screws for medium to heavy duty industrial applications can be best supplied through our POWER SCREWS program. Complimented with a large selection of  Bronze and Steel nut designs, the power screws can be supplied in lengths up to 6m on request.. Primarily using the metric trapezoidal thread form in either a C15 steel or 304 Stinless steel. The following chart details the stocked sizes at Abssac.

Trapezoidal thread Right Hand Left Hand Right Hand Left Hand
Diameter Lead C15 Steel C15 Steel 304 St St 304 St St
10mm 3mm
12mm 3mm
16mm 4mm
20mm 4mm
20mm 8mm
22mm 5mm
24mm 5mm
26mm 5mm
30mm 6mm
32mm 6mm
36mm 6mm
40mm 7mm
50mm 8mm
Available =
Nut Style Material

Lengths up to 3000mm as standard
Lengths up to 6000mm on request

All screws can be supplied with or without nuts and cut to desired length.

Round body SAE 660  Bronze
Round body Steel ( weldable, MIG MAG)
Flanged CuSn12 Bronze (PB2)
Hex Steel ( weldable, MIG MAG)
Square Steel ( weldable, MIG MAG)



Key product advantages;

  • Rolled & whirled mild steel and stainless steel lead screws
  • Standard & Precision grade rolled tolerances
  • 12mm through to 200mm diameter lead screws
  • Trapezoidal, Acme, Multi start and custom made to order designs
  • 316 stainless steel products certificated to 3.1 B
  • Vast choice of metric and imperial leads
  • Left hand and Right hand threaded products
  • Custom nut designs in Bronze (RG7) (PB1+2) (660SAE Bronze)
  • End journal machining to your exact requirements
  • Support bearings for arduous duty
  • ISO9001 approved

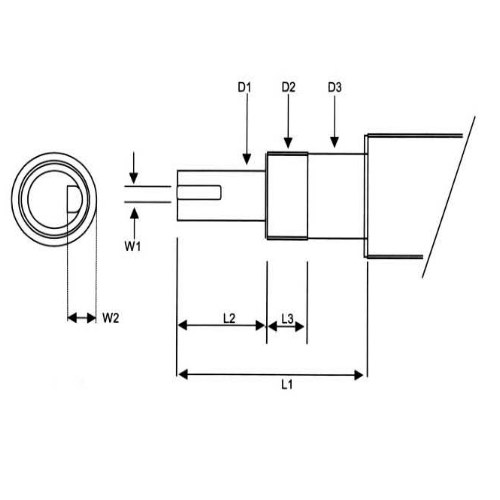

Standard bearing end machining detail

A complete end machining capability is available to you. Lets work together to reduce your scrap rates and supply the lead screw solutions that fit your application every time. We can work directly from your dimensional drawings or if they do not exist, why not supply us with a physical sample for us to copy.

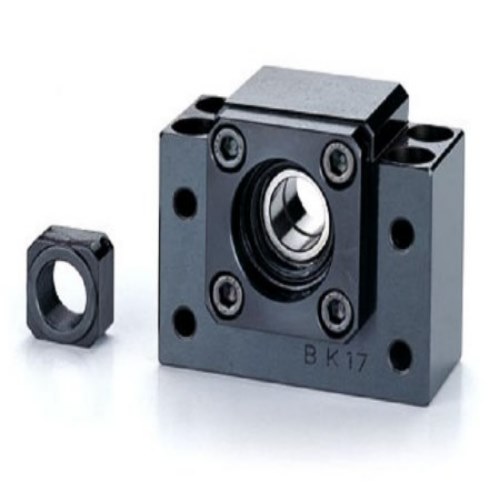

Thrust and radial bearings

Dont forget to ask for our competitive support bearing prices !

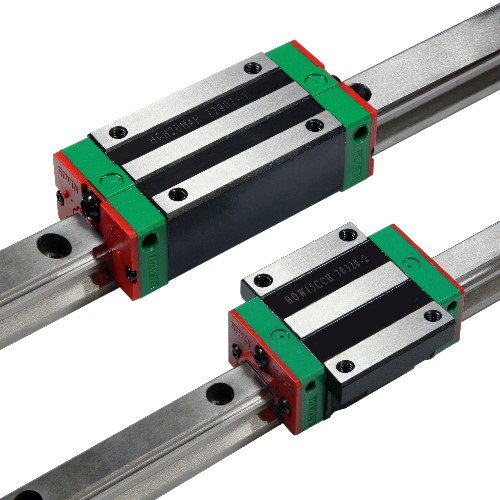

Linear Guides and Rails

If you are interested in the using  ball screws, please do not forget that we also supply the full range of linear guides and rails which can provide the load support in your linear mechanism. Offering excellent rigidity and parallelism during operation the guides can be used in both vertical and horizontal planes.

Following the link to that product page GUIDES

If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection. Alternatively download the relevant linear catalogue from the download button on this page or use the following link to request a printed catalogue or a CD version. CD/Catalogue




Product Image Gallery




For Product Advice Call Us Now 01386 421005



Subscribe to Newsletter

Business / Name: Subscribe to Newsletter
Email:
Lists: ABSSAC Newsletter


More About Lead screws (Power Range)

ABSSAC Ref C15 STEEL, 0.2MM/300MM   ABSSAC Ref STEEL ROUND NUTS   ABSSAC Ref BRONZE ROUND NUTS
GRADE 660 SAE EQUIVILENT
TR12X3 KEQ12AR-3 MZP12AR MZP12AR RBN12X3 HBD12AR
TR12X3L KEQ12AL-3 MZP12AL MZP12AL RBN12X3L HBD12AL
TR16X4 KEQ16AR-3 MZP16AR MZP16AR RBN16X4 HBD16AR
TR16X4L KEQ16AL-3 MZP16AL MZP16AL RBN16X4L HBD16AL
TR20X4 KEQ20AR-3 MZP20AR MZP20AR RBN20X4 HBD20AR
TR20X4L KEQ20AL-3 MZP20AL MZP20AL RBN20X4L HBD20AL
TR22X5 KEQ22AR-3 MZP24AR MZP24AR RBN24X5 HBD24AR
TR22X5L KEQ22AL-3 MZP30AR MZP30AR RBN30X6 HBD30AR
TR24X5 KEQ24AR-3 MZP32AR MZP32AR HBD32AR HBD32AR
TR30X6 KEQ30AR-3 MZP36AR MZP36AR RBN36AR HBD36AR
TR32X6 KEQ32AR-3 MZP40AR MZP40AR RBN40AR HBD40AR
TR36X6 KEQ36AR-3   RBN50AR HBD50AR
TR40X7 KEQ40AR-3
TR50X8 KEQ50AR-3

ABSSAC Ref FLANGED BRONZE NUTS
CuSn12 BRONZE TIN
ABSSAC Ref 304 ST STEEL, 0.2MM/300MM
FXN12AR FXN12AR TR12X3 SS KRP12AR-3
FXN12AL FXN12AL TR16X4 SS KRP16AR-3
FXN16AR FXN16AR TR20X4 SS KRP20AR-3
FXN16AL FXN16AL TR24X5 SS KRP24AR-3
FXN20AR FXN20AR
FXN20AL FXN20AL
FXN24AR FXN24AR
FXN30AR FXN30AR
FXN32AR FXN32AR
FXN36AR FXN36AR
FXN40AR FXN40AR
FXN50AR FXN50AR
