The Round Steel nut - RSN and Round Stainless Steel RSSN are compatible with the following POWER screw sizes

RSN Main Characteristics - Type RSN - Mild steel for use with Carbon Steel screws only. Ideal for slow or manual movement.  Type RSSN - Stainless Steel nut for use with Stainless Steel screws only. Ideal for slow or manual movement. Material - Steel EN1982 Cu Sn5 Zn5 Pb5-C - CC491K /  Stainless Steel INOX A1-AISI 303-1.4305

The Hex Steel nut HSN is compatible with the following POWER screw sizes.

HSN Main Features - For use with mild steel screws. Low cost and standard metric hexagonal shape for ease of use. Can be flush welded (MIG-MAG only). Please note that Electrode welding is not recommended because of the lead content in the material. Material - Steel 11 S Mn Pb 37 EN 10277 (W.N. 1.0737)

The Round Plastic nut - RPN is compatible with the following POWER screw sizes. RPN Main Characteristics:For use with Stainless Steel screws only. Manufactured from plastic and ideal for further machining. Ideal for use with 12mm to 140mm diameter screws. Material: PA6+MoS2

The Flanged Plastic nut FPN is compatible with the following POWER screw sizes

FPN Main Characteristics
For use with Stainless Steel screws only. Flanged plastic nuts are ideal for standard pitches and lighter duty. Although lubrication is suggested, there is a certain amount of self lubrication during operation should using lubricants be a problem. All plastic nuts exhibit  excellent wear characteristics. Attachment of the nut is via the counter sunk holes on the flange which allow flush flange face fixing.

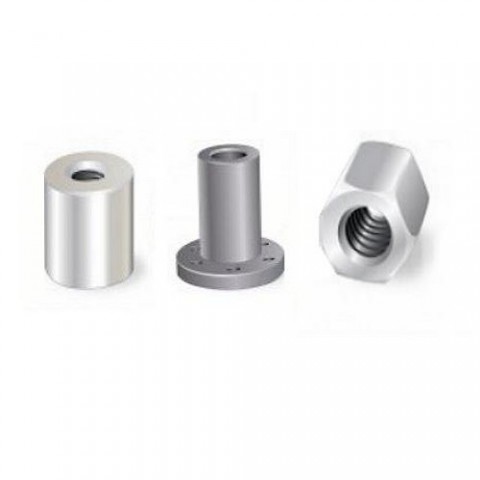

Mild Steel and Plastic Nuts (POWERSCREW)

Ideally suited to the POWER SCREW ranges of lead screws the mild steel and plastic nuts are a cost effective way of producing a linear movement. Available in round, hex and flanged formats the nuts fit most sizes of screws. Most sizes are held in stock for fast delivery.

Basic styles include;

Mild Steel Simple round nut - RSN

Stainless Steel Simple round nut - RSSN

Mild Steel Hex nut - HSN

Plastic simple round nut - RPN

Plastic flanged mount nut - FPN



Part Numbers
