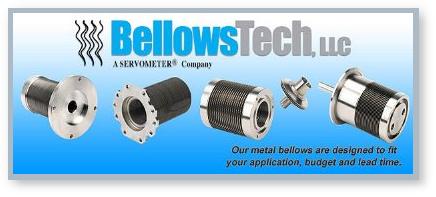

Edge welded bellows

If you have an application where the control of volume in a liquid or gas is important , the edge welded bellows product may be able to help. Providing the most flex in the smallest amount of space, we are dedicated to developing and perfecting edge welded bellows design, fabrication and manufacturing technologies with full application design assistance.

Using state-of-the-art manufacturing capabilities allows our customers to  benefit  from exact requirements.  We excel at optimising the design and attachments so that we have consistently achieved outstanding performance and reliability reviews.  For applications that require high quality micro fusion joining, edge welded
bellows are more cost effective and functional than either electron beam or laser welding.

Working within the size range of 12.7mm to 147mm (OD) and working in materials such as AM350, Stainless steel, Titanium, Hasteloy, and Inconel, we will design and manufacture bellows in 0.05mm  to 2 ply 0.18mm thickness. In fact we can weld any weldable alloy that is commercially available.

Industries to date that have benefited from this technology include;

Vacuum Industry
Semiconductor
Aerospace
Medical
Military
Oil and Offshore
Solar Energy


Why not give us a call to discuss your edge welded bellows requirement or just fill in the application data form below ;

Edge welded Bellows design application guide

If at all possible please send drawing to sales@abssac.co.uk

Name :		*
Company :		*
Address Line 1 :		*
Address Line 2 :
City :		*
County :		*
Country :		*
Postcode :		*
Telephone :		*
Email :		*
Brief description of Application and Function of the Bellows :
		*
Bellows Max outside diameter (mm)
		*
Bellows Min inside diameter (mm)
		*
Bellows free length (mm)
		*
Stroke compression (mm)
		*
Stroke extension (mm)
		*
Total stroke (mm)
		*
Lateral offset (mm)
		*
Is lateral offset permanent or cyclic?
permanent cyclic		*
Angular offset (mm)
		*
Is angular offset permanent or cyclic?
permanent cyclic		*
At what length does any lateral or angular displacement takes place.
		*
Pressure on outside diameter
		*
Pressure on inside diameter
		*
Proof Pressure
		*
Burst Pressure
		*
Temperature
		*
Media bellows will be exposed to Mean Effective Area.
		*
Cycle Life Required
		*
Cycle Rate
		*
Leak Rate
		*
Spring Rate
		*
Material Type
		*
Prototype Quantity. (if applicable)
Target Price (£ GBP)
		*
Estimated Annual Production Quantity
		*
