The ASK slot coupling is a solution for equalizing all kinds of offset. Its unique slit structure once revolutionized the coupling industry – over the years, this well established solution has come a long way and now represents the ideal solution for installation situations that involve misalignment or high levels of resonance. Not only does the one-part design ensure absolute stability at the highest speeds (>30,000 rpm) and a low mass moment of inertia, but it also enables maximum torsional stiffness to be achieved in the face of dynamic load changes.

Features

  • High torques
  • Isogonal power transmission
  • Equalizes offsets
  • Good resonance damping
  • Extremely torsionally stiff
  • Variable materials
  • High level of thermal stability
  • Maintenance-free and non-wearing
  • Low mass inertia

Application areas

  • All types of linear drive, rotary drive, oscillating chain drive, spindle drive
  • Conveyor systems
  • Special purpose machinery
  • Tool lines
  • Machine tools
  • Robotized lines
  • Precision tools
  • Measuring systems

Sectors

  • Machine tool manufacture
  • Special purpose machinery manufacture
  • Medical technology
  • Packaging industry
  • Conveyor technology
  • Robot technology
  • Textile machinery
  • Printing machinery
  • Food technology
  • Laboratory technology
  • Environmental technology
  • Semiconductor industry
  • Vehicle manufacturing and railway technology
  • Aerospace technology

Product versions

Sliced couplings for various installation situations and shaft connections. The technical data provided is for the ASK type series. If our range does not cover a particular installation situation, please contact us and we will be happy to find the right solution to cater for your application.

Material: Aluminum alloy; stainless steel; steel; PEEK

ASK BB

ASK BB

Sliced coupling with groove for shafts with feather keys

Order example: ASK 080 BB D=32H7/35H7 with groove according to DIN 6885 on both sides

ASK DD

ASK DD

Sliced coupling with quick clamping unit for extreme power transmission

Order example: Order example: ASK 100 DD D=42H7/40H7

ASK BBH

ASK BB

Sliced coupling with removable clamping hub, easy assembly

Order example: ASK 040BBH D=15H7/18H7

ASK SL (special length)

ASK SL

Sliced coupling with special length for bridging large shaft distances

Order example: ASK 070 SL D=32H7/38H7, e.g., L=560mm

ASK BC

ASK BC

Sliced coupling with spread hub for hollow shafts

Order example: ASK 020BC D=6H7/8h6

ASK AA

ASK AA

Sliced coupling with grub screws

Order example: ASK 018 AA D=5H7/5H7


Technical data

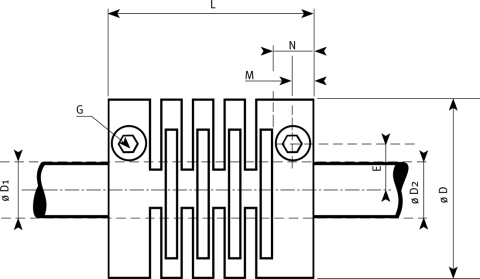

ASK 018 BB-022
Key ASK 018 BB-022

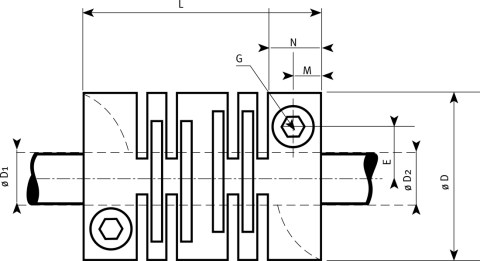

ASK 020-100 BB
Key ASK 020-100 BB

Slices-Coupling - ASK

Size018022020025030040050060070080100
SIZE IN MM
L172028284048658095100118
M2,52,75445,55,59,512,512,512,515
N55,58811111925252530
E5,57,26,5910,51418,521252937
D18222025304050607080100
D1 ISO fit H73-63-104-86-126-1410-1915-2618-2820-3525-4230-55
D2 ISO fit H73-63-104-86-126-1410-1915-2618-2820-3525-4230-55
D12,52,52,53,55,58,58,514,518,523,528,5
D262,52,53,55,58,58,514,518,523,528,5
G DIN 912M2,5M2,5M2,5M3M4M5M6M8M8M8M10
Max. fastening torque in Nm1,571,571,571,884,38,4514,535353570
# screws22222222444
Installation wrenchDIN911-Steckschlüssel
TECHNICAL DATA
Rated torque in Nm22368183065120170300
Torsional stiffness in 103 Nm/Rad0,20,20,83,44,61124548893190
Mass in g8152030501003004007009001500
Moment of interia in 10 -6 kgm 20,30,41,54,311351142854806951060
Permitted missalignmentangular °11221,71,71,41,41,11,11,1
lateral mm0,30,30,20,20,20,30,30,30,30,30,3
axial mm0,40,40,20,20,20,20,20,30,30,30,3

Order example: ASK 025 BB D=10H7/10H7

Material: Aluminum alloy; rust-proof design; steel; all parts are also available with a feather key groove. PEEK or titanium also available on request

Speed: > > 6000 rpm; max. speeds of approx. 30,000 rpm on request.
High temperatures of up to 500°C possible.
