Rigid shaft coupling

When the application requires a direct and solid shaft connection and that  shaft misalignments during operation are minimal, then the solid or rigid type couplings can be used. We offer a number of rigid coupling designs.

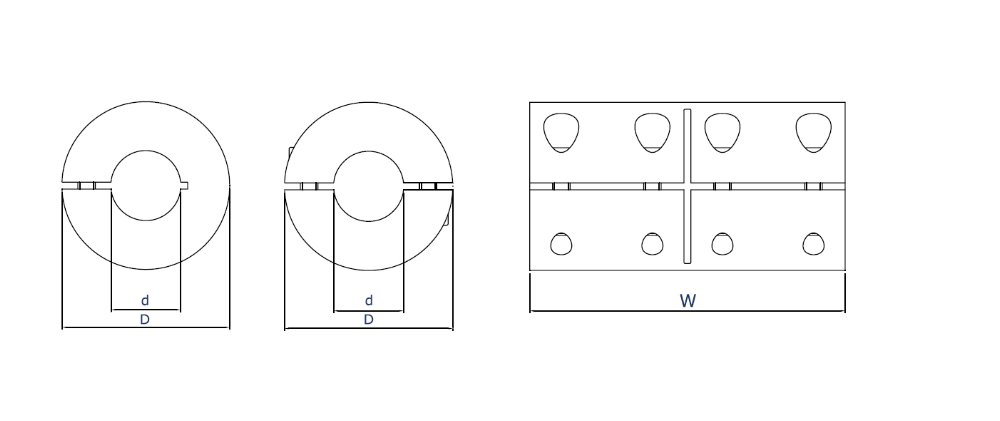

Type HR rigid coupling

Two distinct designs are available. The one and two piece HR series couplers have superior holding power and maintain alignment. The single piece versions are supplied with four clamping screws. The two piece split version couplers can be installed and removed without machine dis-assembly. Supplied with eight clamping screws, they provide reliable holding power and maintain alignment. The HR series suits shaft sizes from 6mm up to 50mm in diameter.

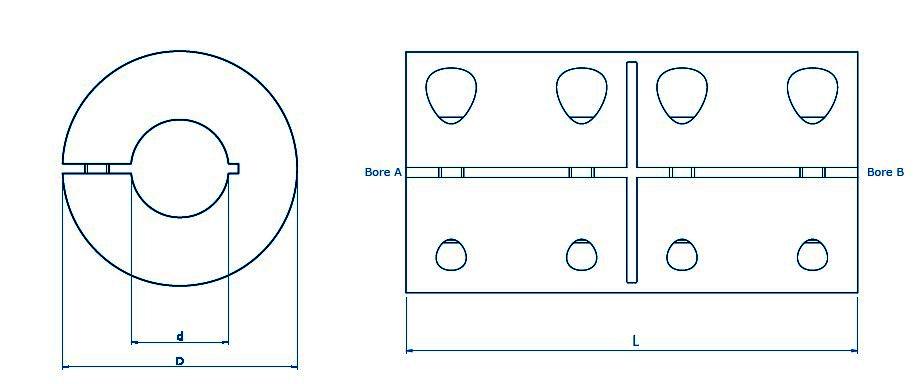

Split clamp design HR1

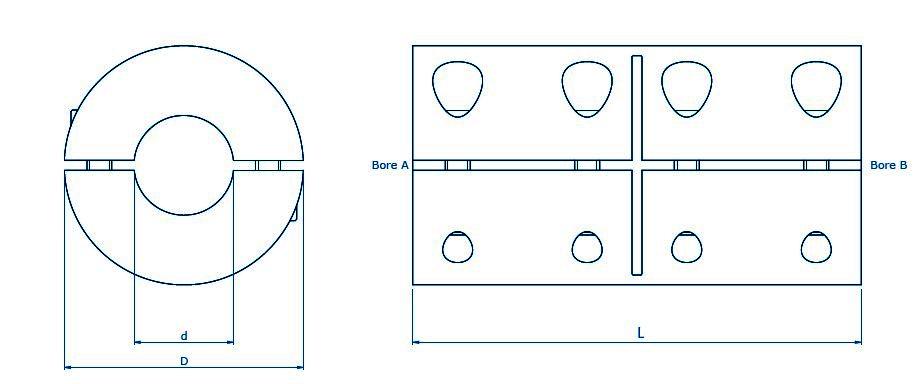

Two part clamp HR2

 Table of available sizes

One Piece HR1	Two Piece HR2	Bore A (mm)	Bore B (mm)	OD (mm)	Length L (mm)	Clamp Screw type	Available in Stainless Steel and Steel
HR166*	HR266*	6	6	18	30	M3x8	Yes
HR188*	HR288*	8	8	24	35	M3x10	Yes
HR11010*	HR21010*	10	10	29	45	M4x12	Yes
HR11212*	HR21212*	12	12	29	45	M4x12	Yes
HR11414*	HR21414*	14	14	34	50	M5x16	Yes
HR11515*	HR21515*	15	15	34	50	M5x16	Yes
HR11616*	HR21616*	16	16	35	50	M5x16	Yes
HR12020*	HR22020*	20	20	42	65	M6x16	Yes
HR12525*	HR22525*	25	25	45	75	M6x16	Yes
HR13030*	HR23030*	30	30	53	83	M6x18	Yes
HR13535*	HR23535*	35	35	67	95	M8x25	Yes
HR14040*	HR24040*	40	40	77	108	M6x16	Yes
HR15050*	HR25050*	50	50	85	124	M10x25	Yes

* State which material when ordering

* Other bore sizes on request



Precision Solid Couplings

Rigid couplings are available as standard in aluminium alloy, steel and  stainless steel.  For smaller shaft sizes the new SC series  clamping method that ensures the concentricity of the clamped shaft. Suited to  shaft sizes from 5mm to 12mm, including imperial and custom formats, make the new SC series ideal for applications where high torque and exceptional torsional stiffness are required.

• Exceptional torsional stiffness
• High torque capacity
• Metric and Imperial bore formats
• Integral clamp shaft attachment
• Aluminium or stainless steel versions
• To suit shaft sizes of 5mm to 50mm

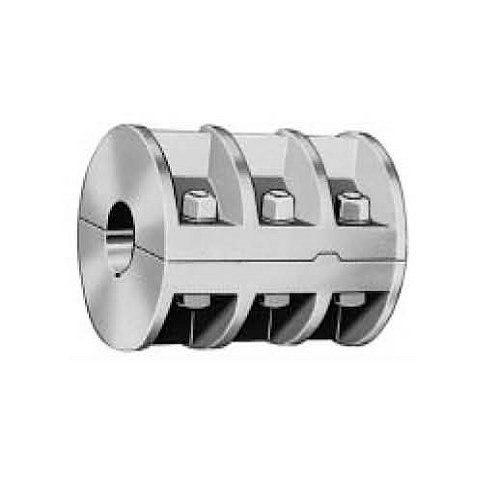

Industrial ribbed compression

The ribbed-type compression couplings are recommended for emergency and regular service on heavily loaded shafts. These couplings are bored true to shaft size, and the halves are separated during the boring operation to allow for clamping when the halves are drawn together. The bolt heads and nuts are protected by flanges and the end flanges are always faced square to bore. Ideally suit bore sizes of 30mm to 120mm.



If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection. Alternatively download the relevant rotary catalogue from the download button on this page or use the following link to request a printed catalogue or a CD version. CD/Catalogue
