Ball screw (* NEW *)

A Technological breakthrough..

Rolled Ball screw has larger end journal diameter using one piece of material !

Abssac is understood to be the first in the UK to supply a single piece, rolled ball screw that has a thread form right up to the end journal, which then has a diameter that is equal or greater than that of the screw thread diameter itself.

At first glance this innovation seems simple, but when you start to consider the limitations in thread rolling processes and take into account that previously it has been impossible to roll a thread on anything other than a single diameter bar stock, for the entire length of the screw, you start to see the great technological advance.

A rolled ball screw will always be more competitively priced than a ground screw equivalent and this has always caused the immiscible dilemma to the design engineer. Use a machined or ground screw to get the larger journal for greater axial thrust attachment security and available bearing choice or sacrifice the larger journal advantage for the less cost rolled screw.

The new SRT ball screw series, available from Abssac, are manufactured entirely from one piece of material and for the first time make the miscible supply.
By providing a high linear accuracy, the new ball screw series allows the customer to replace expensive ground ball screws with a rolled screw alternative at less cost and with operational confidence. As standard, two precision tolerances are available ; C7-20 (0.05mm/300mm, 20 microns axial play)  or  C10-50 (0.2mm/300mm, 50 microns axial play).

As standard the new series is available in  SCM415H hardened tool steel (HRC58/62) or 440C hardened Stainless Steel (HRC55+) . With all the ball screw sizes, a range of flanged, cylindrical and end threaded ball nut design mean that connection to any linear device is made simple.

Larger end journals also allow for much faster delivery due to unfinished end journal stock.

Table of available sizes

Diameter (mm)	Lead (mm)
	1	2	2.5	4	5	6	8	10	12	15	20
4
5
6
8
10
12
Key:
= Available in SCM415H hardened tool steel (HRC58/62)
= Available in 440C hardened Stainless Steel (HRC55+)

In a nut shell, the rolled ball screw ranges encompass;

• Low cost alternative to ground ball screws

• Screw manufactured from one piece of material
• Quick delivery due to unfinished end journal stock
• Compatible end machining to ground ball screws
• Precision : C7-20 (0.05mm/300mm, 20 microns axial play)
• Precision : C10-50 (0.2mm/300mm, 50 microns axial play)

• Wide selection of leads and pitches available per diameter
• Flanged, cylindrical and end threaded ball nut designs
• All parts can be supplied with journal ends machined and ready to fit application

• All Ball screws can be supplied with integrated radial and thrust bearings mounts

• ISO9001 approved

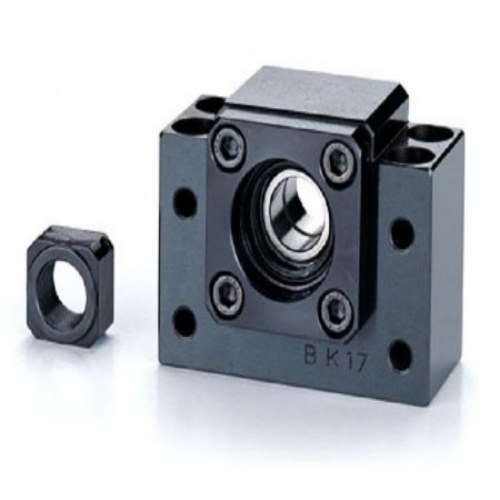

Thrust and Radial Bearings

Don't forget to ask for our competitive support bearing prices !

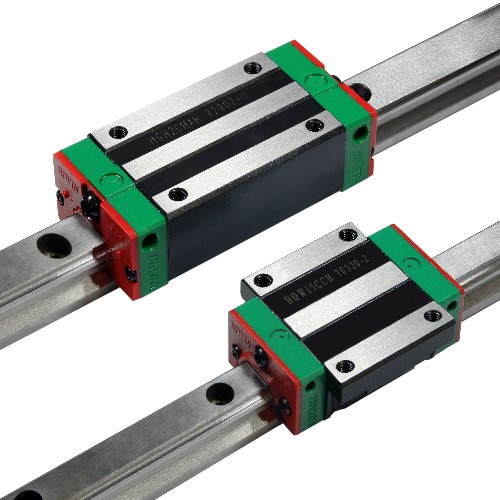

Linear guides and rails

If you are interested in the using  ball screws, please do not forget that we also supply the full range of linear guides and rails which can provide the load support in your linear mechanism. Offering excellent rigidity and parallelism during operation the guides can be used in both vertical and horizontal planes.

Following the link to that product page GUIDES



If you require further technical information, please do not hesitate to contact our sales engineers who will be more than happy to help you with your selection. Alternatively download the relevant linear catalogue from the download button on this page or use the following link to request a printed catalogue or a CD version. CD/Catalogue
