• Splined Shafts and Bushes

Splined Shafts

Machined from high grade EN8 steel in diameters of 14mm to 54mm as standard and supplied in lengths up to 3 metres enables us to supply into the most high load and long life expectancy linear applications. The splined shafts are complimented by a range of matched phosphor bronze flange nuts’ which are supplied complete with PCD arranged attachment holes. The product has a keen market price, fast delivery and ISO9001 quality assurance to give the product a competitive edge.

Machined from high grade EN8 steel in diameters of 14mm to 54mm as standard and supplied in lengths up to 3 metres enables us to supply into the most high load and long life expectancy linear applications.

Abssac has recently supplied one of the largest splined shafts to date. Measuring a massive 150mm in diameter, with 8 splines along its 2 metres length and weighing in at 250kg !. Manufactured from EN24T steel the customer did not have any technical drawings from which we could quote from. The only information available was to be gathered from the broken and distorted sample sent to us after a catastrophic failure at the paper mill. Abssac was successful in being able to replicate the part and deliver the new part ready to fit into the repaired machine.


As standard splined shaft are available from 14mm to 54mm in diameter with either 6 or 8 spline formats. A full range of flanged steel or bronze sleeves are available to compliment the splines. Standard lengths of 250,500,1000,2000 and 3000mm are available from stock.  The splined shafts can also be complimented by a range of matched phosphor bronze flange nuts’ which are supplied complete with PCD arranged attachment holes.

The product has a keen market price, fast delivery and ISO9001 assurance to give the product a competitive edge. Call us for a competitive quotation on 01386 421005

  • Splined Shafts
  • Splined shaft (Anodized)
    Splined shaft (Anodized)
  • A choice of nuts
    A choice of nuts
  • ABSSAC's range of quick delivery splines are reliable, precise and cost effective
    ABSSAC's range of quick delivery splines are reliable, precise and cost effective
  • End of splines machined to fit application
    End of splines machined to fit application

Steel Shaft

Splined Shafts Drawn Material
Steel EN8
Standard
DIN 5463

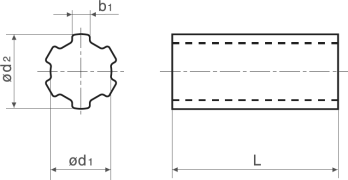

Splined Steel Shaft
Splined Steel Shaft Diagram

a*: Number of Keys


Steel Sleeve

Splined Sleeve Material
Round Steel EN8
Standard
DIN 5463

Steel Sleeve
Steel Sleeve Diagram

a*: Number of Keys


Bronze Flanged Sleeve

Splined Sleeve Material
PhospherBronze
Standard
DIN 5463

Bronze Flanged Sleeve
Bronze Flanged Sleeve Diagram 1Bronze Flanged Sleeve Diagram 2

a*: Number of Keys


Steel Flanged Sleeve

Splined Sleeve Material
Steel
Standard
DIN 5463

Steel Flanged Sleeve
Steel Flanged Sleeve Diagram 1Steel Flanged Sleeve Diagram 2

a*: Number of Keys
