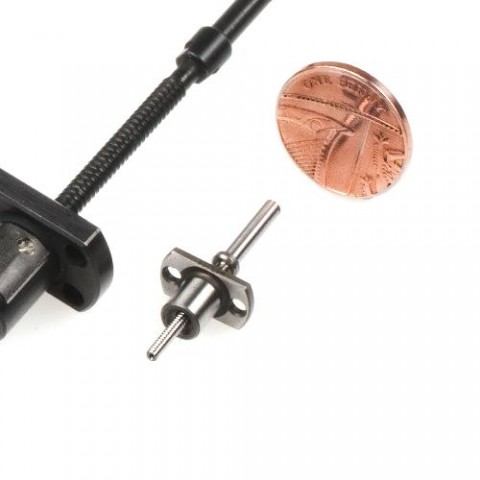

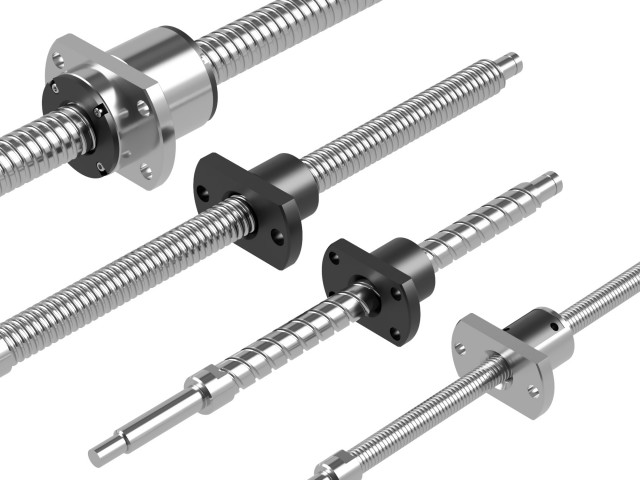

Available from 1.8mm to 20mm diameter using a ground ball screw stock. It is our most simple flange mountable single nut ball screw design. It is possible to supply the FBS series with slightly over sized balls to eliminate axial play and provide a light preload. The nut should be mounted using bolt holes in Flange.This series are available with repeatable accuracy of  C3 (zero backlash) or C5 (5 micron maximum backlash). There are four types of nut design which have been designed to save space. FBS (Return-plate), FKB (Internal-deflector), FDB (End-deflector), FEB (End-cap) circulation systems.

It is through this series (FBS); that Abssac is supplying what is believed to be the world’s smallest precision tolerance ball screw and nut assembly. With an amazing screw diameter of only 1.8mm and a lead of 0.5mm the new miniature ball screw range is ideally suited to the ever-smaller requirements of medical, optical and military application requirements. Using a ground screw format the carbuerised steel ball screw is supplied complete with journal ends machined to suit standard radial block bearings.  A standard a 6mm diameter nut body is used to house the 0.4mm diameter ball bearings, which are captivated in a recirculating ball nut design. Remarkably, the new product range offers a C3-05 accuracy grade ( i.e. 0.005mm axial play). Fixing the nut to the application is made simple by a range of flange sizes.

For more performance data, screw and nut dimensions please see our catalogue.

Product typeModelNom Shaft dia
(mm)
Lead
(mm)
Ca/Thrust
Hor. Capacity
(N)
Coa
Vert. Capacity
(N)
backlash
Precision Ball ScrewFBS01800.5A1.80.50110130Backlash
Precision Ball ScrewFBS0300.5A3.00.50150220Backlash
Precision Ball ScrewFBS0301B3.01.00330440Backlash
Precision Ball ScrewFBS0400.5A4.00.50160290Backlash
Precision Ball ScrewFKB0401A4.01.00300430Preload
Precision Ball ScrewFKB0401A4.01.00300430Backlash
Precision Ball ScrewFBS0401A4.01.00270290Preload
Precision Ball ScrewFBS0401A4.01.00420570Backlash
Precision Ball ScrewFBS0401B4.01.00350400Preload
Precision Ball ScrewFBS0401B4.01.00560790Backlash
Precision Ball ScrewFBS0402A4.02.00260290Preload
Precision Ball ScrewFBS0402A4.02.00420570Backlash
Precision Ball ScrewFBS0403A4.03.00420570Backlash
Precision Ball ScrewFEB0404A4.04.007501150Backlash
Precision Ball ScrewFBS0500.5A5.00.50180370Backlash
Precision Ball ScrewFKB0501A5.01.00330560Preload
Precision Ball ScrewFKB0501A5.01.00330560Backlash
Precision Ball ScrewFBS0501B5.01.00400500Preload
Precision Ball ScrewFBS0501B5.01.006301000Backlash
Precision Ball ScrewFBS0504A5.04.00300360Preload
Precision Ball ScrewFBS0504A5.04.00470720Backlash
Precision Ball ScrewFBS0600.5A6.00.50190440Backlash
Precision Ball ScrewFKB0601A6.01.00560950Preload
Precision Ball ScrewFKB0601A6.01.00560950Backlash
Precision Ball ScrewFBS0601B6.01.00430610Preload
Precision Ball ScrewFBS0601B6.01.006801200Backlash
Precision Ball ScrewFBS0601.5B6.01.50620800Preload
Precision Ball ScrewFBS0601.5B6.01.509801600Backlash
Precision Ball ScrewFBS0602A6.02.00470590Preload
Precision Ball ScrewFBS0602A6.02.007501200Backlash
Precision Ball ScrewFBS0602B6.02.00620800Preload
Precision Ball ScrewFBS0602B6.02.009801600Backlash
Precision Ball ScrewFBS0602.5A6.02.50470590Preload
Precision Ball ScrewFBS0602.5A6.02.507501200Backlash
Precision Ball ScrewFEB0606A6.06.008701450Backlash
Precision Ball ScrewFEB0610A6.010.009501600Backlash
Precision Ball ScrewFEB0612A6.012.00600950Backlash
Precision Ball ScrewFBS0800.5A8.00.50220590Backlash
Precision Ball ScrewFKB0801A8.01.006501300Preload
Precision Ball ScrewFKB0801A8.01.006501300Backlash
Precision Ball ScrewFBS0801B8.01.00490820Preload
Precision Ball ScrewFBS0801B8.01.007801650Backlash
Precision Ball ScrewFKB0801.5A8.01.508901650Preload
Precision Ball ScrewFKB0801.5A8.01.508901650Backlash
Precision Ball ScrewFBS0801.5B8.01.507001100Preload
Precision Ball ScrewFBS0801.5B8.01.5011002200Backlash
Precision Ball ScrewFKB0802A8.02.0013002300Preload
Precision Ball ScrewFKB0802A8.02.0013002300Backlash
Precision Ball ScrewFBS0802A(1)8.02.00540800Preload
Precision Ball ScrewFBS0802A(1)8.02.008501600Backlash
Precision Ball ScrewFBS0802B(1)8.02.007001100Preload
Precision Ball ScrewFBS0802B(1)8.02.0011002200Backlash
Precision Ball ScrewFBS0802A(2)8.02.0011501500Preload
Precision Ball ScrewFBS0802A(2)8.02.0018503000Backlash
Precision Ball ScrewFBS0802B(2)8.02.0015502100Preload
Precision Ball ScrewFBS0802B(2)8.02.0024004100Backlash
Precision Ball ScrewFDB0802.5A8.02.5018503000Backlash
Precision Ball ScrewFBS0802.5A8.02.5011501500Preload
Precision Ball ScrewFBS0802.5A8.02.5018503000Backlash
Precision Ball ScrewFBS0802.5B8.02.5015502100Preload
Precision Ball ScrewFBS0802.5B8.02.5024004100Backlash
Precision Ball ScrewFBS0803A8.03.0016502100Preload
Precision Ball ScrewFBS0803A8.03.0026004200Backlash
Precision Ball ScrewFBS0803B8.03.0022002800Preload
Precision Ball ScrewFBS0803B8.03.0035005700Backlash
Precision Ball ScrewFBS0804A8.04.0016502100Preload
Precision Ball ScrewFBS0804A8.04.0026004200Backlash
Precision Ball ScrewFBS0805A8.05.0011501500Preload
Precision Ball ScrewFBS0805A8.05.0018503000Backlash
Precision Ball ScrewFEB0808A8.08.0022003800Backlash
Precision Ball ScrewFEB0810A8.010.0022003900Backlash
Precision Ball ScrewFEB0812A8.012.0022004000Backlash
Precision Ball ScrewFKB1001A10.01.007201650Preload
Precision Ball ScrewFKB1001A10.01.007201650Backlash
Precision Ball ScrewFBS1001B10.01.005301000Preload
Precision Ball ScrewFBS1001B10.01.008402000Backlash
Precision Ball ScrewFKB1001.5A10.01.509902100Preload
Precision Ball ScrewFKB1001.5A10.01.509902100Backlash
Precision Ball ScrewFBS1001.5B10.01.507901400Preload
Precision Ball ScrewFBS1001.5B10.01.5012502800Backlash
Precision Ball ScrewFKB1002A10.02.0014503000Preload
Precision Ball ScrewFKB1002A10.02.0014503000Backlash
Precision Ball ScrewFBS1002A10.02.0013001900Preload
Precision Ball ScrewFBS1002A10.02.0021003800Backlash
Precision Ball ScrewFBS1002B10.02.0017502700Preload
Precision Ball ScrewFBS1002B10.02.0027005300Backlash
Precision Ball ScrewFKB1002.5A10.02.5021003800Preload
Precision Ball ScrewFKB1002.5A10.02.5021003800Backlash
Precision Ball ScrewFBS1002.5A10.02.5013001900Preload
Precision Ball ScrewFBS1002.5A10.02.5021003800Backlash
Precision Ball ScrewFBS1002.5B10.02.5017502700Preload
Precision Ball ScrewFBS1002.5B10.02.5027005300Backlash
Precision Ball ScrewFBS1003A10.03.0018002600Preload
Precision Ball ScrewFBS1003A10.03.0030005200Backlash
Precision Ball ScrewFBS1003B10.03.0025003600Preload
Precision Ball ScrewFBS1003B10.03.0039007200Backlash
Precision Ball ScrewFBS1004A10.04.0018002600Preload
Precision Ball ScrewFBS1004A10.04.0030005200Backlash
Precision Ball ScrewFBS1004B10.04.0025003600Preload
Precision Ball ScrewFBS1004B10.04.0039007200Backlash
Precision Ball ScrewFDB1005A10.05.0030005200Backlash
Precision Ball ScrewFBS1005A10.05.0018002600Preload
Precision Ball ScrewFBS1005A10.05.0030005200Backlash
Precision Ball ScrewFEB1010A10.010.0033005900Backlash
Precision Ball ScrewFEB1012A10.012.0033006200Backlash
Precision Ball ScrewFEB1015A10.015.0033006400Backlash
Precision Ball ScrewFEB1020A10.020.0021004000Backlash
Precision Ball ScrewFEB1025A10.025.0021004000Backlash
Precision Ball ScrewFEB1030A10.030.0021004000Backlash
Precision Ball ScrewFKB1201A12.01.007802000Preload
Precision Ball ScrewFKB1201A12.01.007802000Backlash
Precision Ball ScrewFBS1201B12.01.005701200Preload
Precision Ball ScrewFBS1201B12.01.009102400Backlash
Precision Ball ScrewFKB1202A12.02.0016003700Preload
Precision Ball ScrewFKB1202A12.02.0016003700Backlash
Precision Ball ScrewFBS1202B12.02.0019003200Preload
Precision Ball ScrewFBS1202B12.02.0030006400Backlash
Precision Ball ScrewFKB1202.5A12.02.5023004700Preload
Precision Ball ScrewFKB1202.5A12.02.5023004700Backlash
Precision Ball ScrewFBS1202.5B12.02.5018503200Preload
Precision Ball ScrewFBS1202.5B12.02.5030006400Backlash
Precision Ball ScrewFKB1203A12.03.0031005700Preload
Precision Ball ScrewFKB1203A12.03.0031005700Backlash
Precision Ball ScrewFBS1203B12.03.0028004300Preload
Precision Ball ScrewFBS1203B12.03.0043008700Backlash
Precision Ball ScrewFBS1204B12.04.0034005100Preload
Precision Ball ScrewFBS1204B12.04.00540010200Backlash
Precision Ball ScrewFBS1205A12.05.0025003700Preload
Precision Ball ScrewFBS1205A12.05.0041007400Backlash
Precision Ball ScrewFEB1210A12.010.0051009800Backlash
Precision Ball ScrewFEB1312A13.012.0050009900Backlash
Precision Ball ScrewFEB1315A13.015.00500010300Backlash
Precision Ball ScrewFEB1320A13.020.00500010700Backlash
Precision Ball ScrewFBS1401B14.01.006101450Preload
Precision Ball ScrewFBS1401B14.01.009602900Backlash
Precision Ball ScrewFKB1402A14.02.0017004300Preload
Precision Ball ScrewFKB1402A14.02.0017004300Backlash
Precision Ball ScrewFBS1402B14.02.0020003800Preload
Precision Ball ScrewFBS1402B14.02.0032007500Backlash
Precision Ball ScrewFKB1402.5A14.02.5025005600Preload
Precision Ball ScrewFKB1402.5A14.02.5025005600Backlash
Precision Ball ScrewFBS1402.5B14.02.5020003700Preload
Precision Ball ScrewFBS1402.5B14.02.5032007500Backlash
Precision Ball ScrewFKB1403A14.03.0034006800Preload
Precision Ball ScrewFKB1403A14.03.0034006800Backlash
Precision Ball ScrewFBS1403B14.03.0029005000Preload
Precision Ball ScrewFBS1403B14.03.00460010100Backlash
Precision Ball ScrewFKB1404A14.04.0045008600Preload
Precision Ball ScrewFKB1404A14.04.0045008600Backlash
Precision Ball ScrewFBS1404B14.04.0036005800Preload
Precision Ball ScrewFBS1404B14.04.00570011600Backlash
Precision Ball ScrewFBS1405B14.05.0036005800Preload
Precision Ball ScrewFBS1405B14.05.00570011600Backlash
Precision Ball ScrewFBS1504T15.04.0025804300Preload
Precision Ball ScrewFBS1504T15.04.0041008550Backlash
Precision Ball ScrewFEB1505A(1)15.05.00890017000Backlash
Precision Ball ScrewFEB1505A(2)15.05.00890017000Backlash
Precision Ball ScrewFBS1505T15.05.0043506250Preload
Precision Ball ScrewFBS1505T15.05.00690012500Backlash
Precision Ball ScrewFEB1510A(1)15.010.001200025000Backlash
Precision Ball ScrewFEB1510A(2)15.010.001200025000Backlash
Precision Ball ScrewFBS1510T15.010.0025403450Preload
Precision Ball ScrewFBS1510T15.010.0044007900Backlash
Precision Ball ScrewFEB1520A(1)15.020.00800016000Backlash
Precision Ball ScrewFEB1520A(2)15.020.00800016000Backlash
Precision Ball ScrewFBS1520T15.020.0025403450Preload
Precision Ball ScrewFBS1520T15.020.0044007900Backlash
Precision Ball ScrewFEB1530A(1)15.030.00800016000Backlash
Precision Ball ScrewFEB1530A(2)15.030.00800016000Backlash
Precision Ball ScrewFBS1601B16.01.006401650Preload
Precision Ball ScrewFBS1601B16.01.0010003300Backlash
Precision Ball ScrewFKB1602A16.02.0018505000Preload
Precision Ball ScrewFKB1602A16.02.0018505000Backlash
Precision Ball ScrewFBS1602B16.02.0021004300Preload
Precision Ball ScrewFBS1602B16.02.0034008600Backlash
Precision Ball ScrewFKB1602.5A16.02.5027006500Preload
Precision Ball ScrewFKB1602.5A16.02.5027006500Backlash
Precision Ball ScrewFBS1602.5B16.02.5021004300Preload
Precision Ball ScrewFBS1602.5B16.02.5034008600Backlash
Precision Ball ScrewFKB1603A16.03.0036008000Preload
Precision Ball ScrewFKB1603A16.03.0036008000Backlash
Precision Ball ScrewFBS1603B16.03.0031005800Preload
Precision Ball ScrewFBS1603B16.03.00490011600Backlash
Precision Ball ScrewFKB1604A16.04.00480010000Preload
Precision Ball ScrewFKB1604A16.04.00480010000Backlash
Precision Ball ScrewFBS1604B16.04.0039006800Preload
Precision Ball ScrewFBS1604B16.04.00620013600Backlash
Precision Ball ScrewFBS1605B16.05.0057009100Preload
Precision Ball ScrewFBS1605B16.05.00910018200Backlash
Precision Ball ScrewFBS2005T20.05.0052608750Preload
Precision Ball ScrewFBS2005T20.05.00835017500Backlash
Precision Ball ScrewFBS2010T20.010.00835012800Preload
Precision Ball ScrewFBS2010T20.010.001350025100Backlash
